likely dumb question re air screw and gas cap vent

  • xstreamcanadian
  • xstreamcanadian's Avatar Topic Author
  • Offline
  • User
  • Posts: 281
  • Thanks: 12

likely dumb question re air screw and gas cap vent

26 May 2024 18:46
#899785
so first off i dont know if i have an air screw or a fuel screw on my 78 kz650 sr. That said, is there a recommended good place to start with them, or a good how to on how to determine if I should mess with them in the first place? Also i punted the factory tank because i hate the look of it and put on a tank from a 77 650c. I am wondering how do I check the gas cap vent? blow pressurized air into the petcock?

thanks in advance.

Please Log in or Create an account to join the conversation.

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2980
  • Thanks: 1086

Re: likely dumb question re air screw and gas cap vent

26 May 2024 19:45
#899788
You can take the gas cap apart and make sure it's clean.

Take a look at your carbs.  Air screws are on the outside of each one.  Fuel screws if you have them are directly underneath each carb outlet.

It sounds like you need a service manual.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: Warren3200gt

Please Log in or Create an account to join the conversation.

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1253
  • Thanks: 758

Re: likely dumb question re air screw and gas cap vent

27 May 2024 04:33
#899797
Rough rule of thumb on idle mixture screws found on slide carbs:
If the screw is on the airbox side of the slide, it's an air screw, likely with a relatively large, blunt taper.  Think worn tip of a pencil lead.
If the screw is on the intake port side of the slide, it's a fuel screw, likely with a tiny, sharp tip at the end of a long, gradual taper.  Think freshly sharpened pencil with a sharp, delicate tip.

If there are exceptions we don't know about them.

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.
The following user(s) said Thank You: xstreamcanadian

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1410
  • Thanks: 464

Re: likely dumb question re air screw and gas cap vent

27 May 2024 05:50
#899803
To the best of my knowledge the 1978 KZ650 SR is also known as a D model. There were 2 versions for that model and year, the D1 and the D1A. The D1 came stock with vm24ss carbs that have only an air screw. While the D1A came with vm22ss carbs that have only a pilot screw. So depending upon which model you have the stock carbs will have one or the other type of screws. As indicated air screws are on the air side of the carb, near the intake bell. Pilot screws are located on the bottom of the carb/float bowl on the engine side of the carb. I have attached a pic of a carb that has both types of screws (note the carbs in the pic are vm26ss carbs and not the 24s or 22s that your bike came stock with) But they do show the locations of the 2 different type of screws.

As to if you need to make any adjustments to which ever type of screw your carbs have is dependent upon how it runs currently.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: xstreamcanadian, SWest

Please Log in or Create an account to join the conversation.

  • xstreamcanadian
  • xstreamcanadian's Avatar Topic Author
  • Offline
  • User
  • Posts: 281
  • Thanks: 12

Re: likely dumb question re air screw and gas cap vent

28 May 2024 16:02
#899895
there are 4 screws all accessible from the outside so yes sorry air screws.

Please Log in or Create an account to join the conversation.

  • xstreamcanadian
  • xstreamcanadian's Avatar Topic Author
  • Offline
  • User
  • Posts: 281
  • Thanks: 12

Re: likely dumb question re air screw and gas cap vent

28 May 2024 16:05 - 28 May 2024 16:09
#899896

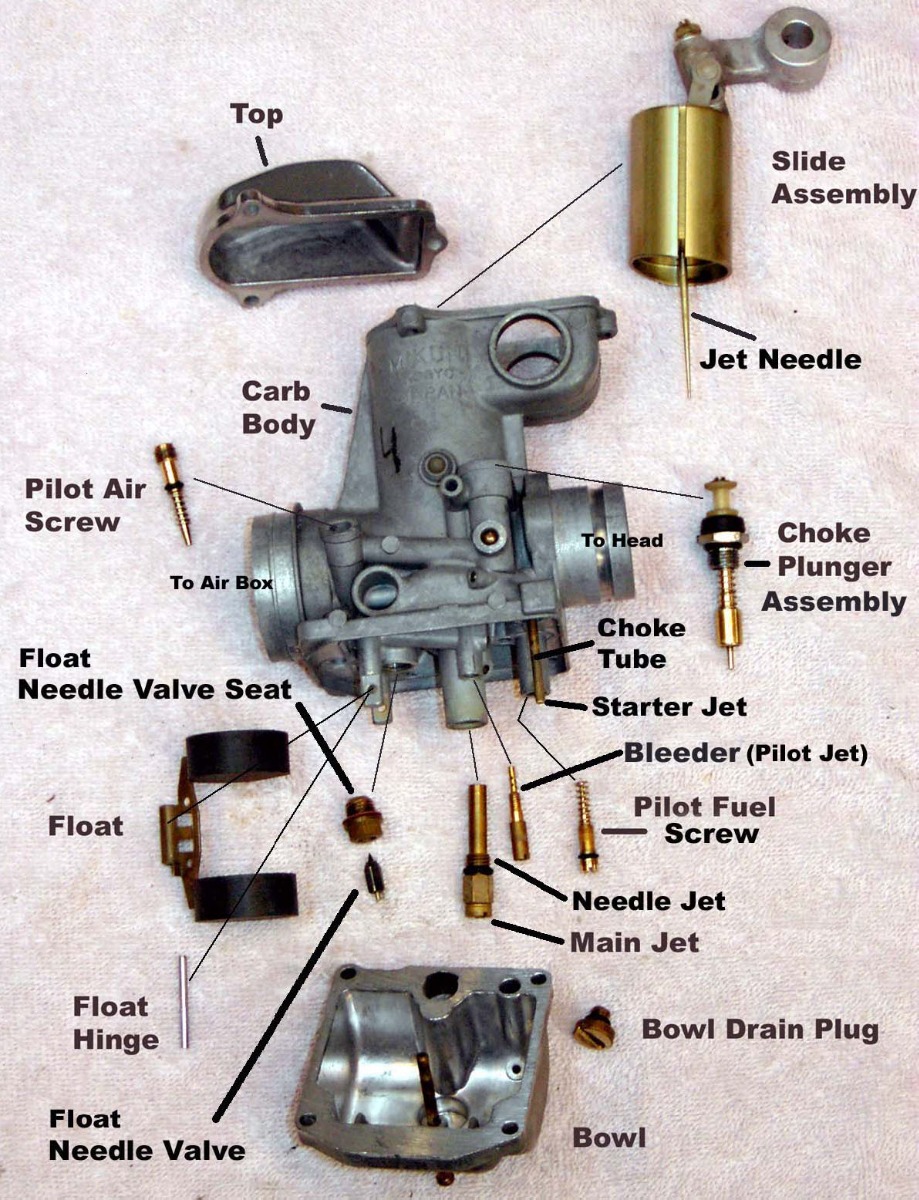

As to if you need to make any adjustments to which ever type of screw your carbs have is dependent upon how it runs currently. [attachment=170227]vm26 apart.jpg


It ran and started poorly but so far I have found and corrected (and not tried running yet)
1. valves out of adjustment - adjusted and put in appropriate shims, re checked all in spec now
2. float heights off - measured and ensured all were bang on
3. bowl fuel levels - one was good, two were low one was too high - all adjusted
4. main jet oring on one carb was destroyed and jet was sitting high (not tightened down all the way. Rectified  and cleaned o ring debris
5. checked and cleaned out needle and pilot jets

so it may run great now who knows but I want to do what I can to prevent going through all this stuff again. I was wondering is there a starting spot for these air screws located on the outside of all four carbs? like two turns out to start and then adjust as needed etc?

thank you!!!!

Last edit: 28 May 2024 16:09 by xstreamcanadian.

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1410
  • Thanks: 464

Re: likely dumb question re air screw and gas cap vent

28 May 2024 18:19
#899901

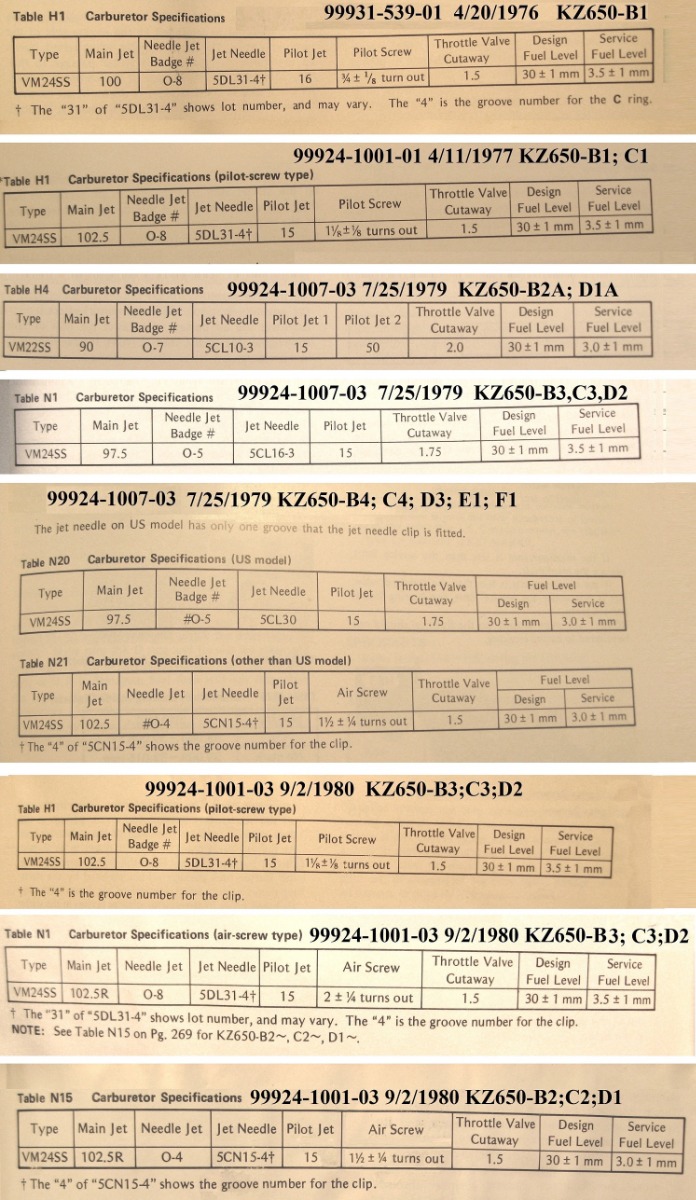

Here is a list of several models/years of stock carb settings from FSM's, the bottom list covers a D1 model.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: xstreamcanadian, chopper1963

Please Log in or Create an account to join the conversation.

  • xstreamcanadian
  • xstreamcanadian's Avatar Topic Author
  • Offline
  • User
  • Posts: 281
  • Thanks: 12

Re: likely dumb question re air screw and gas cap vent

29 May 2024 10:45
#899957
this is a great resource thank you. I am also not running stock jets, as I have pods and a 4 into 1. So I should have started with that perhaps as I am guessing that also throws the air screws out a bit from the factory settings. I think I will make markings on them all and turn the screws in and figure out where they are all currently set to as a start, use the charts and also see how she runs.

thanks so much!

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1410
  • Thanks: 464

Re: likely dumb question re air screw and gas cap vent

29 May 2024 11:12
#899959
OK, then you might want to read more on the air corrector jet that Zed has offered as a solution to overcoming the lean issue that happens when the slide opens up more of the carb throat, when running pods.  As I understand it he indicates using all stock settings re jets other than increasing the main and installing the air corrector jet on the port that provides air into the needle jet, jet needle, main fuel jet. But please search for posts on the subject as I do not mean to speak for him, as he does it much better than I do.

Keep in mind that the air screw has most effect when at idle and just off idle.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: xstreamcanadian

Please Log in or Create an account to join the conversation.

  • xstreamcanadian
  • xstreamcanadian's Avatar Topic Author
  • Offline
  • User
  • Posts: 281
  • Thanks: 12

Re: likely dumb question re air screw and gas cap vent

18 Jun 2024 06:01
#900920
I took my gas cap apart, the paper seal disc was mis aligined, mine has a curve notched our of the cap and the disc has a hole that lines up wit it. I assume its made that way to stop it from allowing water in or gas splashing out. Vents now.

after all the valve adjusting and carb work, she flashed right up, and for the first time i turn the choke off and it idles well, no more carb backfire, ni more exhaust backfire, no more fuel pouring out of the carbs or via overflow through the bowl drain. Yiu guys are awesome. Thanks so much.

Please Log in or Create an account to join the conversation.

  • chopper1963
  • chopper1963's Avatar
  • Offline
  • User
  • Posts: 221
  • Thanks: 39

Re: likely dumb question re air screw and gas cap vent

23 Jun 2024 06:08
#901172
Perhaps better explain HOW to determine which model 1978 KZ650 you have. That's by the VIN, correct? Is there a decorder on-line?

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1410
  • Thanks: 464

Re: likely dumb question re air screw and gas cap vent

23 Jun 2024 08:26
#901180
Though not a decoder here is a table I made in the past with frame and engine numbers for the (K)Z650 models. This is info I could find and make sense of, but was never intended to be 100% correct, nor have I ever claimed it so. It was more to see what I could learn about it.

1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.
