VM28 float level 26 Mar 2024 08:41 #896903

  • sf4t7
  • sf4t7's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 414
  • Thank you received: 256
OK so here's my dumb question for the day:  Checking float level with the clear tube, is it 1/8" down from the float bowl gasket surface or from the lip at the bottom of the carb body?  Illustration in the FSM looks like it's from the bottom edge of the lip.
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1

Please Log in or Create an account to join the conversation.

VM28 float level 26 Mar 2024 08:59 #896905

  • Warren3200gt
  • Warren3200gt's Avatar
  • Offline
  • User
  • Posts: 1449
  • Thank you received: 657
The mating surface of the bowl and body. 2-4mm. So aim for 3mm.

Z1000J2 somewhat modified!

The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

VM28 float level 26 Mar 2024 10:11 #896909

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7294
  • Thank you received: 2680

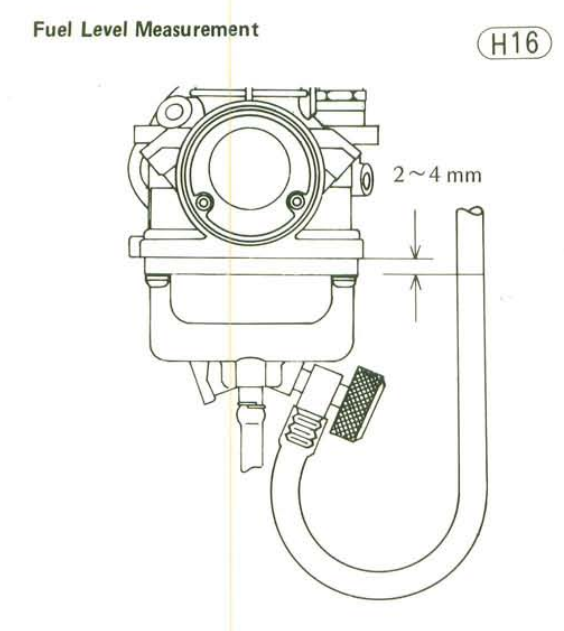

The datum is the bottom edge of the carb body.


Attachments:
The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

VM28 float level 26 Mar 2024 11:49 #896911

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar
  • Offline
  • User
  • Posts: 268
  • Thank you received: 116

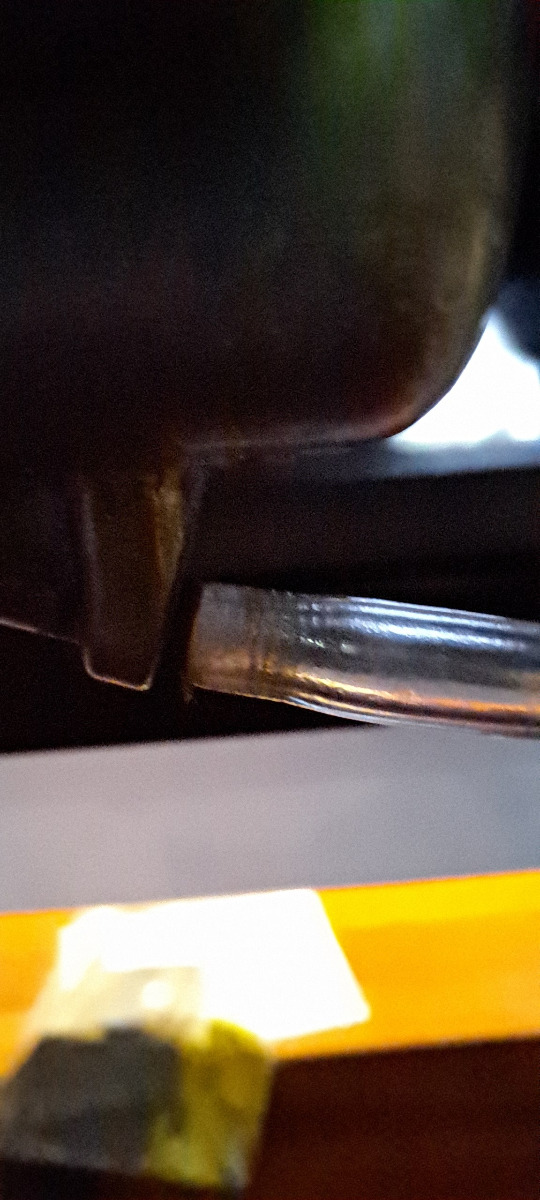

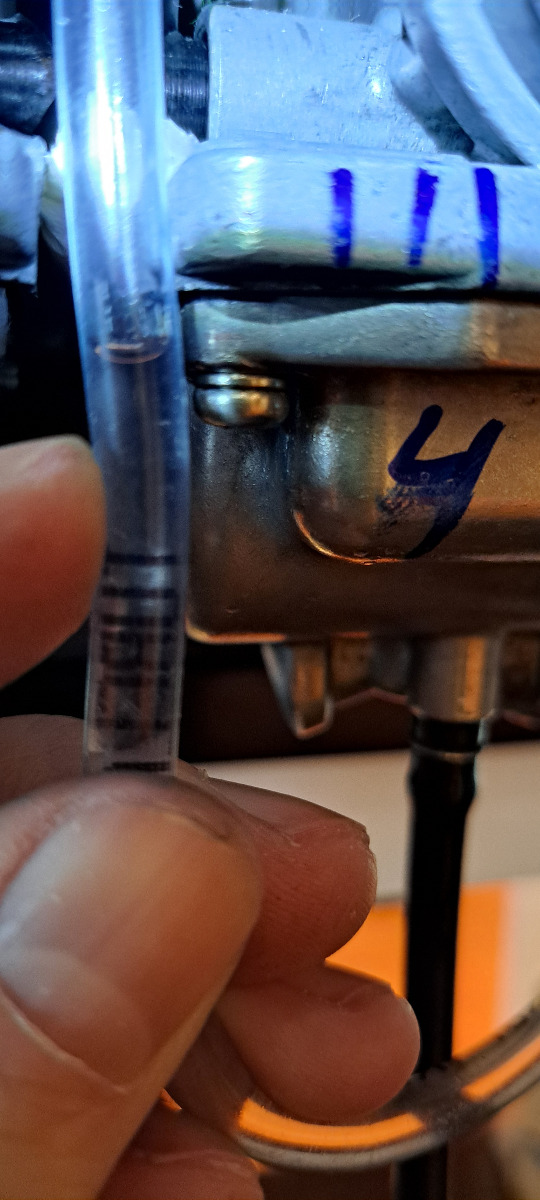

here is fuel level on my kz900 just using a plastic tube screwed in the drainplughole.
Attachments:

Please Log in or Create an account to join the conversation.

VM28 float level 26 Mar 2024 12:17 #896917

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar
  • Offline
  • User
  • Posts: 268
  • Thank you received: 116

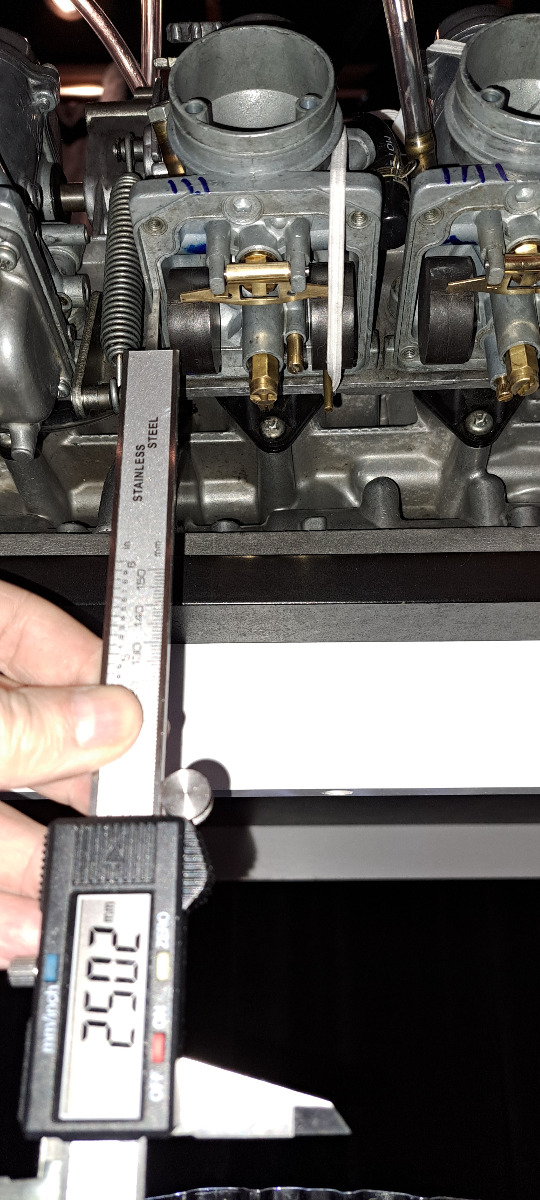

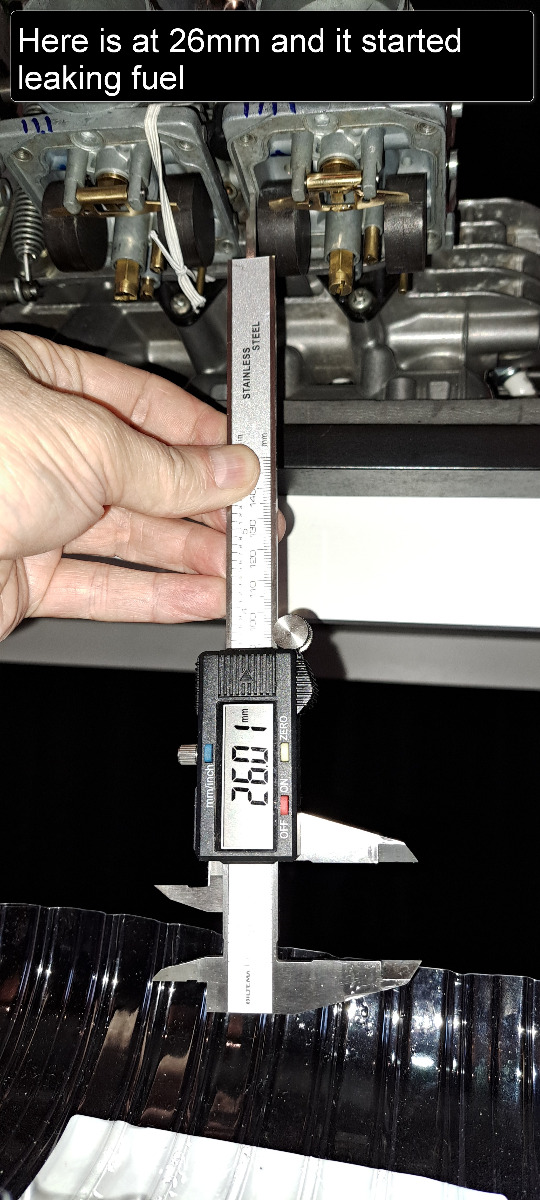

if curius on what the float height is i did this test .It is a very good test to check if the float valve leaks and at what height the floatvalve opens.My carbs had a height at 25mm at 25,5mm they leak.
Here is a link to the test i use  from themotorcyclemd .




Attachments:
The following user(s) said Thank You: SWest

Please Log in or Create an account to join the conversation.

Last edit: by Rolf1976_KZ900.

VM28 float level 26 Mar 2024 14:14 #896921

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar
  • Offline
  • User
  • Posts: 268
  • Thank you received: 116
ups i forgot that i have carbs for kz1000 on my bike but they are vm28 I think ? i will check again in a earlier tread .
Okay update i have vm26 carbs.

Please Log in or Create an account to join the conversation.

Last edit: by Rolf1976_KZ900.

VM28 float level 26 Mar 2024 15:09 #896927

  • sf4t7
  • sf4t7's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 414
  • Thank you received: 256
Thanks Ed.  I couldn't decide if the FSM was referring to the bottom of the body or the top edge of the float bowl.  And then I started overthinking it...
Scotty

1974 Z1A
1015
welded Z1 crank
Andrews 1X Cams
Delkevic 4 into 1

Please Log in or Create an account to join the conversation.

VM28 float level 26 Mar 2024 17:47 #896937

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1130
  • Thank you received: 610

The datum is the bottom edge of the carb body.



What manual is that illustration from?

The Z1 'White' FSM reads "About 1/8" " there.  The ambiguous "About" always drove slmjim nuts.  Still does.

Good Ridin'
slmjim & Z1BEBE

A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

VM28 float level 27 Mar 2024 17:30 #896985

  • Cra-z1
  • Cra-z1's Avatar
  • Offline
  • User
  • Posts: 155
  • Thank you received: 85
I always set it just to the top of the split washer on the bowl screw.
The following user(s) said Thank You: sf4t7

Please Log in or Create an account to join the conversation.

Last edit: by Cra-z1.
