Does anyone know the thread pitch of the VM26 fuel pilot screws. I’m guessing they are 4mm. I’m limited in my thread pitch gauges and don’t have one to match. Carb bodies were vapor blasted and one thread is tight. I’m assuming there is media caught in the threads. Or any tricks to chase the threads.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • Warren3200gt
  • Warren3200gt's Avatar
  • Away
  • User
  • Posts: 1505
  • Thanks: 715

Re: Fuel pilot Screw

10 May 2022 13:16 - 10 May 2022 13:17
#866872
Whip out one of the float bowl screws and compare them. Float bowls screws are 4 x 0.7 thread. I would imagine they are the same.
[img
[img
[img
[img
[img

Z1000J2 somewhat modified!
[img

Last edit: 10 May 2022 13:17 by Warren3200gt.
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7506
  • Thanks: 2870

Re: Fuel pilot Screw

10 May 2022 16:16
#866879
5mm x .5
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1410
  • Thanks: 464

Re: Fuel pilot Screw

10 May 2022 16:18
#866881
That is a good suggestion.  I do not know the pitch on the pilot screws. Look you have been inside enough carbs (seen your work) that I am not sure I can tell you anything you do not already know. Though it is never a good idea to take parts from one carb and use them in another you could try one and see if it is the threads on the screw or in the carb. I am not sure how to help you with finding the pitch.  I am not sure what it is like where you live but here (Seattle) there are brick and motor stores that can assist with this.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4832
  • Thanks: 1849

Re: Fuel pilot Screw

10 May 2022 16:41
#866882
wrote:
5mm x .5
Thanks. I was playing with some taps I have matching up the pitch. The best match I had was using a 4mm x .5 tap to match for the threads. Then the caliper confirmed it is a 5mm. Feeling good now I see Ness independently coming up with the same. I questioned myself as I stopped at a local well known bolt and hardware supplier and they told me it was a priority size and pitch developed by the carb manufacturer. First time in 30 years they failed to help. Might have been beer night as they locked the door behind me as I walked in and was the last customer of the day. Yes they let me out———LOL.

Thanks for the help and kind words. Next move is to get a 5mm x .5 nut and see if it threads on the pilot screw. If a go then a bottom tap will be ordered.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7506
  • Thanks: 2870

Re: Fuel pilot Screw

10 May 2022 17:01 - 10 May 2022 17:06
#866886
wrote:
wrote:
5mm x .5
Thanks. I was playing with some taps I have matching up the pitch. The best match I had was using a 4mm x .5 tap to match for the threads. Then the caliper confirmed it is a 5mm. Feeling good now I see Ness independently coming up with the same. I questioned myself as I stopped at a local well known bolt and hardware supplier and they told me it was a priority size and pitch developed by the carb manufacturer. First time in 30 years they failed to help. Might have been beer night as they locked the door behind me as I walked in and was the last customer of the day. Yes they let me out———LOL.

Thanks for the help and kind words. Next move is to get a 5mm x .5 nut and see if it threads on the pilot screw. If a go then a bottom tap will be ordered.

www.amazon.com/gp/product/B07BF96X3M

Be very careful with a tap like this.  The threads are so fine that it's easy to start it incorrectly and take out all the threads in the hole.  Start the tap by hand and make sure it starts properly in the old threads.  A regular tip is better than a bottoming tap because it has a more gentle lead-in, which helps make sure the tap starts properly.

I use grease on the threads to catch the chips.  Regrease as needed as you go.  The idea is to pull out the swarf, don't allow it to collect in the hole.  When finished, spray carb cleaner into the port in the carb throat, which will exit the pilot screw hole, thus blowing the chips backwards.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Last edit: 10 May 2022 17:06 by Nessism.

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4832
  • Thanks: 1849

Re: Fuel pilot Screw

10 May 2022 17:53
#866889
Thanks Ed, lucky the “Swarf” seams to be deeper in the bore. The pilot screw threads in most of the way till it gets tight. That is done without the oring, and spring. This should help with getting the tap started. I was thinking a bot tap because the bad threads are near the bottom and I was concerned the tip of the tap might hets the tapered seat before it cleared the threads. I’ll buy both. Thank You
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1410
  • Thanks: 464

Re: Fuel pilot Screw

10 May 2022 18:30
#866891
Just make sure the pilot screw port is open. As you know some of these screws have been broken in the past and left points behind.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4832
  • Thanks: 1849

Re: Fuel pilot Screw

10 May 2022 18:41
#866893
wrote:
Just make sure the pilot screw port is open. As you know some of these screws have been broken in the past and left points behind.

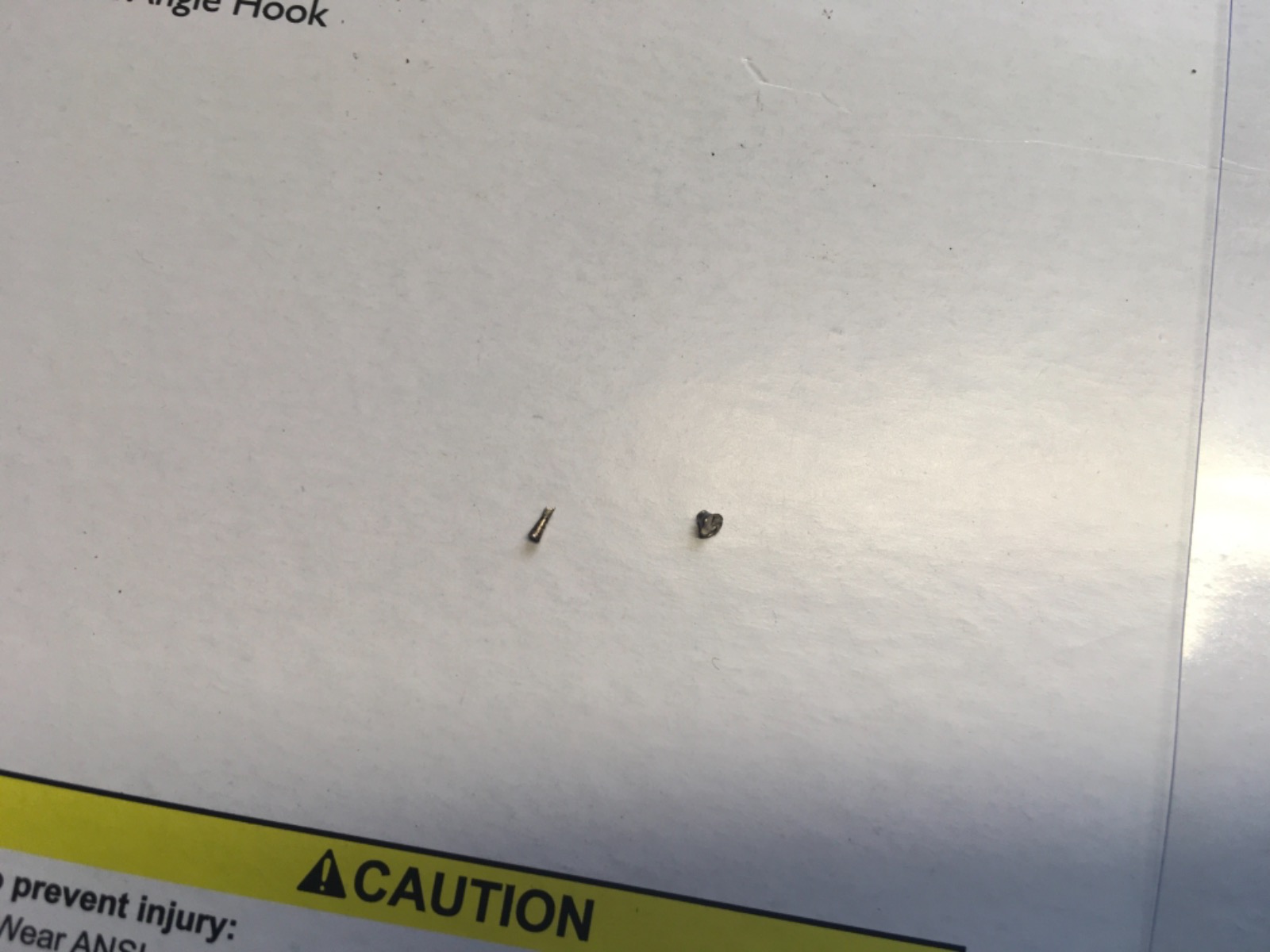

Yes, Ed save my butt in that regard. I twisted off two tips because I couldn’t feel the bottom because the threads were boogered. He talked off the ledge with a repair procedure to remove the tips.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7506
  • Thanks: 2870

Re: Fuel pilot Screw

10 May 2022 19:44 - 10 May 2022 19:48
#866898
I've fixed buggered threads before on CV carbs, but the idea is the same as VM's.  This photo is of an older set, but I did a set just this last weekend too.  I'm (sadly) getting pretty good at it.

[img
20170527_134643 by nessism , on Flickr


Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Last edit: 10 May 2022 19:48 by Nessism.
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4832
  • Thanks: 1849

Re: Fuel pilot Screw

11 May 2022 15:41
#866943
Researched types of taps and picked a “plug tap” it is a tap between a bottom tap and a taper. Just an FYI.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar Topic Author
  • Offline
  • Sustaining Member
  • Posts: 4832
  • Thanks: 1849

Re: Fuel pilot Screw

15 May 2022 15:15
#867137
Seeing how this post was about these carbs I figured I’d post the 95% finished product here. Needs top and bowl gaskets, bench sync, fuel levels set clear tube and one last go through to make sure everything is tight.

Thank you to Nessism for talking me off the ledge over broken fuel pilot tips, and helping with the fuel transfer tubes.

A thank you also to Zed1015 for rebuilding the choke plunger seals and supplying the air corrector Jets.

These are going to Wheelhop for thanks for his Most Excellent Adventure and tossing my parts in with his. Thank you Jim!.
