I have a 1979 kz650 b3 and I am wondering which vacuum nipple, of the three on carb number 2, I should use for the fuel petcock.
thanks,
Joe
thanks,
Joe
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
14 Mar 2022 19:20 - 14 Mar 2022 19:22 #863811
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Vacuum for petcock
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Last edit: 14 Mar 2022 19:22 by Mikaw.
The following user(s) said Thank You: Missile2511
Please Log in or Create an account to join the conversation.
- Missile2511
- Topic Author
- Offline
- User
Less
More
- Posts: 45
- Thank you received: 2
15 Mar 2022 04:13 #863816
by Missile2511
Replied by Missile2511 on topic Vacuum for petcock

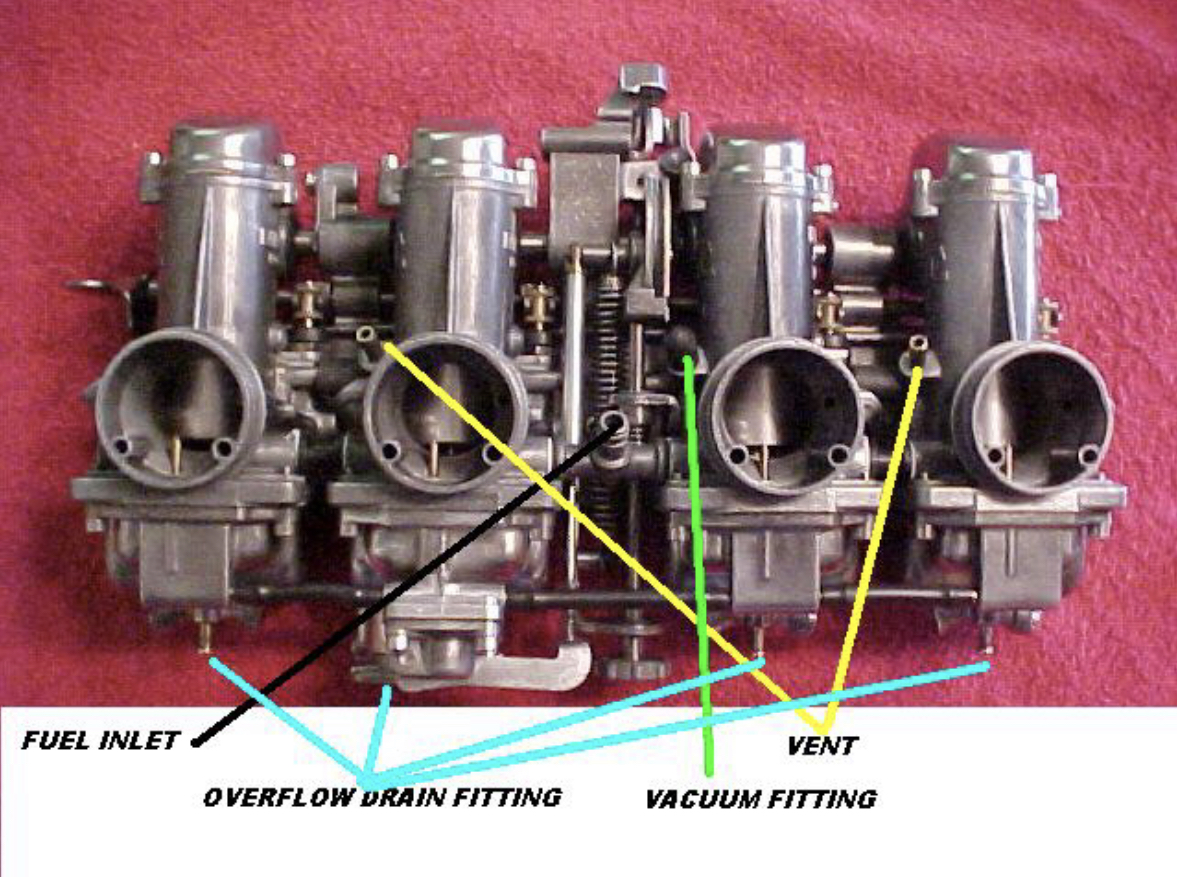

So the picture shows that the nipples on 2 and 4 are vents, while that nipple on 3 is vacuum. I have that nipple on 2 and 4 blocked. Should I uncap those so they can vent?
thanks again,
Joe
thanks again,
Joe
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
Less
More
- Posts: 3040
- Thank you received: 1092
15 Mar 2022 04:27 - 15 Mar 2022 04:28 #863817
by hardrockminer
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Replied by hardrockminer on topic Vacuum for petcock
They should be unblocked. Normally there is a short hose attached to them to prevent spillage.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Last edit: 15 Mar 2022 04:28 by hardrockminer.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
15 Mar 2022 05:55 - 15 Mar 2022 08:10 #863819
by martin_csr
Replied by martin_csr on topic Vacuum for petcock
The carburetors in pic aren't VM24s (maybe VM26?), so they may be slightly different. You mentioned 3 nipples on #2. Got a pic?
Vent tubing helps to keep water out of the carburetors. The vent tubes on my 81 KZ650-CSR are routed over the airbox shoulders & downward then fitted snug between the airbox & side covers. The LH tube has a frame clamp. Yours may be done differently.
Below is a pic of VM24s, purported to be from a 1979 KZ650 but not certain.
The vacuum nipple for the petcock is forward of the vent port (nearer to the engine side). It's hidden in this pic as it's lower than the vent. There isn't a vacuum port on any of the other carburetors. Instead, the vac ports would have been on each of the carb holders on the cylinder head. Only two of the carburetors have vent ports (#2 & #4) but the other two are vented via rubber connectors between the carbs. #2 vents carbs 1-2. #4 vents carbs 3-4.
ps: I think the pic linked by mykaw might be mislabeled regarding the "vacuum fitting" on the #3 carburetor. that's probably a vent, but I could be wrong. a rubber vent connector between carbs 3-4 usually obviates the need for an extra vent tube. same goes for the other side.
Vent tubing helps to keep water out of the carburetors. The vent tubes on my 81 KZ650-CSR are routed over the airbox shoulders & downward then fitted snug between the airbox & side covers. The LH tube has a frame clamp. Yours may be done differently.
Below is a pic of VM24s, purported to be from a 1979 KZ650 but not certain.
The vacuum nipple for the petcock is forward of the vent port (nearer to the engine side). It's hidden in this pic as it's lower than the vent. There isn't a vacuum port on any of the other carburetors. Instead, the vac ports would have been on each of the carb holders on the cylinder head. Only two of the carburetors have vent ports (#2 & #4) but the other two are vented via rubber connectors between the carbs. #2 vents carbs 1-2. #4 vents carbs 3-4.
ps: I think the pic linked by mykaw might be mislabeled regarding the "vacuum fitting" on the #3 carburetor. that's probably a vent, but I could be wrong. a rubber vent connector between carbs 3-4 usually obviates the need for an extra vent tube. same goes for the other side.
Last edit: 15 Mar 2022 08:10 by martin_csr.
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7574
- Thank you received: 2236
15 Mar 2022 06:35 - 15 Mar 2022 06:37 #863821
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic Vacuum for petcock
The diagram at Kawasaki shows only one vacuum port. It is in carburetor number two very close to the flange that bolts to the carb holder. You can see it just below the 42 reference number. Carburetors two and four have vent tubes that are closer to the air box side and point away from the engine at about 45 degrees.
You can also see the vent connector tubes Martin mentioned. They are reference number 39.
The nipples on the very bottom of each carburetor is for float bowl overflow.
www.kawasaki.com/en-us/owner-center/part...Z650-B3-_-PARTBUCKET
You can also see the vent connector tubes Martin mentioned. They are reference number 39.
The nipples on the very bottom of each carburetor is for float bowl overflow.
www.kawasaki.com/en-us/owner-center/part...Z650-B3-_-PARTBUCKET
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Last edit: 15 Mar 2022 06:37 by TexasKZ.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
15 Mar 2022 06:55 - 15 Mar 2022 07:12 #863823
by martin_csr
Replied by martin_csr on topic Vacuum for petcock
Vent tube routing. The 650B should have a baffle plate forward of the airbox, probably bolted to the frame. I think the vent tubes are fitted thru the sides of the plate & routed into the airbox. This would ensure that the engine will burn any gasoline fumes for smog reduction. Some guys toss the plate or it goes missing. Lacking the plate, they probably route the tubing behind the engine.
Last edit: 15 Mar 2022 07:12 by martin_csr.
Please Log in or Create an account to join the conversation.
- rstnick
- Offline
- User
Less
More
- Posts: 4373
- Thank you received: 377
15 Mar 2022 14:23 - 15 Mar 2022 14:26 #863835
by rstnick
Rob
CANADA
Need a key for your Kawasaki? PM me
1978 KZ650 C2, 130K kms, Delkevic ex, EI, CVK32, PMC easy clutch, ATK fork brace, steering damper, braced swingarm, 18" Z1R front wheel.
2000 ZRX1100
2011 Ninja 250R
2005 z750s
Replied by rstnick on topic Vacuum for petcock
Rob
CANADA
Need a key for your Kawasaki? PM me
1978 KZ650 C2, 130K kms, Delkevic ex, EI, CVK32, PMC easy clutch, ATK fork brace, steering damper, braced swingarm, 18" Z1R front wheel.
2000 ZRX1100
2011 Ninja 250R
2005 z750s
Last edit: 15 Mar 2022 14:26 by rstnick.
The following user(s) said Thank You: Mikaw
Please Log in or Create an account to join the conversation.
- gd4now
- Offline
- User
- Denco where did you go?
Less
More
- Posts: 1382
- Thank you received: 441
15 Mar 2022 14:51 #863836
by gd4now
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Replied by gd4now on topic Vacuum for petcock
All of the vm24 or vm22 carbs that came stock on 650s that have a vacuum petcock have a port on carb #2 (left to right as you sit on the bike) that is just behind (towards the engine) the vent port .
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: Mikaw
