01 Feb 2022 20:49 - 01 Feb 2022 20:50 #861631
by DOHC
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
KZ1000/900 air cleaner drain cap thread ID was created by DOHC
In another thread Mikaw asked if someone could 3D print an air box drain cap.
kzrider.com/forum/10-new-members/617057-...arly-40-years#861486

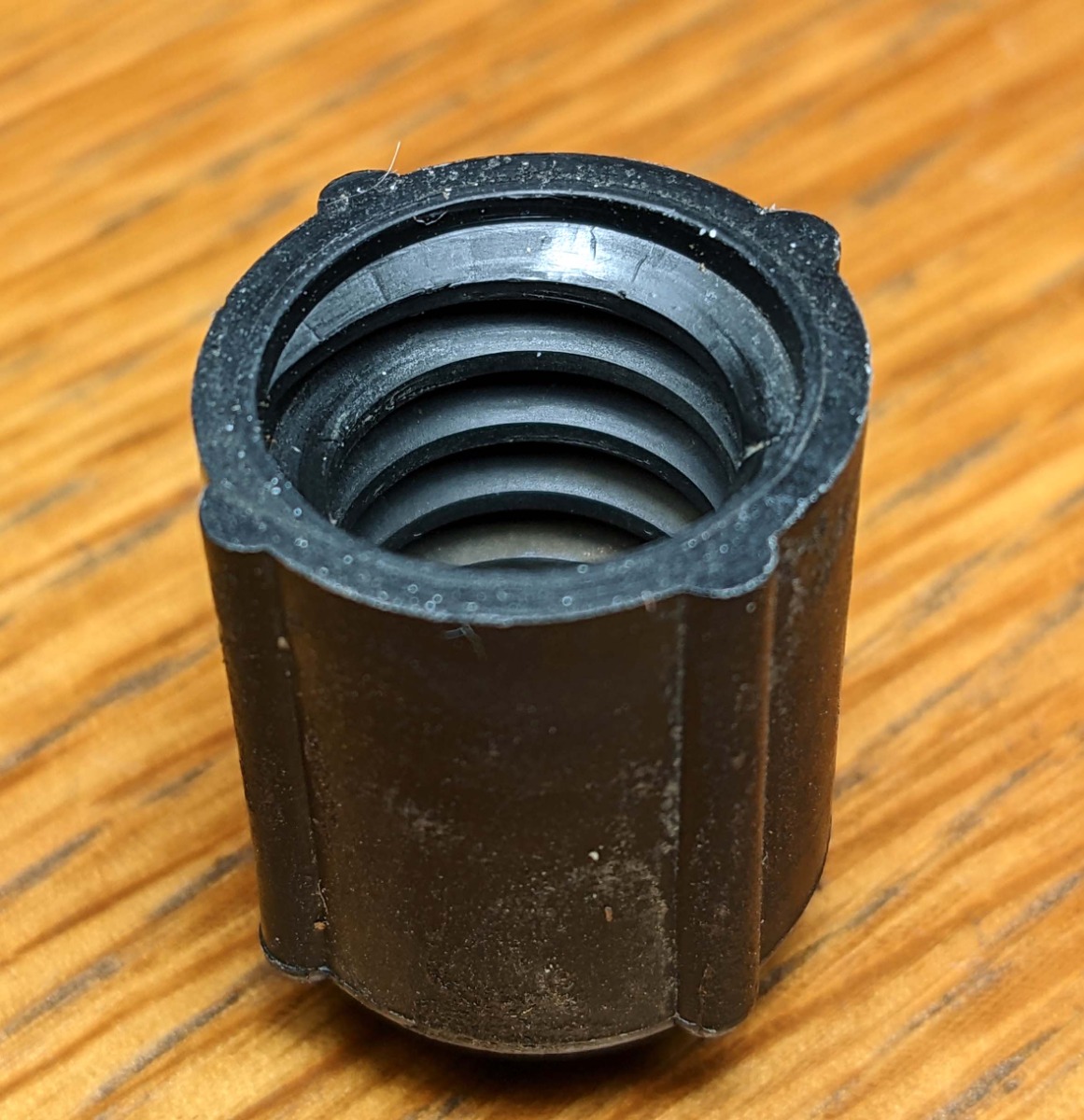

I've been working on drawing the cap in CAD and I'm not sure what thread type is used. The cap has what looks like a trapezoidal thread pattern...
Maybe something like this?
www.engineersedge.com/hardware/iso-inter...ezoidal-threads1.htm
en.wikipedia.org/wiki/Trapezoidal_thread_form

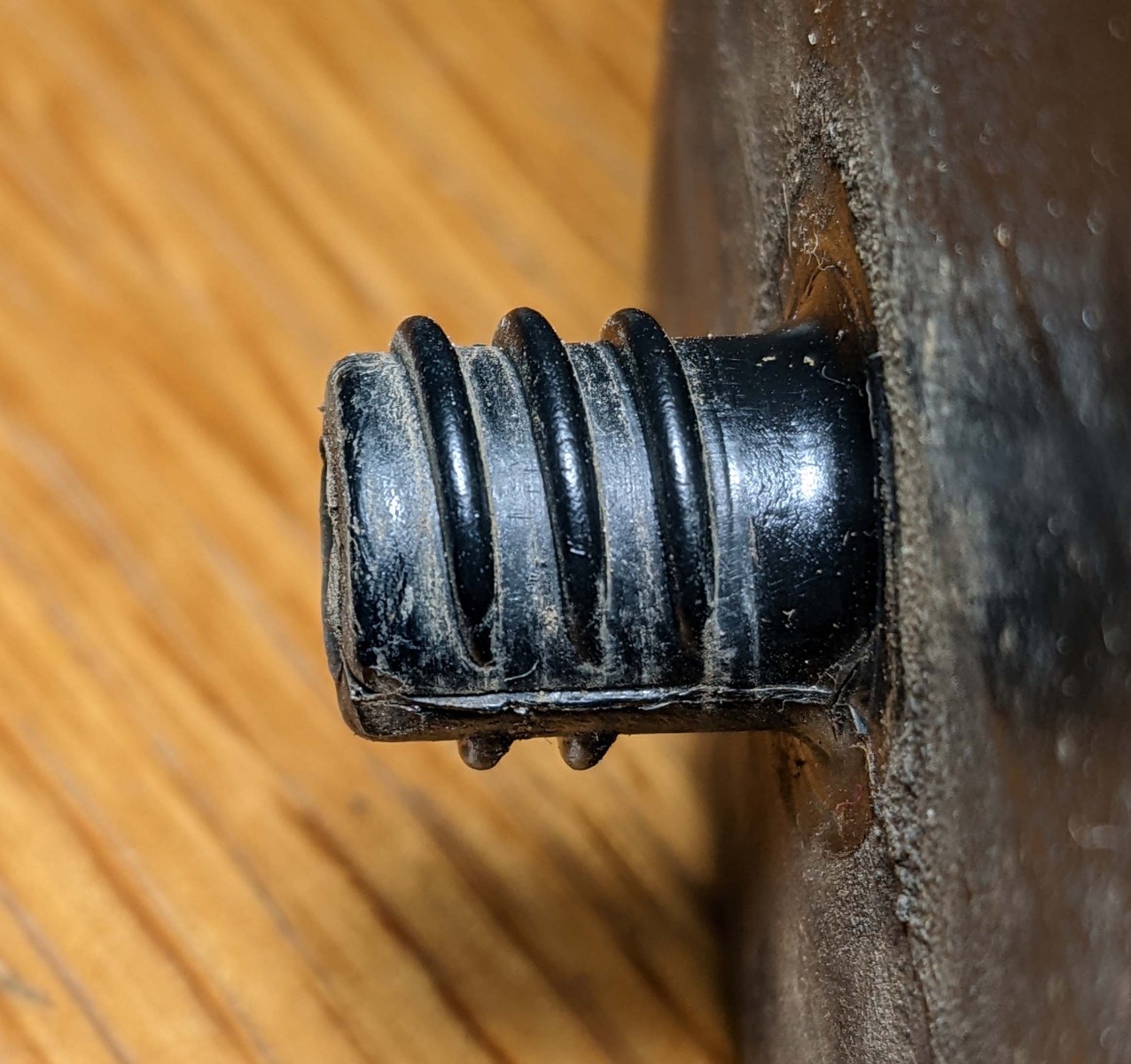

On the other side, the air box post looks totally different. It has a rounded thread shape. Maybe this is a common thread for plastic? I could take a guess at the profile and give it a shot, but I'd probably have better luck if I had a clear idea of the specific thread type.
Cap:
major diameter: 14.5mm
minor diameter: 11.3mm
Post:
major diameter: 13.2mm
minor diameter: 11.2mm
thread pitch: 3mm
Anyone have any suggestions?
kzrider.com/forum/10-new-members/617057-...arly-40-years#861486
I've been working on drawing the cap in CAD and I'm not sure what thread type is used. The cap has what looks like a trapezoidal thread pattern...
Maybe something like this?
www.engineersedge.com/hardware/iso-inter...ezoidal-threads1.htm
en.wikipedia.org/wiki/Trapezoidal_thread_form
On the other side, the air box post looks totally different. It has a rounded thread shape. Maybe this is a common thread for plastic? I could take a guess at the profile and give it a shot, but I'd probably have better luck if I had a clear idea of the specific thread type.
Cap:
major diameter: 14.5mm
minor diameter: 11.3mm
Post:
major diameter: 13.2mm
minor diameter: 11.2mm
thread pitch: 3mm
Anyone have any suggestions?
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Last edit: 01 Feb 2022 20:50 by DOHC.
Please Log in or Create an account to join the conversation.
- DOHC
- Topic Author
- Offline
- Sustaining Member
- Those Doe-Hawks really go!
Less
More
- Posts: 1284
- Thank you received: 548
02 Feb 2022 19:38 #861693
by DOHC
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Replied by DOHC on topic KZ1000/900 air cleaner drain cap thread ID

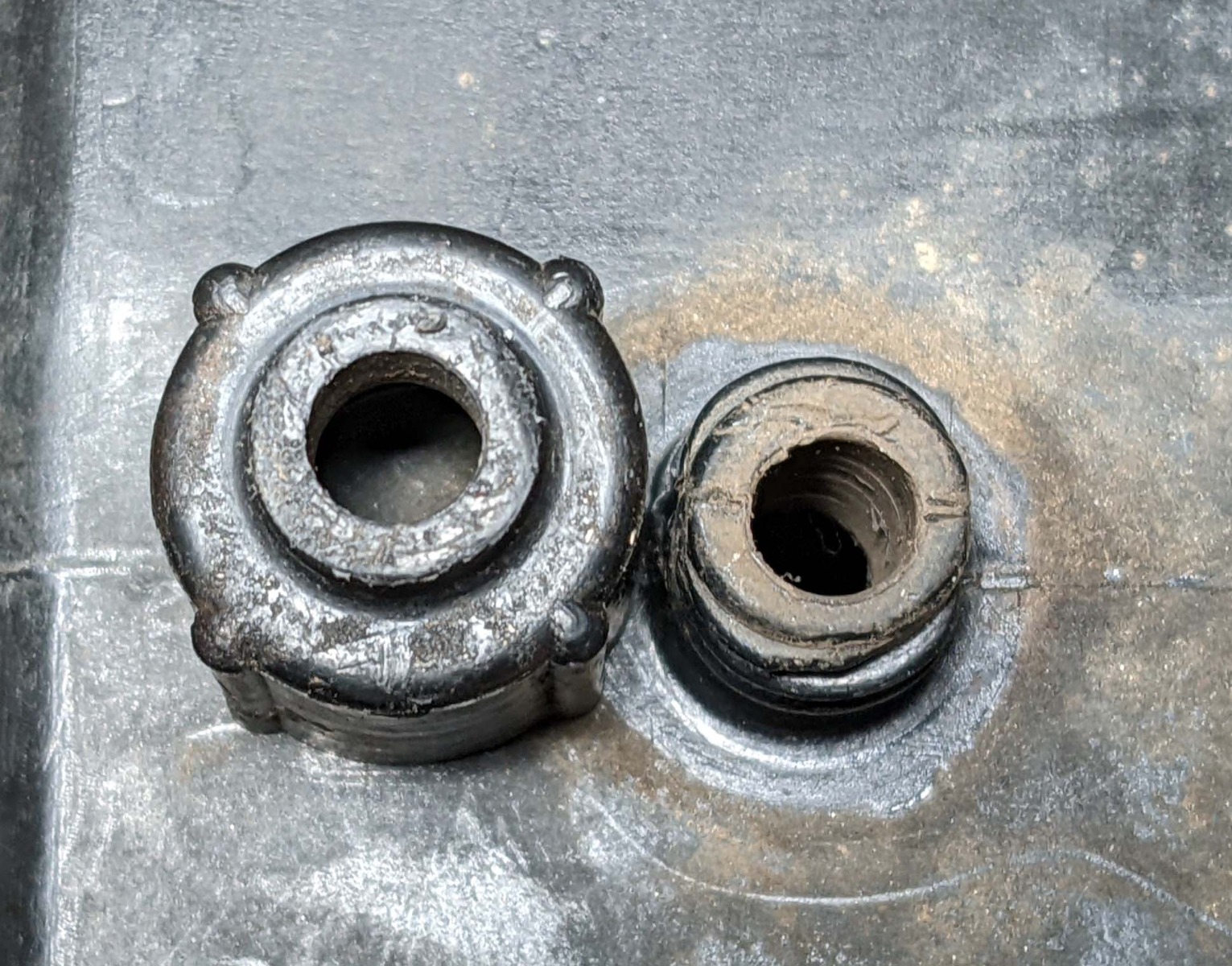

Does anyone know why this cap even exists? It seems it does nothing. The caps is labeled as "CAP,DRAIN" in the parts diagram. This suggests that the two posts on the bottom of the air box, with holes in them, are intended to act as drains. These caps go on the drain posts, but the caps have basically the same size hole in them as the post. So the caps do nothing? Why did Kawasaki make this part?
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Please Log in or Create an account to join the conversation.
- taildragger1197
- Offline
- User
Less
More
- Posts: 117
- Thank you received: 17
02 Feb 2022 20:38 - 02 Feb 2022 20:38 #861695
by taildragger1197
Union City, Tennessee
1979 KZ1000 LTD B3
1979 KZ1000(1260)LTD S/G Pro ET
1993 ZX11 D1 Ninja
Replied by taildragger1197 on topic KZ1000/900 air cleaner drain cap thread ID
When the bike was new, it held a small piece of open celled foam that served as a filter for any incoming air and to keep bugs out. It tended to dry out and crumble if disturbed.
I just recently replaced it in my '791000 LTD.
I just recently replaced it in my '791000 LTD.
Union City, Tennessee
1979 KZ1000 LTD B3
1979 KZ1000(1260)LTD S/G Pro ET
1993 ZX11 D1 Ninja
Last edit: 02 Feb 2022 20:38 by taildragger1197.
The following user(s) said Thank You: DOHC
Please Log in or Create an account to join the conversation.
- DOHC
- Topic Author
- Offline
- Sustaining Member
- Those Doe-Hawks really go!
Less
More
- Posts: 1284
- Thank you received: 548
02 Feb 2022 21:10 #861696
by DOHC
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Replied by DOHC on topic KZ1000/900 air cleaner drain cap thread ID
Cool! I had no idea. Do you have a picture or source for what you put in yours?When the bike was new, it held a small piece of open celled foam that served as a filter for any incoming air and to keep bugs out.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Please Log in or Create an account to join the conversation.
- taildragger1197
- Offline
- User
Less
More
- Posts: 117
- Thank you received: 17
02 Feb 2022 21:43 #861698
by taildragger1197
Union City, Tennessee
1979 KZ1000 LTD B3
1979 KZ1000(1260)LTD S/G Pro ET
1993 ZX11 D1 Ninja
Replied by taildragger1197 on topic KZ1000/900 air cleaner drain cap thread ID
Cool! I had no idea. Do you have a picture or source for what you put in yours?When the bike was new, it held a small piece of open celled foam that served as a filter for any incoming air and to keep bugs out.
No, sorry. I think I just cut out a piece of foam I had laying around and pressed it down into the "nut". I never ride in the rain so I'm not worried about the air box holding water and I just wanted to keep the wasps from plugging them with mud. I think plugging them with a piece of rubber or anything solid wouldn't be of any harm because the boxes are not sealed that tight anyways.
Union City, Tennessee
1979 KZ1000 LTD B3
1979 KZ1000(1260)LTD S/G Pro ET
1993 ZX11 D1 Ninja
