Kz750 CV34 shims 07 Dec 2021 16:41 #858762

  • Elfarm98648
  • Elfarm98648's Avatar Topic Author
  • Away
  • User
  • Posts: 219
  • Thank you received: 14

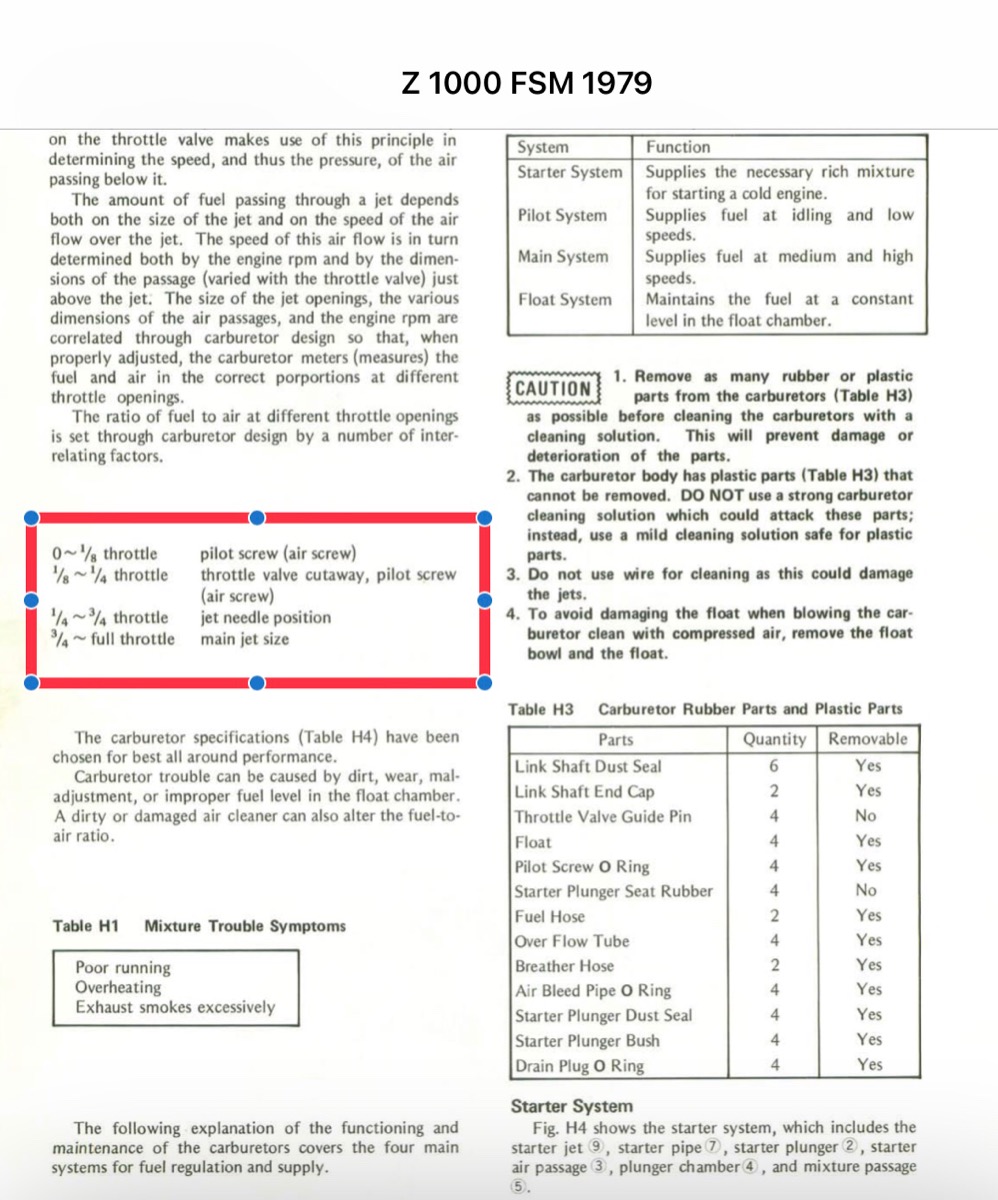

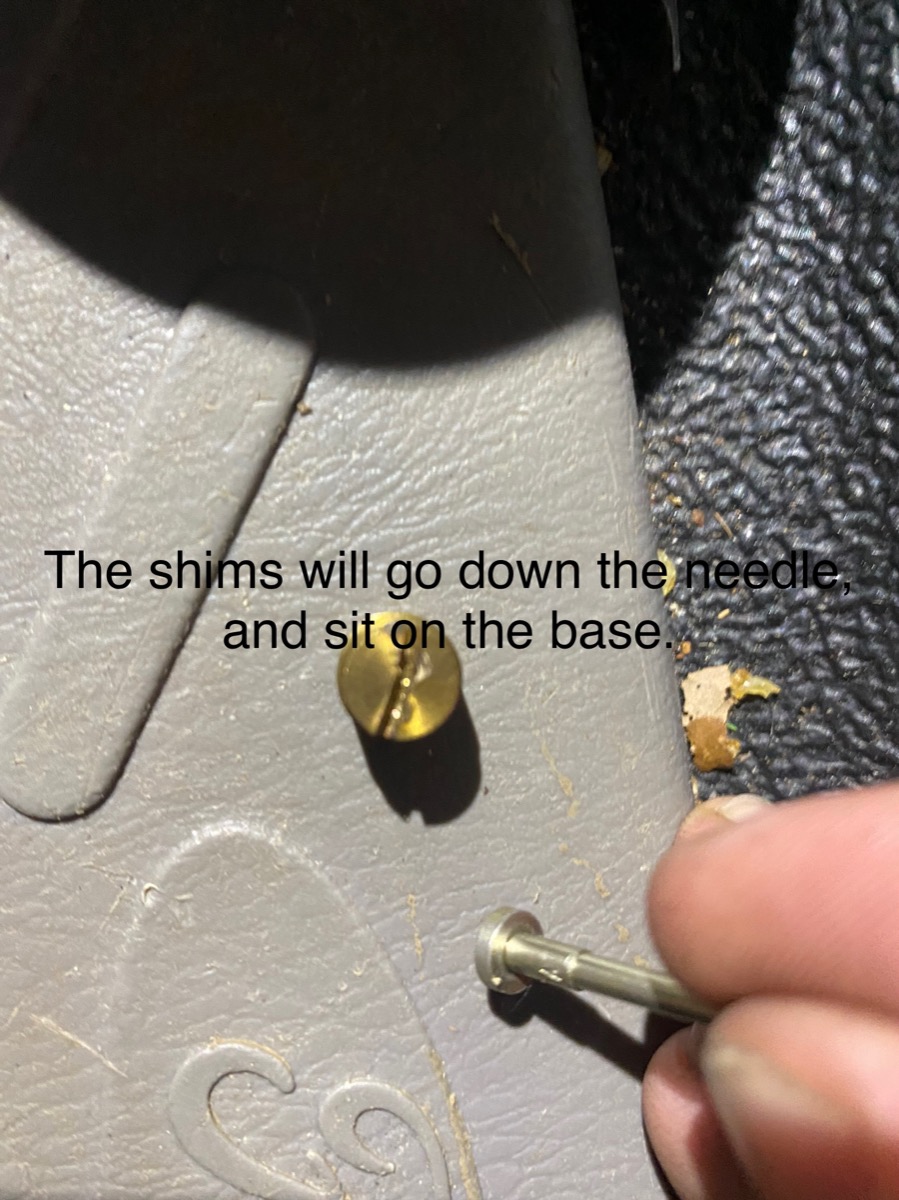

I’m positive some of you remember my bike but if you do not then 81 kz750(4)H LTD. It ran 1800 miles this Rodin season but we got a late start so didn’t start till late august. The bike ran fine but plug chops indicate a slight lean issue. Revved fine through all RPMs. I bought a set of bigger jets for it, main and secondaries. From 125 main to 130. Then 62 secondary to 65. Started the bike after that and it ran like crap. Farrrr to rich, ran fine when cold but it would rev past 6k so I knew it was too large jet sized for a stock exhaust and no pods. Put the stock keys back in it and now we are going to try to shim it. I’ll attach a reference picture of what the plugs looked like and y’all tell me what size shims you recommend.

also if I am correct here, the shim goes under the wide part of the needle, thus lifting the needle higher
Attachments:

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 09 Dec 2021 10:32 #858867

  • Elfarm98648
  • Elfarm98648's Avatar Topic Author
  • Away
  • User
  • Posts: 219
  • Thank you received: 14
Anyone?

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 09 Dec 2021 15:58 #858880

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 6296
  • Thank you received: 1594
Yup, that is how shims work.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 09 Dec 2021 16:38 #858885

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2813
  • Thank you received: 379
Those needles were never meant to be shimmed. I tried but could never get that big brass screw out. Was afraid I would bugger it up and from the look of the one in your picture I suspect you found it difficult.  I also suspect that for shims you may be on your own and getting an assortment of different thickness washers at your local hardware store and doing trial and error. Undiablo has a H LTD model and I know he was able to remove the needles like you. Cant remember if he shimmed them but have not seen him here in a while. You could search his posts

You say no pods and stock exhaust. Have you played with the pilot air screw ? I'd suggest  another 1/4 or 1/2 turn out from where they are now to start. Stock setting is 2 turns out from lightly seated and from the factory that was a tad on the lean side. I have found that  turning out beyond 3 turns out has no effect.

Fuel level in the float bowl will cause lean or rich running if lower or higher than specified (4mm) in manual .  Getting fuel level (clear tube method) correct across the board was major for how my bike runs.

1980 kz750E1, Delkevic exhaust
The following user(s) said Thank You: Elfarm98648

Please Log in or Create an account to join the conversation.

Last edit: by JR.

Kz750 CV34 shims 09 Dec 2021 16:49 #858886

  • Nessism
  • Nessism's Avatar
  • Away
  • Sustaining Member
  • Posts: 6054
  • Thank you received: 1917

Those needles were never meant to be shimmed. I tried but could never get that big brass screw out. Was afraid I would bugger it up and from the look of the one in your picture I suspect you found it difficult.  I also suspect that for shims you may be on your own and getting an assortment of different thickness washers at your local hardware store and doing trial and error. Undiablo has a H LTD model and I know he was able to remove the needles like you. Cant remember if he shimmed them but have not seen him here in a while. You could search his posts

You say no pods and stock exhaust. Have you played with the pilot air screw ? I'd suggest  a 1/4 or 1/2 turn out to start. Stock setting is 2 turns out from lightly seated and from the factory that was a tad on the lean side. I have found that  turning out beyond 3 turns out has no effect.

Fuel level in the float bowl will cause lean or rich running if lower or higher than specified (4mm) in manual .  Getting fuel level (clear tube method) correct across the board was major for how my bike runs.





More turns out on the pilot screws is richer, not leaner.  I use 2.5 turns out as a starting point.  Agree that past 3 turns doesn't seem to do much.  I also agree that removing that brass screw is a bitch; I tried a few times on the dozen or so CV34's I've restored and gave up because the slot was getting buggered.

Regarding shimming, be sure that when you lift the needle with a washer that there isn't any interference anywhere else.  For example, does the needle hit that brass screw?  Agree also that it shouldn't be necessary to shim the needle with a stock bike.  My KZ750 actually runs a little rich if anything.  Keep it stock and the bike will run fine if everything else is okay.
The following user(s) said Thank You: Elfarm98648

Please Log in or Create an account to join the conversation.

Last edit: by Nessism.

Kz750 CV34 shims 10 Dec 2021 01:16 #858894

  • Elfarm98648
  • Elfarm98648's Avatar Topic Author
  • Away
  • User
  • Posts: 219
  • Thank you received: 14
Thank you guys, so you think the bike is running fine even though the plug chop shows a smidge lean? The plug chop is from a 45mph around 4K RPM cruise so I didn’t figure the pilot system had much if anything to do with fuel flow at those RPMs. Also wasn’t aware at how difficult it was supposed to be to remove the brass nut. I actually just used a leatherman multitool flat head and it came right out. As far as being able to move the needle up and down there is no play so I believe the nut does contact the top of the needle. What shim thickness should be a start?

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 10 Dec 2021 04:52 #858897

  • BobZ
  • BobZ's Avatar
  • Offline
  • User
  • Posts: 39
  • Thank you received: 6

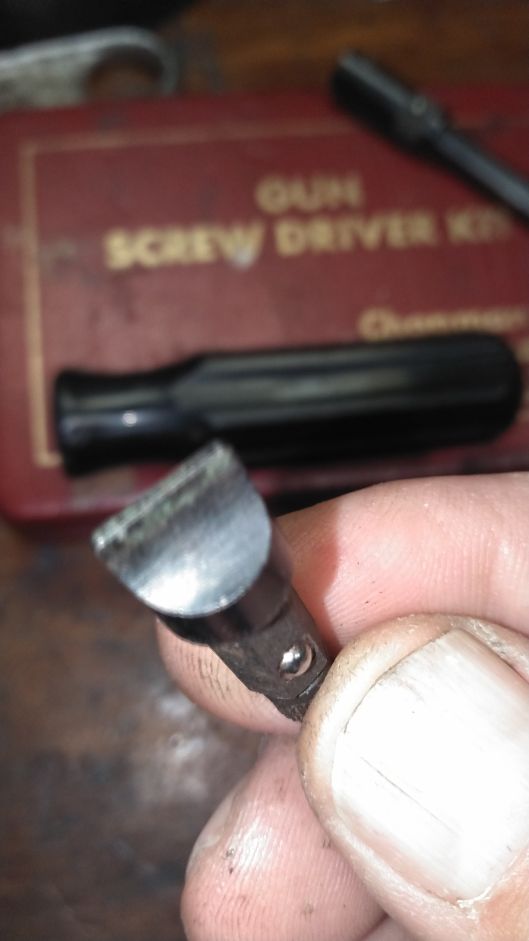

#98 bit from a Chapman gun screwdriver kit fits tight in the brass screw and makes it easy to remove them. You can get individual bits from Chapman cheap.
Had I known I'd live this long I'd have taken better care of my Led Zeppelin albums


1983 Goldwing Interstate
1982 KZ750 LTD
Attachments:

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 10 Dec 2021 07:00 #858905

  • Mikaw
  • Mikaw's Avatar
  • Online
  • Sustaining Member
  • Posts: 3681
  • Thank you received: 1084

Thank you guys, so you think the bike is running fine even though the plug chop shows a smidge lean? The plug chop is from a 45mph around 4K RPM cruise so I didn’t figure the pilot system had much if anything to do with fuel flow at those RPMs. Also wasn’t aware at how difficult it was supposed to be to remove the brass nut. I actually just used a leatherman multitool flat head and it came right out. As far as being able to move the needle up and down there is no play so I believe the nut does contact the top of the needle. What shim thickness should be a start?

It’s more important to know the throttle position than RPM and speed when doing plug chop test.


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 10 Dec 2021 12:19 #858919

  • Elfarm98648
  • Elfarm98648's Avatar Topic Author
  • Away
  • User
  • Posts: 219
  • Thank you received: 14
I see, but I do believe at that rpm I am at more than 1/4 throttle.

I have a larger set of screwdrivers that I will use to remove the nut if the rest become an issue.

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 10 Dec 2021 13:07 #858920

  • Mikaw
  • Mikaw's Avatar
  • Online
  • Sustaining Member
  • Posts: 3681
  • Thank you received: 1084
Post some pictures of the plugs. Compare to this article.

www.dragstuff.com/techarticles/how-to-read-plugs.html
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 10 Dec 2021 13:39 #858921

  • Elfarm98648
  • Elfarm98648's Avatar Topic Author
  • Away
  • User
  • Posts: 219
  • Thank you received: 14
Well unfortunately I have deleted the pictures of the plugs after the chop however I did add the reference at the beginning of the article showing the exact pictures of what my plugs resembled. It is also showing full rainy days this weekend so I won’t be able to make another plug chop photo till probably Tuesday or Wednesday of next week.

Please Log in or Create an account to join the conversation.

Kz750 CV34 shims 30 Dec 2021 18:50 #859853

  • Elfarm98648
  • Elfarm98648's Avatar Topic Author
  • Away
  • User
  • Posts: 219
  • Thank you received: 14
Welp, carbs have been successfully shimmed. Using some stainless steel flat washers I have shimmed the carbs to .019” or just under .5mm. Not to worry I measured all shims with a micrometer and they all spec’d out great. Now the bike is running a beautiful tan color on the plugs and I have gotten rid of the popping after letting off the throttle. So happy with the way it runs now. Pulls great through all RPMs with no bogging anywhere.
