TOPIC:

Removing Throttle Assembly Off Carb!! 19 Sep 2020 13:00 #835360

  • LROCK
  • LROCK's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 1
  • Thank you received: 0
Hi folks!!! Newbie here with a question!! VERY limited experience with engines, so please go easy on me!! Rebuilding my Kawasaki kz440 Ltd and have the carbs off, but how the heck do you get the throttle assembly off?! Any help would be much appreciated!!!
1983 Kawasaki KZ440 LTD - Belt Drive

Please Log in or Create an account to join the conversation.

Removing Throttle Assembly Off Carb!! 20 Sep 2020 07:07 #835399

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • Member
  • Member
  • Posts: 635
  • Thank you received: 136
Just a thought Lrock, but pictures speak a thousand words or more. If you could post one of the problem area you are referring to it would no doubt help you get some replies. By the way, do you have a factory service manual for your bike? Just so you know, they hold a lot of valuable information.
Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

Removing Throttle Assembly Off Carb!! 21 Sep 2020 06:03 #835464

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 7234
  • Thank you received: 1354
The parts diagrams at Partzilla might help. also, EB pics are handy for stuff like this.
Taking a stab at it, you might need to separate the carburetors.

Please Log in or Create an account to join the conversation.

Removing Throttle Assembly Off Carb!! 22 Sep 2020 04:49 #835521

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • Member
  • Member
  • Posts: 343
  • Thank you received: 61
Off the Handlebar? You said throttle assembly, two phillips head screws from underneath if that is what you're referring to?

Please Log in or Create an account to join the conversation.

Removing Throttle Assembly Off Carb!! 22 Sep 2020 15:55 #835548

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 5378
  • Thank you received: 1248
They are JIS screws. If you use a Phillips screw driver on them, you may wreck the screw heads. If you have the factory tool bag, it has the proper tool in it.

The thread title says "Off Carb," so he may mean the throttle shaft and lever. If that is the cas, I would say, leave it alone. To remove the throttle shafts one from each carburetor, the butterfly plates will have to be removed from the shafts. They are often held on by two small staked screws. They are hard to remove and harder to replace. Remove the rest of the parts from the carburetors, clean everything VERY thoroughly, and reassemble with new gaskets and orings. Make sure that the throttle shafts turn easily and smoothly while you have everything else apart.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

Removing Throttle Assembly Off Carb!! 22 Sep 2020 17:21 #835549

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 15238
  • Thank you received: 2752

asphalt900 wrote: Off the Handlebar? You said throttle assembly, two phillips head screws from underneath if that is what you're referring to?

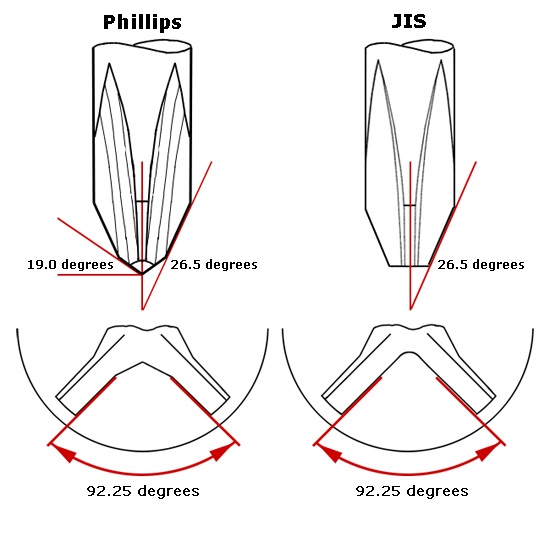

WARNING - as TexasKZ said there are no phillips head screws on your Kawasaki - they are Japanese Industrial Standard (JIS) and using phillips screwdrivers on the will wreck them. If you need info on how to modify phillips screwdriver tips to properly fit those screw just ask. Ed

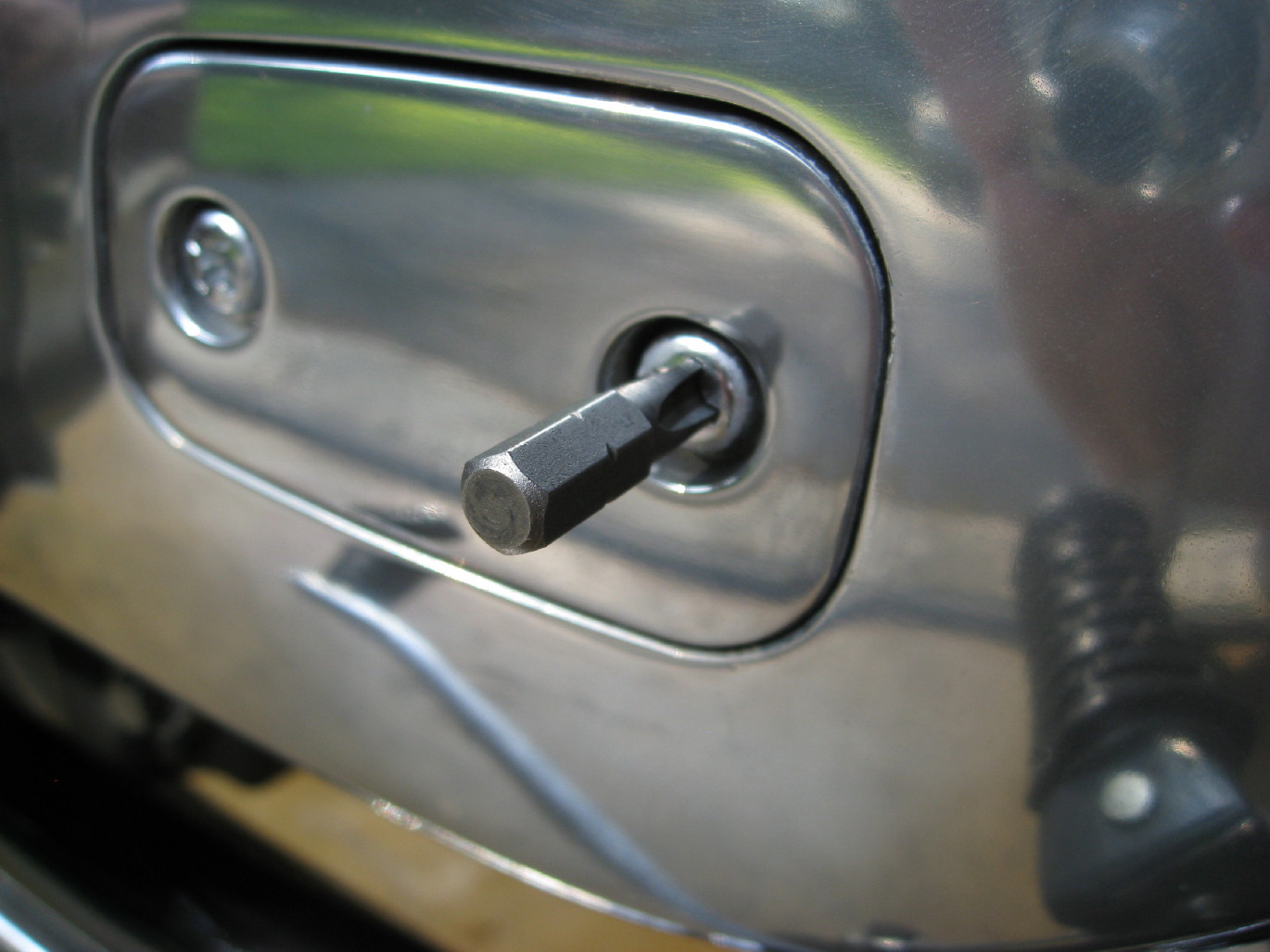

JIS screwdriver tip

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.
