82 KZ750 LTD

Hey all,

Hopefully a far simpler question to answer then the ones that rattle your brain..

I have my carbs apart and I had taken many many photos but I no longer have access to that phone and I basically want to ensure I'm putting things back together properly.

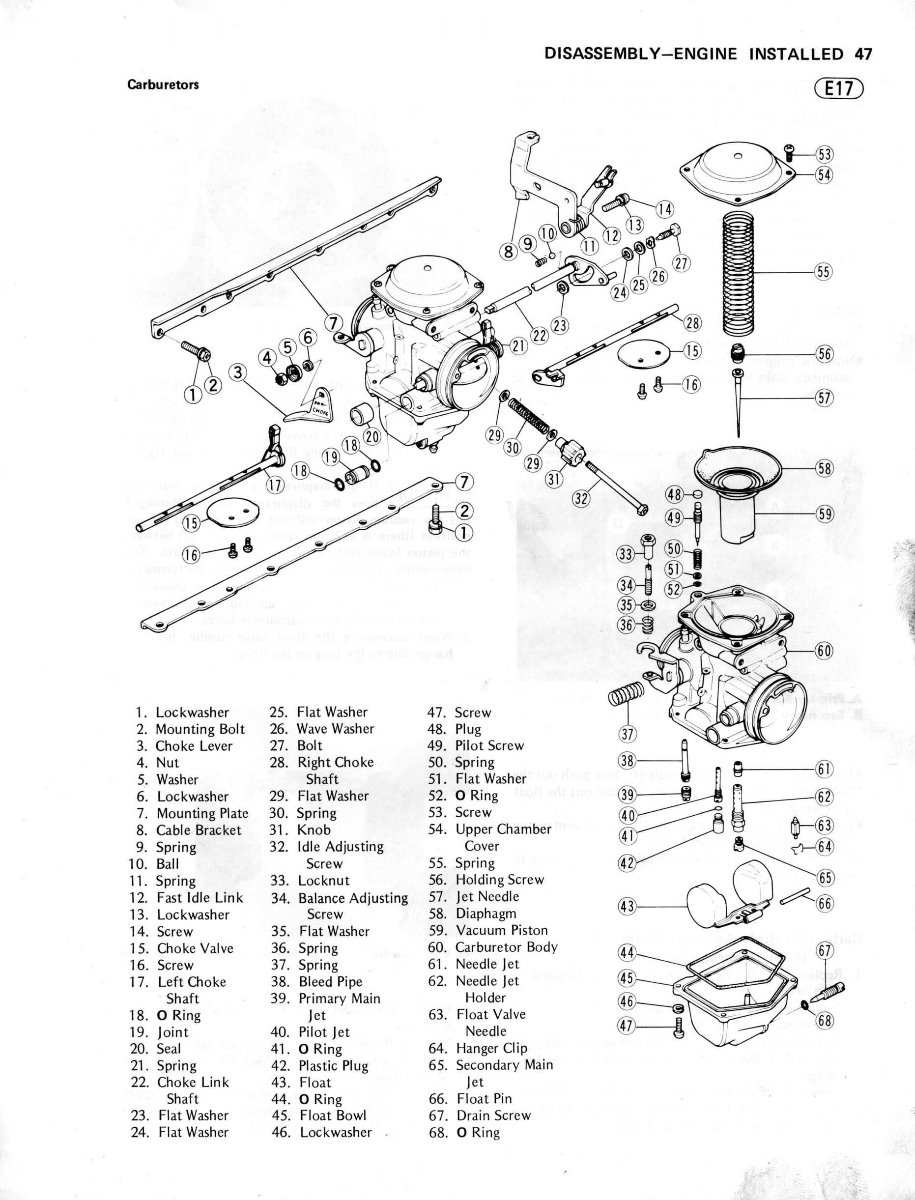

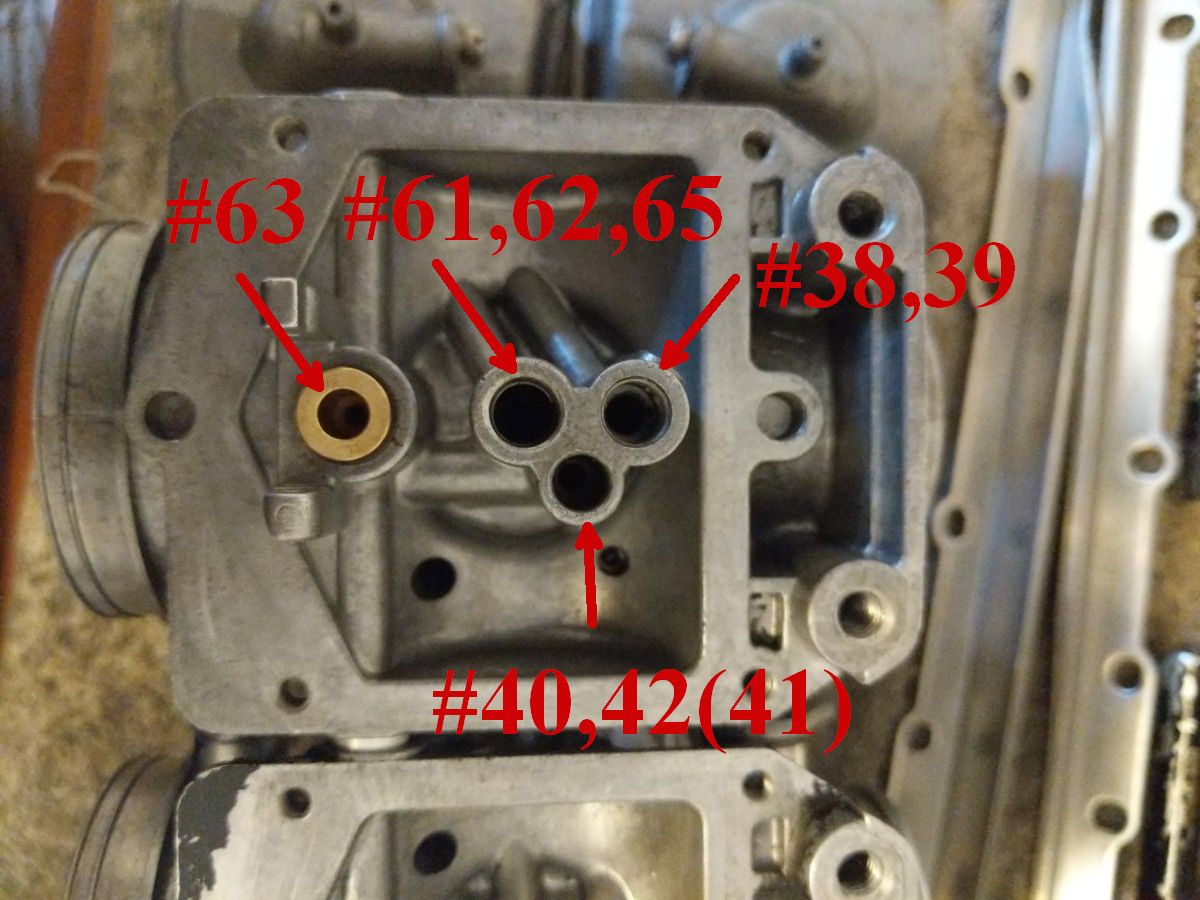

Can someone tell me in some detail what goes where? Jets, needles, screws, this weird double sided brass passage that looks like it should connect 2 things... also how many and where do the black 3way black plastic passages that connect 2 carbs together go?

I think I have the shafts and things in position but if you'd like to spend a minute on that I'd appreciate it.

I got this bike and a carb was cracked so I replaced one but I've pretty much list everything I had noted and photographed + it's been like 4-5 weeks since I last worked on this so my memory ain't helping.

Thank you in advance for any help



I looked at photos on this forum from previous posts but it doesn't make sense to me.

Is it a KZ750 Twin or four cyl. engine?

AFAIK , i do my best documetation for you

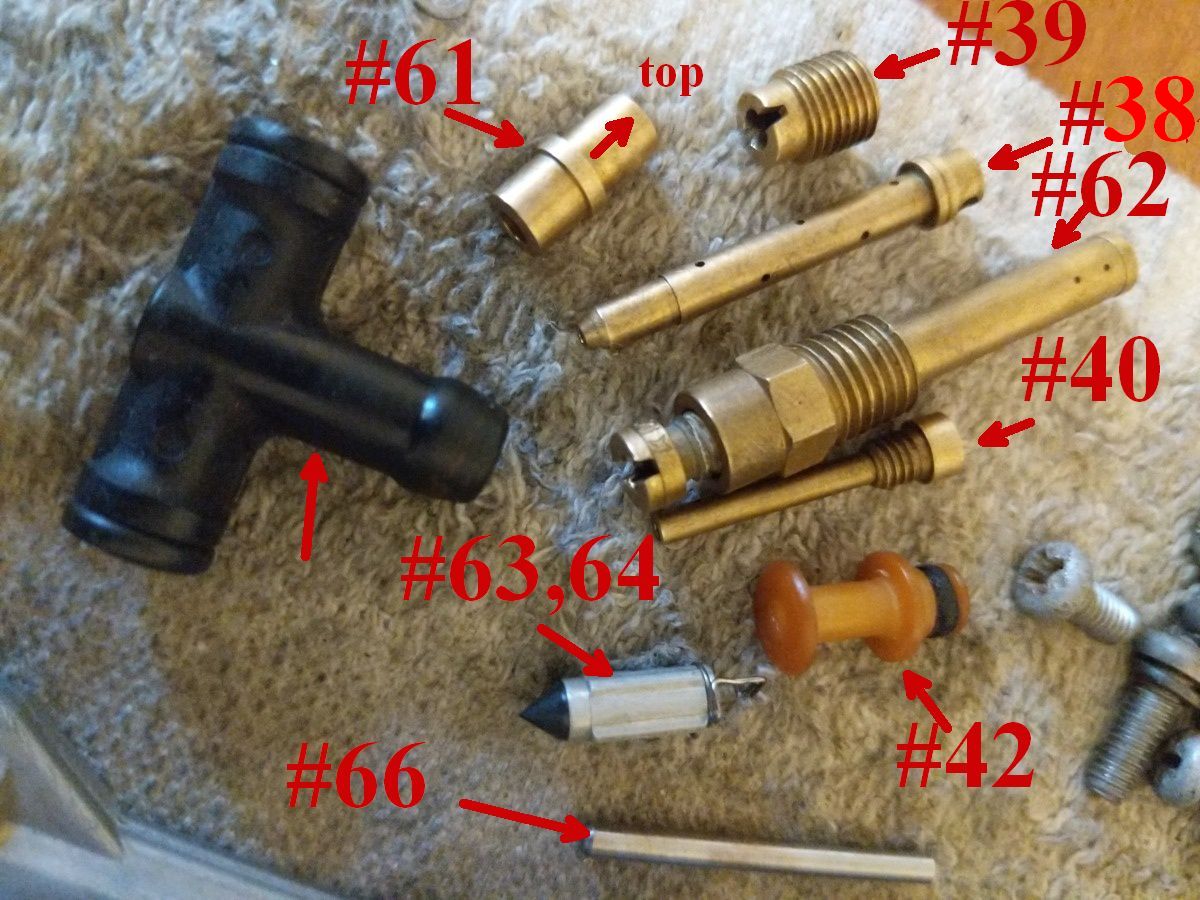

Thank you! For #61 the top faces the carb hat and bottom faces the bottom of the bowl?

What is the black 3way thing? How many go on a set of carbs?

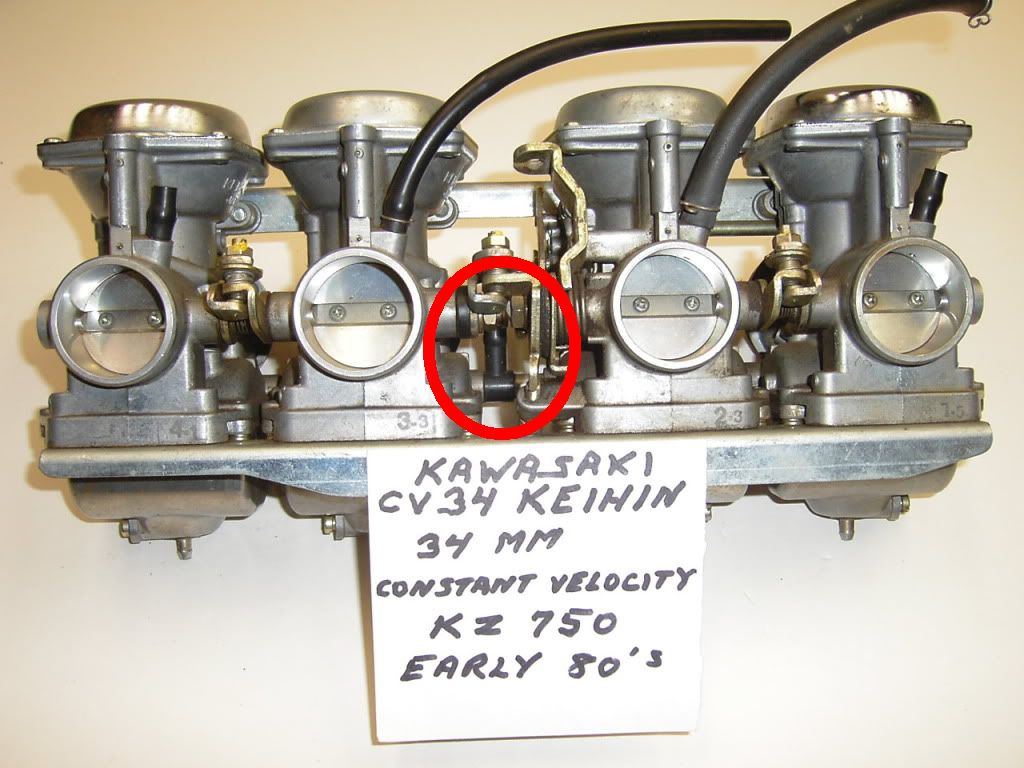

Yes, Top faces to the carb hat. The 3 way thing is the fuel inlet T and sits between carb #2 and #3.
