KZ440 single carb, how do you keep carb intake boots from splitting? was created by Slickrock

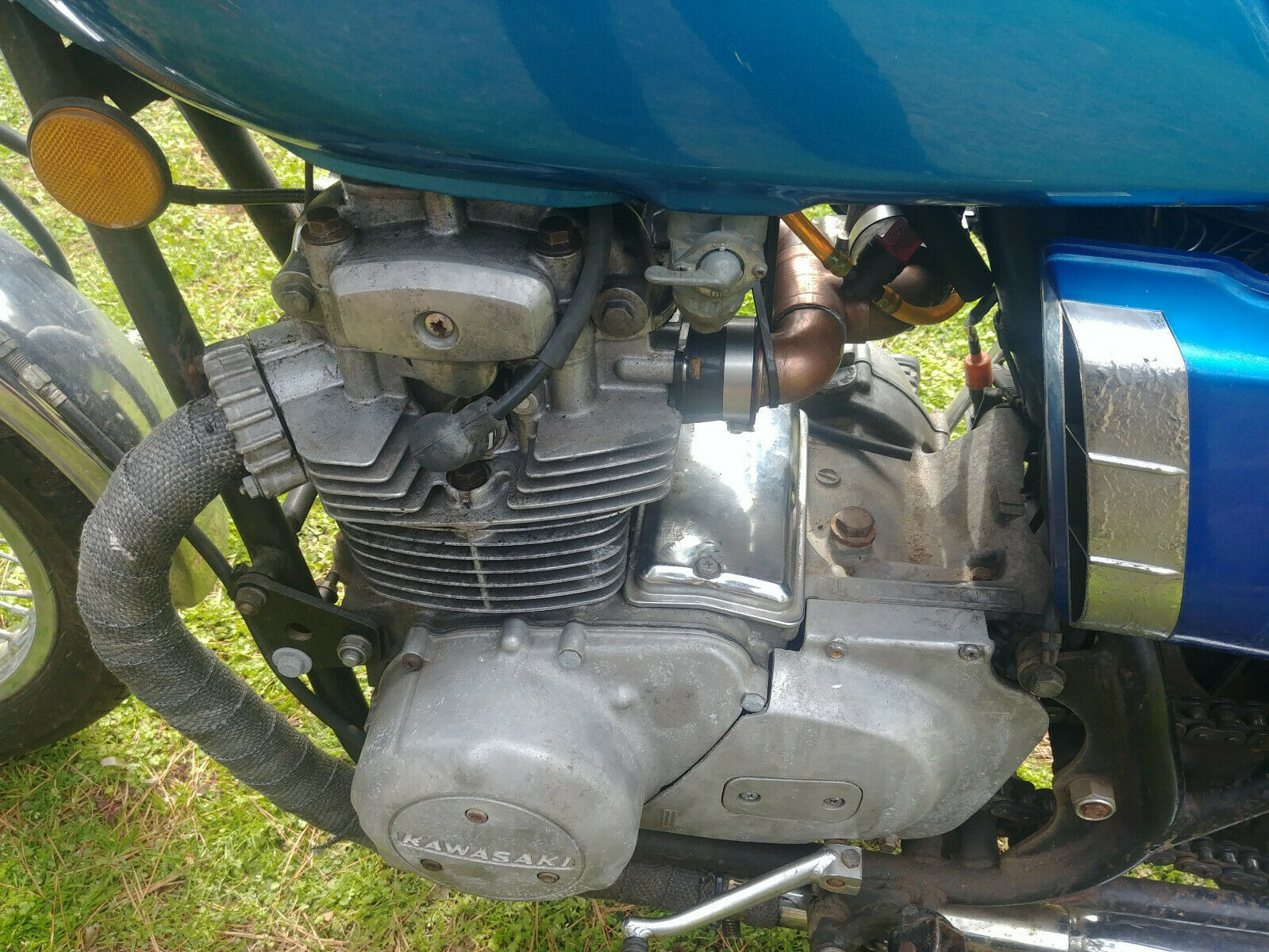

Hello all. I have an early KZ440 that has a single carb conversion. Basically, two aluminum "U" joints welded into one "Y" tube the carb attaches to. I keep cracking and having to replace the carb intake boots because they support the weight of the carb. With a little bit of downward pressure from the Carb location and road bouncing, they split. What are you guys doing to support the carb so the rubber intake boots don't crack?
Thanks,
Dan DeCicco
1983 KZ440 (belt converted to chain)
and a few others in the garage
