Spacing on Mikuni RS-36

  • richard-GPZ
  • richard-GPZ's Avatar Topic Author
  • Offline
  • User
  • Posts: 40
  • Thanks: 9

Spacing on Mikuni RS-36

21 Mar 2020 17:23
#821351
Been having trouble mounting a set of Mikuni RS36-D3 K on my 1983 GPZ-1100.
I measured the spacing of the intake manifolds on my GPZ and got 75-96-75.
The spacing on the Mikuni's are 77-93-77.
Has anyone got a fix so the carbs will fit better?
Thanks for any help you can give.
1983 GPZ-1100 completely stock

1983 Gpz-1100 hot rod build in process

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7660
  • Thanks: 2303

Re: Spacing on Mikuni RS-36

21 Mar 2020 18:13
#821354
Looks like the carb spacing should be 73-93-73

www.partzilla.com/product/aftermarket/1812-MIKUNI-RS36-D3-K
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24

Please Log in or Create an account to join the conversation.

  • richard-GPZ
  • richard-GPZ's Avatar Topic Author
  • Offline
  • User
  • Posts: 40
  • Thanks: 9

Re: Spacing on Mikuni RS-36

21 Mar 2020 21:34
#821374
Hope these pictures help to show the spacing problem I am having.
1983 GPZ-1100 completely stock

1983 Gpz-1100 hot rod build in process

Attachments:

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4241
  • Thanks: 2103

Re: Spacing on Mikuni RS-36

22 Mar 2020 04:42
#821385

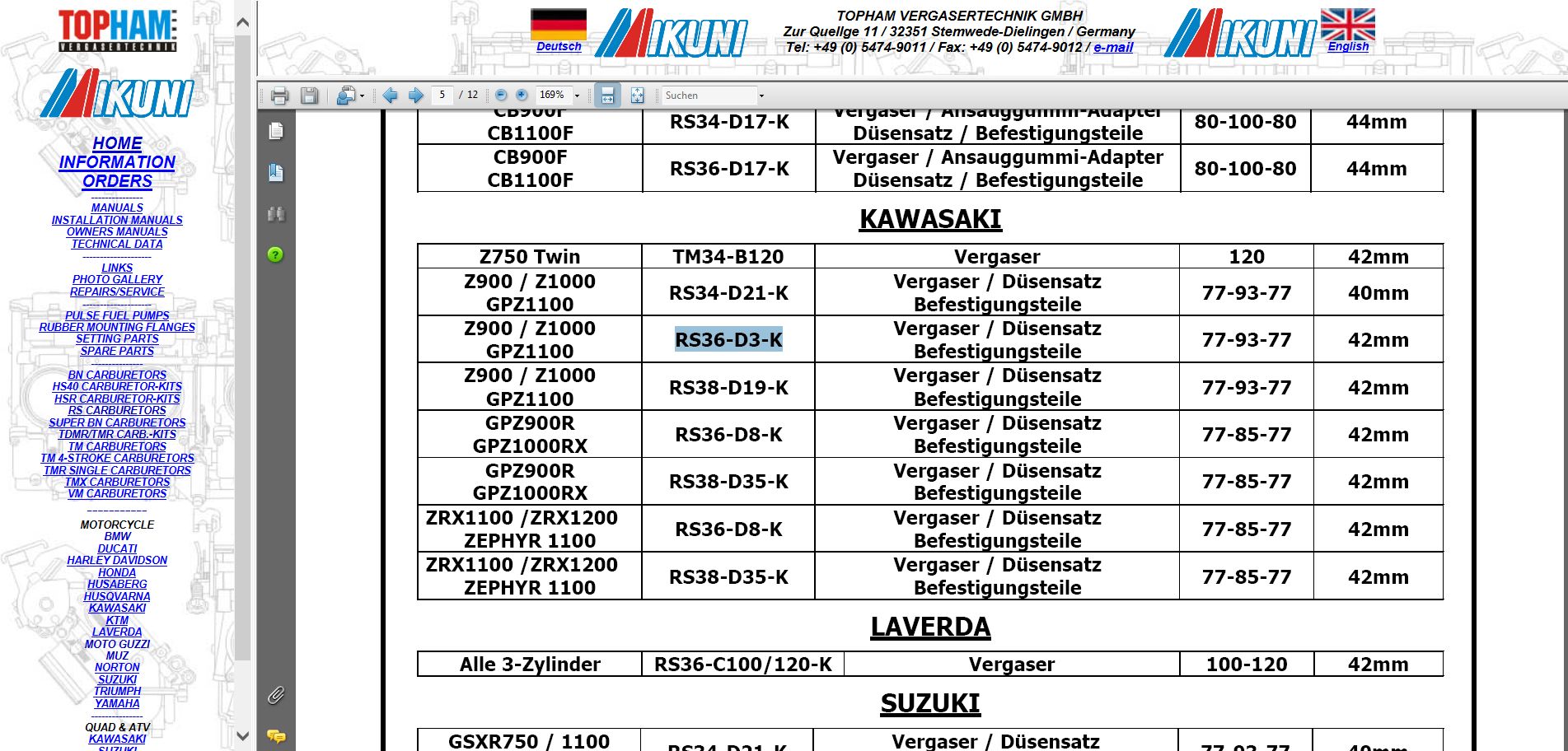

The spacing is 77-93-77 and you have to use intake rubber boot with 42 mm ID to fit the RS36-D3-K carb set.
