Proper orientation of float

  • Gdizard
  • Gdizard's Avatar Topic Author
  • Offline
  • User
  • 12/03/1954
  • Posts: 51
  • Thanks: 2

Proper orientation of float

21 Mar 2020 11:50
#821313

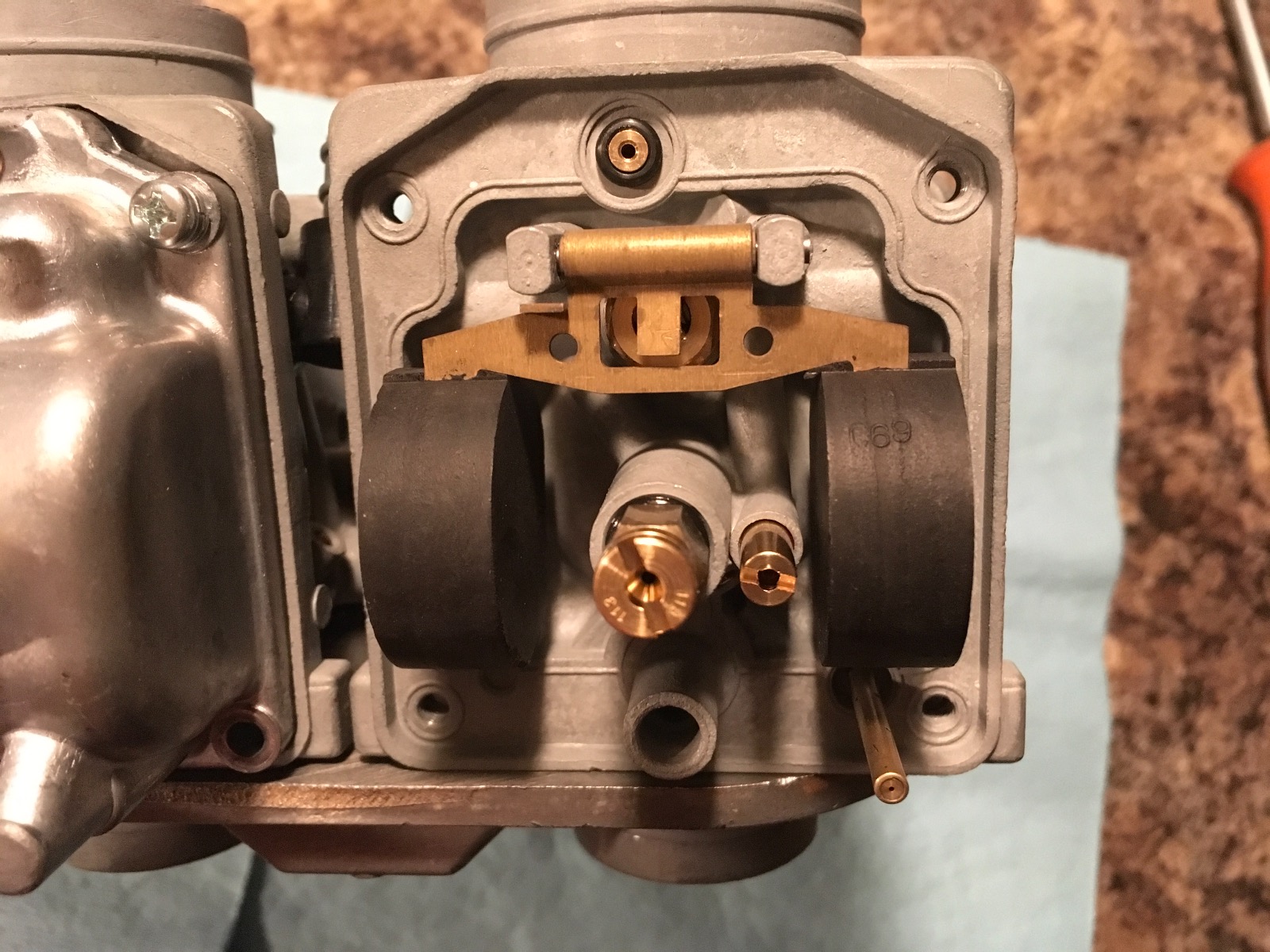

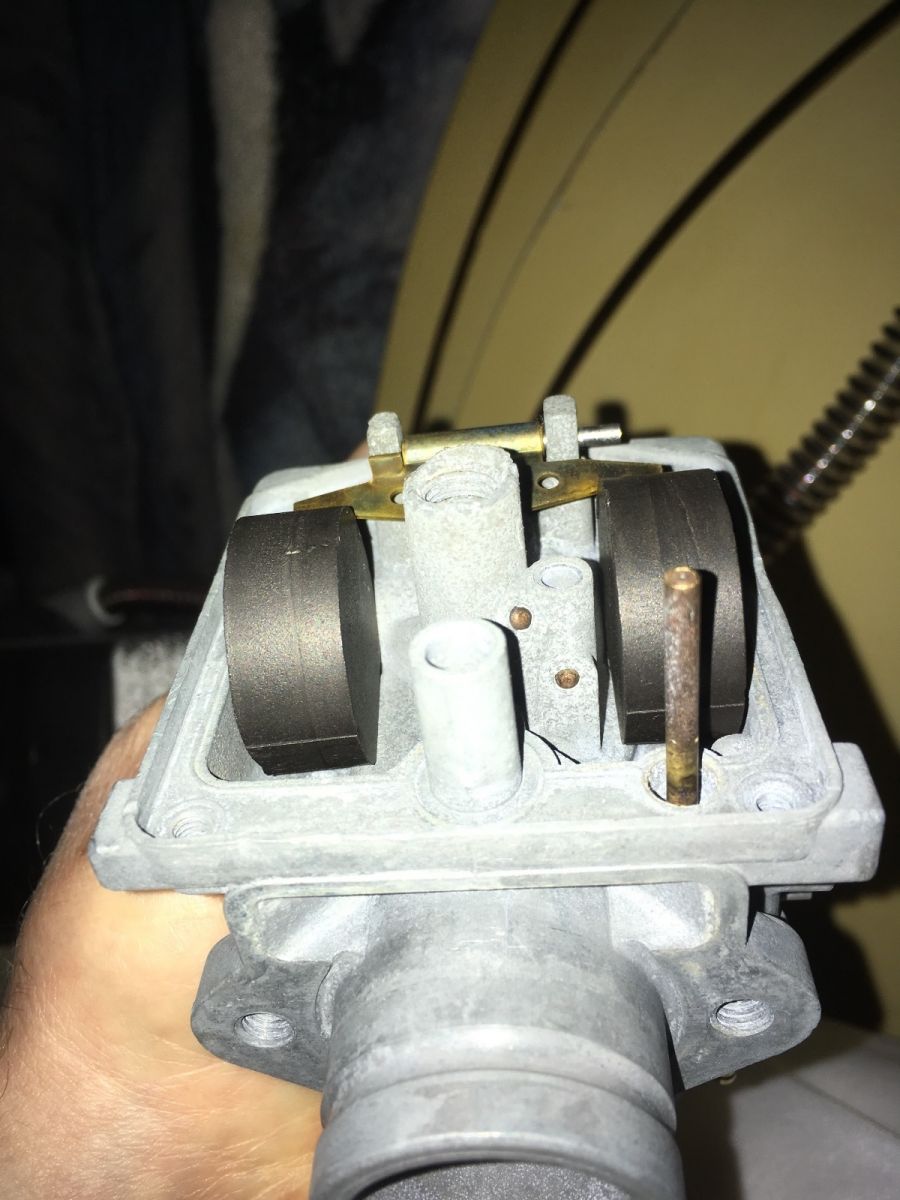

Is the tab on the left supposed to stick up ?
Thanks Greg

Attachments:

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4832
  • Thanks: 1849

Re: Proper orientation of float

21 Mar 2020 11:55
#821314
You have it correct. Make sure the float needle is in
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Attachments:

The following user(s) said Thank You: Gdizard

Please Log in or Create an account to join the conversation.

  • Gdizard
  • Gdizard's Avatar Topic Author
  • Offline
  • User
  • 12/03/1954
  • Posts: 51
  • Thanks: 2

Re: Proper orientation of float

21 Mar 2020 12:21 - 21 Mar 2020 15:34
#821321
Is there a certain measurement tha we can make to make our float height correct before we put our bowl on and use the clear tube method ?
This are vm26ss carbs on a 77 kz1000
Last edit: 21 Mar 2020 15:34 by Gdizard.

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4832
  • Thanks: 1849

Re: Proper orientation of float

21 Mar 2020 15:07
#821332

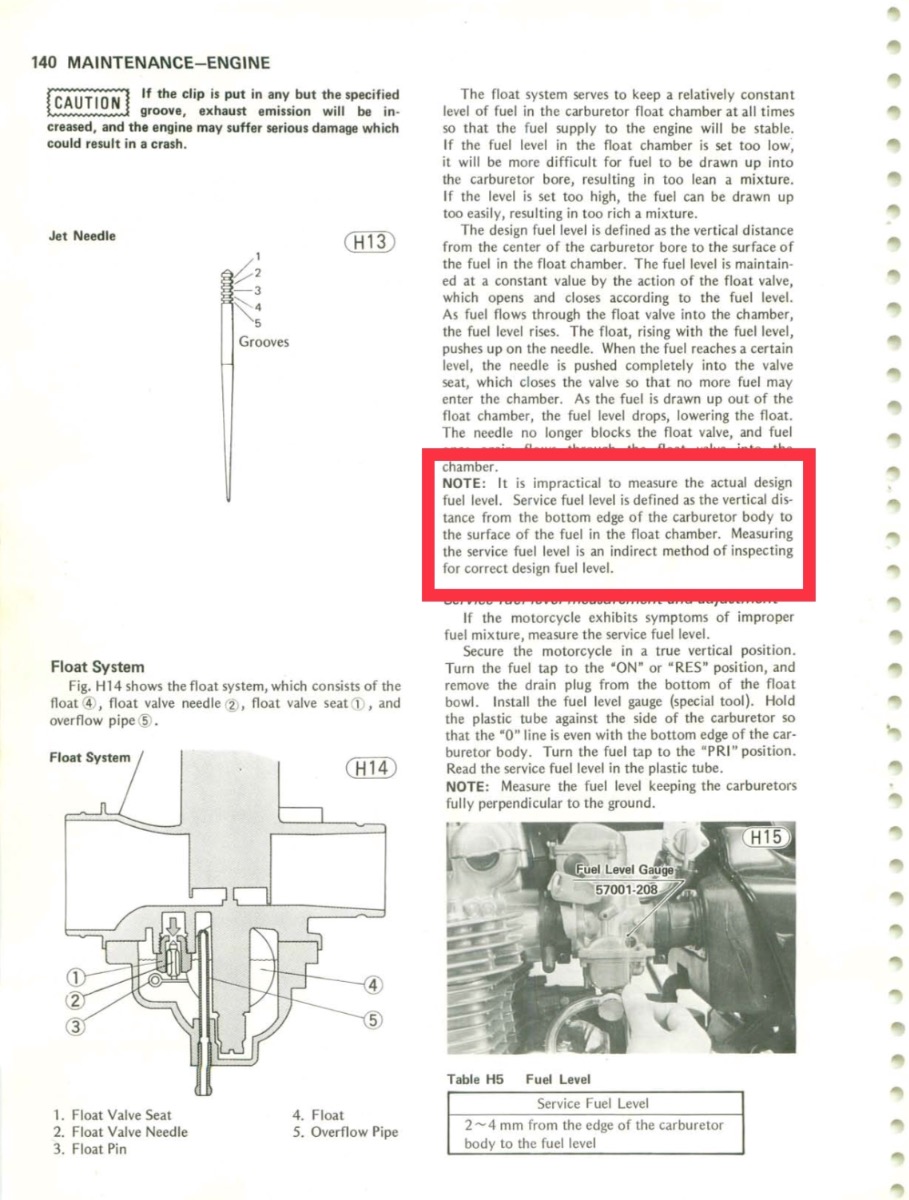

See paragraph from FSM, can’t help more without knowing information on your bike or engine.
