KZ1000 Z1R fuel hose attachments
04 Mar 2018 12:11
Hello,
I am trying to install a fuel tank on a 1978 KZ1000 Z1R and I have no idea where the various hoses go. The tank appears to have a fitting on the lower side of the tank, and the petcock has two fittings ( see attached picture named fuel tank hose attachments). The hose (which also has some sort of brass tube on one end) that is seen in the photo seems to match the diameter of the underside tank attachment, but is much larger than the two found on the petcock. This hose also seems larger in diameter that the fuel tee seen in the photo called "carb fuel tee".
I have included photos of the various hoses on the carbs to show the fuel dump and air breather tubes (I think?). The Clymer manual doesn't show how/where these hoses go. Does anyone have any clue as to how all of this gets plumbed together?
Thank you,
Michael
I am trying to install a fuel tank on a 1978 KZ1000 Z1R and I have no idea where the various hoses go. The tank appears to have a fitting on the lower side of the tank, and the petcock has two fittings ( see attached picture named fuel tank hose attachments). The hose (which also has some sort of brass tube on one end) that is seen in the photo seems to match the diameter of the underside tank attachment, but is much larger than the two found on the petcock. This hose also seems larger in diameter that the fuel tee seen in the photo called "carb fuel tee".
I have included photos of the various hoses on the carbs to show the fuel dump and air breather tubes (I think?). The Clymer manual doesn't show how/where these hoses go. Does anyone have any clue as to how all of this gets plumbed together?
Thank you,
Michael
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7660
- Thanks: 2303
Re: KZ1000 Z1R fuel hose attachments
04 Mar 2018 12:54
My educated guess.....
The four black hoses thar connect to the bottom of each carb are the overflow tubes.
The two clear tubes that connect between 1&2,and 3&4, are bowl vents. The bigun under the tank is likely the tank vent, got no idea why there is a brass fitting in the end of it.
There should also be a drain hose from the rear of the fuel sending unit cover.
All these plus the battery vent hose most likely go through a bracket behind the engine and hang down below and in front of the swingarm pivot.
That petcock does not look Look like a factory unit. I believe there should be a single outlet that connects to the fuel T between carbs 2&3.
I suppose you can hold yur finger over the other one while you ride.:whistle:
The four black hoses thar connect to the bottom of each carb are the overflow tubes.
The two clear tubes that connect between 1&2,and 3&4, are bowl vents. The bigun under the tank is likely the tank vent, got no idea why there is a brass fitting in the end of it.
There should also be a drain hose from the rear of the fuel sending unit cover.
All these plus the battery vent hose most likely go through a bracket behind the engine and hang down below and in front of the swingarm pivot.
That petcock does not look Look like a factory unit. I believe there should be a single outlet that connects to the fuel T between carbs 2&3.
I suppose you can hold yur finger over the other one while you ride.:whistle:
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
The following user(s) said Thank You: michaelcress
Please Log in or Create an account to join the conversation.
- Dr. Gamma
- Offline
- Sustaining Member
- Posts: 1228
- Thanks: 682
Re: KZ1000 Z1R fuel hose attachments
04 Mar 2018 13:09

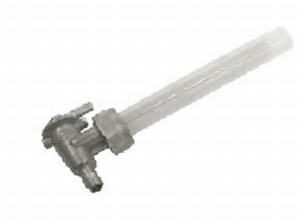

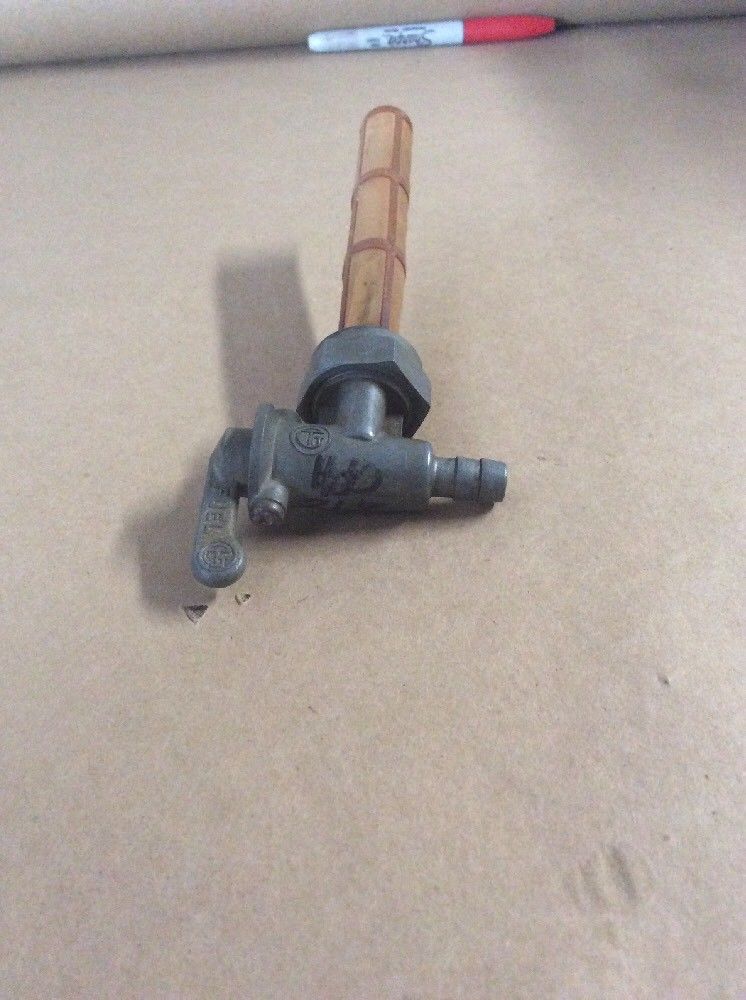

TexasKZ is right, the Z1r uses a single outlet petcock (51023-1007) And the stock Z1r carbs only have a single fuel inlet tube.
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!
Up in the hills near Prescott, Az.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!
Up in the hills near Prescott, Az.
The following user(s) said Thank You: michaelcress
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4241
- Thanks: 2103
Re: KZ1000 Z1R fuel hose attachments
04 Mar 2018 13:24
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: michaelcress
Please Log in or Create an account to join the conversation.
- michaelcress
- Topic Author
- Offline
- User
- Posts: 7
- Thanks: 2
Re: KZ1000 Z1R fuel hose attachments
06 Mar 2018 08:10
Thanks everybody for your responses.
With respect to the tank vent, does it require a filter of some sort? Would it be ok to just run a tube and leave it open on the end?
Thank you,
Michael
With respect to the tank vent, does it require a filter of some sort? Would it be ok to just run a tube and leave it open on the end?
Thank you,
Michael
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7660
- Thanks: 2303
Re: KZ1000 Z1R fuel hose attachments
06 Mar 2018 16:12
All the ones I remember seeing vented to atmosphere except bikes with California emissions equipment that vented into a charcoal canister.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
The following user(s) said Thank You: michaelcress
Please Log in or Create an account to join the conversation.
- GregZ
- Offline
- Sustaining Member
- Posts: 618
- Thanks: 79
Re: KZ1000 Z1R fuel hose attachments
06 Mar 2018 17:59michaelcress wrote: Thanks everybody for your responses.
With respect to the tank vent, does it require a filter of some sort? Would it be ok to just run a tube and leave it open on the end?
Thank you,
Michael

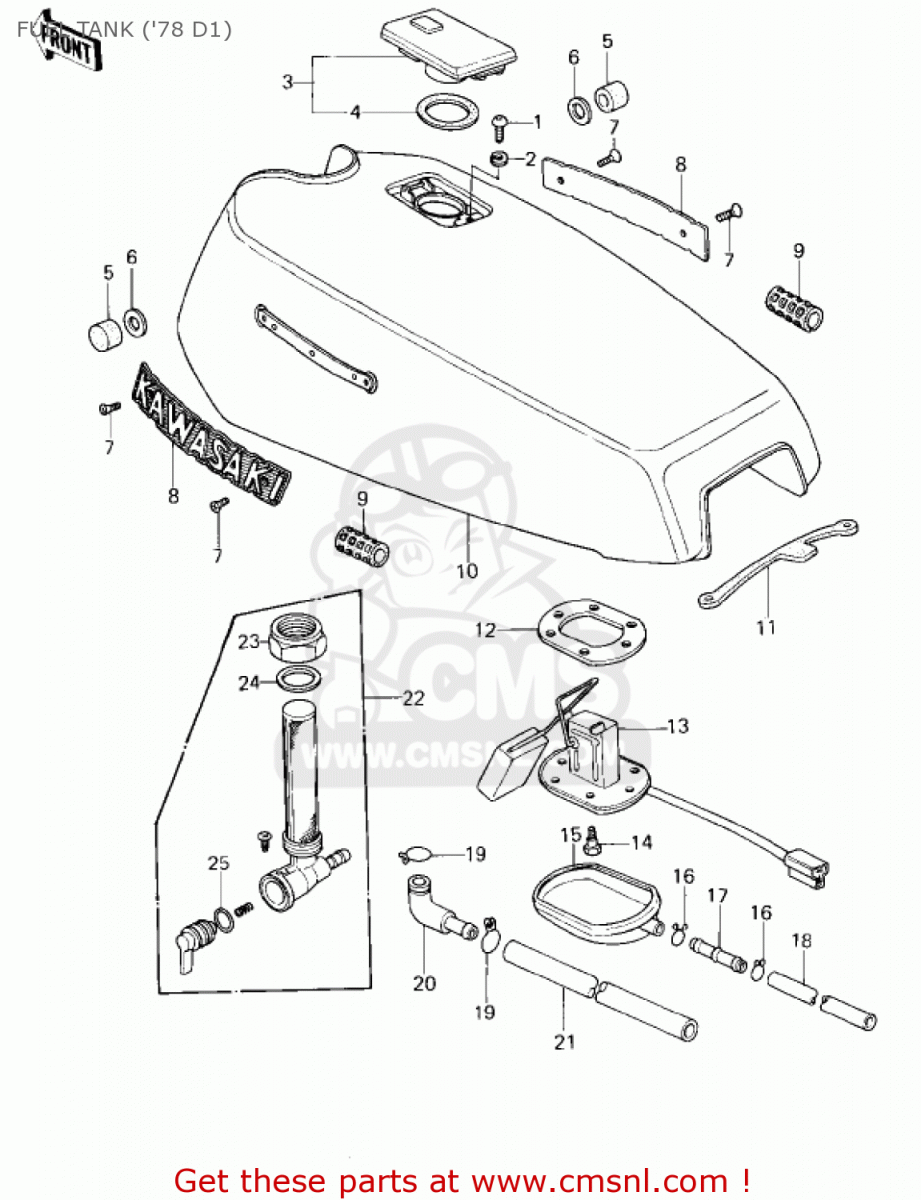

I cannot enlarge any of your attachments, I'll assume what you refer to as a tank vent hose attached to bottom of tank as shown in reference photo #19 20 and 21
That is not vent it is a drain hose in case you over fill the tank and get petrol in the recessed area of tank. There is a drain hole located under the gas cap mount screw

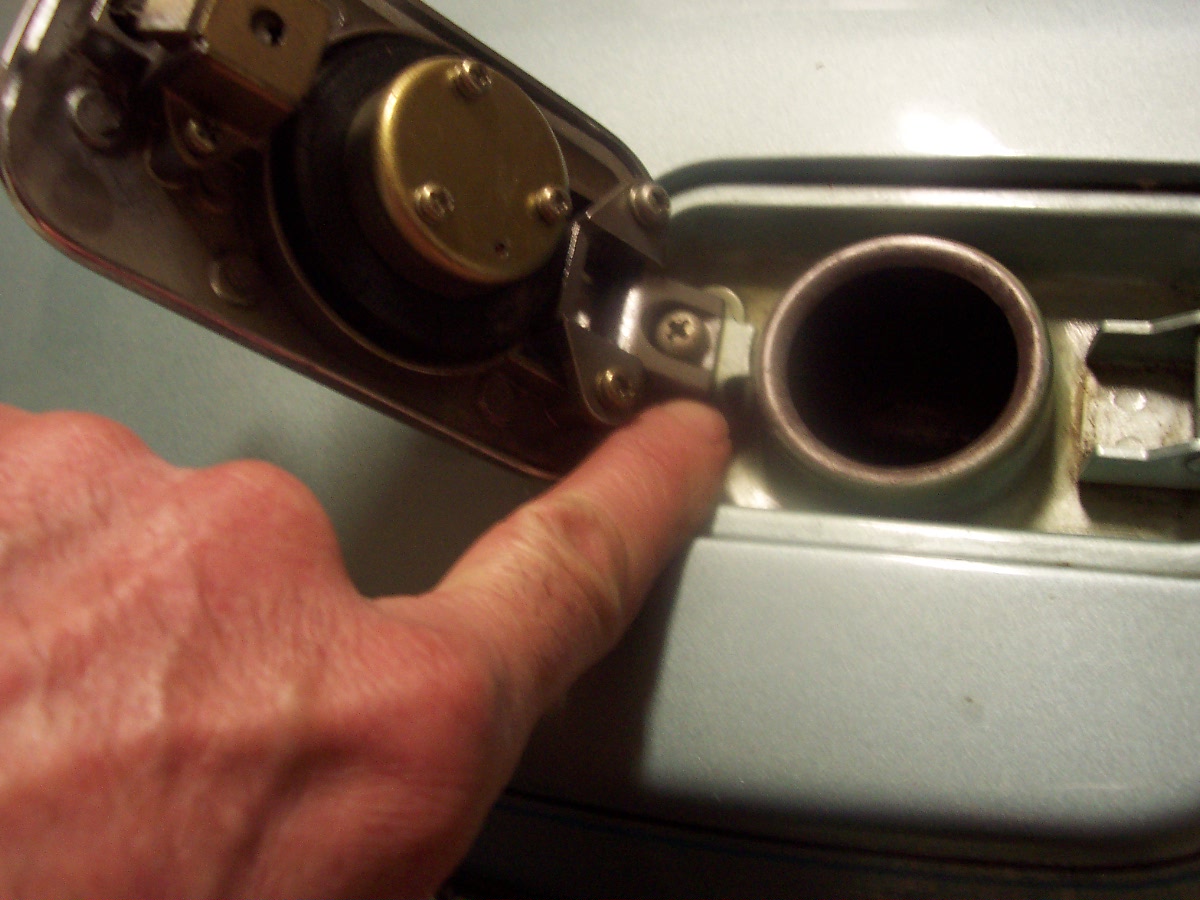

drain hole located here

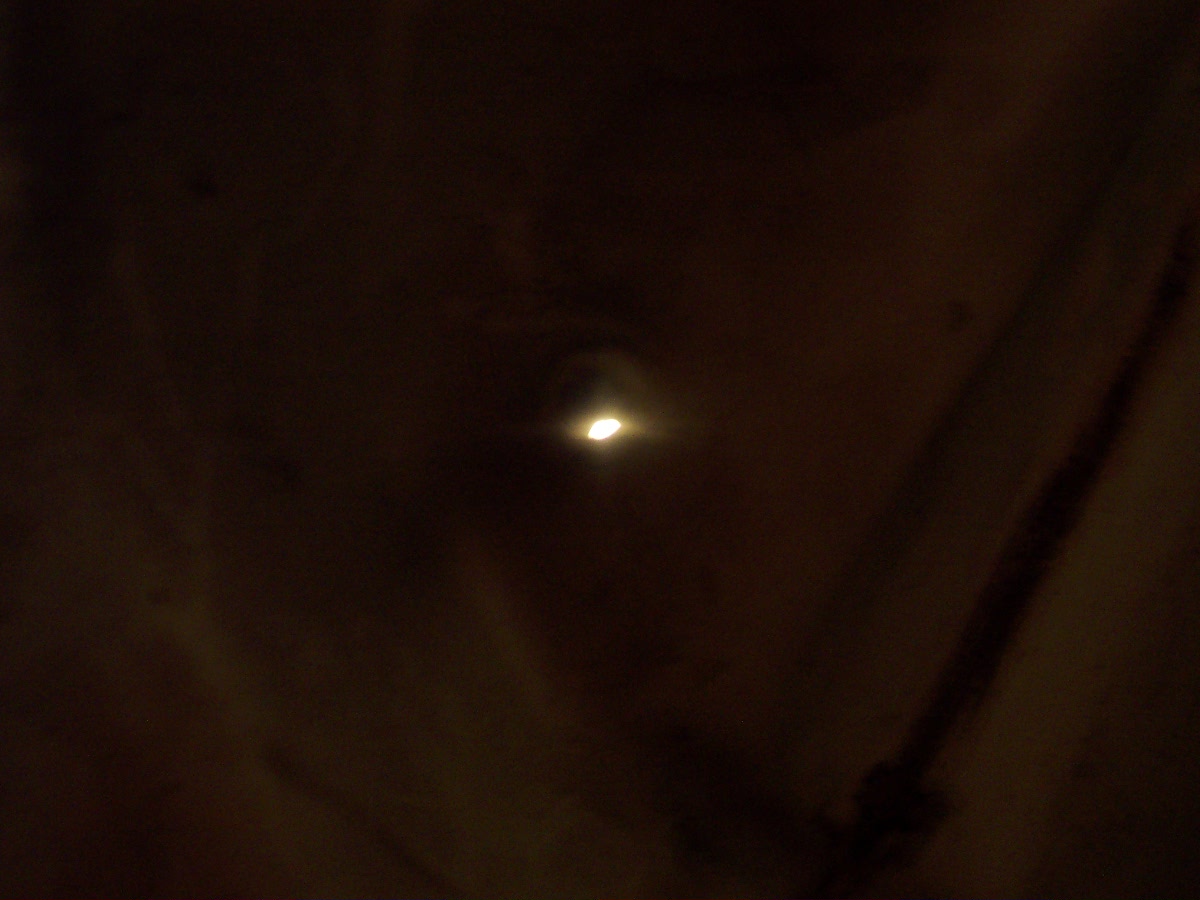

This is poor photo . this is bottom of tank looking up through the hole into light. As you can barley see it just goes through the tank
poor photo sorry
Please Log in or Create an account to join the conversation.
- GregZ
- Offline
- Sustaining Member
- Posts: 618
- Thanks: 79
Re: KZ1000 Z1R fuel hose attachments
06 Mar 2018 18:03 - 06 Mar 2018 18:05
and to answer your other question, yes just run a hose routed down under bike. The tank is vented from the tiny hole bottom of gas cap
cheers
cheers
