Identifying Jet -VM24 Carbs
- jt1000
- Topic Author
- Offline
- User
Less
More
03 Mar 2018 09:33 - 03 Mar 2018 09:35 #779694
by jt1000
1978 Kawasaki KZ650 B2
Identifying Jet -VM24 Carbs was created by jt1000
Hey everyone....

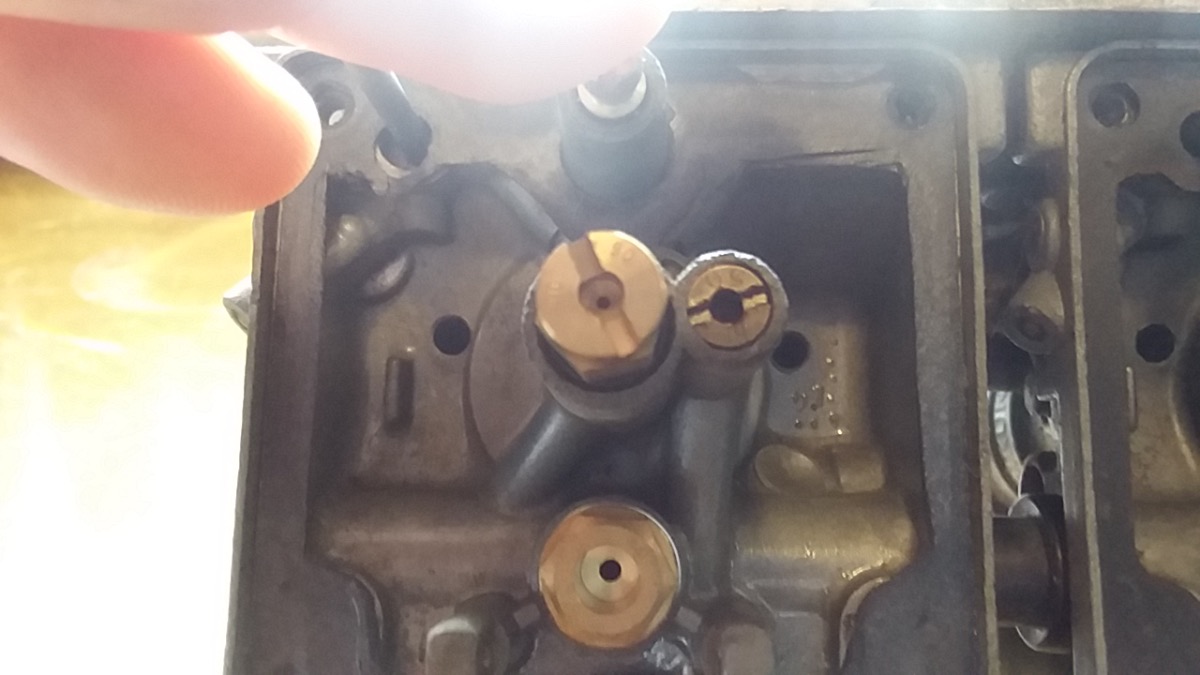

I know there's a wealth of knowledge out there on carbs but I just cant seem to identify this jet! The one in the pic to the right of the main-what is it?? Is the pilot jet supposed to be installed in that port below the jet seen in the pic? Any help appreciated. Second pic, it's the smaller jet on the left. I know the other is the main. (Side note: I'm helping a friend with some advice REMOTELY, I used to have a KZ1000 and I'm doing all this via pics and phone calls. I'm sure if I had my hands on it I could better figure it out.)
I know there's a wealth of knowledge out there on carbs but I just cant seem to identify this jet! The one in the pic to the right of the main-what is it?? Is the pilot jet supposed to be installed in that port below the jet seen in the pic? Any help appreciated. Second pic, it's the smaller jet on the left. I know the other is the main. (Side note: I'm helping a friend with some advice REMOTELY, I used to have a KZ1000 and I'm doing all this via pics and phone calls. I'm sure if I had my hands on it I could better figure it out.)
1978 Kawasaki KZ650 B2
Last edit: 03 Mar 2018 09:35 by jt1000.
Please Log in or Create an account to join the conversation.
- dkoz
- Offline
- User
Less
More
- Posts: 249
- Thank you received: 17
03 Mar 2018 10:40 #779695
by dkoz
1978 LTD B2 smashed
1978 Z1R D1
1978 A2
Replied by dkoz on topic Identifying Jet -VM24 Carbs
the one on the right is the pilot
the port below is where the needle valve belongs for the float
the port below is where the needle valve belongs for the float
1978 LTD B2 smashed
1978 Z1R D1
1978 A2
Please Log in or Create an account to join the conversation.
- jt1000
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 0
03 Mar 2018 10:57 #779697
by jt1000
1978 Kawasaki KZ650 B2
Replied by jt1000 on topic Identifying Jet -VM24 Carbs
I’m confused. I thought the float needle goes into the port at the bottom of the carb body.
1978 Kawasaki KZ650 B2
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4211
- Thank you received: 2072
03 Mar 2018 11:34 #779699
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Identifying Jet -VM24 Carbs
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4211
- Thank you received: 2072
03 Mar 2018 11:37 #779700
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Identifying Jet -VM24 Carbs
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- jt1000
- Topic Author
- Offline
- User
Less
More
- Posts: 11
- Thank you received: 0
03 Mar 2018 12:31 #779701
by jt1000
1978 Kawasaki KZ650 B2
Replied by jt1000 on topic Identifying Jet -VM24 Carbs

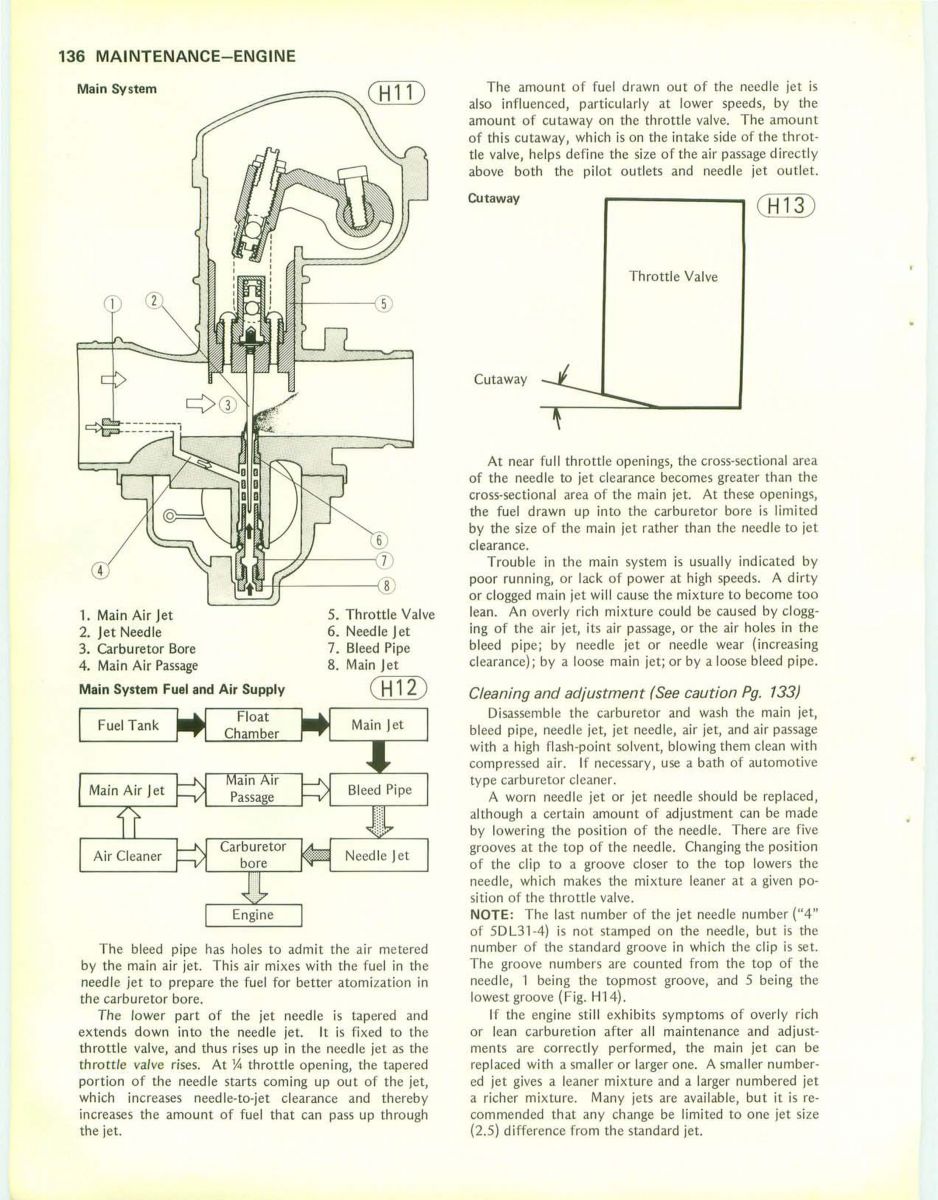

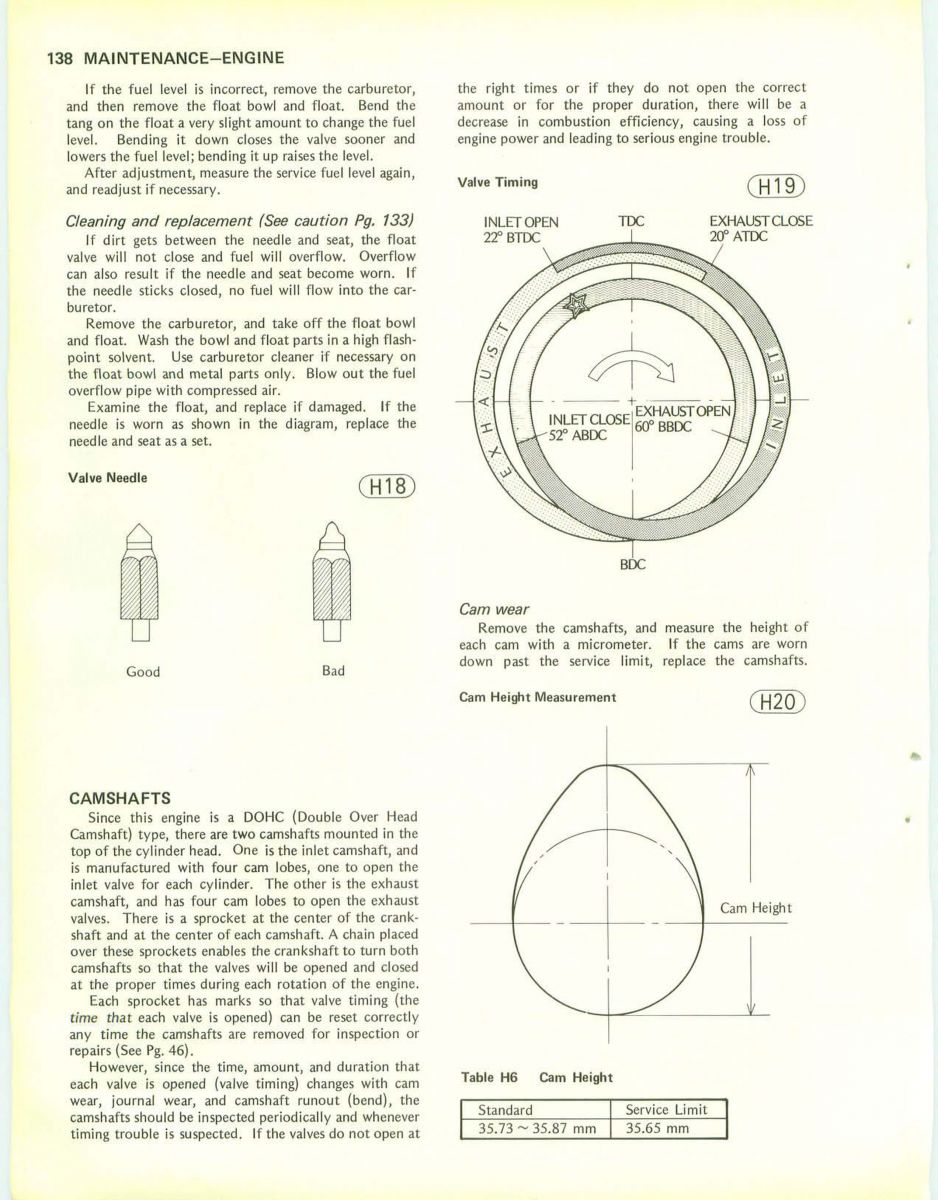

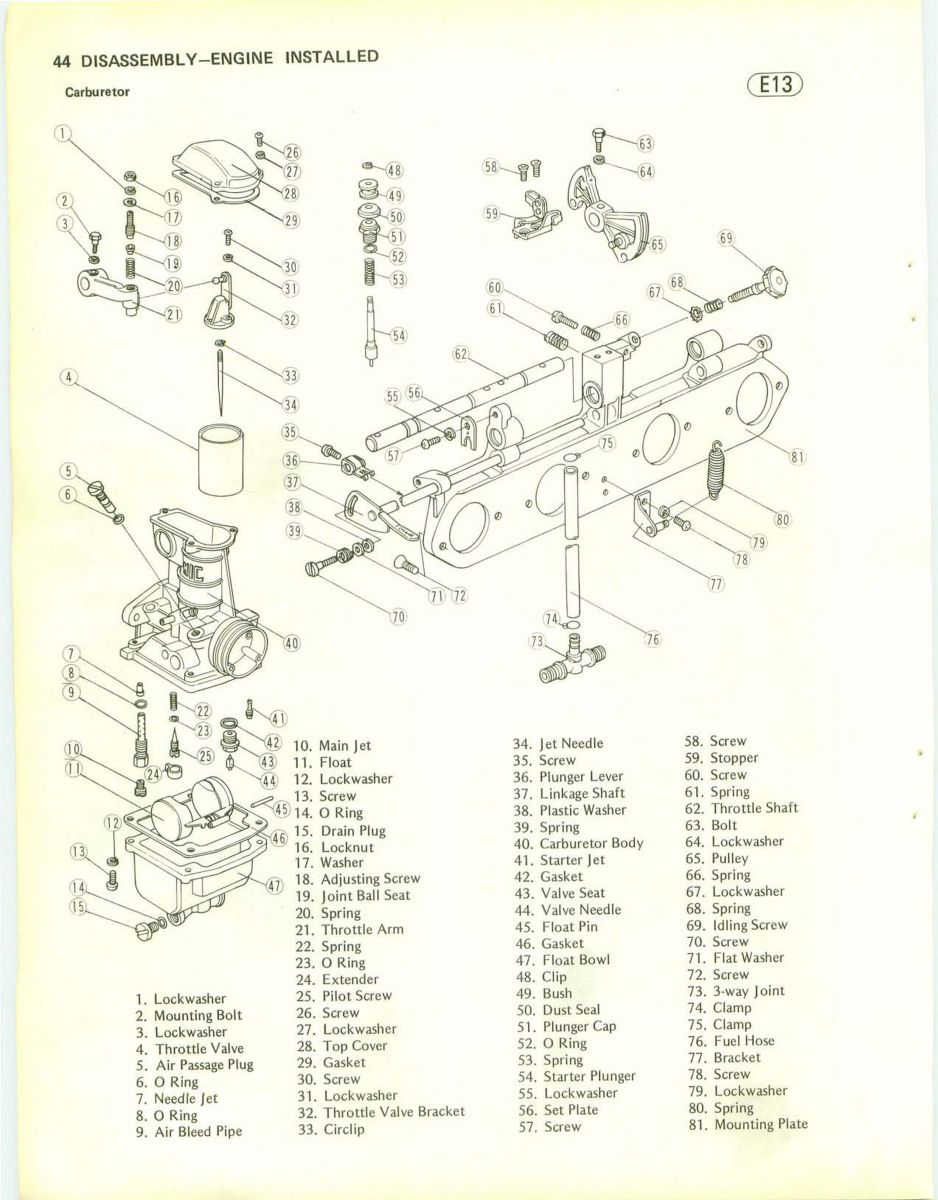

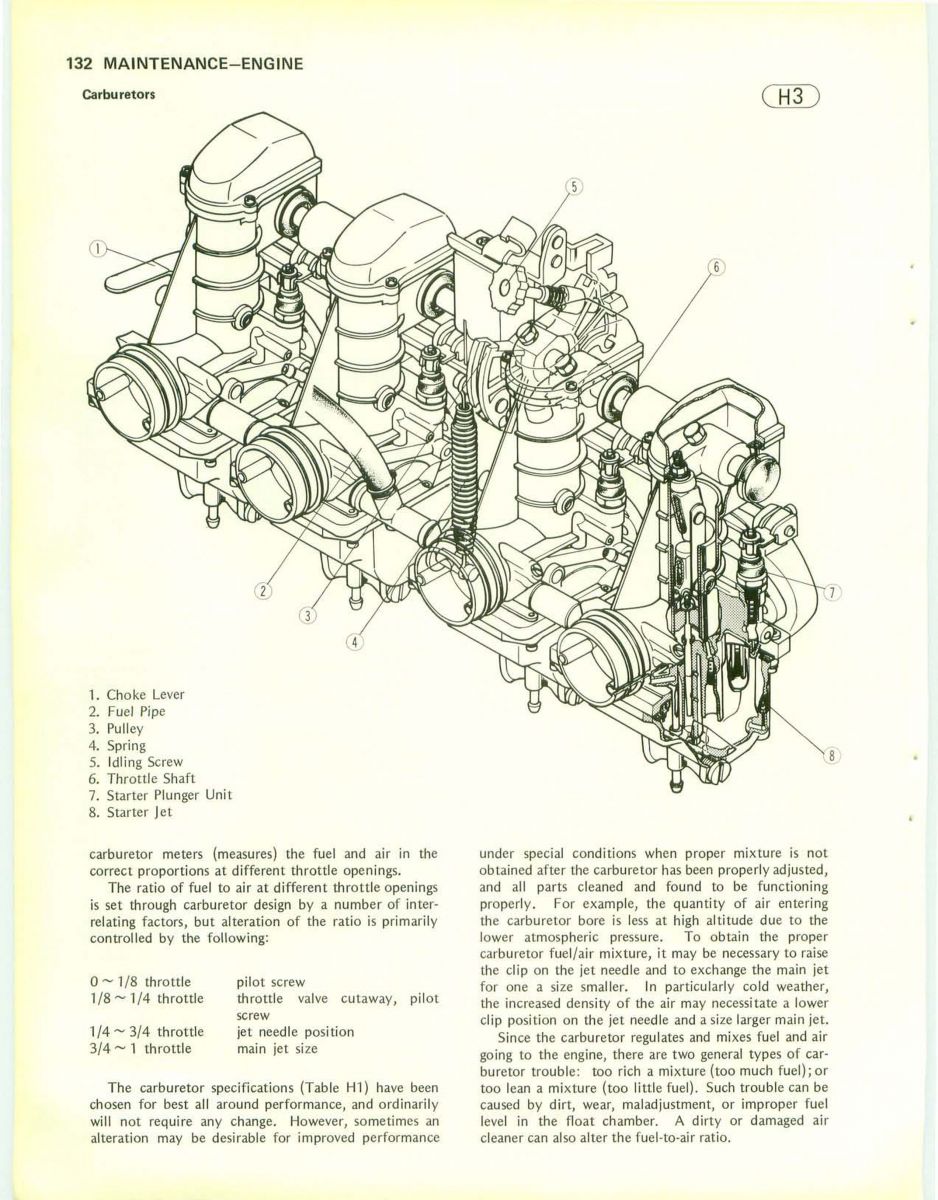

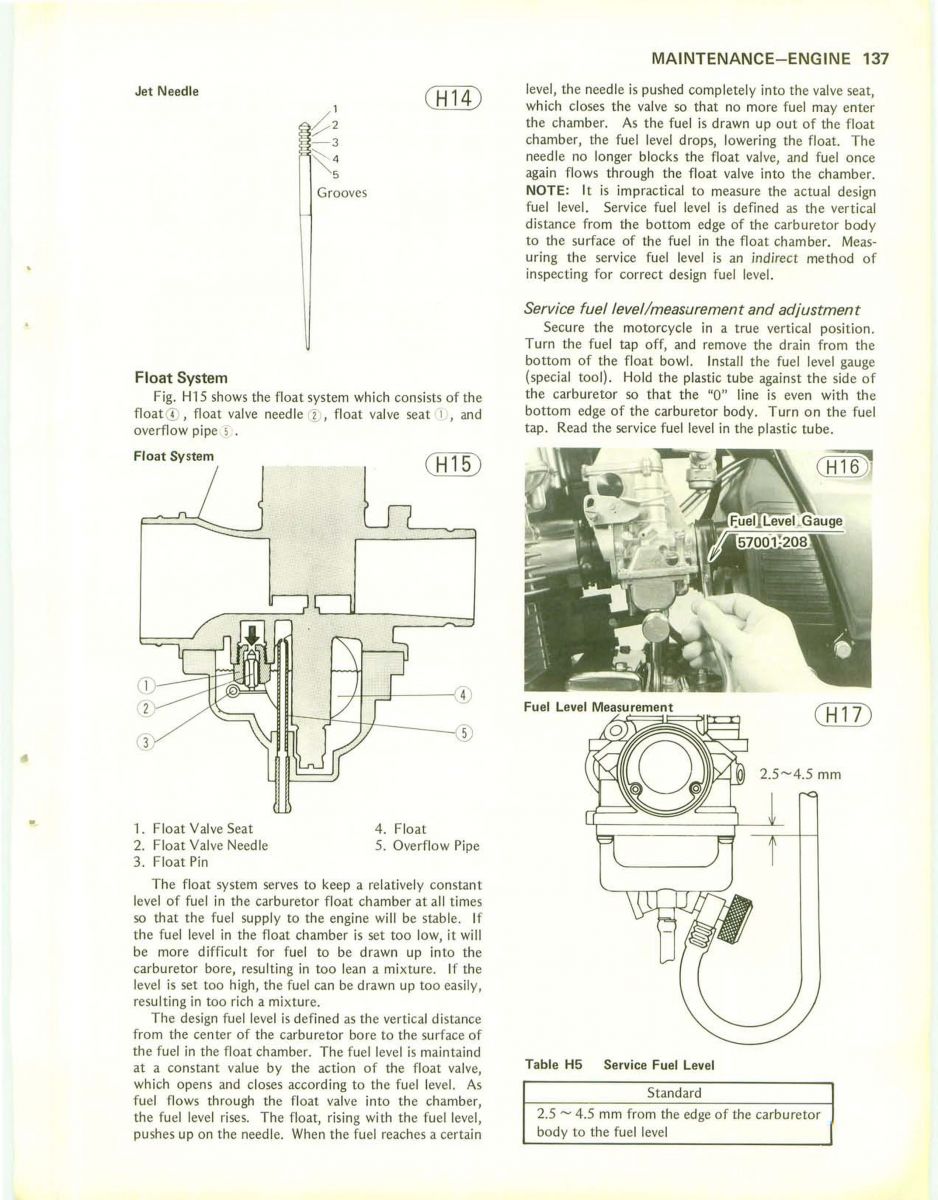

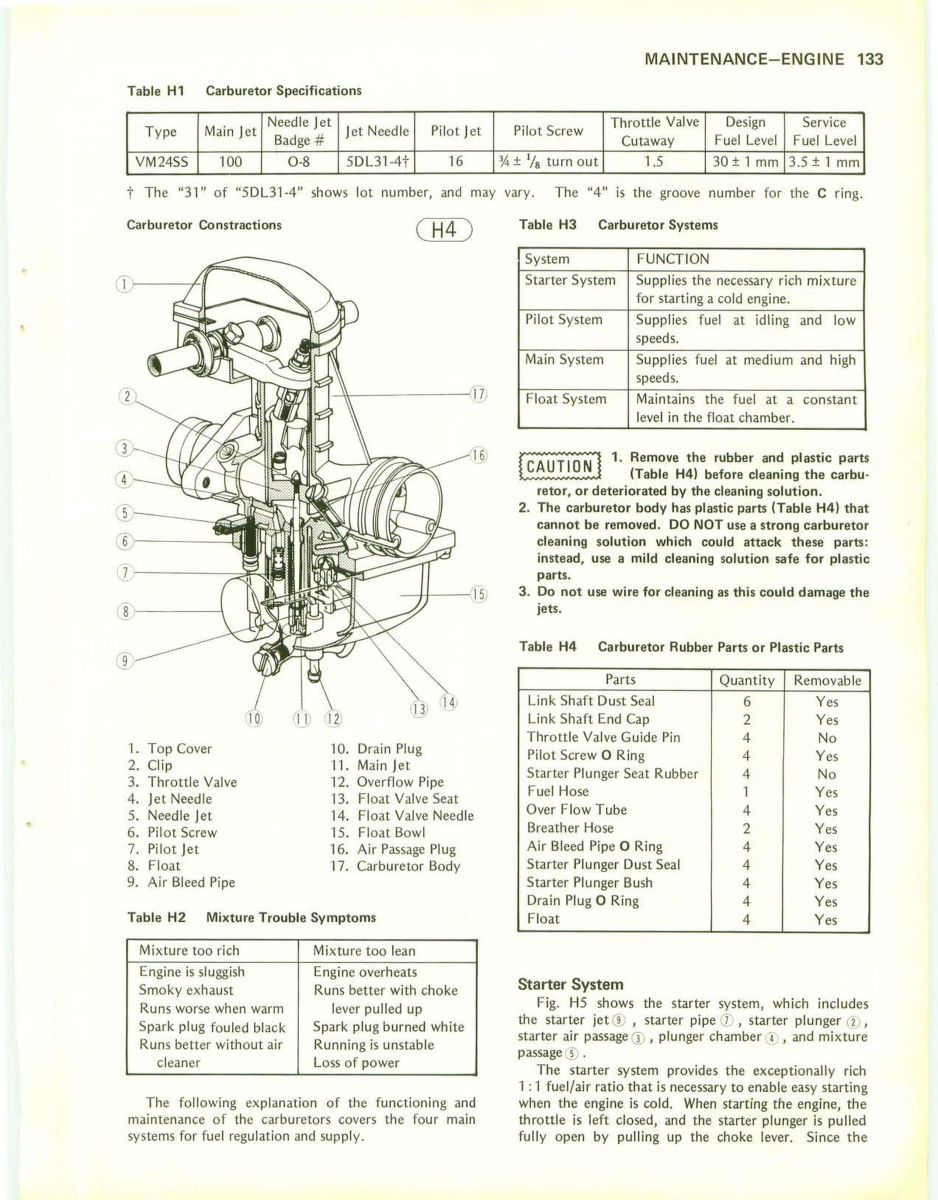

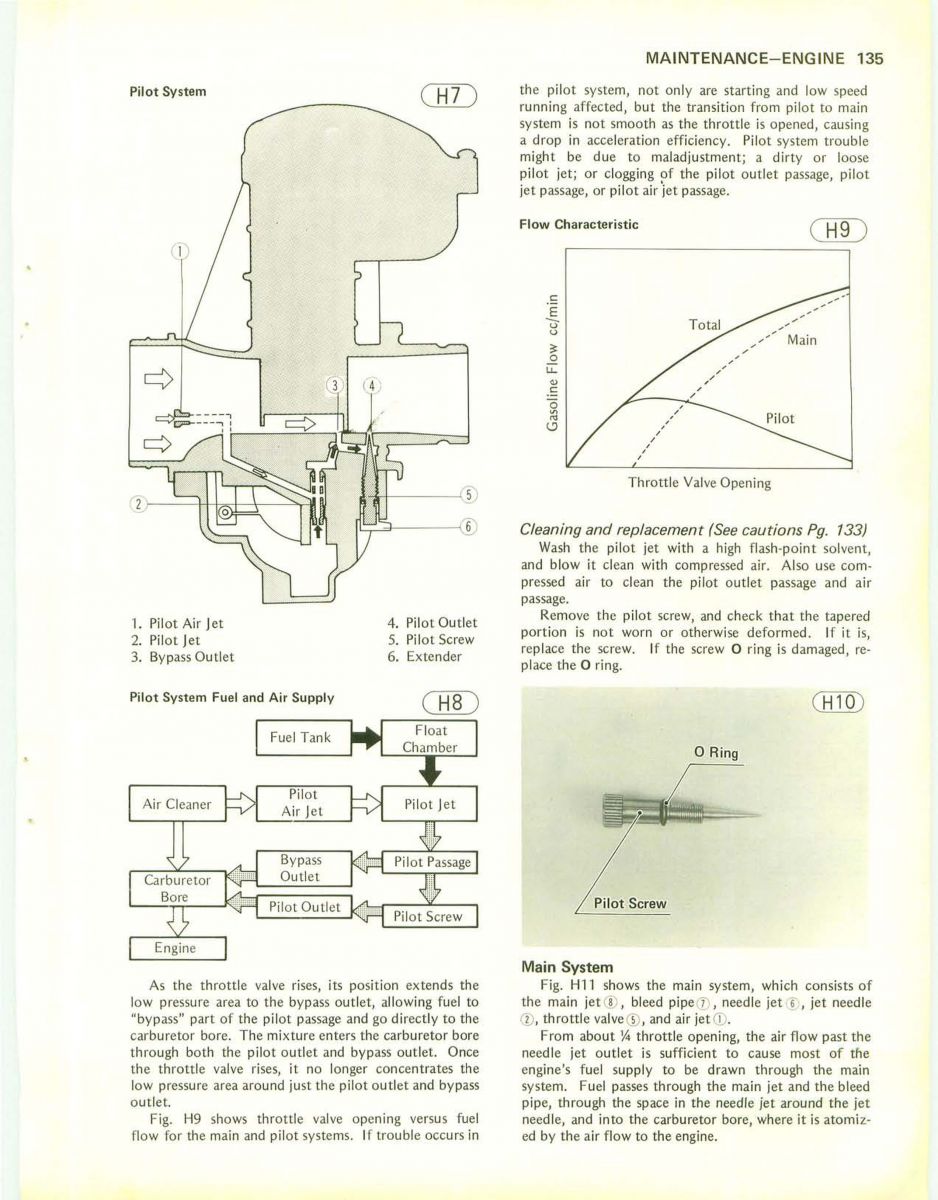

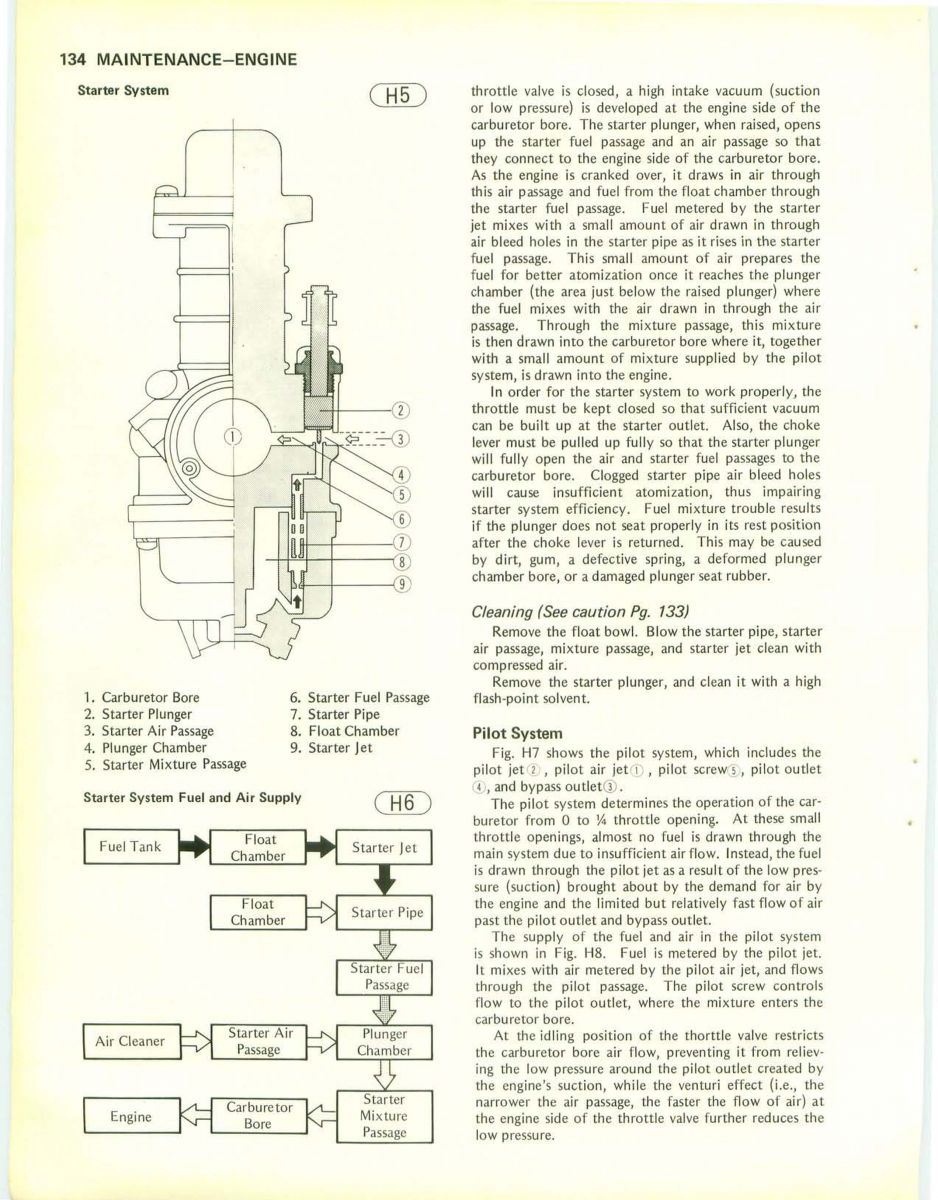

Thank you for the diagrams. The best I’ve seen. Based on the pics I posted and anyone’s expertise, it LOOKS like an extra jet was installed in the port where the pilot jet is installed? Because in the diagrams and everything else I’ve seen the pilot jet sets deep into that port and nothing should sit flush at the top, as seen in my pics. I hope this makes sense and someone can shed some light...
1978 Kawasaki KZ650 B2
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4211
- Thank you received: 2072
03 Mar 2018 14:22 - 03 Mar 2018 14:35 #779704
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Identifying Jet -VM24 Carbs

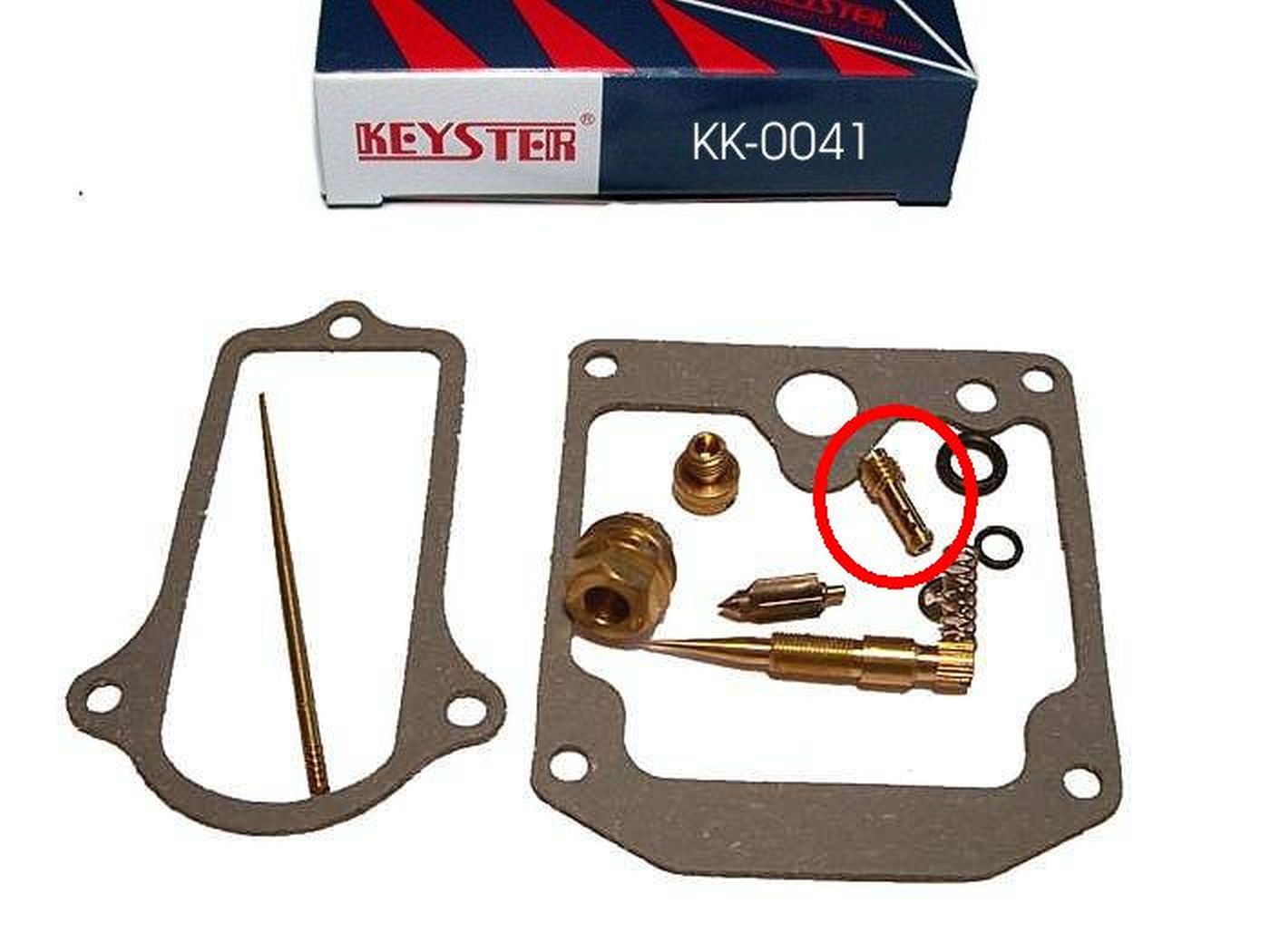

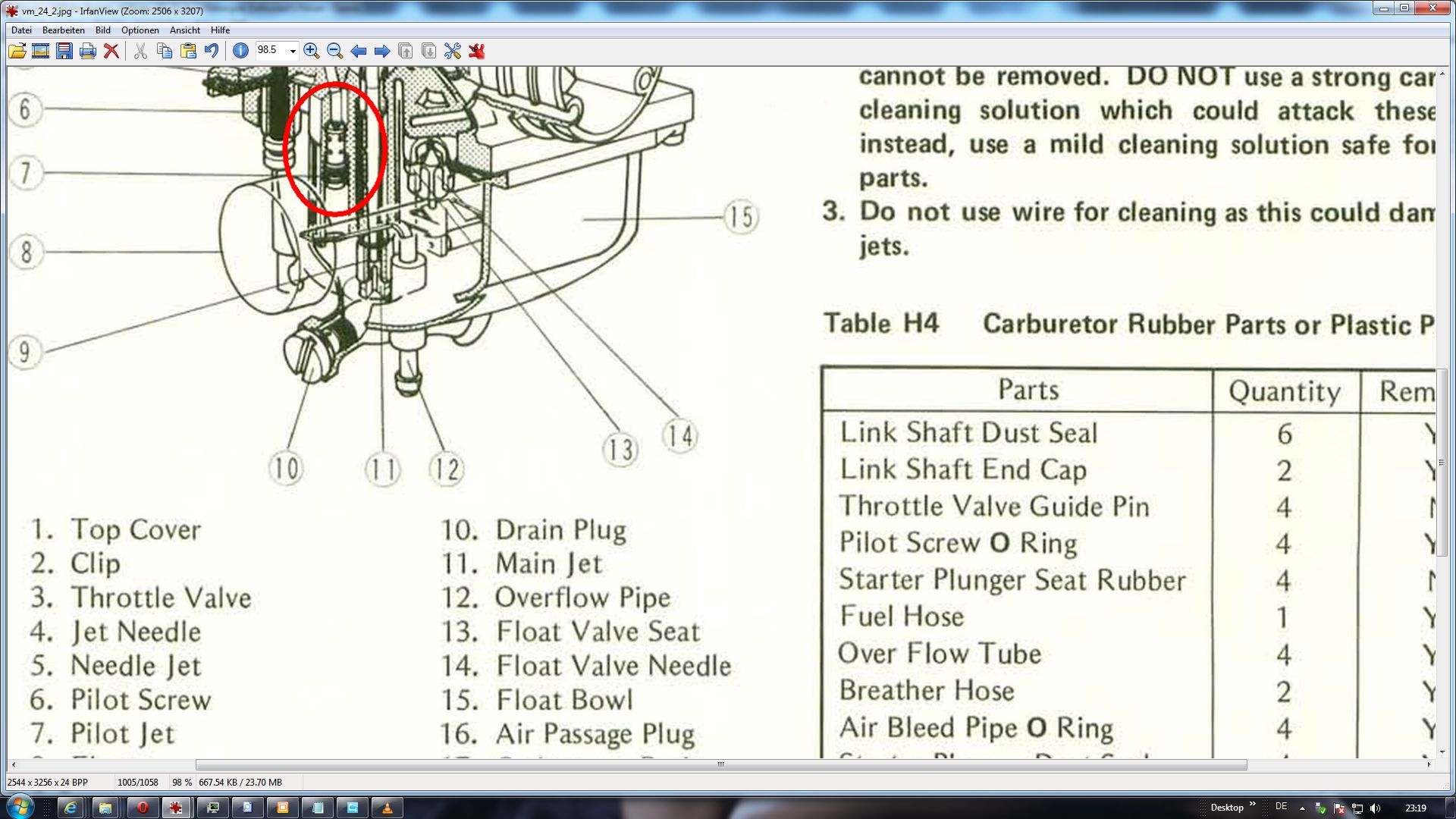

The pilot jet should look like this
Your so called "pilot jet" looks more like the starter jet and is located in the carb bowl
Edit: Took a second view to your "pilot jet".

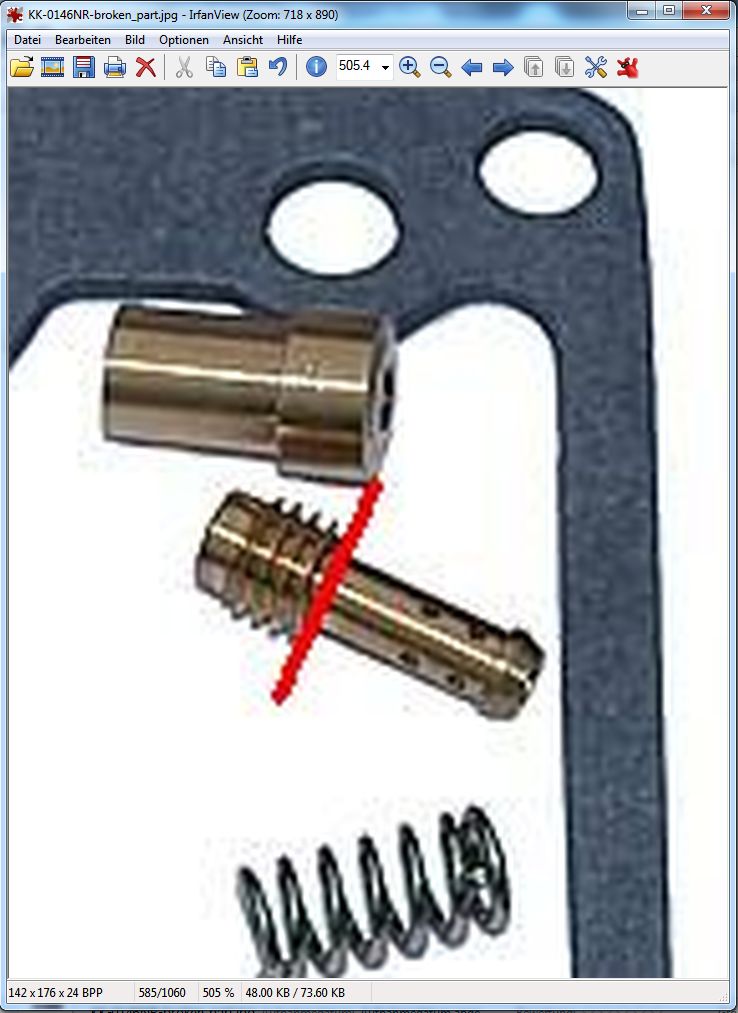

Is it possible you broke the pilot jet (threat part) apart from brass shaft with the holes,(could be stuck in the carb body
Just a thought.
Your so called "pilot jet" looks more like the starter jet and is located in the carb bowl
Edit: Took a second view to your "pilot jet".
Is it possible you broke the pilot jet (threat part) apart from brass shaft with the holes,(could be stuck in the carb body
Just a thought.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 03 Mar 2018 14:35 by Scirocco.
