Pilot jet location - help
- ric812
- Topic Author
- Offline
- User
Less
More
12 Jul 2017 11:43 #766778
by ric812
1982 Kawasaki KZ750M Twin CSR
Pilot jet location - help was created by ric812

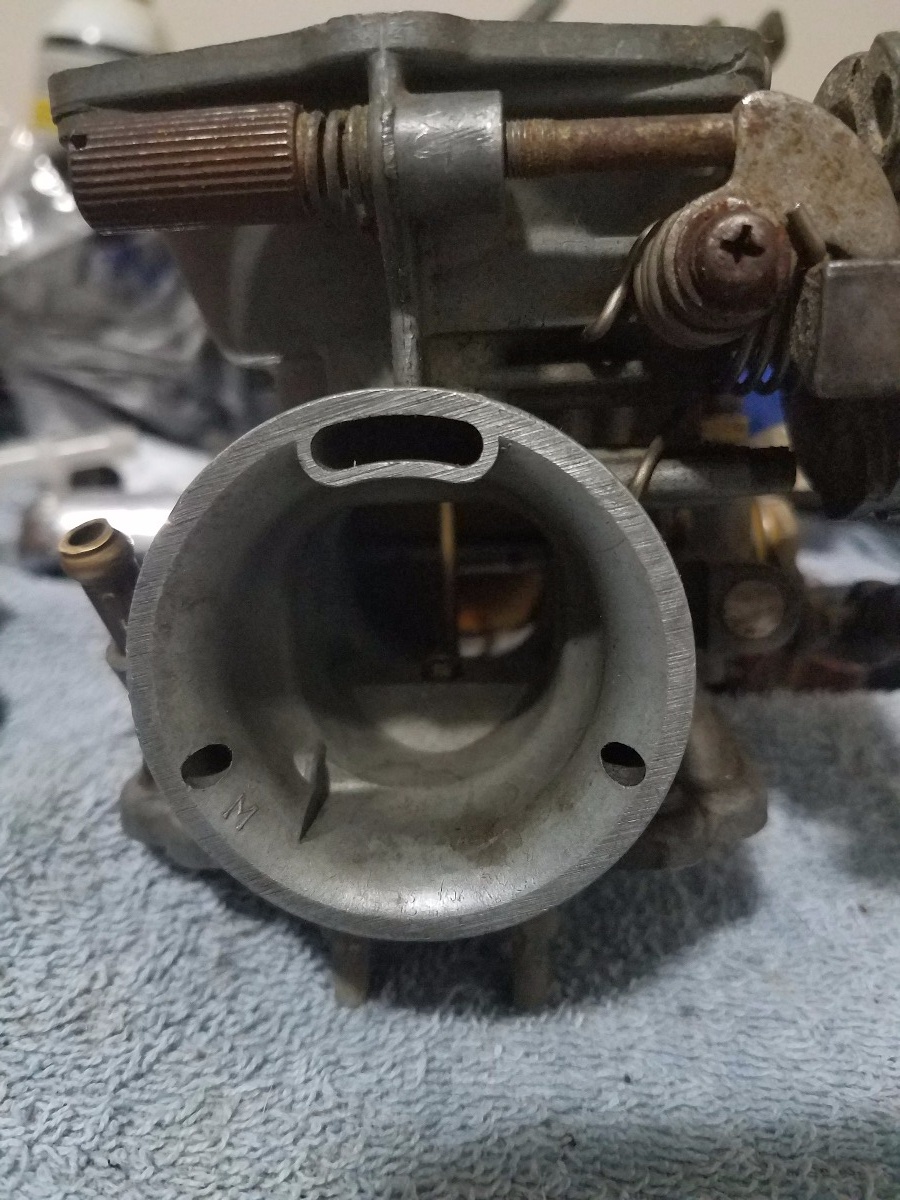

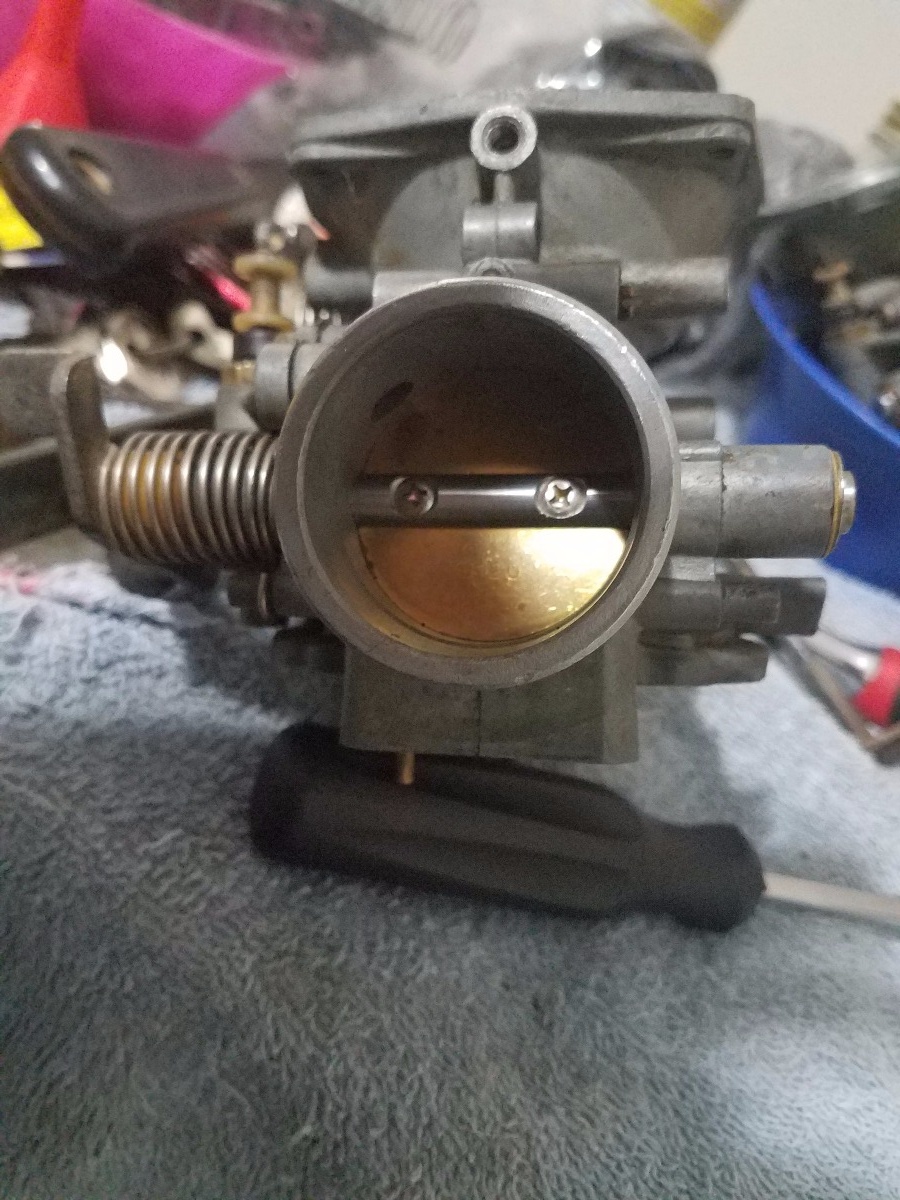

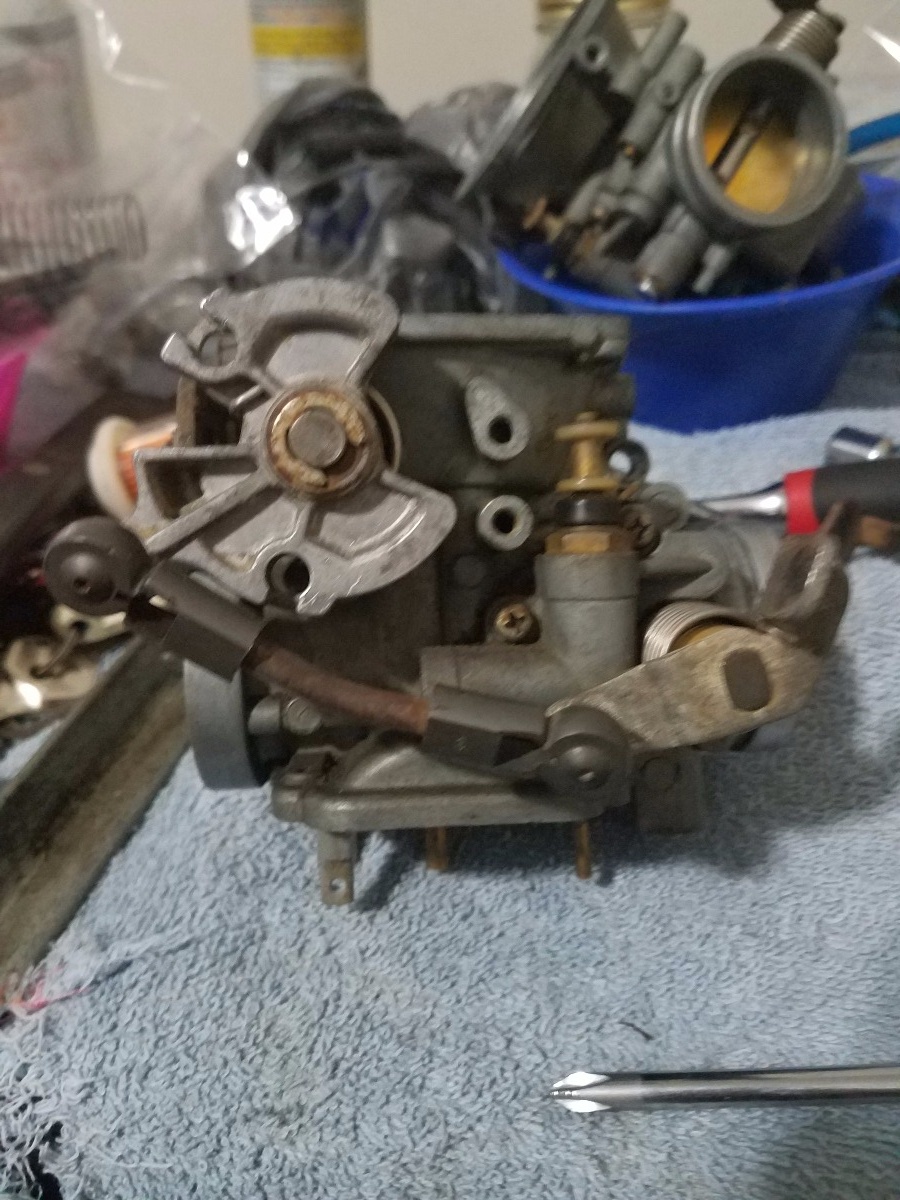

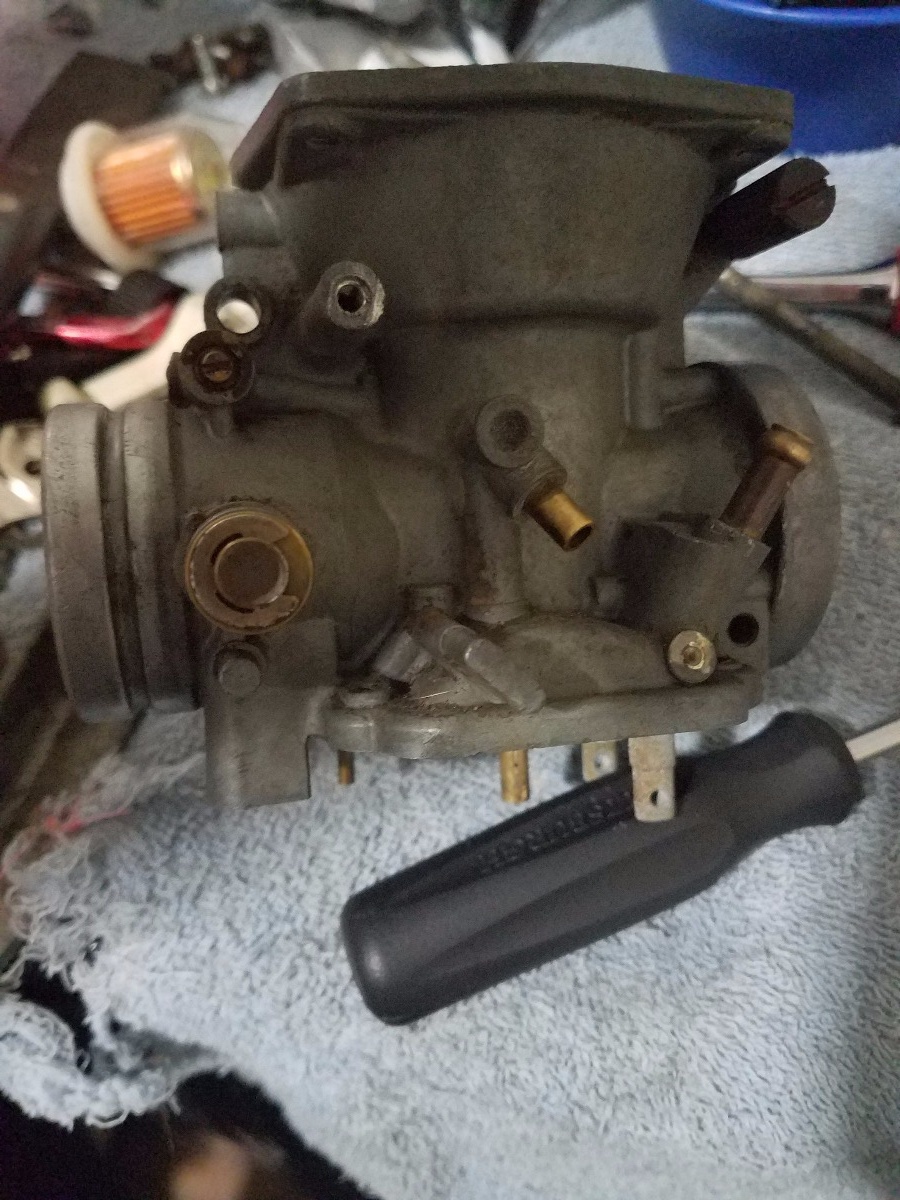

I keep reading that the pilot jet is covered by a plug but the FSM does not really show where it is. This is on a BS34 carb from a 1982 kz750 twin car. I have attached pictures of the carb. Please help, I do not want to drill out the wrong spot.
1982 Kawasaki KZ750M Twin CSR
Please Log in or Create an account to join the conversation.
- gd4now
- Offline
- User
- Denco where did you go?
Less
More
- Posts: 1382
- Thank you received: 441
12 Jul 2017 12:13 - 12 Jul 2017 12:19 #766779
by gd4now
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Replied by gd4now on topic Pilot jet location - help
Are you sure those a BS34 carbs. I could be wrong, but they look a lot like the larger BS38 carbs that were stock on the earlier versions of the 750 twin. If that is the case then both the pilot jet and the main jet are screwed into the bowl and not the the carb body.
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Last edit: 12 Jul 2017 12:19 by gd4now.
Please Log in or Create an account to join the conversation.
- ric812
- Topic Author
- Offline
- User
Less
More
- Posts: 94
- Thank you received: 5
12 Jul 2017 12:45 #766781
by ric812
1982 Kawasaki KZ750M Twin CSR
Replied by ric812 on topic Pilot jet location - help

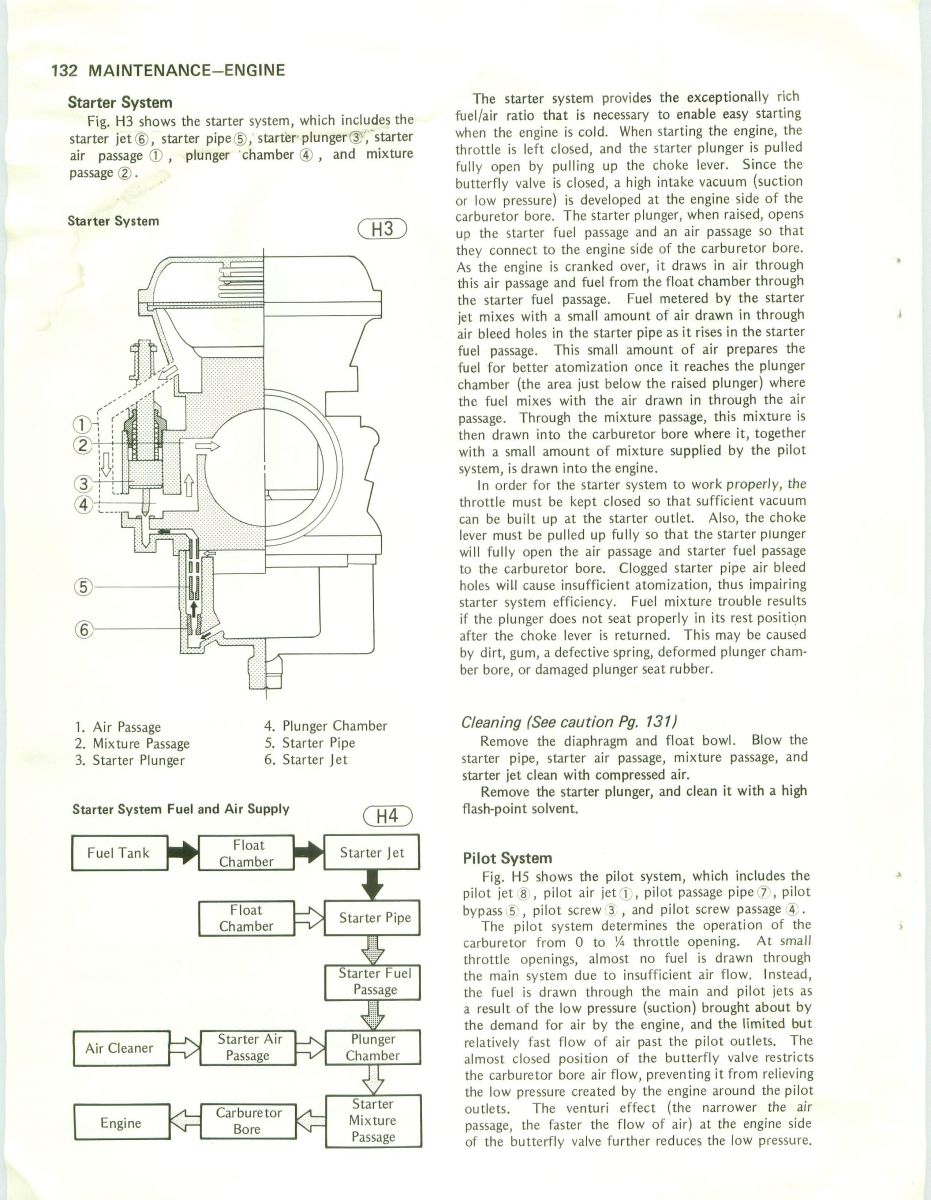

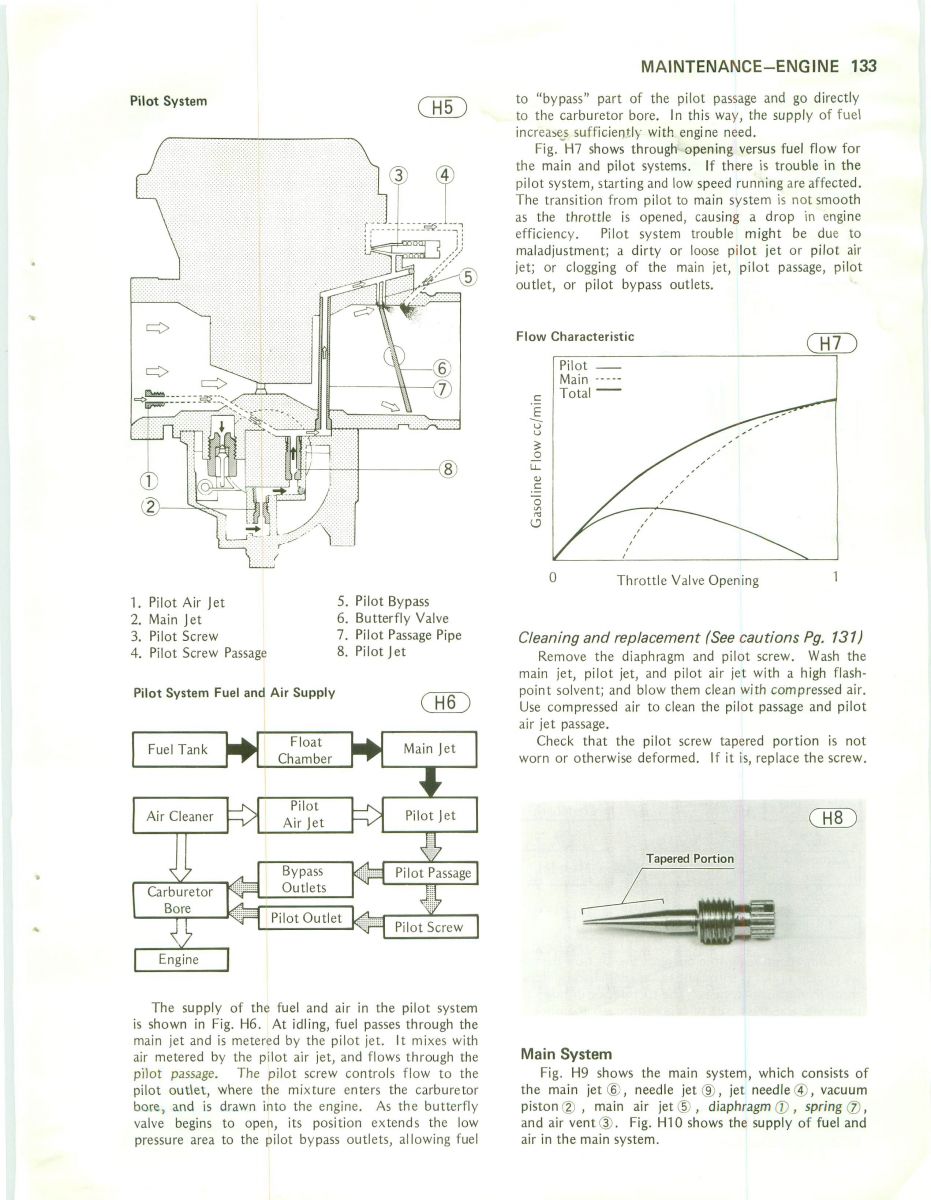

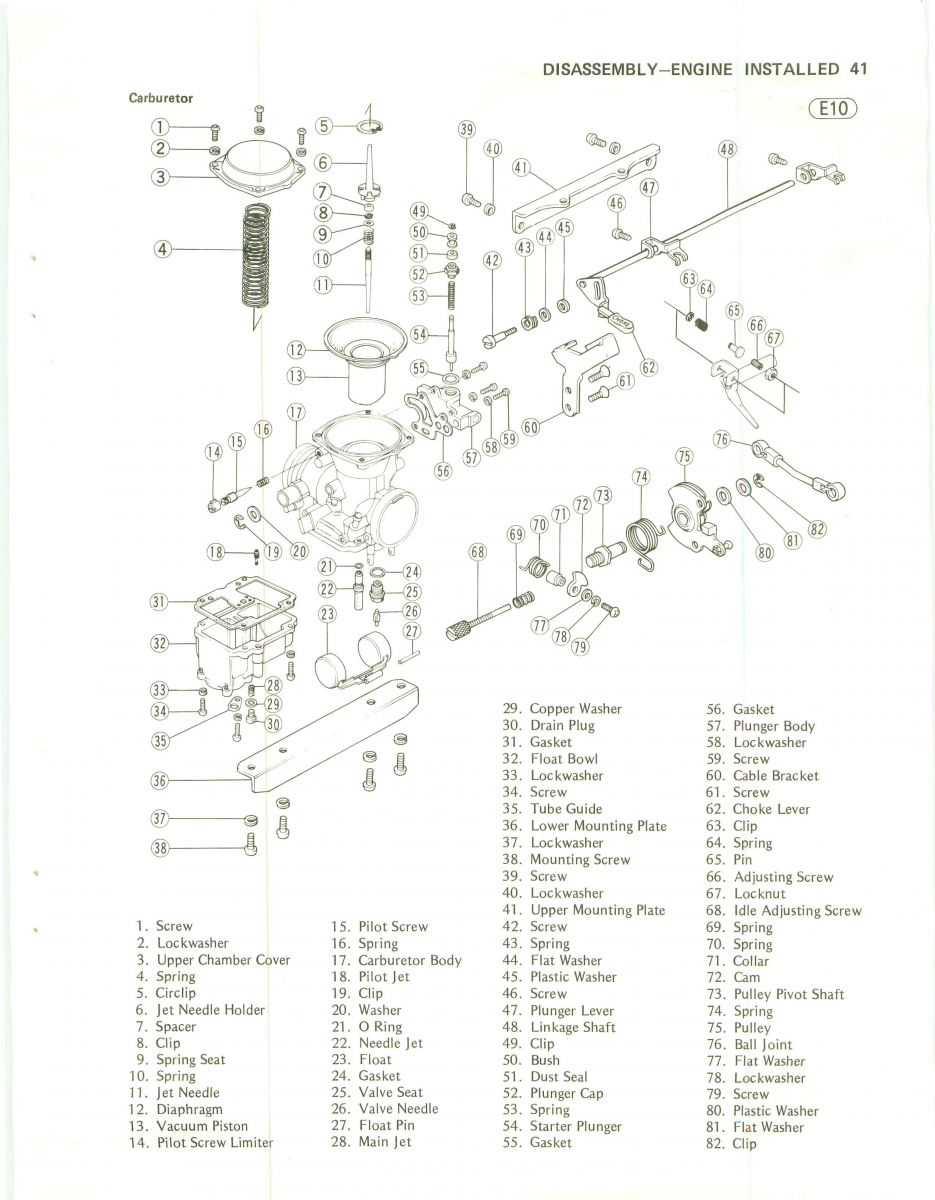

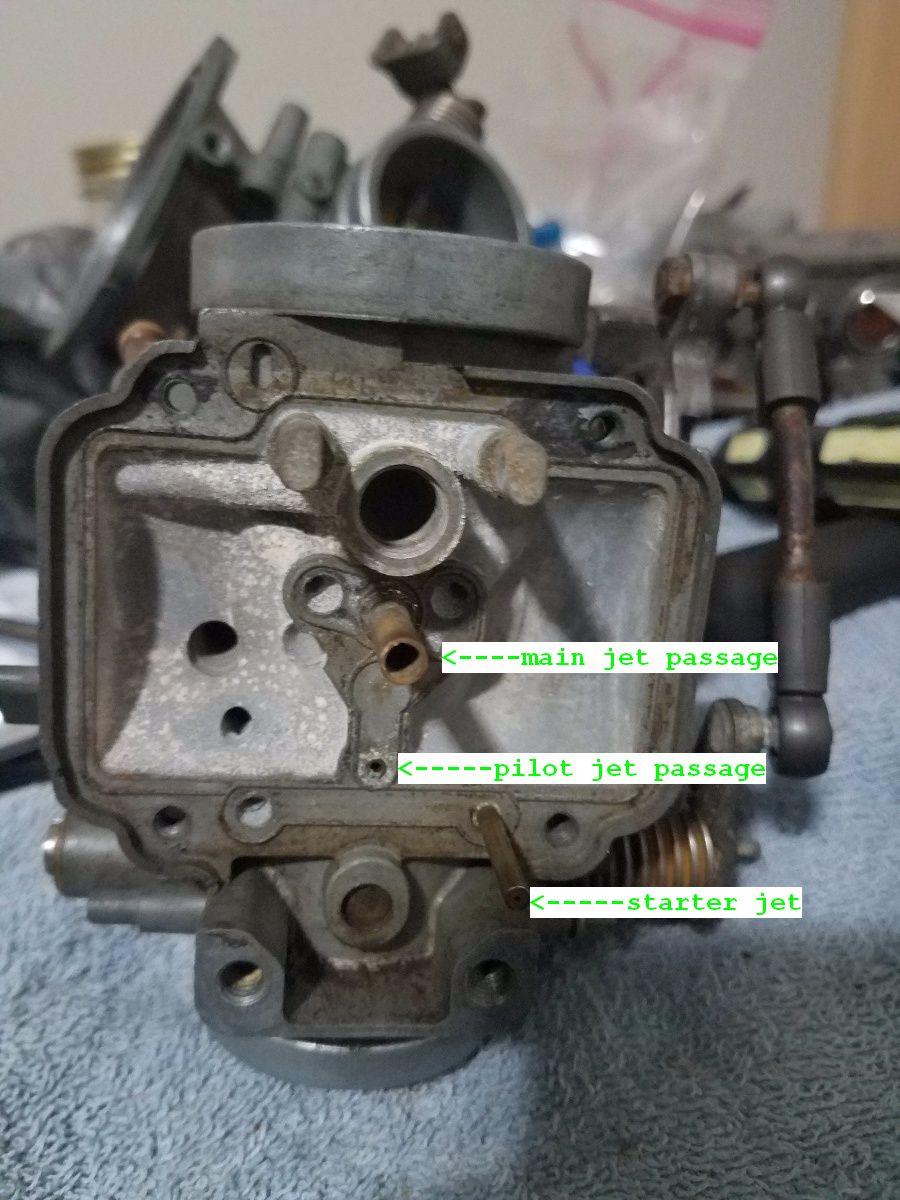

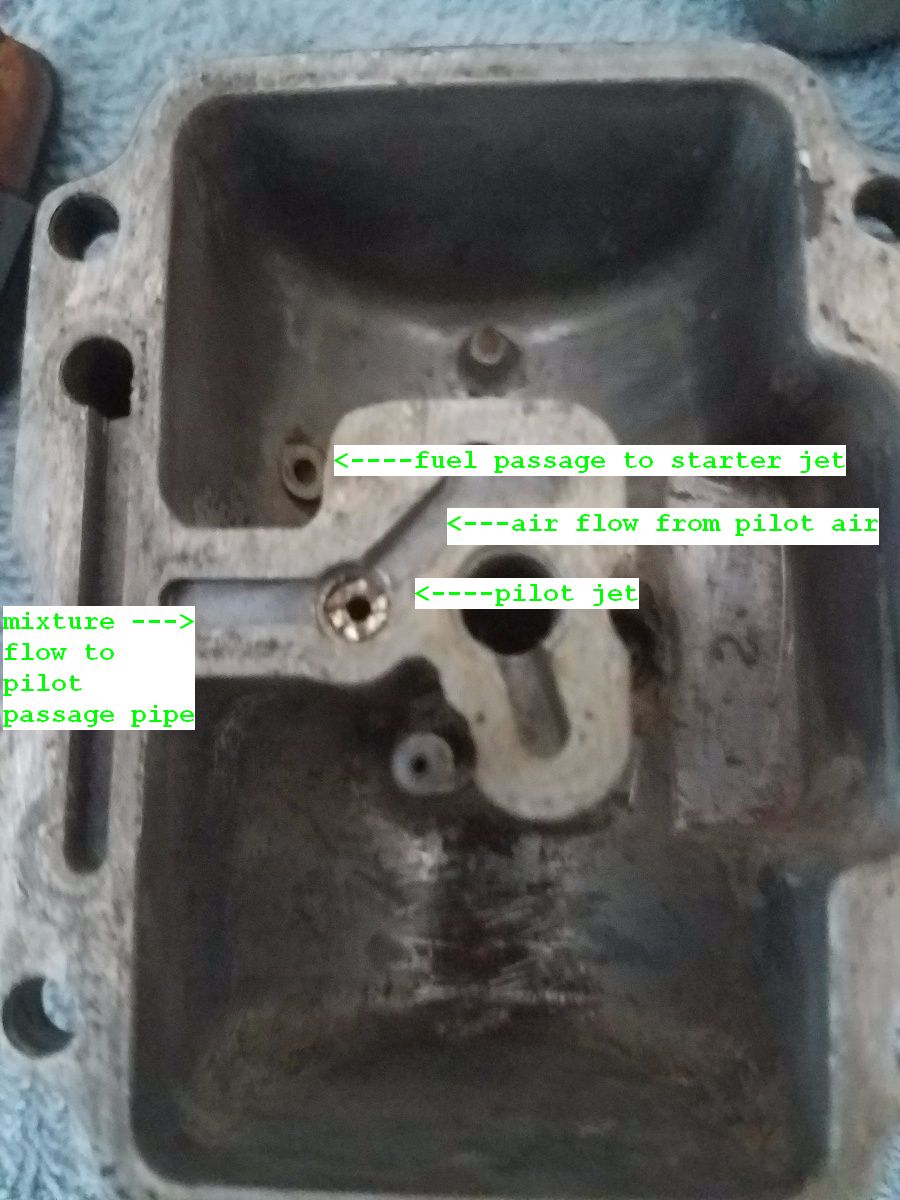

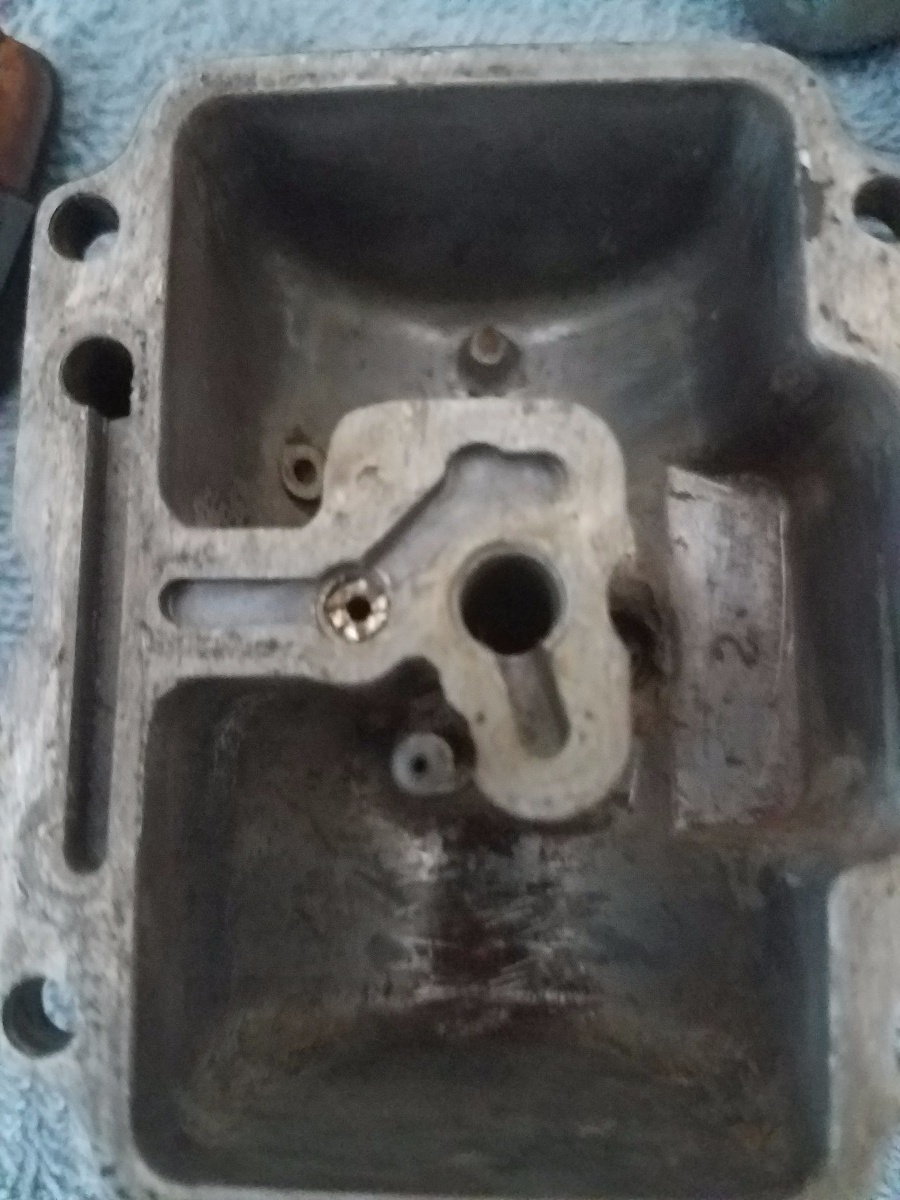

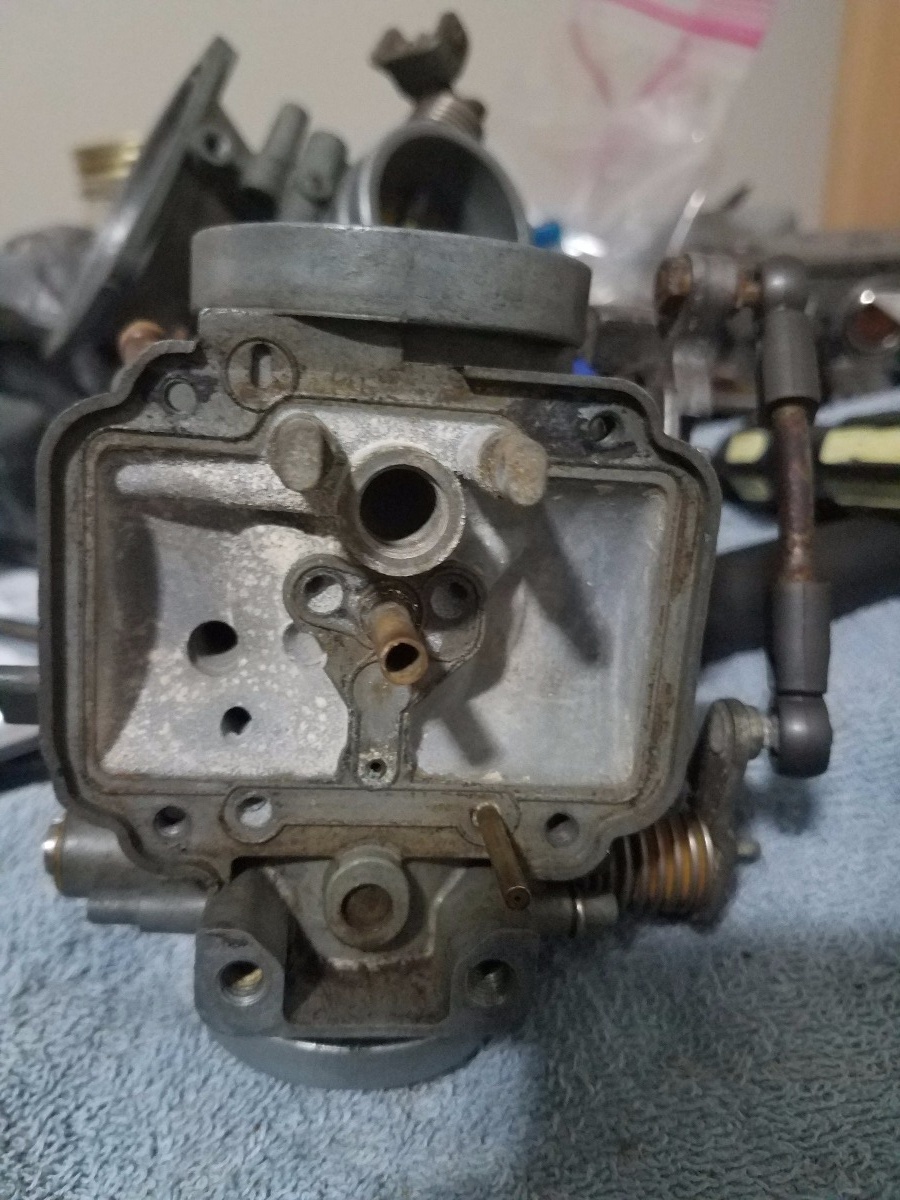

No I am not sure. Is there anyway figure it out? Maybe measuring the more size? There is the main jet in the middle of the float bowl and another jet just to the side of it. I will have to post pictures of the float bowl once I get home.
1982 Kawasaki KZ750M Twin CSR
Please Log in or Create an account to join the conversation.
- mopguy
- Offline
- Sustaining Member
Less
More
- Posts: 730
- Thank you received: 168
12 Jul 2017 13:25 - 12 Jul 2017 13:29 #766782
by mopguy
I have a 1980 Kawasaki KZ750 Ltd. I bought new. I recently managed to get it out of my garage after 28 years and put it on the road again (2010). I feel like a kid all over again. Since I have acquired 3 78 KZ1000 Ltd, 1 1981 KZ1000 Ltd, and another 1980 KZ750 Ltd. Love the LTD's.
Replied by mopguy on topic Pilot jet location - help
That's the one. If you have BS34, the pilot is fed through a passage in the main jet shaft.
I have a 1980 Kawasaki KZ750 Ltd. I bought new. I recently managed to get it out of my garage after 28 years and put it on the road again (2010). I feel like a kid all over again. Since I have acquired 3 78 KZ1000 Ltd, 1 1981 KZ1000 Ltd, and another 1980 KZ750 Ltd. Love the LTD's.
Last edit: 12 Jul 2017 13:29 by mopguy.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
12 Jul 2017 14:27 - 12 Jul 2017 14:33 #766785
by martin_csr
Replied by martin_csr on topic Pilot jet location - help

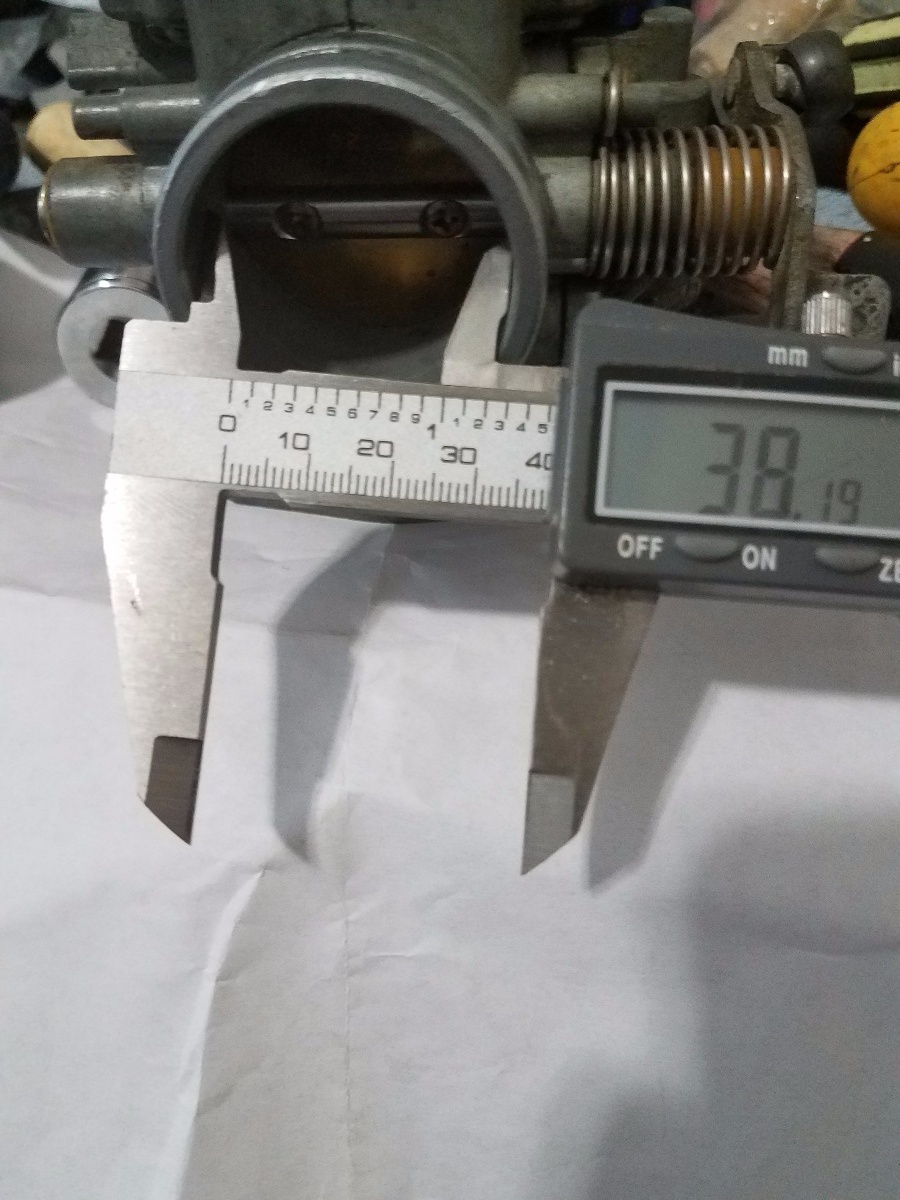

By ric812: No I am not sure. Is there anyway figure it out? Maybe measuring the more size?
You can measure the carburetor bore, but from the diagrams at Partzilla the BS38 bowl gaskets on the earlier 750-Twins are fairly distinctive. The BS34 bowl gasket appears to be a rubber o-ring type of gasket. There are other differences, but the bowl gasket is probably the most obvious.
You can measure the carburetor bore, but from the diagrams at Partzilla the BS38 bowl gaskets on the earlier 750-Twins are fairly distinctive. The BS34 bowl gasket appears to be a rubber o-ring type of gasket. There are other differences, but the bowl gasket is probably the most obvious.
Last edit: 12 Jul 2017 14:33 by martin_csr.
Please Log in or Create an account to join the conversation.
- ric812
- Topic Author
- Offline
- User
Less
More
- Posts: 94
- Thank you received: 5
12 Jul 2017 15:43 - 12 Jul 2017 15:45 #766792
by ric812
1982 Kawasaki KZ750M Twin CSR
Replied by ric812 on topic Pilot jet location - help
1982 Kawasaki KZ750M Twin CSR
Last edit: 12 Jul 2017 15:45 by ric812. Reason: Wrong pictures
Please Log in or Create an account to join the conversation.
- ric812
- Topic Author
- Offline
- User
Less
More
- Posts: 94
- Thank you received: 5
12 Jul 2017 15:47 #766793
by ric812
1982 Kawasaki KZ750M Twin CSR
Replied by ric812 on topic Pilot jet location - help

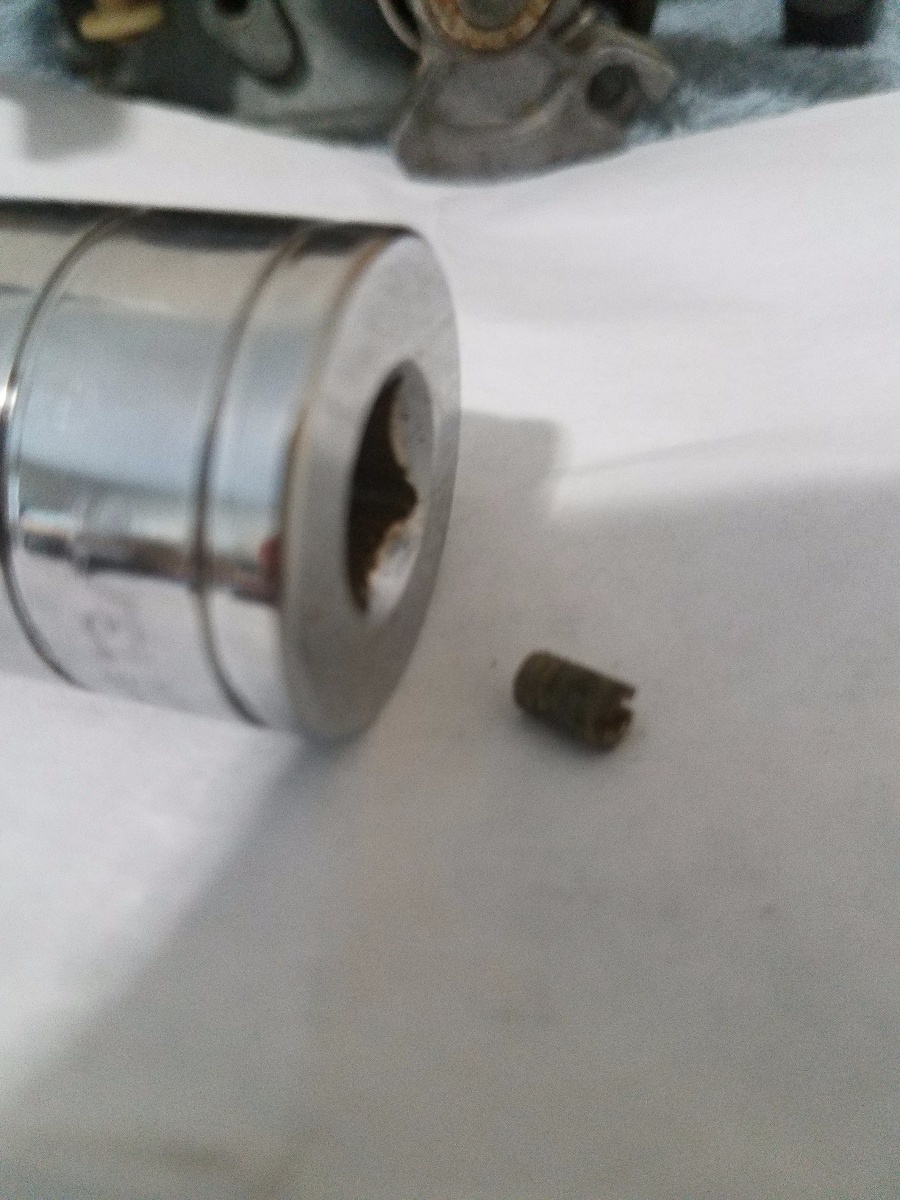

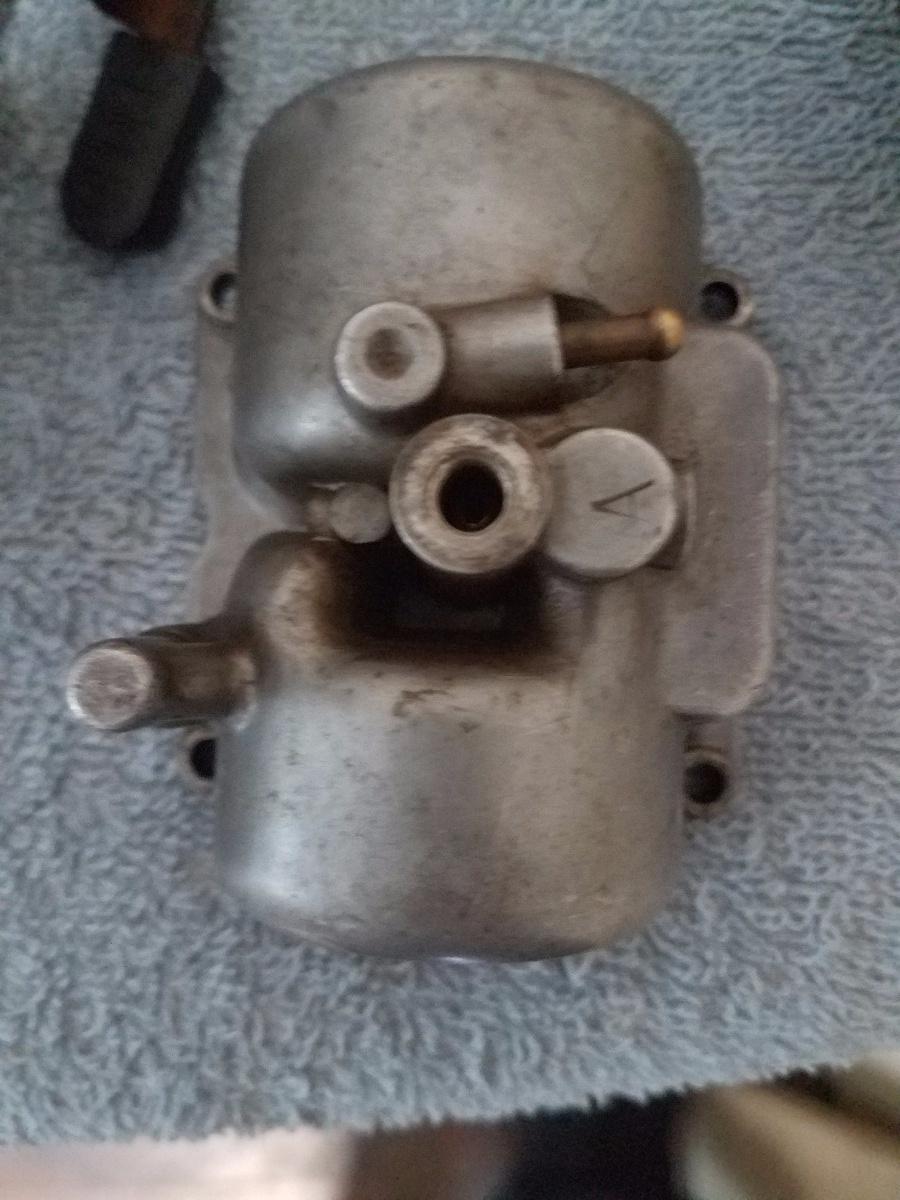

Here is a pictures of the jet that was underneath the drain plug. There is a 13/16 deep well socket for size reference.
