Z1 carbs identification.
- Surfdad49
- Topic Author
- Offline
- User
Less
More
26 May 2017 17:01 - 26 May 2017 17:03 #762803
by Surfdad49
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Z1 carbs identification. was created by Surfdad49
I cannot find any info on these carbs. The issue is the vacuum circuit on carbs. See Carb #2 with the linkage and the others have just a tube and a float on the intake side of the carb. Doesn't show up on the 74 Z1 parts diagram. It appears a Z1 rebuild kit will work on the carbs with the exception of this circuit.
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Last edit: 26 May 2017 17:03 by Surfdad49.
Please Log in or Create an account to join the conversation.
- Z1Driver
- Offline
- User
- love the smell of triple smoke
Less
More
- Posts: 301
- Thank you received: 55
26 May 2017 17:06 #762804
by Z1Driver
Blue 1975 Z1B
Red 2009 Concours 14
Replied by Z1Driver on topic Z1 carbs identification.
These are not the proper 74 Z1 carbs.
Blue 1975 Z1B
Red 2009 Concours 14
Please Log in or Create an account to join the conversation.
- Jeff.Saunders
- Offline
- Vendor
26 May 2017 17:25 #762805
by Jeff.Saunders
This email address is being protected from spambots. You need JavaScript enabled to view it.
www.z1enterprises.com
Z1 Ent on Facebook,
Replied by Jeff.Saunders on topic Z1 carbs identification.
They are likely off a 1979 or 1980 KZ1000 LTD.
The accelerator pump says 79 or 80, the duel fuel feed was on the LTD models only.
The accelerator pump says 79 or 80, the duel fuel feed was on the LTD models only.
www.z1enterprises.com
Z1 Ent on Facebook,
Please Log in or Create an account to join the conversation.
- Surfdad49
- Topic Author
- Offline
- User
Less
More
- Posts: 24
- Thank you received: 2
26 May 2017 17:28 #762806
by Surfdad49
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Replied by Surfdad49 on topic Z1 carbs identification.
Does anyone know what they came off.
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Please Log in or Create an account to join the conversation.
- Jeff.Saunders
- Offline
- Vendor
26 May 2017 17:30 #762808
by Jeff.Saunders
This email address is being protected from spambots. You need JavaScript enabled to view it.
www.z1enterprises.com
Z1 Ent on Facebook,
Replied by Jeff.Saunders on topic Z1 carbs identification.
You missed my earlier post.
They are likely off a 1979 or 1980 KZ1000 LTD.
The accelerator pump says 79 or 80, the duel fuel feed was on the LTD models only.
They are likely off a 1979 or 1980 KZ1000 LTD.
The accelerator pump says 79 or 80, the duel fuel feed was on the LTD models only.
www.z1enterprises.com
Z1 Ent on Facebook,
Please Log in or Create an account to join the conversation.
- Surfdad49
- Topic Author
- Offline
- User
Less
More
- Posts: 24
- Thank you received: 2
26 May 2017 17:33 #762809
by Surfdad49
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Replied by Surfdad49 on topic Z1 carbs identification.
Is there any advantage to these carbs? Seems like an odd modification to an otherwise stock bike. I know from a collectable standpoint it would be better to have the correct carbs but at this point I want to get the bike running to see what mechanical repairs are needed before I spend the money on correct carbs.
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Please Log in or Create an account to join the conversation.
- Jeff.Saunders
- Offline
- Vendor
26 May 2017 17:39 #762810
by Jeff.Saunders
This email address is being protected from spambots. You need JavaScript enabled to view it.
www.z1enterprises.com
Z1 Ent on Facebook,
Replied by Jeff.Saunders on topic Z1 carbs identification.
the carbs will work on a z1. The issue with the accelerator pump is cleaning it out and getting even squirts of fuel down the throat of the carb - if you can't get that, you can disable it easily..
I would pull the float bowl off and see what state the carbs are inside.
the needles in these carbs will only have one clip setting - so you are a little limited on tuning there. The accel pump is adjustable - and that can help compensate for flat spots in the mid-range.
I know a place selling carb kits for these.
I would pull the float bowl off and see what state the carbs are inside.
the needles in these carbs will only have one clip setting - so you are a little limited on tuning there. The accel pump is adjustable - and that can help compensate for flat spots in the mid-range.
I know a place selling carb kits for these.
www.z1enterprises.com
Z1 Ent on Facebook,
Please Log in or Create an account to join the conversation.
- GregZ
- Offline
- Sustaining Member
Less
More
- Posts: 647
- Thank you received: 88
26 May 2017 18:22 #762813
by GregZ
Replied by GregZ on topic Z1 carbs identification.
The best thing you can do with those carbs is, carefully place them under an 18 wheeler semi tire and drive over them, Repeat several times making sure you didn't miss.
Then go get some 75 Z1 or 76 kz900 carbs ( with side air screw) You'll thank me later
Then go get some 75 Z1 or 76 kz900 carbs ( with side air screw) You'll thank me later
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- Surfdad49
- Topic Author
- Offline
- User
Less
More
- Posts: 24
- Thank you received: 2
26 May 2017 18:25 #762815
by Surfdad49
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Replied by Surfdad49 on topic Z1 carbs identification.
I pulled the bowls off them and it looks like the owner drained the bowls before storing it. The jets were clean. I guess I have to decide on getting the correct carbs now or rebuilding these. If I decide to rebuild can you send me the link. I appreciate your feedback
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Please Log in or Create an account to join the conversation.
- D3
- Offline
- User
Less
More
- Posts: 62
- Thank you received: 15
27 May 2017 07:19 #762857
by D3
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- Surfdad49
- Topic Author
- Offline
- User
Less
More
- Posts: 24
- Thank you received: 2
27 May 2017 07:37 #762860
by Surfdad49
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Replied by Surfdad49 on topic Z1 carbs identification.
Thought about it over night and I am going to find a set of correct carbs for it. From my late 74 serial# I need the 75 Z1B carbs. Anyone have thoughts on what price range these sell for?
1974 Z1
KZ550 project
Versys 650
KLR 650 sold
Yamaha RD 400 Daytona sold
Yamaha FZ1 rip
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
27 May 2017 07:44 - 27 May 2017 07:49 #762861
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Z1 carbs identification.

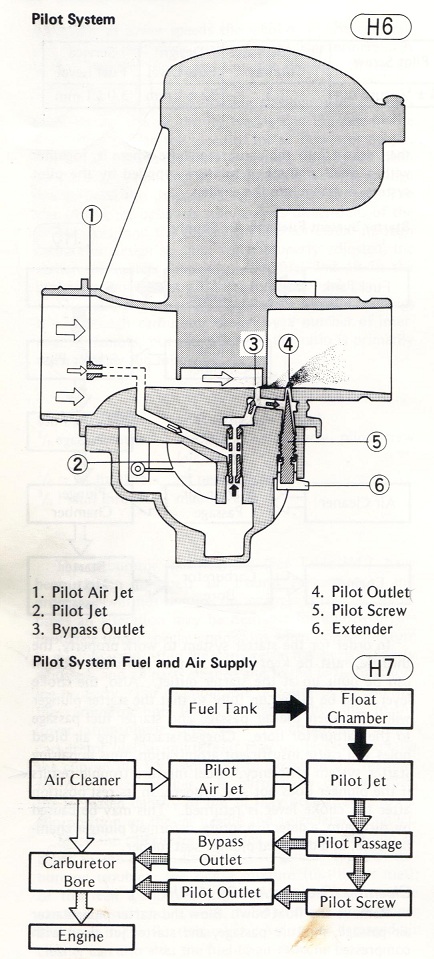

The carbs could imo likely be restored to serviceable condition, and perhaps without needing any new parts other than perhaps larger pilot jets in event the fuel pump is disabled.
Good Fortune!
Good Fortune!
1973 Z1
KZ900 LTD
