Carburetor/fuel tank/air box

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15343
  • Thanks: 2829

Re: Carburetor/fuel tank/air box

30 Mar 2017 13:57 - 30 Mar 2017 13:58
#758161
dkoz wrote: I would imagine you still have a float issue going on here. As stated if fuel is backing up into the box

Agree! Even if the petcock fails and lets fuel flow with the engine off the floats should stop the flow when the fuel reaches the prescribed level inside the carb bowls. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Last edit: 30 Mar 2017 13:58 by 650ed.
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7664
  • Thanks: 2305

Re: Carburetor/fuel tank/air box

30 Mar 2017 14:25
#758165
650ed wrote:
dkoz wrote: I would imagine you still have a float issue going on here. As stated if fuel is backing up into the box

Agree! Even if the petcock fails and lets fuel flow with the engine off the floats should stop the flow when the fuel reaches the prescribed level inside the carb bowls. Ed

Yup.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
The following user(s) said Thank You: dkoz

Please Log in or Create an account to join the conversation.

  • lucasr225
  • lucasr225's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Re: Carburetor/fuel tank/air box

30 Mar 2017 14:40
#758166
Yah now that is all good and taken care of and figured out. She runs great and everything seems like it was before I cleaned the carbs. Where are the screws for which I plug my carb synching tool too?
1981 kz750 e2 standard 4

Please Log in or Create an account to join the conversation.

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 4243
  • Thanks: 2104

Re: Carburetor/fuel tank/air box

30 Mar 2017 15:16 - 30 Mar 2017 15:32
#758170

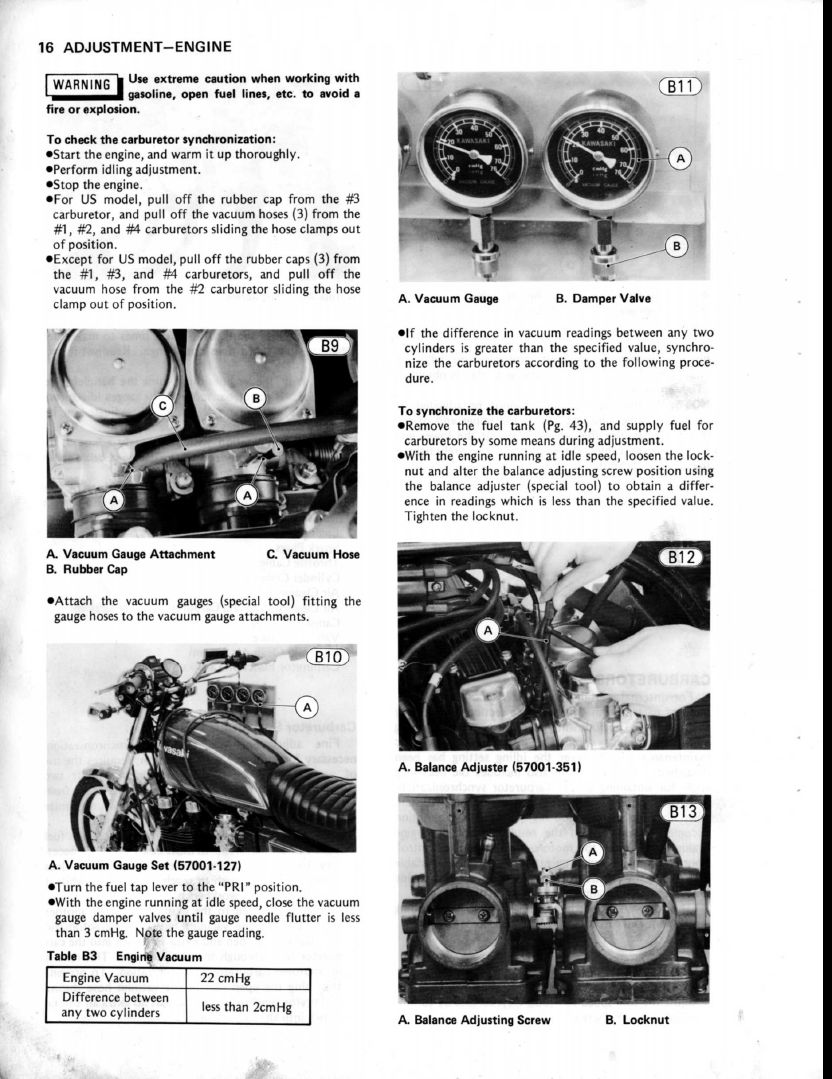

Rubber plugs not screws



First set carb ( #1 and #2 to equal value ), then ( #3 and #4 to equal value )
Then adjust the both pair ( #1/#2 ) and ( #3/ #4 ) to the same value.
Replay this procedure till all carbs are on the same value.

Michael
My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Attachments:

Last edit: 30 Mar 2017 15:32 by Scirocco.
The following user(s) said Thank You: GPz550D1, lucasr225

Please Log in or Create an account to join the conversation.

  • lucasr225
  • lucasr225's Avatar Topic Author
  • Offline
  • User
  • Posts: 13
  • Thanks: 0

Re: Carburetor/fuel tank/air box

30 Mar 2017 17:17
#758178
Thank you very much!!
1981 kz750 e2 standard 4

Please Log in or Create an account to join the conversation.

  • Kray-Z
  • Kray-Z's Avatar
  • Offline
  • User
  • I need more power Scotty....
  • Posts: 583
  • Thanks: 107

Re: Carburetor/fuel tank/air box

30 Mar 2017 21:25
#758194
Just a note about non - vacuum KZ petcocks - I have a customer's KZ that had the internal valve parts installed backwards or 180 deg. out when he brought the bike to me. It has been such a long time now that I forget exactly what was wrong with that (operationally) that made me take it apart, but I seem to recall that the petcock shut off flow completely on RES, and ON allowed the tank to run dry...something like that...
2-04 R1, 81 CSR1000, 81 LTD1000, 2-83 GPz1100, 3-79CBX, 81 CBX, 3-XS650, 84 Venture, +parts
Quote "speed costs money...how fast do you want to go?" (Which Z movie?)
Universal formula for how many motorcycles one should own = n + 1, where n is how many motorcycles you own right now....
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7664
  • Thanks: 2305

Re: Carburetor/fuel tank/air box

31 Mar 2017 05:59
#758208
Kray-Z wrote: Just a note about non - vacuum KZ petcocks - I have a customer's KZ that had the internal valve parts installed backwards or 180 deg. out when he brought the bike to me. It has been such a long time now that I forget exactly what was wrong with that (operationally) that made me take it apart, but I seem to recall that the petcock shut off flow completely on RES, and ON allowed the tank to run dry...something like that...

Yes, and sometimes folks will modify a problematic vacuum petcock to make it function manually rather than rebuild it as stock. If yours has been modified intentionally or accidentally, it may not act as it should. In any case, the carbs should not overflow no matter what the petcock is doing.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
