Attn BS34 Carb Guru's
- GPzEric
- Topic Author
- Offline
- User
Less
More
01 Aug 2014 10:42 #642321
by GPzEric
My wife asked me if I still loved her - I said "Honey, I love you more than new carburetor boots ! "
1982 KZ1100B2 (GPz)
1982 KZ750R1 (GPz)
(2) 1981 KZ550D1 (GPz) 1 mint, 1 under construction
1983 GS1100E
Attn BS34 Carb Guru's was created by GPzEric
Hi Guys -
On my '82 GPz750 I'm running '84 Carbs that I bought from Sandy, and with stock airbox, K&N filter in it, stock exhaust, I ended up running #115 Jets, with the needle in the middle position to get the plugs the right color. A lot of the cold-bloodedness went away too, with the mixture screws at 1 1/2 turns out.
I still get a little lean stumble once-in-a-while, and I keep thinking that the '84 Carbs didn't have the aluminum plug/o-ring over the pilot jet, and I'm wondering if they're supposed to be there.
The carbs that came with the bike had the plugs, but those were '82 carbs.
So hopefully there's a guru here who can tell me if all BS34's had them, or not all ?
On my '82 GPz750 I'm running '84 Carbs that I bought from Sandy, and with stock airbox, K&N filter in it, stock exhaust, I ended up running #115 Jets, with the needle in the middle position to get the plugs the right color. A lot of the cold-bloodedness went away too, with the mixture screws at 1 1/2 turns out.
I still get a little lean stumble once-in-a-while, and I keep thinking that the '84 Carbs didn't have the aluminum plug/o-ring over the pilot jet, and I'm wondering if they're supposed to be there.
The carbs that came with the bike had the plugs, but those were '82 carbs.
So hopefully there's a guru here who can tell me if all BS34's had them, or not all ?
My wife asked me if I still loved her - I said "Honey, I love you more than new carburetor boots ! "
1982 KZ1100B2 (GPz)
1982 KZ750R1 (GPz)
(2) 1981 KZ550D1 (GPz) 1 mint, 1 under construction
1983 GS1100E
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
01 Aug 2014 11:28 #642326
by Patton
Your understanding is consistent with the info at kawasaki.com showing '82 BS34 carb pilot jet with the plug and '84 BS34 carb pilot jet without the plug.
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic Attn BS34 Carb Guru's
GPzEric wrote: ... '82 GPz750 I'm running '84 Carbs...thinking that the '84 Carbs didn't have the aluminum plug/o-ring over the pilot jet, and I'm wondering if they're supposed to be there.
The carbs that came with the bike had the plugs, but those were '82 carbs....
Your understanding is consistent with the info at kawasaki.com showing '82 BS34 carb pilot jet with the plug and '84 BS34 carb pilot jet without the plug.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- !Seymore
- Offline
- User
- Ride on...
Less
More
- Posts: 468
- Thank you received: 69
01 Aug 2014 15:49 - 01 Aug 2014 15:50 #642366
by !Seymore
C.
Replied by !Seymore on topic Attn BS34 Carb Guru's
Are the plugs necessary? ...on the carbs with them. Any vacuum issues with the plugs removed?
C.
79' KZ650-D2 [fsm] (Max)
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
Last edit: 01 Aug 2014 15:50 by !Seymore.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
01 Aug 2014 16:15 #642373
by Patton
The plugs are necessary in carbs designed with the plugs, and fit over the pilot jets to cause fuel draw through a small passageway from the main jet into the pilot circuit.
The plugs being referred to aren't "vacuum" plugs, nor "tamper-proofing" plugs.

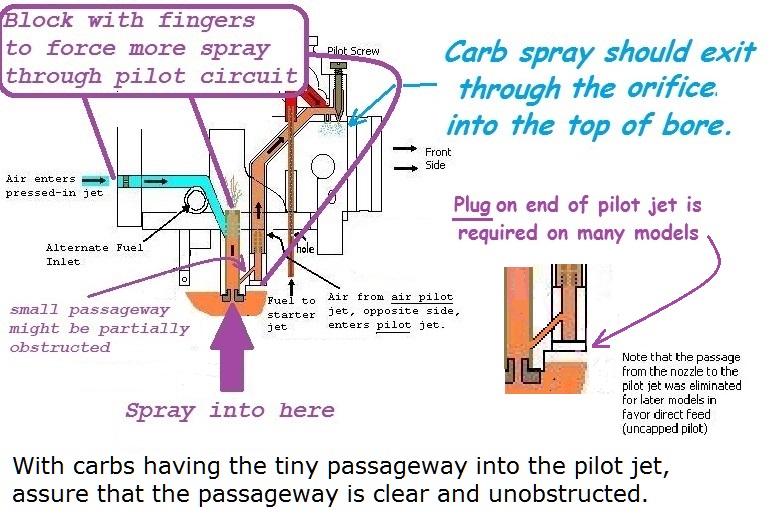

Here's an illustration:
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic Attn BS34 Carb Guru's
!Seymore wrote: Are the plugs necessary? ...on the carbs with them. Any vacuum issues with the plugs removed?
The plugs are necessary in carbs designed with the plugs, and fit over the pilot jets to cause fuel draw through a small passageway from the main jet into the pilot circuit.
The plugs being referred to aren't "vacuum" plugs, nor "tamper-proofing" plugs.
Here's an illustration:
Good Fortune!
1973 Z1
KZ900 LTD
