Carburetor KIT/ WILL IT FIT?

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 15339
  • Thanks: 2833

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 15:21 - 24 May 2014 15:21
#633810
DWalk02 wrote: Im not trying to question your knowledge bud but the kits im shopping for online do not match at all, to the bowl shape or any of the internals

Then you are looking at kits for carbs other than VM24SS carbs. Martin's identification is correct. My question is - what are you trying to get in the kits? In other words, what is it you believe you need to replace that you expect the kits to contain? I'm curious because in 37 years the only thing I ever replaced on my VM24SS carbs were the gaskets on the carb bowls. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Last edit: 24 May 2014 15:21 by 650ed.
The following user(s) said Thank You: DWalk02

Please Log in or Create an account to join the conversation.

  • DWalk02
  • DWalk02's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 11
  • Thanks: 0

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 15:22
#633811
Im gonna hold off on full repair kits. Gonna try and clean the heck out of them and go from there. Thanks again for your help.
DWalk02

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2103

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 15:23
#633812
Carb kits, if needed, are listed at Z1E.

Check the following links:
www.z1enterprises.com/ItemDetails.aspx?i...77-79&item=KL18-2429

www.z1enterprises.com/ItemDetails.aspx?i...GS+KZ&item=KL18-2614

Very often, carbs may be restored to perfectly serviceable condition without needing any new parts. And sometimes, only soft parts such as bowl gaskets, and perhaps cap gaskets and/or o'rings might be necessary.

The gaskets are often re-useable when not damaged.

Good Fortune! :)
1973 Z1
KZ900 LTD
The following user(s) said Thank You: DWalk02

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 8018
  • Thanks: 1645

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 15:51 - 24 May 2014 15:52
#633817
DWalk02 wrote: Im gonna hold off on full repair kits. Gonna try and clean the heck out of them and go from there. Thanks again for your help.
Do you have the stock 750-4 carburetors & airbox? Something worth noting is that the VM24s are smaller, but they will be easier to tune for pod filters than the CV carbs.

Also, in Patton's links, note the slightly different bowl gaskets.
1981 KZ650 Competition Sports and Road
Last edit: 24 May 2014 15:52 by martin_csr.
The following user(s) said Thank You: DWalk02

Please Log in or Create an account to join the conversation.

  • DWalk02
  • DWalk02's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 11
  • Thanks: 0

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 20:29
#633848

Rendering Error in layout Message/Item: Kunena\Forum\Libraries\BBCode\KunenaBBCodeLibrary::renderEbayLayout(): Argument #1 ($ItemID) must be of type int, string given, called in /home/kzride5/public_html/libraries/kunena/src/BBCode/KunenaBBCode.php on line 314. Please enable debug mode for more information.

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 15339
  • Thanks: 2833

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 20:52 - 24 May 2014 20:53
#633851
Notice the seller's location for the kit in that eBay listing - New Delhi, India.

Apparently they have no clue as to what they are selling The kit definitely is not for Mikuni VM24SS carbs. In fact, I don't see anything in the kit they show (see image below) that would come close to fitting on a Mikuni VM24 carb. Ed

Attachment 00008_2014-05-24.jpg not found

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Attachments:

Last edit: 24 May 2014 20:53 by 650ed.

Please Log in or Create an account to join the conversation.

  • DWalk02
  • DWalk02's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 11
  • Thanks: 0

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 20:55
#633852
to answer your question no I dont have the stock carbs. this bike is a heinz 57 if you will. 750 motor the guy gave me 650 carbs(the two sets youve seen, and an 80' kz1300 tank that has already been fit to the frame. Trying to cafe it out but gotta get her runnin first. This is what it looks like right now.
DWalk02

Attachments:

Please Log in or Create an account to join the conversation.

  • DWalk02
  • DWalk02's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 11
  • Thanks: 0

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 21:01
#633853
Exactly, I will def take your word over theirs. You know Im learning a lot as I go and thats how I learn the best I enjoy it but has been a slight headache. Ill keep ya'll updated as I go along. Im gonna go with what you said Ed and just clean them up real good and replace the gaskets on them.
DWalk02

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2103

Re: Carburetor KIT/ WILL IT FIT?

24 May 2014 21:08 - 24 May 2014 21:08
#633855

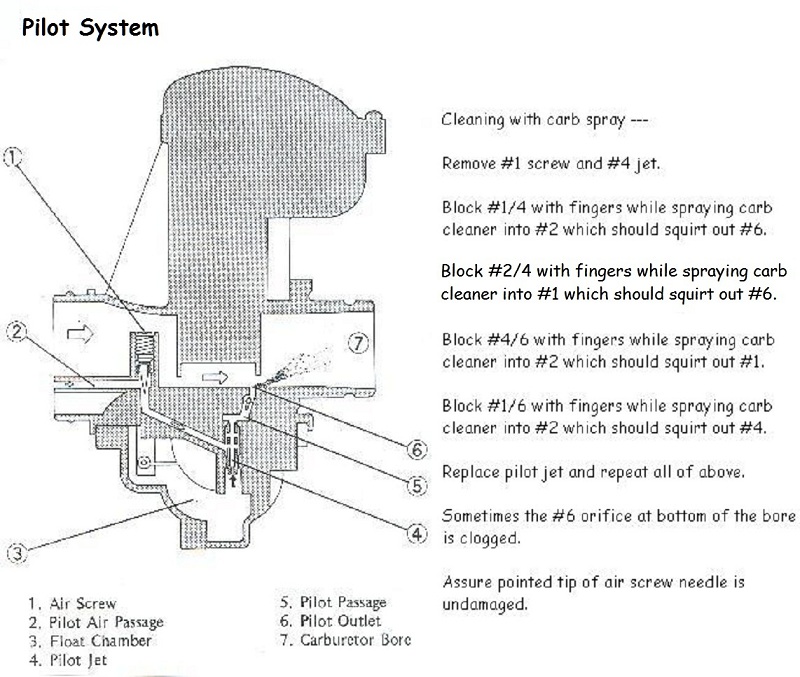

Be sure to wear eye protection when spraying carb cleaner, because it always backfires. Always.



Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Last edit: 24 May 2014 21:08 by Patton.
The following user(s) said Thank You: DWalk02

Please Log in or Create an account to join the conversation.

  • onebadram
  • onebadram's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 9
  • Thanks: 2

Re: Carburetor KIT/ WILL IT FIT?

25 May 2014 05:40
#633887
Patton wrote: Be sure to wear eye protection when spraying carb cleaner, because it always backfires. Always.



Good Fortune! :)
Patton would you happen to have one of these for the keihin cv34 carbs?
thanks
81 kz 750 h2 ltd

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2103

Re: Carburetor KIT/ WILL IT FIT?

25 May 2014 06:59 - 25 May 2014 07:04
#633908
onebadram wrote:
Patton wrote: Be sure to wear eye protection when spraying carb cleaner, because it always backfires. Always.



Good Fortune! :)
Patton would you happen to have one of these for the keihin cv34 carbs?
thanks

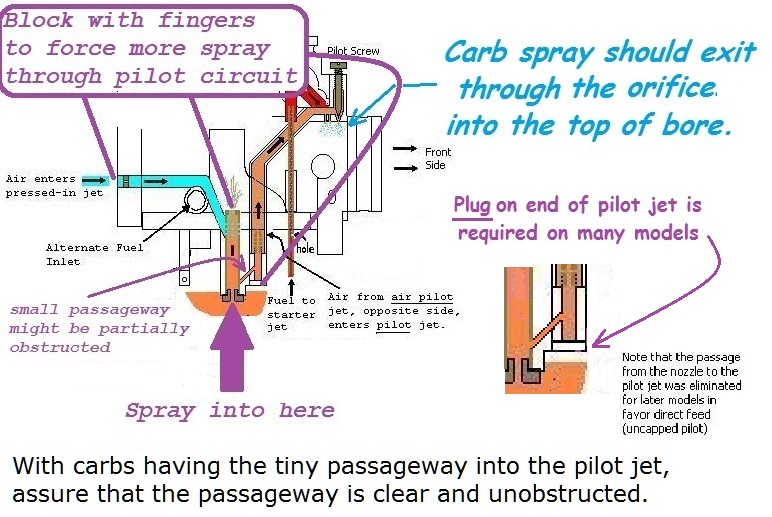

Here's a link to an earlier thread with some helpful information about the Keihin CV34 carbs, which also addresses whether the particular design has both a primary main jet and a secondary main jet (possibly with or without pilot jet plugs) or has only a single main jet and single pilot jet without plug.

www.kzrider.com/forum/3-carburetor/59306...keihin-pilots#625169

There are also some diagrams (exploded views with part numbers) at the kawasaki.com website.

If needed, here's a link for help with navigating kawasaki.com and finding information.

www.kzrider.com/forum/13-bike-related/37...imitstart=0&start=20

Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Last edit: 25 May 2014 07:04 by Patton.
The following user(s) said Thank You: onebadram

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 8018
  • Thanks: 1645

Re: Carburetor KIT/ WILL IT FIT?

25 May 2014 10:29 - 25 May 2014 16:43
#633929
DWalk02 wrote: ....
Heres the pic you asked for earlier.
Thanks for the photos. If the jets in your carbs are stock, I think you're going to need larger
main jets & probably larger pilot jets. For comparison: KZ650 w pod filters & 4-1 exhaust:
~#115 main jets -- #17.5 pilot jets -- jet needles clipped one groove higher.

Z1Enterprises.com has gaskets & o-rings. HarborFreight sells metric nitrile or viton rubber o-ring kits. Several of the sizes can be used w your carbs (e.g., main-jet/bleeder-pipe, pump nozzles, drain screws). The kit is handy to have for other applications on the bike.

Here's a pic or two of a set of 79 VM24 w Accelerator pump.
[IMG


[IMG
1981 KZ650 Competition Sports and Road
Last edit: 25 May 2014 16:43 by martin_csr.
