re: kz750 ltd h2 1981 - add inline fuel filter
- steelhorseangel
- Topic Author
- Offline
- User
- ad@wildlifeartist.plus.com
Less
More
02 Feb 2012 18:09 #501573
by steelhorseangel
Angel
Restore, Wrench & Ride!
Brought up with Dad, brother, all riders!
Our Dad (Eric) taught us both simple mechanics
before he went to the happy hunting ground, too soon (44)
My KZ is now called Eric and he will ride and protect me!
x God Bless x
kz750 ltd h2 1981 - add inline fuel filter was created by steelhorseangel
hi kzr's
i was advised to ask the kz forum about my
rebuild question.'
the gas tank is ok, not the best inside.
it has been cleaned out with rotation and with
nuts and a small chain to scour the inside.
we want to fit an sintered brass inline filter.
we got some from z1.
q) is there a knack in putting and taking off the
gas tank? we're working blind. no other kz750's
within 100 miles. we decided to try to plumb
the tank in today. the bike has 4 great white sparks.
q) we'd great difficulty in guessing the distance for
the fuel pipe from the carb top, to the inline filter
and then to the petcock. it seems you've to
turn the tank on it's side and then connect
the fuel pipe to the petcock and the vacuum.
q) does the fuel pipe have to point 'downwards'
using gravity or is the fuel sucked through.
i've never plumbed a tank in, including an additional inline
filter.
does anyone have a photo of installing an
inline filter and the correct method of connecting
up all the pipework please?
q). what connects the vacuum pipe to the carb please?
many thanks everyone for helping me complete this project!
regards
Angel
i was advised to ask the kz forum about my
rebuild question.'
the gas tank is ok, not the best inside.
it has been cleaned out with rotation and with
nuts and a small chain to scour the inside.
we want to fit an sintered brass inline filter.
we got some from z1.
q) is there a knack in putting and taking off the
gas tank? we're working blind. no other kz750's
within 100 miles. we decided to try to plumb
the tank in today. the bike has 4 great white sparks.
q) we'd great difficulty in guessing the distance for
the fuel pipe from the carb top, to the inline filter
and then to the petcock. it seems you've to
turn the tank on it's side and then connect
the fuel pipe to the petcock and the vacuum.
q) does the fuel pipe have to point 'downwards'
using gravity or is the fuel sucked through.
i've never plumbed a tank in, including an additional inline
filter.
does anyone have a photo of installing an
inline filter and the correct method of connecting
up all the pipework please?
q). what connects the vacuum pipe to the carb please?
many thanks everyone for helping me complete this project!
regards
Angel
Angel
Restore, Wrench & Ride!
Brought up with Dad, brother, all riders!
Our Dad (Eric) taught us both simple mechanics
before he went to the happy hunting ground, too soon (44)
My KZ is now called Eric and he will ride and protect me!
x God Bless x
Please Log in or Create an account to join the conversation.
- Rainman
- Offline
- Sustaining Member
- and a little Kaw shall lead them
Less
More
- Posts: 597
- Thank you received: 75
04 Feb 2012 15:12 - 04 Feb 2012 15:18 #502004
by Rainman
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Replied by Rainman on topic kz750 ltd h2 1981 - add inline fuel filter

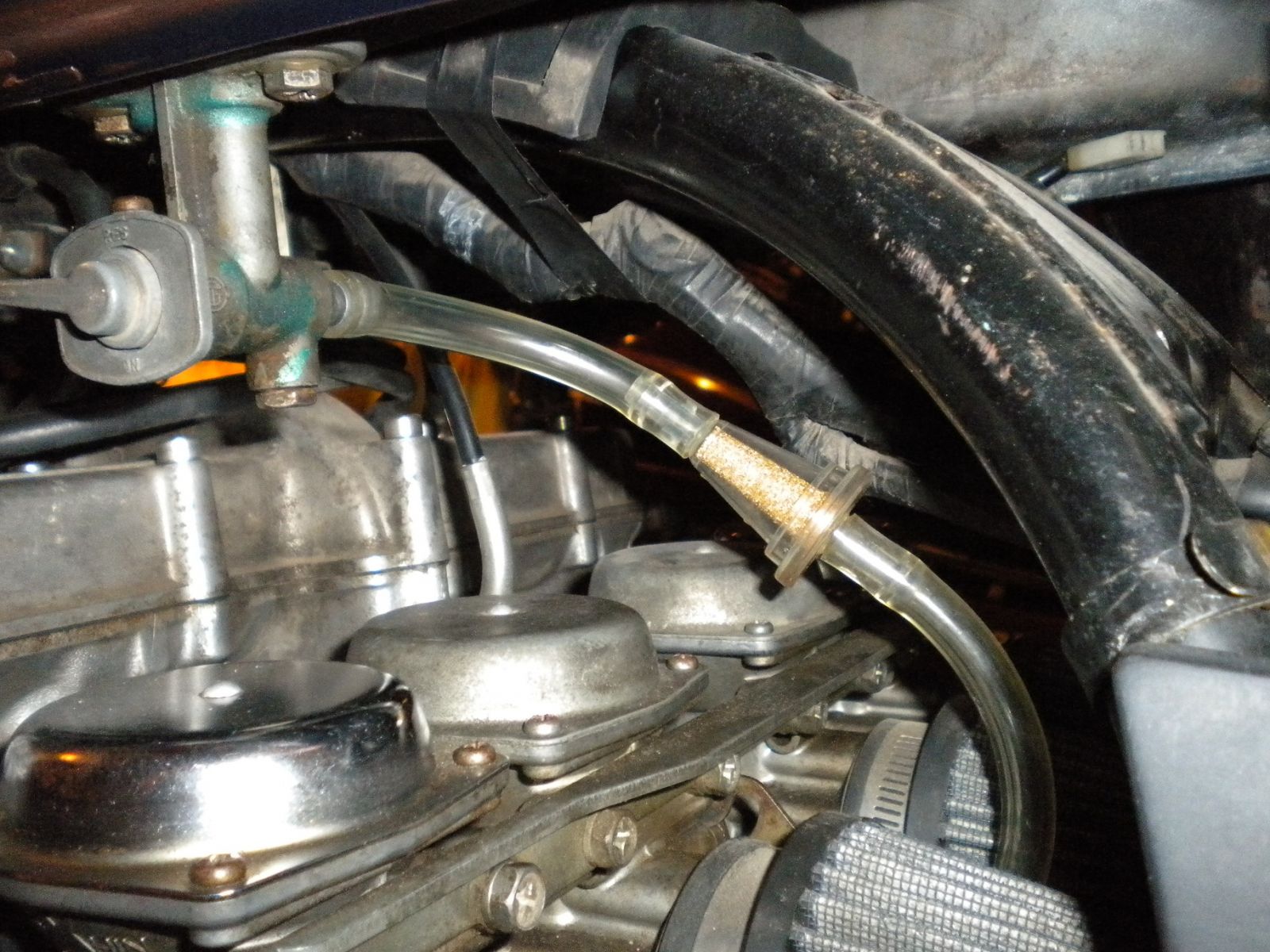

Angel, fuel line length with filter is about 10" (25cm), about 4" (10cm between tank-filter and 6" (15cm) between filter-carbs.
This allows the tank to be lifted for access.
[attachment:2]C:\fakepath\DSCN2589-1.jpg[/attachment]
[attachment:3]C:\fakepath\DSCN2585-1.jpg[/attachment]

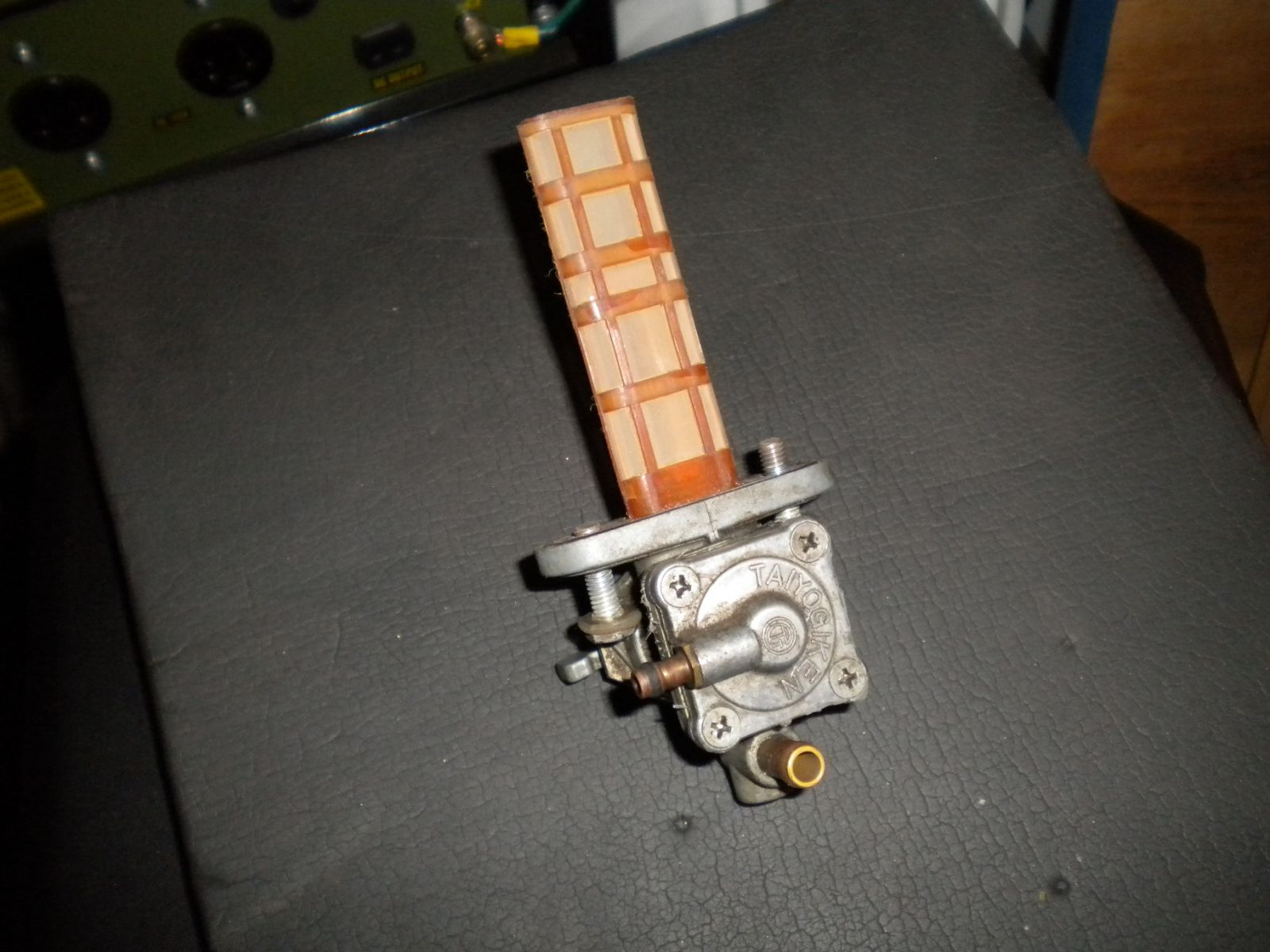

If you have the vacuum petcock, the vacuum line goes from the small inlet on the petcock to one of the vacuum inlets on any of the carbs. Carb #2 shown. Only one carb inlet is used, the other three are pluged like carb #1 shown.
The petcock shown on the tamk is a manual version (no vacuum) and all the carb vacuum ports are pluged.
[attachment:4]C:\fakepath\DSCN2582-1.jpg[/attachment]

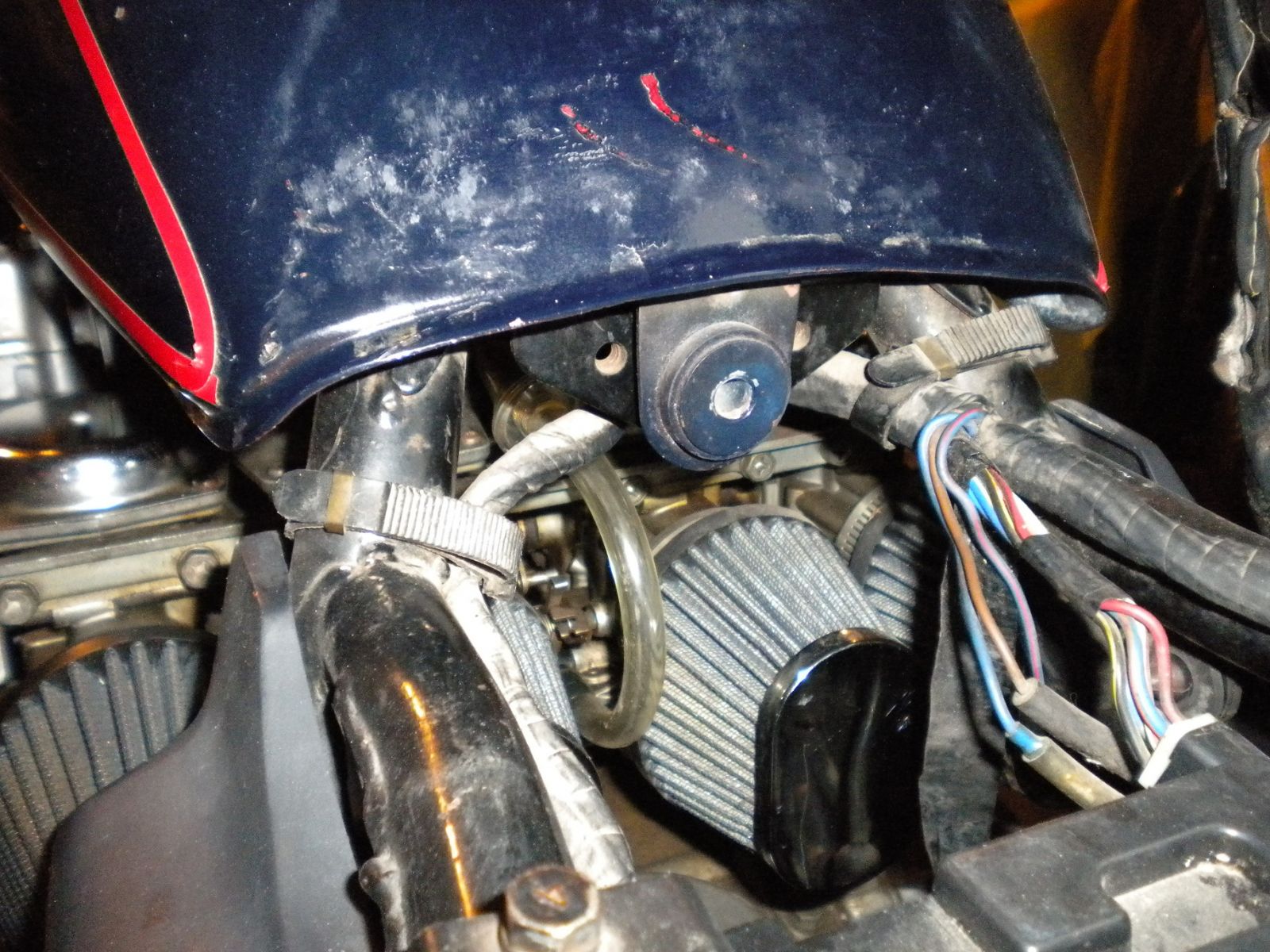

The tank mounts at the rear with a single bolt.
Jim
This allows the tank to be lifted for access.
[attachment:2]C:\fakepath\DSCN2589-1.jpg[/attachment]
[attachment:3]C:\fakepath\DSCN2585-1.jpg[/attachment]
Attachment not found
If you have the vacuum petcock, the vacuum line goes from the small inlet on the petcock to one of the vacuum inlets on any of the carbs. Carb #2 shown. Only one carb inlet is used, the other three are pluged like carb #1 shown.
The petcock shown on the tamk is a manual version (no vacuum) and all the carb vacuum ports are pluged.
[attachment:4]C:\fakepath\DSCN2582-1.jpg[/attachment]
The tank mounts at the rear with a single bolt.
Jim
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Last edit: 04 Feb 2012 15:18 by Rainman.
The following user(s) said Thank You: steelhorseangel
Please Log in or Create an account to join the conversation.
- Rainman
- Offline
- Sustaining Member
- and a little Kaw shall lead them
Less
More
- Posts: 597
- Thank you received: 75
04 Feb 2012 15:21 #502005
by Rainman
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Replied by Rainman on topic kz750 ltd h2 1981 - add inline fuel filter
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
The following user(s) said Thank You: steelhorseangel
Please Log in or Create an account to join the conversation.
- Rainman
- Offline
- Sustaining Member
- and a little Kaw shall lead them
Less
More
- Posts: 597
- Thank you received: 75
04 Feb 2012 15:22 #502006
by Rainman
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Replied by Rainman on topic kz750 ltd h2 1981 - add inline fuel filter
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Please Log in or Create an account to join the conversation.
- Rainman
- Offline
- Sustaining Member
- and a little Kaw shall lead them
Less
More
- Posts: 597
- Thank you received: 75
04 Feb 2012 15:22 #502007
by Rainman
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Replied by Rainman on topic kz750 ltd h2 1981 - add inline fuel filter
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
The following user(s) said Thank You: steelhorseangel
Please Log in or Create an account to join the conversation.
- Rainman
- Offline
- Sustaining Member
- and a little Kaw shall lead them
Less
More
- Posts: 597
- Thank you received: 75
04 Feb 2012 15:23 #502009
by Rainman
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
Replied by Rainman on topic kz750 ltd h2 1981 - add inline fuel filter
80 KZ750 H1 - the Kaw calf
79 KZ750 Twin - Miss Nov 2008 KZR calander
79 KZ750 Twin parts bike
78 KZ650 C2 Parts Bike
75 KZ400 Wife's old bike sold
81 KZ440 A2 LTD Wife's new bike
84 Honda 450 Rebel Wife's newest bike
Jim
Quincy,IL
The following user(s) said Thank You: steelhorseangel
Please Log in or Create an account to join the conversation.
- steelhorseangel
- Topic Author
- Offline
- User
- ad@wildlifeartist.plus.com
Less
More
- Posts: 162
- Thank you received: 1
04 Feb 2012 15:32 #502012
by steelhorseangel
Angel
Restore, Wrench & Ride!
Brought up with Dad, brother, all riders!
Our Dad (Eric) taught us both simple mechanics
before he went to the happy hunting ground, too soon (44)
My KZ is now called Eric and he will ride and protect me!
x God Bless x
Replied by steelhorseangel on topic kz750 ltd h2 1981 - add inline fuel filter
hi jim
many thanks for your message!
i can only see one photo?
that is the one showing the inline filter.
i noticed that your pipes are put on with no
clips? i've used gas pipe clips, that circle
the pipe and close up onto it.
what clips the vacuum hose on please?
please can you send your photos again.
many thanks
Angel
ps: what bike do you've?
many thanks for your message!
i can only see one photo?
that is the one showing the inline filter.
i noticed that your pipes are put on with no
clips? i've used gas pipe clips, that circle
the pipe and close up onto it.
what clips the vacuum hose on please?
please can you send your photos again.
many thanks
Angel
ps: what bike do you've?
Angel
Restore, Wrench & Ride!
Brought up with Dad, brother, all riders!
Our Dad (Eric) taught us both simple mechanics
before he went to the happy hunting ground, too soon (44)
My KZ is now called Eric and he will ride and protect me!
x God Bless x
