29 Nov 2011 19:41 #490696 by mwriders
Obsolete Spring was created by mwriders

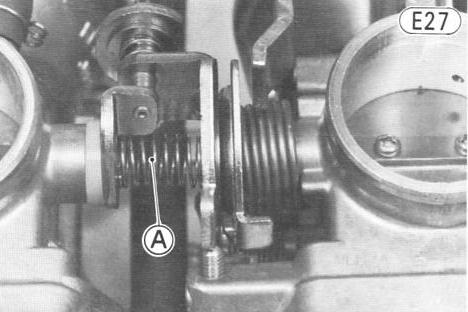

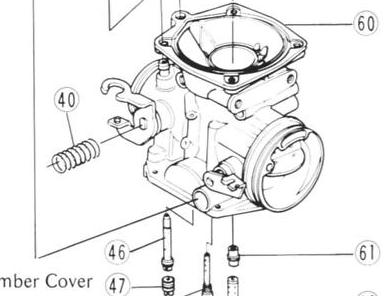

Hi, All. So, I'm rebuilding the carbs from a 1980 KZ440B1. They basically came to me in a box along with the rest of the bike. I found that it was missing a couple of parts, which I have managed to replace (bless eBay). But there is one that is apparently not to be found. It is the "linkage mechanism spring." The part is pictured in the attachments. It is labeled 40 in the line drawing and A in the picture. It appears to me that what it is supposed to do is space the two carbs correctly during assembly. No other function seems obvious. Anyway, it is an "obsolete" part and no vendor who has it in their catalog can actually supply it.

Any ideas here? Beg KZ riders to look in their parts bin? Measure the space as best I can and go hunt a hardware store part? Skip it and hope that the carbs line up correctly? I'll feel better about whatever I do with advice from the list.

Thanks.

1980 Kawasaki KZ440B (brand new eBaby)
1998 Ducati 900S (gone)
1978 BMW R100S (gone, damn it)
1975 Yamaha RD350 cafe (gone)
1986 Yamaha XJ650 Seca (gone)
1981 Kawasaki KZ440LTD (gone)
1969 HD Sportster (gone :)
1966 Honda CB160 (gone, damn it)
1965 Suzuki 80
Attachments:

Please Log in or Create an account to join the conversation.

More
29 Nov 2011 22:15 #490737 by cfaherty
Replied by cfaherty on topic Obsolete Spring
Honestly I don't know what that spring does. I am curious for other replies. I was cleaning my carbs and one of those springs fell off. It's just squished in there with hardly any effort.

1983 KZ750 F1 LTD Shaft

Please Log in or Create an account to join the conversation.

More
30 Nov 2011 01:56 #490783 by Patton
Replied by Patton on topic Obsolete Spring
Might find an answer through one of these links:

www.armbell.com/forum/index.php?c=6&sid=...571a51a&mforum=kz400

www.kz400.com/

Good Fortune! :)

1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

  • mwriders
  • Topic Author
  • Offline
  • User
  • if I only had a brain
More
01 Dec 2011 13:49 - 01 Dec 2011 13:50 #490973 by mwriders
Replied by mwriders on topic Obsolete Spring
I wrote to an eBay vendor who has been selling Keihin carb parts to inquire about this mystery spring. He didn't have one on hand, but here is his response:

"...the spring you are looking for is very common to almost all keihin carburetors try cb750 and kz750 or 750 spectre you actually dont even really need it.and you should have no problem finding one in Germany.you may even be able to find something close to it at a hardware store,its not very strong and only puts a little pressure on the two shafts if any at all."

So, I still don't know what this thing's function is, but it appears that it may not be a particularly critical one.

Of course, I'm now driven to replace the damn thing, whether or not it matters.

1980 Kawasaki KZ440B (brand new eBaby)
1998 Ducati 900S (gone)
1978 BMW R100S (gone, damn it)
1975 Yamaha RD350 cafe (gone)
1986 Yamaha XJ650 Seca (gone)
1981 Kawasaki KZ440LTD (gone)
1969 HD Sportster (gone :)
1966 Honda CB160 (gone, damn it)
1965 Suzuki 80
Last edit: 01 Dec 2011 13:50 by mwriders. Reason: spelling

Please Log in or Create an account to join the conversation.

More
01 Dec 2011 16:55 #490995 by Kidkawie
Replied by Kidkawie on topic Obsolete Spring

1975 Z1 900
1994 KX250 Supermoto
2004 KX125

Please Log in or Create an account to join the conversation.

  • mwriders
  • Topic Author
  • Offline
  • User
  • if I only had a brain
More
01 Dec 2011 17:26 - 01 Dec 2011 17:28 #490996 by mwriders
Replied by mwriders on topic Obsolete Spring

Kidkawie wrote: www.mcmaster.com/#compression-and-die-springs/=f6dcc2



I would never have guessed (although I should have) that there was that much variation in simple springs. So, that kind of precludes running down to the local Ace and picking up whatever seems close.

It looks like knowing the compressed length and diameter is enough to come up with something that would be better than the hardware store route.

Thanks.

1980 Kawasaki KZ440B (brand new eBaby)
1998 Ducati 900S (gone)
1978 BMW R100S (gone, damn it)
1975 Yamaha RD350 cafe (gone)
1986 Yamaha XJ650 Seca (gone)
1981 Kawasaki KZ440LTD (gone)
1969 HD Sportster (gone :)
1966 Honda CB160 (gone, damn it)
1965 Suzuki 80
Last edit: 01 Dec 2011 17:28 by mwriders. Reason: spelling

Please Log in or Create an account to join the conversation.

  • mwriders
  • Topic Author
  • Offline
  • User
  • if I only had a brain
More
01 Dec 2011 17:58 #491000 by mwriders
Replied by mwriders on topic Obsolete Spring

cfaherty wrote: Honestly I don't know what that spring does. I am curious for other replies. I was cleaning my carbs and one of those springs fell off. It's just squished in there with hardly any effort.


Thanks to Kidkawie (and that pretty much awesome Web site), I now know how to replace this thing. If I measure the diameter and compressed length it gets narrowed down to two available choices, and I'd just pick the weakest of the two (or so it seems). What I need to know is this: Did the spring that fell off your carbs mount inside or outside of the little nubs on the right side linkage? From the shop manual picture, it appears to be outside, but it's kind of hard to tell. Do you remember?

1980 Kawasaki KZ440B (brand new eBaby)
1998 Ducati 900S (gone)
1978 BMW R100S (gone, damn it)
1975 Yamaha RD350 cafe (gone)
1986 Yamaha XJ650 Seca (gone)
1981 Kawasaki KZ440LTD (gone)
1969 HD Sportster (gone :)
1966 Honda CB160 (gone, damn it)
1965 Suzuki 80

Please Log in or Create an account to join the conversation.

More
01 Dec 2011 18:04 #491001 by Kidkawie
Replied by Kidkawie on topic Obsolete Spring
No prob. That warehouse is about 45 minutes from me so whatever I order gets to me the following day at noon. It's like a mega junk drawer but organized. lol

1975 Z1 900
1994 KX250 Supermoto
2004 KX125

Please Log in or Create an account to join the conversation.

  • mwriders
  • Topic Author
  • Offline
  • User
  • if I only had a brain
More
01 Dec 2011 18:23 #491004 by mwriders
Replied by mwriders on topic Obsolete Spring

Kidkawie wrote: No prob. That warehouse is about 45 minutes from me so whatever I order gets to me the following day at noon. It's like a mega junk drawer but organized. lol


Well, I would never have known that such a place existed. I've bookmarked it, because you just never know when you might need a cool spring.

1980 Kawasaki KZ440B (brand new eBaby)
1998 Ducati 900S (gone)
1978 BMW R100S (gone, damn it)
1975 Yamaha RD350 cafe (gone)
1986 Yamaha XJ650 Seca (gone)
1981 Kawasaki KZ440LTD (gone)
1969 HD Sportster (gone :)
1966 Honda CB160 (gone, damn it)
1965 Suzuki 80

Please Log in or Create an account to join the conversation.

More
01 Dec 2011 22:10 #491034 by cfaherty
Replied by cfaherty on topic Obsolete Spring
I'll go get a picture.

1983 KZ750 F1 LTD Shaft

Please Log in or Create an account to join the conversation.

More
01 Dec 2011 22:42 #491038 by cfaherty
Replied by cfaherty on topic Obsolete Spring

mwriders wrote: Did the spring that fell off your carbs mount inside or outside of the little nubs on the right side linkage? From the shop manual picture, it appears to be outside, but it's kind of hard to tell. Do you remember?

I'm not sure exactly what you mean by little nubs. The spring is captive by the slightly protruding ends of the shaft, which the spring fits over.

I.D. is 9mm. The other dimensions you can see from my attached picture.

1983 KZ750 F1 LTD Shaft
Attachments:

Please Log in or Create an account to join the conversation.

  • mwriders
  • Topic Author
  • Offline
  • User
  • if I only had a brain
More
05 Dec 2011 13:22 #491654 by mwriders
Replied by mwriders on topic Obsolete Spring

cfaherty wrote:

mwriders wrote: Did the spring that fell off your carbs mount inside or outside of the little nubs on the right side linkage? From the shop manual picture, it appears to be outside, but it's kind of hard to tell. Do you remember?

I'm not sure exactly what you mean by little nubs. The spring is captive by the slightly protruding ends of the shaft, which the spring fits over.

I.D. is 9mm. The other dimensions you can see from my attached picture.


Yeh, those things. Thanks. That is exactly what I needed to go shopping with.
