Do I have 76 carbs or hybrid carbs?

More
28 Sep 2011 23:19 #480340 by WMKZ900
Do I have 76 carbs or hybrid carbs? was created by WMKZ900
My 76 KZ900 I have owned since 1995 has carbs that have me scratching my head. I do not know if they are the original carbs.

They are 26 mm carb that were first used on the 76 model. However they could be off of a 77 or later. I do not know.

The carbs have the standard air screws on the air filter end of the carb and a pilot screw under the carb on the intake end of the carb.

The question, do I have a hybrid carb that should not have both screws.

The Clymer manual shows a break down of the carb and notes that some have a pilot screw and some an air screw model. Can a carb have both?

The problem is tuning both screws if you can imagine.

The carbs do fine other than the fact it will not idle under 1500 rpm. With 8 screws to adjust it is nearly impossible.

Have and Running
66 Honda S90
71 Honda CB350
71 Kawasaki H1 500
73 Kawasaki H2 750
76 Kawasaki KZ900
06 Kawasaki Concours

Had
65 Honda S65
68 Honda CL 175
71 Honda CB 450
72 Kawasaki H2 750
74 Kawasaki H2 750

Please Log in or Create an account to join the conversation.

  • z1kzonly
  • Offline
  • User
  • Sustaining Member
More
28 Sep 2011 23:33 #480347 by z1kzonly
Replied by z1kzonly on topic Do I have 76 carbs or hybrid carbs?
Wow I never seen them with 2 air mixture screws.
Must have been a Monday thing when they went back to work after 8 hours off. Must have been in the middle of re-tooling the machinery.
Sure would like to see a picture of this.

Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Please Log in or Create an account to join the conversation.

More
28 Sep 2011 23:39 - 28 Sep 2011 23:42 #480351 by Patton
Replied by Patton on topic Do I have 76 carbs or hybrid carbs?
Some manual slide carbs have only a side-located pilot air screw.

Other manual slide carbs have only a bottom-located pilot "mixture" screw.

While not having seen one in the flesh, there are discussions about a third version of manual slide carb that has both a side-located pilot air screw AND a bottom-located pilot mixture screw.
And some of the kawasaki.com diagrams for other models show manual slide carbs with both type pilot screws.

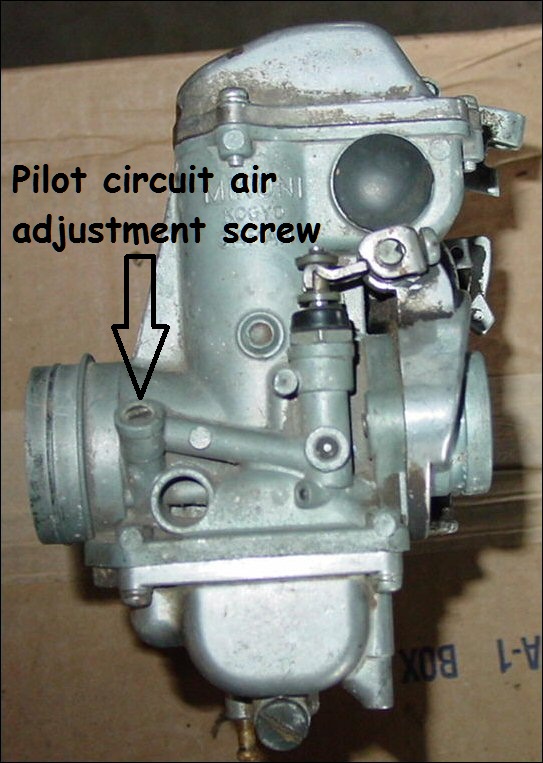

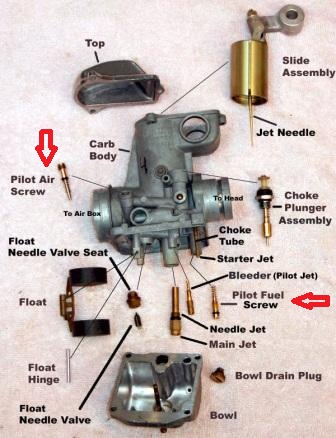

Here's a pic of the Yeti carb with "pilot fuel screw" (actually a pilot "mixture" screw) AND a pilot air screw.

As I recall, the tuning suggestion for such carbs with both pilot adjustment screws is to first disable the bottom-located mixture screw by tightening it against its seat, and then proceed using only the side-located pilot air screw to fine tune the carb pilot circuit.

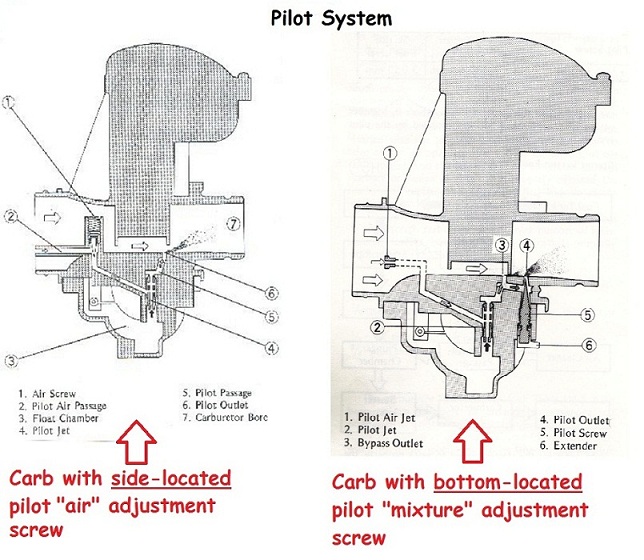

The last two pics show comparison of the two different manual slide carb pilot circuits.
