what carbs do I have

  • crappiehuntr
  • Topic Author
  • Offline
  • User
More
29 Aug 2011 03:54 - 29 Aug 2011 03:57 #472482 by crappiehuntr
what carbs do I have was created by crappiehuntr
I have kz650b made in 11/77 what carbs would it have so i can order kits thanks

1977 KZ1000
1978 KZ650
1976 KZ900 project
1981 KZ550 project
Attachments:
Last edit: 29 Aug 2011 03:57 by crappiehuntr. Reason: pics

Please Log in or Create an account to join the conversation.

More
29 Aug 2011 05:17 #472484 by Charlie650
Replied by Charlie650 on topic what carbs do I have
its difficult to tell from that photo cos its too small. But it should have Mikuni VM24's on it.

1977 KZ650C1
1975 H1F 500 Triple
2005 ZX10R
Sheffield(ish) UK

Please Log in or Create an account to join the conversation.

More
29 Aug 2011 08:19 - 22 Jan 2013 04:33 #472488 by martin_csr
Replied by martin_csr on topic .
.
Last edit: 22 Jan 2013 04:33 by martin_csr.

Please Log in or Create an account to join the conversation.

More
29 Aug 2011 09:09 - 29 Aug 2011 09:11 #472494 by Charlie650
Replied by Charlie650 on topic what carbs do I have
Only the 650 B2A and D1A were fitted with Mikuni VM22's by Kawasaki as std kit

It is always wise to double check and Martins method will work to make sure.

Anything could have happened after this length of time of course and the bike could have been fitted with 22, 24 or even 26's. If they are still the original set - they will be VM24's

1977 KZ650C1
1975 H1F 500 Triple
2005 ZX10R
Sheffield(ish) UK
Last edit: 29 Aug 2011 09:11 by Charlie650.

Please Log in or Create an account to join the conversation.

  • crappiehuntr
  • Topic Author
  • Offline
  • User
More
29 Aug 2011 11:48 #472514 by crappiehuntr
Replied by crappiehuntr on topic what carbs do I have
I cheked them they are 24mm thanks

1977 KZ1000
1978 KZ650
1976 KZ900 project
1981 KZ550 project

Please Log in or Create an account to join the conversation.

  • crappiehuntr
  • Topic Author
  • Offline
  • User
More
29 Aug 2011 12:35 - 29 Aug 2011 12:38 #472520 by crappiehuntr
Replied by crappiehuntr on topic what carbs do I have
went to local bike shop he said $60 per carb plus kit and will sync when done but he is 4 weeks out so I think I will clean them myself and hope they work and then do them over the winter. I really would like to get it running and ride it so I know what ive got before spending about 500 bucks on all the goodies. He also said in 27 years he had never seen a jap coil go bad but one of mine is sending juice straight through.

1977 KZ1000
1978 KZ650
1976 KZ900 project
1981 KZ550 project
Last edit: 29 Aug 2011 12:38 by crappiehuntr.

Please Log in or Create an account to join the conversation.

More
29 Aug 2011 14:21 #472550 by roy-b-boy-b
Replied by roy-b-boy-b on topic what carbs do I have
Welcome. You are right to clean them yourself. Just clean the best you can. When you remove the float needles take a Q tip and brasso or some similar product and clean the seats with the Q tip dipped in brasso.

I had some friends in my shop 10 days ago and the bike we were working on was leaking gas through the overflows.

I removed the needles and seat and gave them to the owner and told him to spin the Q tip one hundred times for each seat. Problem cured. Roy

1979 LTD Street Fighter.1977 KZ1000

Please Log in or Create an account to join the conversation.

More
29 Aug 2011 14:30 - 22 Jan 2013 04:46 #472555 by martin_csr
Replied by martin_csr on topic .
.
Last edit: 22 Jan 2013 04:46 by martin_csr.

Please Log in or Create an account to join the conversation.

  • wireman
  • Offline
  • User
  • The most interesting prick in the world
More
29 Aug 2011 15:27 #472573 by wireman
Replied by wireman on topic what carbs do I have
only 24s have those ribs on carb bodies B)

posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.

Please Log in or Create an account to join the conversation.

More
29 Aug 2011 17:17 - 22 Jan 2013 00:56 #472605 by H1Vindicator
Replied by H1Vindicator on topic what carbs do I have

Last edit: 22 Jan 2013 00:56 by H1Vindicator.

Please Log in or Create an account to join the conversation.

  • crappiehuntr
  • Topic Author
  • Offline
  • User
More
30 Aug 2011 05:50 #472760 by crappiehuntr
Replied by crappiehuntr on topic what carbs do I have
I started cleaning today and they were very dirty nearly every jet and orfice plugged. I have done several outboard carbs so I can do it. I also use Q tips on outboard carbs they are bad to stick shut thought it was strange as dirty as they were the seats were the only things clean and no needles were stuck. A coil and the carbs together and maybe a test drive by weekend? is there any value to fairing that came on it its in good pretty shape?

1977 KZ1000
1978 KZ650
1976 KZ900 project
1981 KZ550 project

Please Log in or Create an account to join the conversation.

More
30 Aug 2011 06:05 #472761 by Patton
Replied by Patton on topic what carbs do I have

crappiehuntr wrote: I started cleaning today and they were very dirty nearly every jet and orfice plugged. I have done several outboard carbs so I can do it. I also use Q tips on outboard carbs they are bad to stick shut thought it was strange as dirty as they were the seats were the only things clean and no needles were stuck. A coil and the carbs together and maybe a test drive by weekend? is there any value to fairing that came on it its in good pretty shape?

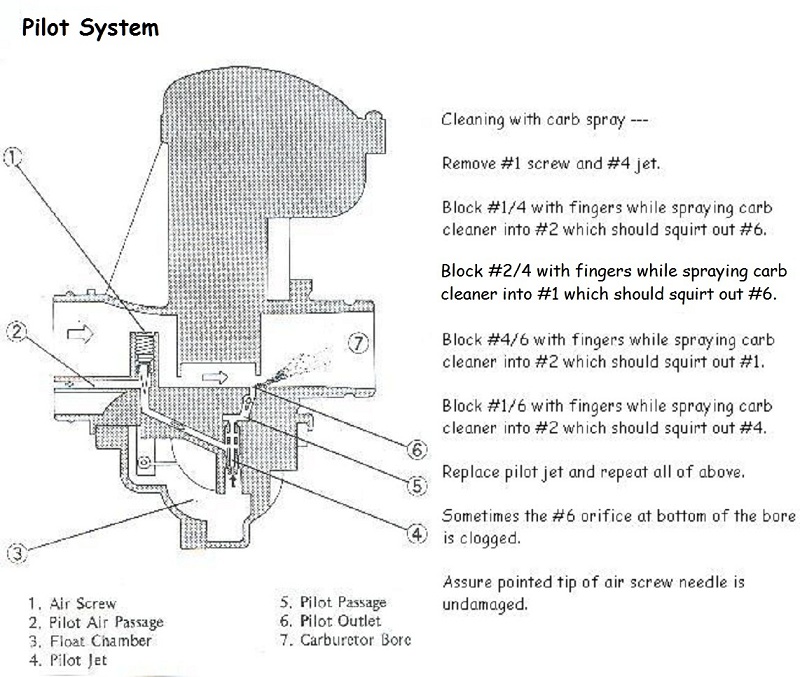

Have enjoyed success with this cleaning method:



Fairing would likely have value.
But shipping expense may chill a sale, especially with a larger heavy fairing such as Vetter.

Could post a pic of the fairing with pricing and general location, and perhaps someone nearby may be interested.

Good Fortune! :)

1973 Z1
KZ900 LTD
Attachments:

Please Log in or Create an account to join the conversation.
