I guess this kind of falls under two categories, Carburetors and engine, I have a 1982 KZ 750 4 cylinder that I bought not too long ago, basically in pieces, the carbs are on the bike, but I honestly haven't the first clue as to how the fuel system is setup, if anyone could send me pictures of their bikes or direct me to any sort of guide as to how to do this, I'd really appreciate it. I do have the service manual for the bike, but it doesn't really tell me all that much...
Attachment download.jpg not found
Attachments:
Please Log in or Create an account to join the conversation.
- KZ_Rage
- Offline
- User
- Kentucky Bourbon Barrel Ale
Less
More
- Posts: 891
- Thank you received: 19
25 Jul 2011 20:16 - 25 Jul 2011 20:22 #464883
by KZ_Rage
1979 KZ1000E1 SOLD!
1984 KZ550F2 SOLD!
2006 ZG1000A6F (Totaled)
2001 ZRX1200R (Sold)
2001 Sprint 955i ST (daily rider)
Replied by KZ_Rage on topic Fuel System
Your book should show you a exploded view of the carb rack including vent lines and fuel line.
The bike is a simple gravity feed fuel system, very similar to the riding lawnmower in your photo. You need a vacuum line to the petcock probably from carb #3 with the out board carbs tied to the EGR and then two vent lines that will run typically down like the overflow tubes or up towards the air box.
The bike is a simple gravity feed fuel system, very similar to the riding lawnmower in your photo. You need a vacuum line to the petcock probably from carb #3 with the out board carbs tied to the EGR and then two vent lines that will run typically down like the overflow tubes or up towards the air box.
1979 KZ1000E1 SOLD!
1984 KZ550F2 SOLD!
2006 ZG1000A6F (Totaled)
2001 ZRX1200R (Sold)
2001 Sprint 955i ST (daily rider)
Last edit: 25 Jul 2011 20:22 by KZ_Rage.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
25 Jul 2011 22:05 - 25 Jul 2011 22:08 #464911
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Fuel System

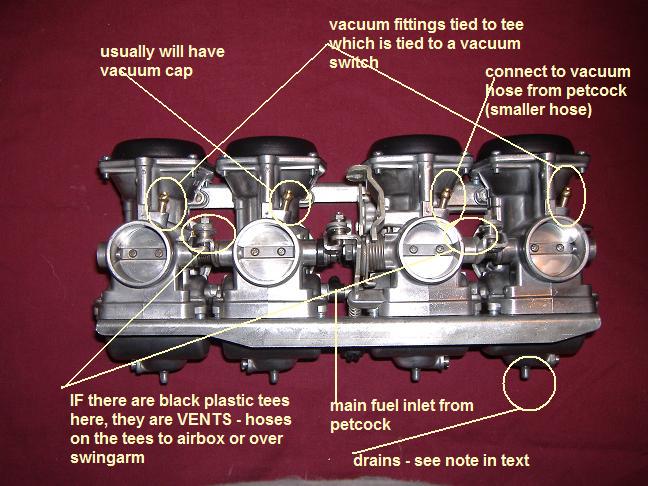

Courtesy of wgcarbs.com
Any unused vacuum nipple should be capped. Such as where the exhaust air system has been removed and the nipples are no longer needed.
Good Fortune!
Any unused vacuum nipple should be capped. Such as where the exhaust air system has been removed and the nipples are no longer needed.
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 25 Jul 2011 22:08 by Patton.
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
Less
More
- Posts: 8068
- Thank you received: 1656
26 Jul 2011 12:00 - 15 Feb 2013 11:22 #465046
by martin_csr
Replied by martin_csr on topic kz.bike-night.com mbsween KZ750L3 Page
This site has a pdf 750 factory manual.
kz.bike-night.com
.
Scroll down & click The Bible link to get to the manual's page.
mbsween KZ750L3 page
Scroll down & click The Bible link to get to the manual's page.
mbsween KZ750L3 page
Last edit: 15 Feb 2013 11:22 by martin_csr.
Please Log in or Create an account to join the conversation.
- bmcasler
- Topic Author
- Offline
- User
Less
More
- Posts: 2
- Thank you received: 0
26 Jul 2011 22:31 #465178
by bmcasler
Replied by bmcasler on topic Fuel System
Thank you! These will greatly help my project move along to where I can finally take it out for a ride. Thank you again!
Please Log in or Create an account to join the conversation.
