Vacuum and Fuel line routing

New guy. Buddy gave me a 1982 CSR 650 ( I guess it shares the same engine as the KZ) as a wedding gift. He had several things apart when I got it, I'm trying to put it back together and get it running.

I cannot seem to find a vacuum line routing guide, and a fuel line routing guide. If anyone has pictures of how this is done, this would be appreciated.

I'm sure I will have more questions as I go along.

Thanks,

Chris

slick94prix wrote: New guy. Buddy gave me a 1982 CSR 650 ( I guess it shares the same engine as the KZ) as a wedding gift. He had several things apart when I got it, I'm trying to put it back together and get it running. I cannot seem to find a vacuum line routing guide, and a fuel line routing guide. If anyone has pictures of how this is done, this would be appreciated. I'm sure I will have more questions as I go along. Thanks, Chris

Hello, Chris, and WELCOME to KZr!

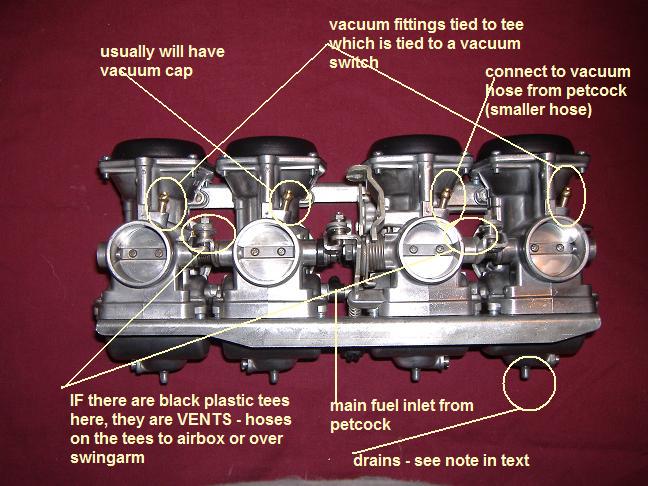

This pic is courtesy of www.wgcarbs.com ---

Visit wiredgeorge's site, as he is a most excellent resource.

Here's a link to a site that includes a down-loadable service manual
Click > jarlef.no/Kawasaki/Series/Z/650/z650files.htm
[Scroll down until the download button is located.]

Lots of good info on kawasaki.com, including parts diagrams, part numbers, models sharing same part, availability, etc.
Here's a link for help with navigating kawasaki.com and finding information.
Click > kzrider.com/index.php?option=com_kunena&...w&catid=13&id=376734

Good Fortune!

That picture, and the link for the manual, both are life savers. The manual that came with the bike didn't seem the most correct.



On a side note, got it all ran. Got it to start on starting fluid, so that's one good sign. The bad part is figuring out why it won't start on the gas in the tank. Hopefully it's not too old (just mixed it with some fresh stuff I have here).
