TOPIC: Kawasaki ring compressor

Kawasaki ring compressor 22 Nov 2013 16:58 #613811

  • geerbangr
  • geerbangr's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 298
  • Thank you received: 4

Attachment image_2013-11-22-2.jpg not found




Anyone have an actual kaw part number for this tool ?
1978 KZ 1000


I go by Jason
Attachments:

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 22 Nov 2013 17:15 #613814

  • 4TheKZ1000
  • 4TheKZ1000's Avatar
  • Visitor
  • Visitor
Kawasaki tool # 57001-112-1

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 22 Nov 2013 18:23 #613823

  • Patton
  • Patton's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18913
  • Thank you received: 2130
Special service tool "Piston Ring Compressor Set"
57001-112 for Z1/KZ900
57001-532 for KZ1000

Good Fortune! :)
1973 Z1
KZ900 LTD
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 22 Nov 2013 20:15 #613830

  • geerbangr
  • geerbangr's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 298
  • Thank you received: 4
There are 2 different compressors huh :S
1978 KZ 1000


I go by Jason

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 22 Nov 2013 20:27 #613831

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 14403
  • Thank you received: 2459

geerbangr wrote: There are 2 different compressors huh :S


If you look about 2/3 way down in the following link under the title “PICTURE #4” it says 57001-112-1 supersedes 57001-532. I don’t know if that is true or not, but it may be worth asking a dealer if that is a true statement.



If it is true, and if tool #57001-112-1 will work on your KZ1000, you may want to check out the auction below. It seems to me you could buy and use the tool and if you no longer needed it you could sell it and probably not take much, if any, loss. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

Kawasaki ring compressor 22 Nov 2013 21:53 #613841

  • geerbangr
  • geerbangr's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 298
  • Thank you received: 4
All of the inline 4 bangers in the world and this tool is an elusive little fella. :silly:
1978 KZ 1000


I go by Jason

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 22 Nov 2013 22:52 #613843

  • Patton
  • Patton's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18913
  • Thank you received: 2130

Patton wrote: Special service tool "Piston Ring Compressor Set"
57001-112 for Z1/KZ900
57001-532 for KZ1000 . . . .


The part numbers are as provided in the respective FSMs.

Am thinking the 57001-532 was designed to fit the KZ1000's larger pistons.

The Partzilla listing for 57001-532 specifies its use for KZ1000 models.
www.partzilla.com/parts/detail/kawasaki/...mr-roCFRFo7AodywIALA

Good Fortune! :)
1973 Z1
KZ900 LTD
The following user(s) said Thank You: geerbangr, GPz550D1

Please Log in or Create an account to join the conversation.

Last edit: by Patton.

Kawasaki ring compressor 23 Nov 2013 15:28 #613921

  • Dr. Gamma
  • Dr. Gamma's Avatar
  • Offline
  • Member
  • Member
  • Posts: 808
  • Thank you received: 226
The T57001-112 works only on the 66mm or so pistons. The curvature of the actual pieces that butt up against the piston don't come close to matching the 70mm pistons of the KZ1000 motor.

The T57001-532 ring compressor I have used on up to 73mm pistons in KZ1000 motors.

If you have ever used one of these ring compressors, you would never go back to anything else. I could put the cylinder down on the pistons in about 10 minutes by myself!!!!

When I was going through some very serious health problems a few years back I sold mine.

WHAT A MISTAKE I MADE!!!!
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.

Please Log in or Create an account to join the conversation.

Last edit: by Dr. Gamma. Reason: badd grammer again

Kawasaki ring compressor 12 Apr 2015 21:47 #667744

  • missionkz
  • missionkz's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1661
  • Thank you received: 186
I have one for the 900 and wish I had the +72mm one... darn it.

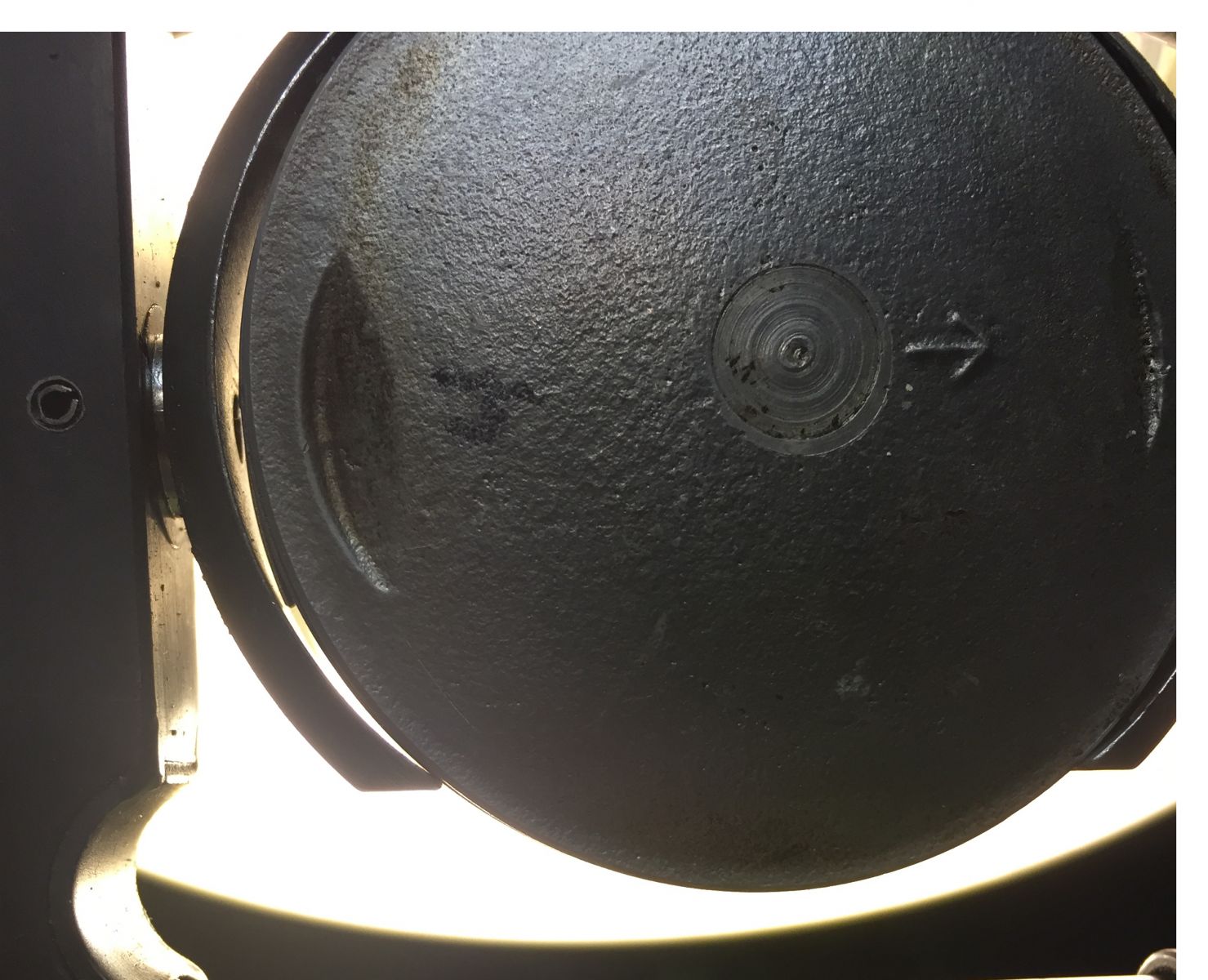

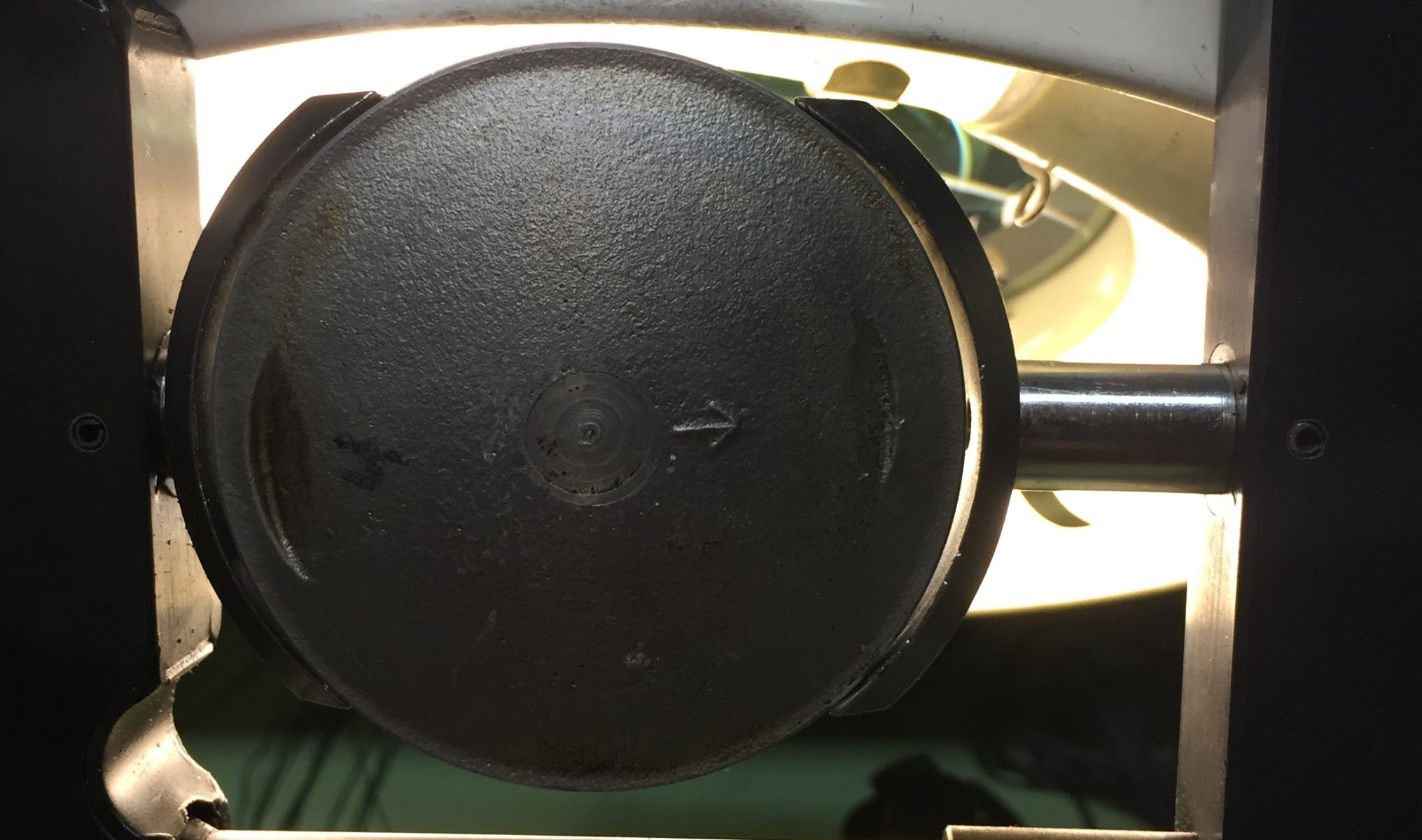

below is the result of using my 112-1 compressor on an old KZ1000A1 piston.
yes it is tight enough that the points of the cups might be digging into the aluminum of the piston.
Note the giant gaps in the center of the compression cups.... and how the piston rings are not compressed into their grooves!!! I'm afraid I'd break the rings trying to shove the cylinder block down on four pistons...





I wish I knew how to use this on the larger bores.... I have a 1075 Wiseco kit with a different cylinder block bored, honed, piston fitted and ready to use on my bike, but I am not risking breaking rings with the 112-1 compressor.
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by missionkz. Reason: I am a lousy typist

Kawasaki ring compressor 12 Apr 2015 22:11 #667746

  • Tyler
  • Tyler's Avatar
  • Offline
  • Member
  • Member
  • Posts: 842
  • Thank you received: 90
What's wrong with aluminum strips cut from beer cans and hose clamps?
If I knew what I was doing all the time life wouldn't be any fun.

'80 KZ650 E 700cc, dyna ignition and coils, frame up restoration, daily driver
'81 KZ1300 A3 full restoration, custom big bore pistons, 1400cc 6 cylinder super bike
"77 KZ650 B1 - Barn Find, work in progeress
"74 Yamaha DT 400 Enduro...

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 13 Apr 2015 03:48 #667759

  • bluej58
  • bluej58's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • The chrome don't get you home
  • Posts: 2179
  • Thank you received: 344

Tyler wrote: What's wrong with aluminum strips cut from beer cans and hose clamps?


I found that the thin aluminum made it passed the edge of the cylinder wall and caused problems.
I just deburred my hose clamps and used them by there selves with a lot of motor oil and kept loosening them unit they slipped easily.
I also used thin metal barbeque skewers to hold the pistons level.
Work great ;)
78 KZ1000 A2A

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 13 Apr 2015 06:47 #667770

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18686
  • Thank you received: 1753
I do them 2 at a time. When the aluminum is just in the bores, I rotate the crank and the pistons slide right in. Still a PITA.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 13 Apr 2015 15:02 #667815

  • Jeff.Saunders
  • Jeff.Saunders's Avatar
  • Offline
  • Vendor
  • Vendor
  • Posts: 1274
  • Thank you received: 140
I may have a spare 57001-532 in my tool chest. I received a couple of the factory ring compressors with bikes I've purchased over the years. I think the spare is a -532 and not -112.

I also have a KZ650 ring compressor that I will never use.
This email address is being protected from spambots. You need JavaScript enabled to view it.
http://www.z1enterprises.com

Z1 Ent on Facebook,
The following user(s) said Thank You: GPz550D1

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 13 Apr 2015 15:14 #667816

  • missionkz
  • missionkz's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1661
  • Thank you received: 186
I'd be very interested.....
I'd also consider making mine (for a 900) available to members for the cost of shipping and a reasonable, refundable deposit....plus a guarantee it will be returned!!
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado

Please Log in or Create an account to join the conversation.

Last edit: by missionkz.

Kawasaki ring compressor 13 Apr 2015 15:53 #667822

  • zukdave
  • zukdave's Avatar
  • Offline
  • Member
  • Member
  • Posts: 1702
  • Thank you received: 235
Jeff post that 650 compresser on the KZ650 Info. site it'll sell.
1980 KZ650 F1
ZX750A1 motor.
Wiseco 810cc kit.
Zukiworks racing ported head.
VM 29 smooth bore's.
Dyna 2000 Ign. w/Dyna mini coil's
APE cylinder stud's and nut's.
APE valve spring's.
APE Track King clutch.
V/H KZ1000 sidewinder.
3.5x18 laced to a KZ1000 disk hub.
150/60/18 Shinko 006 Podium.
63"...

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 13 Apr 2015 17:17 #667840

  • missionkz
  • missionkz's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1661
  • Thank you received: 186
That's cool... some of these tools for a few of us are one time use only!
That's why I need that kz1000 ring compressor instead of the Z1, KZ900! LOL.
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 04 Feb 2016 13:01 #709395

  • Brady 154
  • Brady 154's Avatar
  • Offline
  • Member
  • Member
  • Posts: 21
  • Thank you received: 0
I'd love to have one of these. Anybody have one for sale?
1976 KZ900 LTD, resto-mod
-1075 Piston Kit
-PSP 3X Cams (degreed to 106)
-Mikuni RS34 Carbs
-Pod Air Filters
-Dyna S Coils and Ignition
-Race Tech Valve Cartridge Emulators up Front
-Ohlins Shocks out Back :)

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 04 Feb 2016 15:31 #709419

  • peter1958
  • peter1958's Avatar
  • Offline
  • User is blocked
  • User is blocked
  • Posts: 1573
  • Thank you received: 199

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 05 Feb 2016 04:25 #709465

  • Brady 154
  • Brady 154's Avatar
  • Offline
  • Member
  • Member
  • Posts: 21
  • Thank you received: 0

peter1958 wrote: I have one for the 650 i can live without

Darn, i don't think that'll work. I have a 1000, so I need the 72mm one.
1976 KZ900 LTD, resto-mod
-1075 Piston Kit
-PSP 3X Cams (degreed to 106)
-Mikuni RS34 Carbs
-Pod Air Filters
-Dyna S Coils and Ignition
-Race Tech Valve Cartridge Emulators up Front
-Ohlins Shocks out Back :)

Please Log in or Create an account to join the conversation.

Kawasaki ring compressor 05 Feb 2016 06:37 #709502

  • KZB2 650
  • KZB2 650's Avatar
  • Offline
  • Member
  • Member
  • Posts: 1387
  • Thank you received: 233

Brady 154 wrote:

peter1958 wrote: I have one for the 650 i can live without

Darn, i don't think that'll work. I have a 1000, so I need the 72mm one.


The problem is as soon as you go bigger 1075, 1105 etc or 700cc or 810 on mine they don't work either..... I was seriously thinking about one too till I read and figured out that.
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket....

Please Log in or Create an account to join the conversation.
