Cam end plugs
16 Jul 2025 23:29
I have been riding the KZP quite a bit. Fresh oil and many heat cycles later, we have a leak(s). The plugs on both sides are aluminum and look to have been installed with some sort of sealant (looks like copper rtv).
I ordered the VC gasket from Z1. Is there something else I need for the cam plugs? Any help would be appreciated.
Thanks in advance, Dino
I ordered the VC gasket from Z1. Is there something else I need for the cam plugs? Any help would be appreciated.
Thanks in advance, Dino
‘86 KZ1000P
‘09 Concours 14
‘22 KLR 650
‘09 Concours 14
‘22 KLR 650
Please Log in or Create an account to join the conversation.
- asphalt900
-
- Offline
- User
-
Registered
- Posts: 1265
- Thanks: 776
Re: Cam end plugs
16 Jul 2025 23:50
Those plugs, are they "actual" billet aluminum or just aluminum "looking". Originals are aluminum looking but rubber where cases/bolt goes thru. If as often becomes the case, the rubber gets brick hard and shrinks. Explains the goo. They offer those in aftermarket versions but i would shy away from those, just buy fresh OEM ones.
Please Log in or Create an account to join the conversation.
- slmjim+Z1BEBE
-
- Offline
- User
-
Registered
- Enjoy Life! IT HAS AN EXPIRATION DATE!
- Posts: 1370
- Thanks: 864
Re: Cam end plugs
17 Jul 2025 05:32
We've had aluminum cam end plugs in two of our Z1's for decades. One set is APE, the other set is unbranded.
Initial fitting is important. Clean the cutout in the head and the plugs squeaky clean. Make sure they seat down completely into the cutouts. In a perfect world they'd stand proud of the head VC gasket surface be only a thou or two. The cutouts in the head may have a slight burr at the top corners that can be removed with very gentle use of a very fine file, such as a points file. One stroke & test fit. If your plugs have two lips, the cutouts in the head might be a thou or so too thick for the lips to straddle the cutout. Again, judicious file use; one stroke across the outside of the cutout & test fit.
Last time we had any of them out, we used Permatex Ultra Black #82180 RTV. Doesn't take much, just enough to extrude a tiny bead around the cutout. Once cured the bead can be trimmed away, but don't pull. A very light wipe across the top where the plug meets the head and where the VC gasket contacts the plug. That's been many years ago. Once installed, we don't disturb them.
Good Ridin'
slmjim & Z1BEBE
Initial fitting is important. Clean the cutout in the head and the plugs squeaky clean. Make sure they seat down completely into the cutouts. In a perfect world they'd stand proud of the head VC gasket surface be only a thou or two. The cutouts in the head may have a slight burr at the top corners that can be removed with very gentle use of a very fine file, such as a points file. One stroke & test fit. If your plugs have two lips, the cutouts in the head might be a thou or so too thick for the lips to straddle the cutout. Again, judicious file use; one stroke across the outside of the cutout & test fit.
Last time we had any of them out, we used Permatex Ultra Black #82180 RTV. Doesn't take much, just enough to extrude a tiny bead around the cutout. Once cured the bead can be trimmed away, but don't pull. A very light wipe across the top where the plug meets the head and where the VC gasket contacts the plug. That's been many years ago. Once installed, we don't disturb them.
Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.
1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A
www.kawasaki-z-classik.com
A Forum tightly focused on all things Z1 and Z2.
A Rider looks at your odometer and tags.
1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A
www.kawasaki-z-classik.com
A Forum tightly focused on all things Z1 and Z2.
Please Log in or Create an account to join the conversation.
- KZP5
-
Topic Author
- Offline
- User
-
Registered
- Posts: 9
- Thanks: 0
Re: Cam end plugs
17 Jul 2025 06:14
Thanks Gents!
The existing plugs are, in fact, petrified silver rubber plugs. Im going to go back in with the black rubber plugs from Z1. Thanks for the help and keeping me from potentially doing this twice. I think the toughest part will be removing this fairing 🤣
The existing plugs are, in fact, petrified silver rubber plugs. Im going to go back in with the black rubber plugs from Z1. Thanks for the help and keeping me from potentially doing this twice. I think the toughest part will be removing this fairing 🤣
‘86 KZ1000P
‘09 Concours 14
‘22 KLR 650
‘09 Concours 14
‘22 KLR 650
Please Log in or Create an account to join the conversation.
- Cra-z1
-
- Offline
- User
-
Registered
- Posts: 320
- Thanks: 250
Re: Cam end plugs
17 Jul 2025 11:00
I would rethink the ones from Z1E. I would go with the CNC units. I but them from this guy. Those rubber plugs can blow out. IOnce you but the Aluminum plugs you will not need to replace. Just follow the advice from Slim
www.ebay.com/str/gunsbluemoon?_trkparms=...542580.m47492.l74602
www.ebay.com/str/gunsbluemoon?_trkparms=...542580.m47492.l74602
The following user(s) said Thank You: sf4t7
Please Log in or Create an account to join the conversation.
- asphalt900
-
- Offline
- User
-
Registered
- Posts: 1265
- Thanks: 776
Re: Cam end plugs
17 Jul 2025 12:20
He has the "J" motor, different plugs. But Yes Z1E sells Vesrah, NOT OEM.
The following user(s) said Thank You: sf4t7
Please Log in or Create an account to join the conversation.
- KZP5
-
Topic Author
- Offline
- User
-
Registered
- Posts: 9
- Thanks: 0
Re: Cam end plugs
24 Jul 2025 06:25
Gasket and plugs are in. The fairing was a piece of cake to remove. Coils out.
I started removing the bolts and broke one on what looks like a “smog cover plate”. It has a hose that attaches to the top. Can I remove the hoses and get the APE block offs without doing any harm?
I started removing the bolts and broke one on what looks like a “smog cover plate”. It has a hose that attaches to the top. Can I remove the hoses and get the APE block offs without doing any harm?
‘86 KZ1000P
‘09 Concours 14
‘22 KLR 650
‘09 Concours 14
‘22 KLR 650
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
-
Registered
- Posts: 7983
- Thanks: 2537
Re: Cam end plugs
24 Jul 2025 06:45 - 24 Jul 2025 06:48
Yes, that is a very common modification. If you are going to have the cam cover off, it would also be good to thread the ports and install some grub screws to insure that there is no exhaust leakage past the reed valves. PMC also makes some nice looking block off plates.
You will also want to remove he rest of the system and put a plug in the hole in he air filter box, where the system originates. Oh, also you will need a couple of vacuum caps to seal off the carb vacuum ports that provided vacuum to operate the system.
You will also want to remove he rest of the system and put a plug in the hole in he air filter box, where the system originates. Oh, also you will need a couple of vacuum caps to seal off the carb vacuum ports that provided vacuum to operate the system.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Last edit: 24 Jul 2025 06:48 by TexasKZ.
Please Log in or Create an account to join the conversation.
- KZP5
-
Topic Author
- Offline
- User
-
Registered
- Posts: 9
- Thanks: 0
Re: Cam end plugs
24 Jul 2025 13:31
I think i'm going to join the plates using the tubing that goes to the airbox. Should I remove the reeds or leave them in? I'll plug the holes in the airbox and cap the two ports from the smaller air lines.
‘86 KZ1000P
‘09 Concours 14
‘22 KLR 650
‘09 Concours 14
‘22 KLR 650
Please Log in or Create an account to join the conversation.
- BobZ
-
- Offline
- User
-
Registered
- Posts: 57
- Thanks: 16
Re: Cam end plugs
24 Jul 2025 15:04
That's exactly what I did on my KZ750. I left the reeds in. It's working fine
Had I known I'd live this long I'd have taken better care of my Led Zeppelin albums
1983 Goldwing Interstate
1982 KZ750 LTD
1983 Goldwing Interstate
1982 KZ750 LTD
The following user(s) said Thank You: KZP5
Please Log in or Create an account to join the conversation.
- TexasKZ
-
- Offline
- Platinum Member
-
Registered
- Posts: 7983
- Thanks: 2537
Re: Cam end plugs

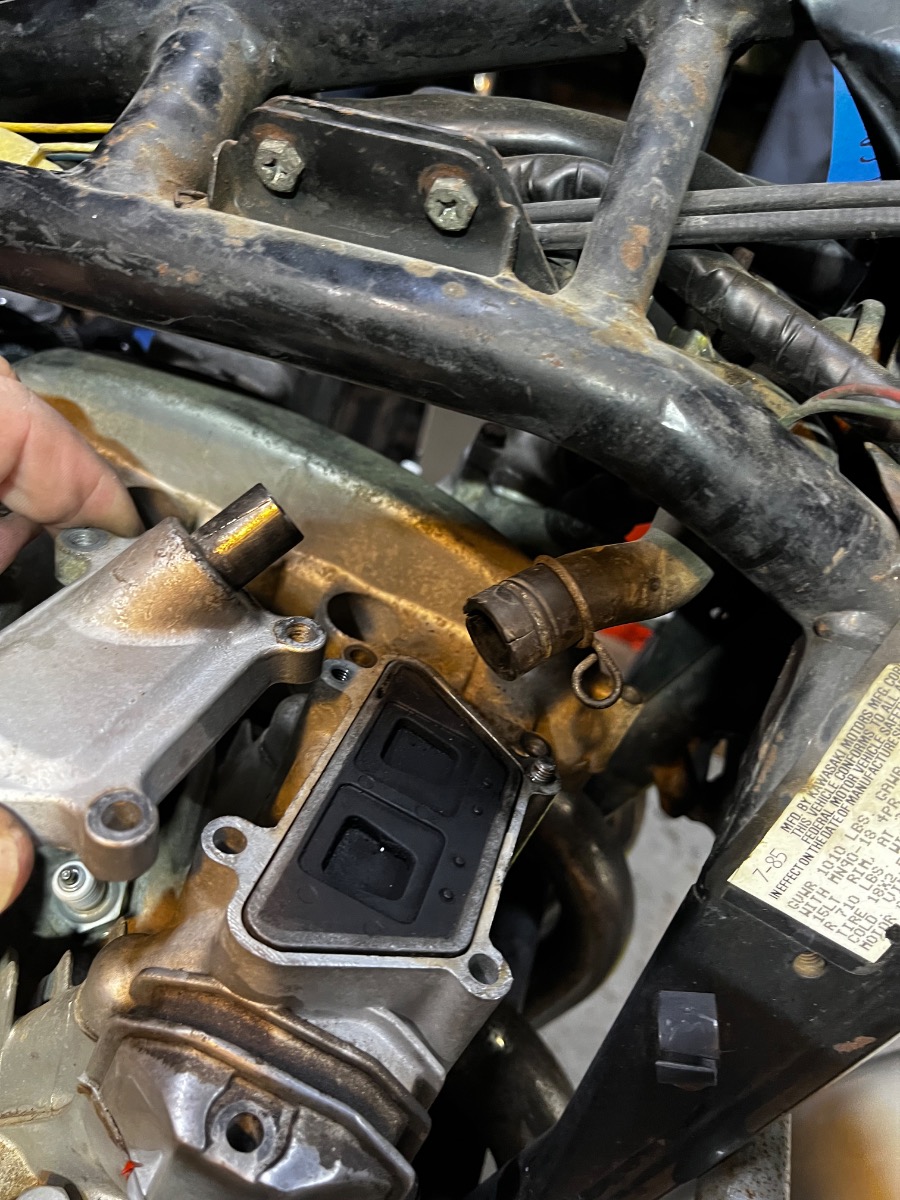

24 Jul 2025 16:19If you do not leave the reed valves in place, hot exhaust gasses will come up into the rubber hose and melt it rather quickly. Based on the discoloration in the picture, I suspect at least one reed valve is leaking already. Carbon can build up on them and hold them open.I think i'm going to join the plates using the tubing that goes to the airbox. Should I remove the reeds or leave them in? I'll plug the holes in the airbox and cap the two ports from the smaller air lines.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
- KZP5
-
Topic Author
- Offline
- User
-
Registered
- Posts: 9
- Thanks: 0
Re: Cam end plugs
24 Jul 2025 17:25
Should i give the reeds a cleaning before I put this all back together? Do i need to seal the plates (gasket sealer)?
