Engine Tight when Installing Exhaust Cam

  • HZ-237
  • HZ-237's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 13
  • Thanks: 3

Engine Tight when Installing Exhaust Cam

Yesterday 08:55 - Yesterday 08:58
#914479


1985 GPZ 550. Long story short, sent the bike in to get the carbs rebuilt as they were pouring fuel out the overflow as well as into the cylinders. Carbs rebuilt, and the bike ran great, however, cylinder #4 is completely dead. ZERO compression so it was only running on 3 cylinders. Cams came out to find the retainer or something was wedging an exhaust valve open. Then that part made it's way into the engine, so the head had to come off. They found whoever had the engine apart previously completely butchered cylinder #3 trying to hone it and it looked horrible. We discussed getting honed and re-ringed but the costs for the current repair are already exceeding the value of the bike. Because it ran well before, I said to put it together and we'll look at honing and ringing the engine over winter in a year or two.

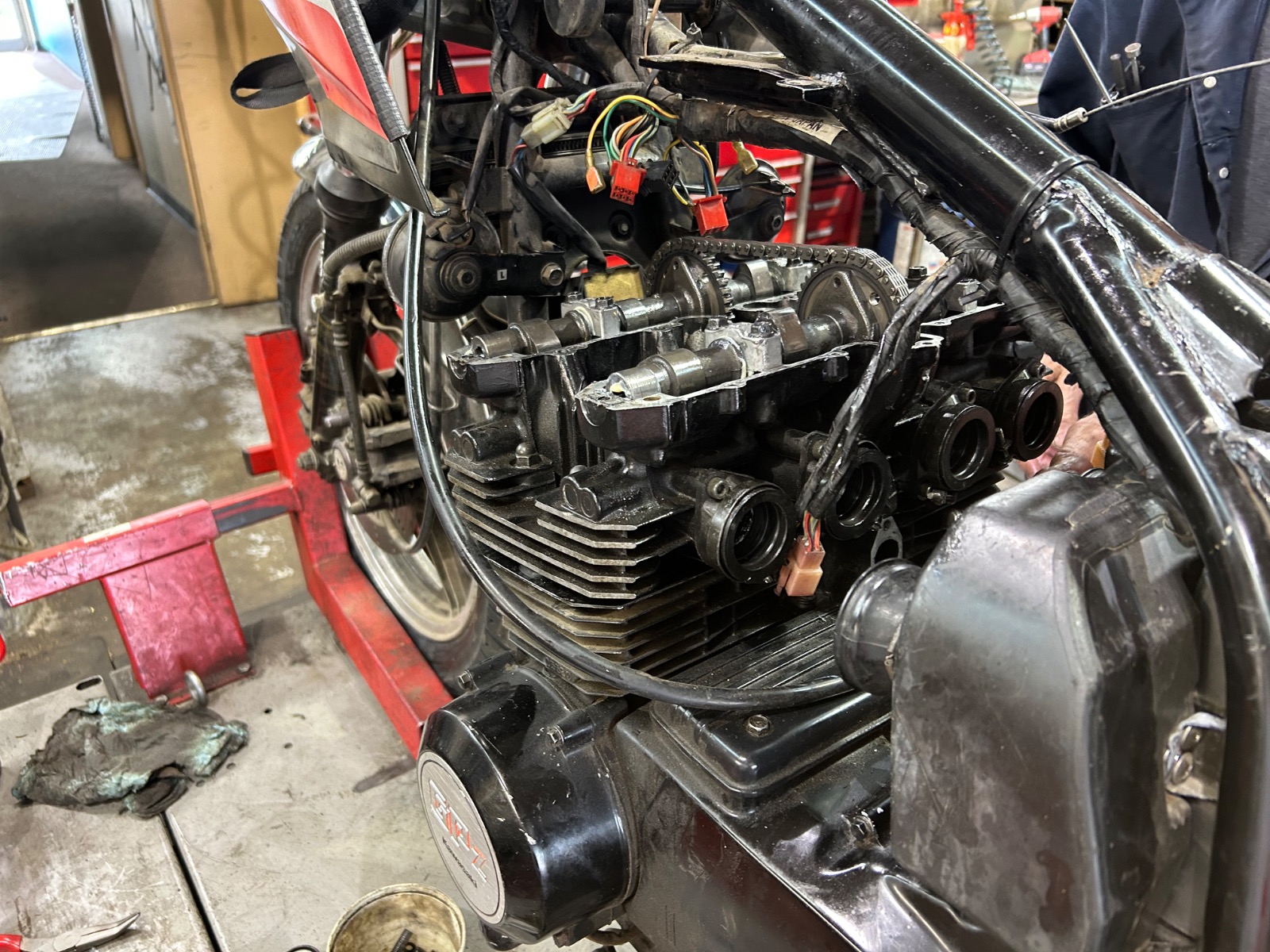

I went to visit the mechanic and every step of the bike is fighting him. This is someone who has been fixing the Jap bikes since the 90's, so he's older and typically grumpy (:D), anyway, when setting the valves, the engine spins great until he installs the exhaust cam and then the engine is really tight and doesn't want to spin, and that is with 2 caps on. He is not sure why it would be tight, but has anyone every ran into this and figured out the solution, or know what the cause was? I appreciate all your input. Thanks!
Last edit: Yesterday 08:58 by HZ-237.
The following user(s) said Thank You: asphalt900

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1170
  • Thanks: 703

Re: Engine Tight when Installing Exhaust Cam

Yesterday 09:16
#914481
Could be.. incorrect indexing of the cams and the/one valve is pushing against the crown of piston. Don't know the back history but..did You/Mechanic spin the cams in their respective clamped-down cap spots sans any valves installed? This simple effective venue is a tell if machined caps/respective head lowers are correct, also tells if you have a warped head.
The following user(s) said Thank You: HZ-237

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Moderator
    Registered
  • Posts: 5108
  • Thanks: 3128

Re: Engine Tight when Installing Exhaust Cam

Yesterday 10:50
#914485
I went to visit the mechanic and every step of the bike is fighting him. This is someone who has been fixing the Jap bikes since the 90's, so he's older and typically grumpy (:D), anyway, when setting the valves, the engine spins great until he installs the exhaust cam and then the engine is really tight and doesn't want to spin, and that is with 2 caps on. He is not sure why it would be tight, but has anyone every ran into this and figured out the solution, or know what the cause was? I appreciate all your input. Thanks!
Are you saying that he is spinning the motor with only the inlet cam in place and without the tensioner fitted ? if so I would suggest going back to the FSM ref installing camshafts !!!!!
The following user(s) said Thank You: Warren3200gt, HZ-237

Please Log in or Create an account to join the conversation.

  • HZ-237
  • HZ-237's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 13
  • Thanks: 3

Re: Engine Tight when Installing Exhaust Cam

Yesterday 10:55 - Yesterday 11:04
#914486
I do not believe they tried spinning it sans valves, but that’s a great idea. I could ask.

When I was there, they indexed the cams and adjusted the chain on the cams to ensure they were still indexed after the tensioner was installed. But you give a good point where I don’t know how they know it was the exhaust cam causing the issue. I know nothing about mechanics but can’t see how they spun it over with only the exhaust cam installed.

As for a valve touching the piston, it seems tight throughout the revolution instead of having one tight spot.

Just a reminder that I know nothing, but could you put the cam in backwards, meaning the lobes for cylinder one are now at cylinder 4?
Last edit: Yesterday 11:04 by HZ-237.

Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Moderator
    Registered
  • Posts: 5108
  • Thanks: 3128

Re: Engine Tight when Installing Exhaust Cam

Yesterday 12:33
#914491
Did they fit the cam cover after the tensioner ? if so that would cause the motor to be tight throughout the full rotation (there is a chain guide in the cover so it should be fitted with the tensioner released)

Please Log in or Create an account to join the conversation.

  • Injected
  • Injected's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1293
  • Thanks: 846

Re: Engine Tight when Installing Exhaust Cam

Yesterday 13:41 - Yesterday 13:42
#914493
If you want to rotate the later series engines with Hyvo chain to check shim clearances/cam timing you need something like these :

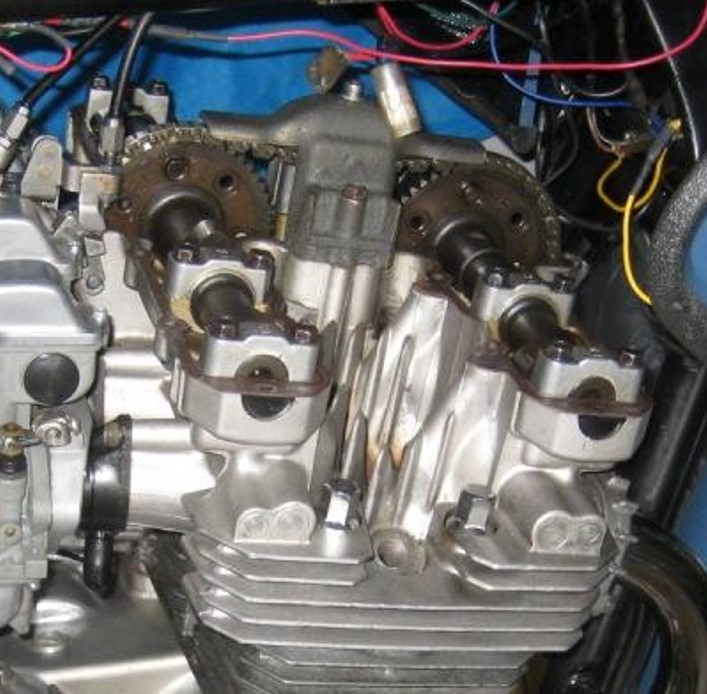

Its maybe only pressing down about 4-6mm but it makes all the difference in the world (first one is mine)

1978 KZ650B2 w 1197cc Z1 engine
1977 KZ650B1 w 750cc Spectre engine
1979 KZ650C3 w 831cc Hot Rod engine
1978 KZ650C2 w 762cc DFI project
1977 KZ650C1 stock restoration project
1978 KZ650B2 modified project
1978 KZ650B2 Injected Drag 831cc
1980 Z1 Custom Frame Drag 1327cc
1981 Z50R Honda tow bike
Last edit: Yesterday 13:42 by Injected. Reason: sp
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

  • HZ-237
  • HZ-237's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 13
  • Thanks: 3

Re: Engine Tight when Installing Exhaust Cam

Today 21:23
#914504
I never did see a cam or chain cover/guide. They tightened the cam caps, installed the chain tensioner, then spun the cam to get to the base circle to check clearance. Someone was in the engine before I bought it so would it be possible that the guide could be missing? I don’t recall seeing something like that on the table.

thank you so much for the replies!!!


Please Log in or Create an account to join the conversation.

  • Wookie58
  • Wookie58's Avatar
  • Away
  • Moderator
  • Moderator
    Registered
  • Posts: 5108
  • Thanks: 3128

Re: Engine Tight when Installing Exhaust Cam

Today 00:26
#914508
I never did see a cam or chain cover/guide. They tightened the cam caps, installed the chain tensioner, then spun the cam to get to the base circle to check clearance. Someone was in the engine before I bought it so would it be possible that the guide could be missing? I don’t recall seeing something like that on the table.

thank you so much for the replies!!!

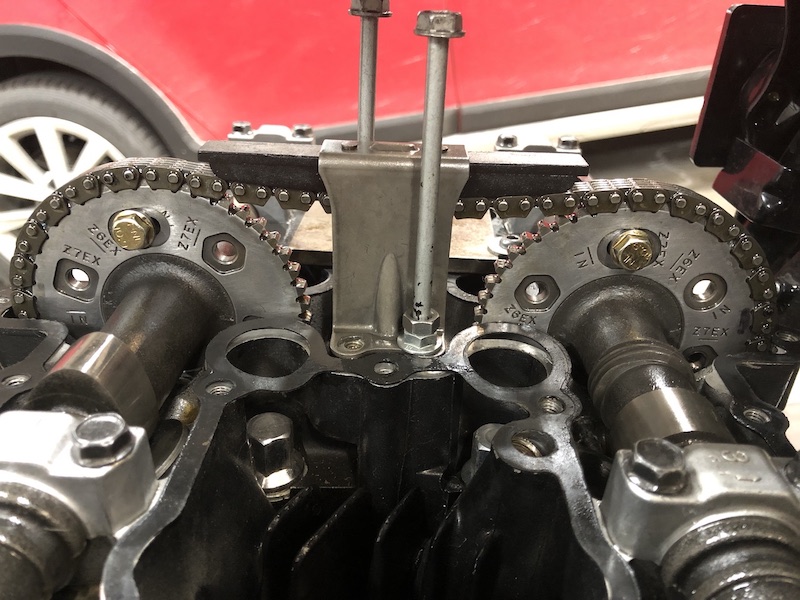

The items in injecteds pictures ae "workshop tools" that have been created to simulate the cover being fitted, you aren't "missing" anything. The guide I was referring to is a rubber block in the cover itself. If it was running when you took it into the shop it would suggest the "tightness" has been created by something they have/haven't done. Be careful you don't end up paying for "their mistakes"

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1170
  • Thanks: 703

Re: Engine Tight when Installing Exhaust Cam

Today 03:01
#914510
A side note. If #3 cylinder liner was a mess, fat chance "honing" would be the cure. And why was that particular iffy to start with? Sounds like you have multiple issues going on. As you mentioned "ran great"...but #4 cylinder wasn't firing? Those spares for the GPZ Unitrack 550 are abundant on ebay, and cheap. Perhaps just source a better cylinder/valves etc.

Please Log in or Create an account to join the conversation.

Moderators: Street Fighter LTD
Powered by Kunena Forum
