Where does this belong KZ 650 B3 1979
- Vietvet
- Topic Author
- Offline
- User
- Posts: 20
- Thanks: 1
Where does this belong KZ 650 B3 1979
02 Nov 2024 19:22

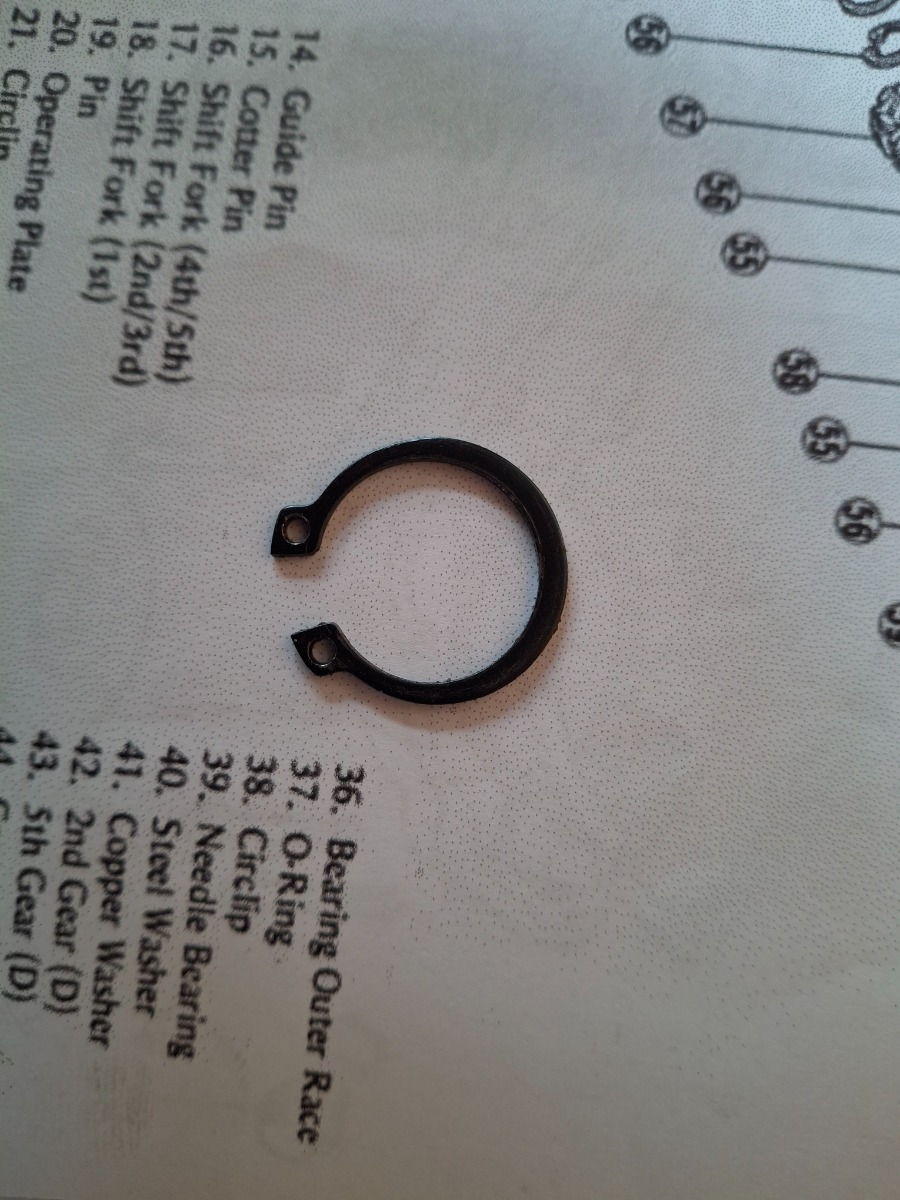

I have a 21 mm dia circlip that was in one of my bags and I have no idea where it came from. There are 2 identical circlips in the bag containing the kick starter items. It seems to have been in with the oil pump bag but I think it was put in there by mistake

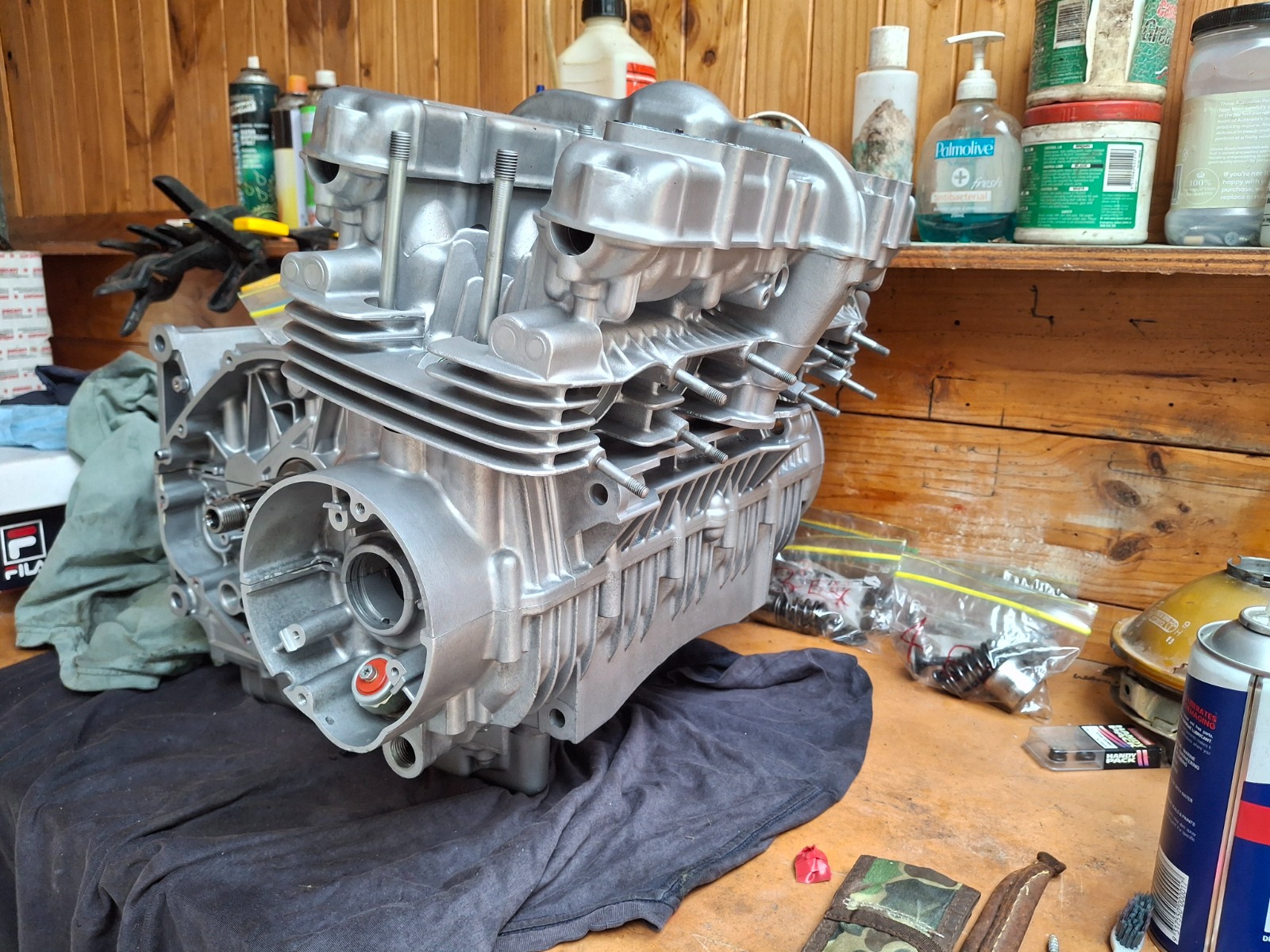

The motor has been vapour blasted and looks nice.
Tantanoola South Australia.
1979 KZ 650
1979 KZ 650
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thanks: 2870
Re: Where does this belong KZ 650 B3 1979
02 Nov 2024 19:42 - 02 Nov 2024 19:45
Secondary shaft. There is one 22mm circlip.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Last edit: 02 Nov 2024 19:45 by Nessism.
The following user(s) said Thank You: Vietvet
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4241
- Thanks: 2103
Re: Where does this belong KZ 650 B3 1979
02 Nov 2024 20:46
Member Gazzz (Nazar) from Ukraine did a full bike and engine resto mod.
He made the most detailed pic heavy documentation of any single 650 bike/engine parts.
It´s really whorth to take a look of his wrenching skills.....
kzrider.com/forum/11-projects/610746-kz650-cafe-racer?start=0
Fight for freedom Gazzz.....
He made the most detailed pic heavy documentation of any single 650 bike/engine parts.
It´s really whorth to take a look of his wrenching skills.....
kzrider.com/forum/11-projects/610746-kz650-cafe-racer?start=0
Fight for freedom Gazzz.....
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
The following user(s) said Thank You: Wookie58
Please Log in or Create an account to join the conversation.
- Vietvet
- Topic Author
- Offline
- User
- Posts: 20
- Thanks: 1
Re: Where does this belong KZ 650 B3 1979
03 Nov 2024 01:47
There is already a circlip on the secondary shaft
Tantanoola South Australia.
1979 KZ 650
1979 KZ 650
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
- Posts: 4374
- Thanks: 2545
Re: Where does this belong KZ 650 B3 1979
03 Nov 2024 01:57
If you assemble "step by step" following the factory manual you will most likely find a home for it
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
The following user(s) said Thank You: Nessism
Please Log in or Create an account to join the conversation.
- H1Vindicator
- Offline
- User
- Posts: 668
- Thanks: 66
Re: Where does this belong KZ 650 B3 1979
03 Nov 2024 13:08If still unsure, try the diagrams at kawasaki or partzilla. circlips are easy to spot in the drawings and the sizes are often noted. gear change.kickstarter. gen/starter motor. secondary shaft. maybe a couple others.There is already a circlip on the secondary shaft
The following user(s) said Thank You: Vietvet
Please Log in or Create an account to join the conversation.
- Vietvet
- Topic Author
- Offline
- User
- Posts: 20
- Thanks: 1
Re: Where does this belong KZ 650 B3 1979
05 Nov 2024 11:47
Thanks, I have been doing that and could not find any shaft 22mm dia in any of the views. I have been working off a 1981 KZ650 workshop manual as my 1979 book has not arrived yet. I don't think that they vary that much except for the carbs having to have an accelerator pump and the emission control on the cam cover. I removed the secondary shaft to check that I fitted the circlip to the starter motor clutch and I had. Reinstalled the secondary shaft while listing to some really nice BB King blues music only to find that I didn't fit the primary chain, I am 74 and the memory is fading a bit. I now consider myself well qualified at fitting and removing said secondary shaft. The only other 22mm circlips I have found are on the kickstart assembley. I will check everything sgain when 79 WSM arrives, thanks all for the help.
Tantanoola South Australia.
1979 KZ 650
1979 KZ 650
Please Log in or Create an account to join the conversation.
- gd4now
- Offline
- User
- Denco where did you go?
- Posts: 1415
- Thanks: 465
Re: Where does this belong KZ 650 B3 1979
07 Nov 2024 07:00
Do not know how much if any this will be of help to you are not. There is a parts lists for the B1 through B3 650s located here
jarlef.no/Kawasaki/Series/Z/650/z650files.htm
jarlef.no/Kawasaki/Series/Z/650/z650files.htm
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Please Log in or Create an account to join the conversation.
- H1Vindicator
- Offline
- User
- Posts: 668
- Thanks: 66
Re: Where does this belong KZ 650 B3 1979
07 Nov 2024 14:15
Thanks, I have been doing that and could not find any shaft 22mm dia in any of the views.... The only other 22mm circlips I have found are on the kickstart assembly.
Same here. but I may not have looked as hard as you so I mentioned the diagrams as a just in case you didn't do that.
Same here. but I may not have looked as hard as you so I mentioned the diagrams as a just in case you didn't do that.
The following user(s) said Thank You: Vietvet
Please Log in or Create an account to join the conversation.
- Vietvet
- Topic Author
- Offline
- User
- Posts: 20
- Thanks: 1
Re: Where does this belong KZ 650 B3 1979
12 Nov 2024 13:13
Thanks for all the suggestions, problem now solved. I must have put the 3rd circlip from the kickstart bag into the secondary shaft bag. The kickstarter has two 20mm and one 19mm circlips.When I put the transmission into place and the kickstarte all assembled and in place I found that one of the

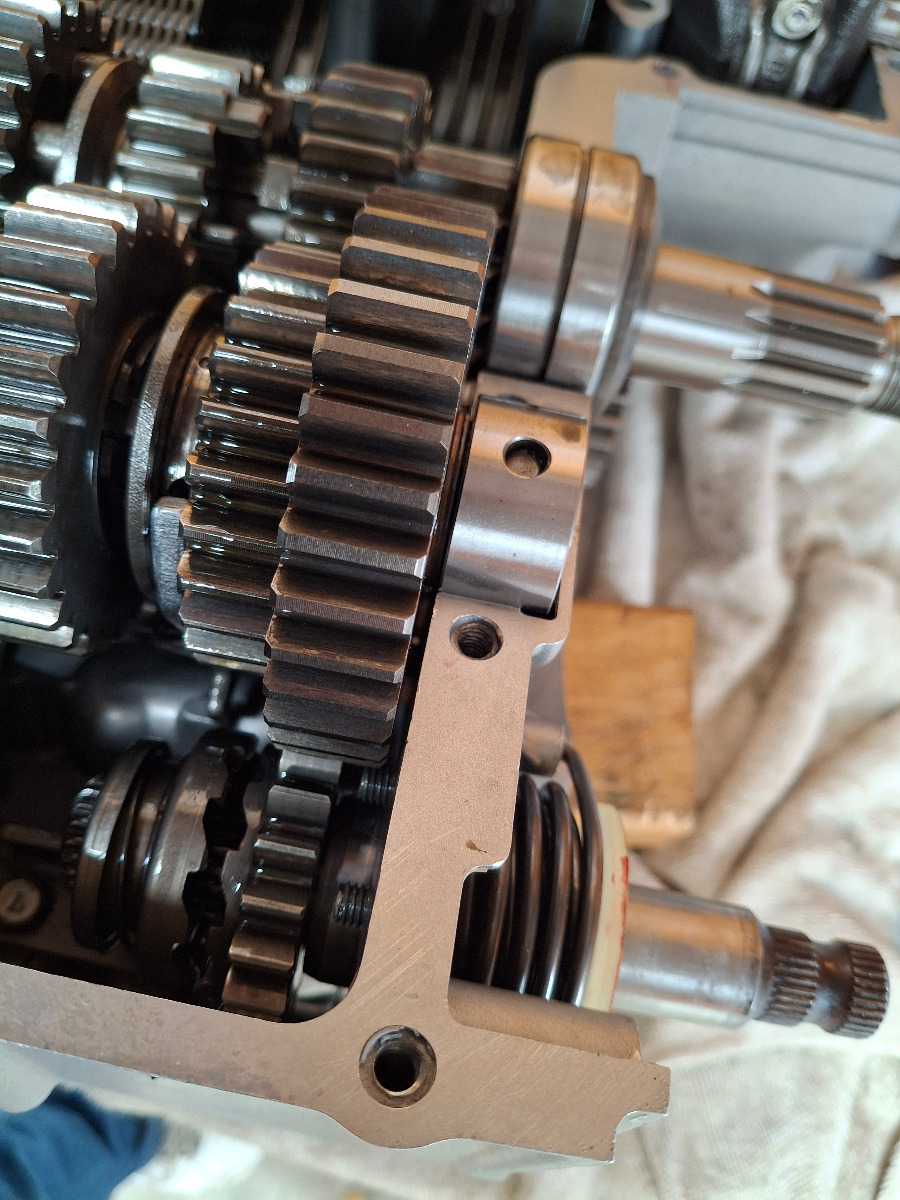

screw/bolts that hold the starter in place was contacting the gear which the starter actually operates. It was protruding too far into the crankcase.
The two screws holding the plate are the same as before so the gear is not sitting in it's origional position. I am only talking about 1 or 2 thou but enough to make contact. I ended up by cutting about 5 mm off the screw so it is now flush with the crankcase.
screw/bolts that hold the starter in place was contacting the gear which the starter actually operates. It was protruding too far into the crankcase.
The two screws holding the plate are the same as before so the gear is not sitting in it's origional position. I am only talking about 1 or 2 thou but enough to make contact. I ended up by cutting about 5 mm off the screw so it is now flush with the crankcase.
Tantanoola South Australia.
1979 KZ 650
1979 KZ 650
Please Log in or Create an account to join the conversation.
