Oil Cooler
- Mikaw
-
Topic Author
- Offline
- Sustaining Member
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22900
- Thank you received: 2736
Please Log in or Create an account to join the conversation.
- !Seymore
-
- Offline
- User
- Ride on...
- Posts: 468
- Thank you received: 69

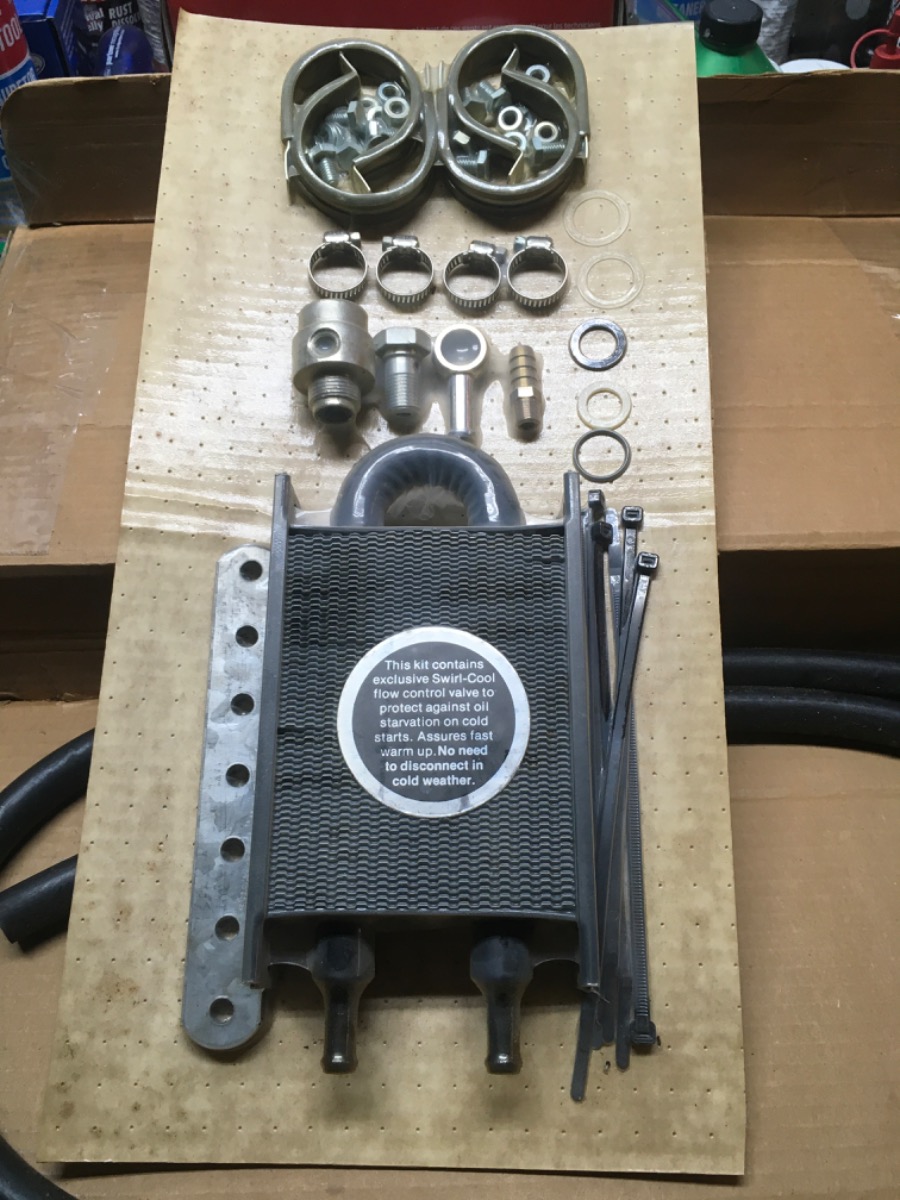

I'm not finding this specific style, but it's in really good shape... dare I say "new", as in unused? 42 bones? You stole that... but do you need it in Michigan? There were some discussions (at the now defunct site) about using an oil cooler at northern latitudes. IIRC, some said it took far too long for the engine to get up to temp, with a cooler installed. I still have mine, for the 650, but doubt I'll install it in WA... YMMV...
C.
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
Please Log in or Create an account to join the conversation.
- Mikaw
-
Topic Author
- Offline
- Sustaining Member
- Posts: 5007
- Thank you received: 1918

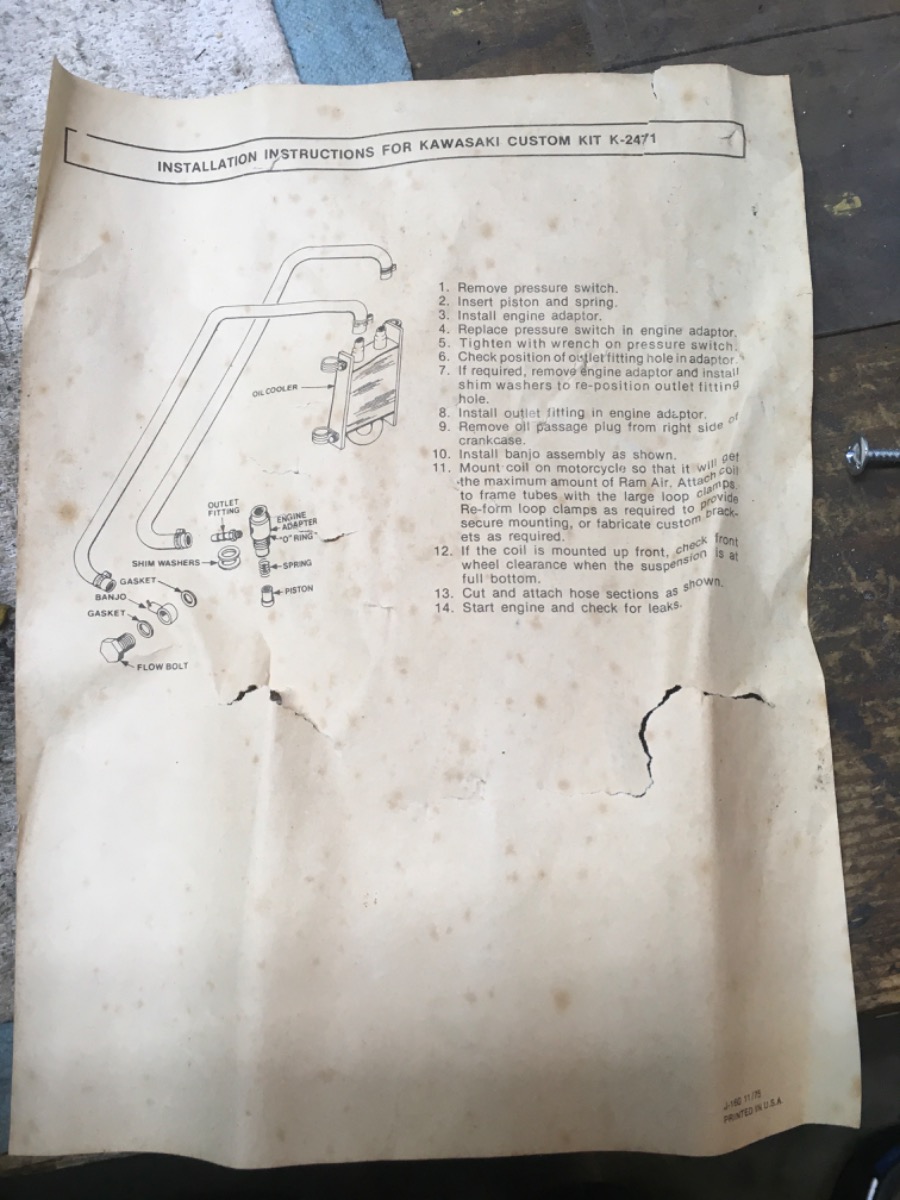

Great catch. As printed says;What's the date on the bottom right side of the sheet? 79'? That period...
I'm not finding this specific style, but it's in really good shape... dare I say "new", as in unused? 42 bones? You stole that... but do you need it in Michigan? There were some discussions (at the now defunct site) about using an oil cooler at northern latitudes. IIRC, some said it took far too long for the engine to get up to temp, with a cooler installed. I still have mine, for the 650, but doubt I'll install it in WA... YMMV...
J-160 11/75
PRINTED IN U.S.A.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- !Seymore
-
- Offline
- User
- Ride on...
- Posts: 468
- Thank you received: 69

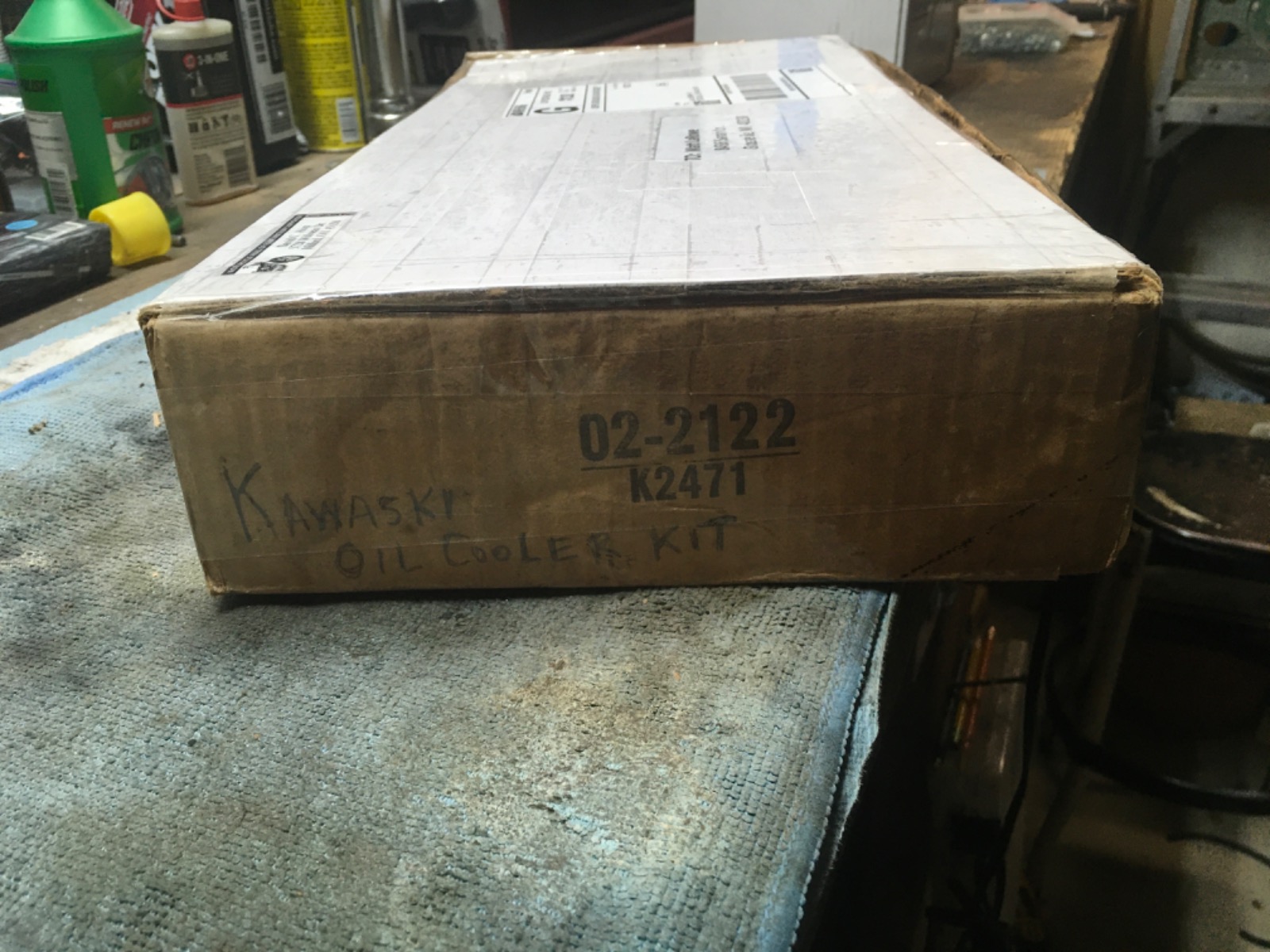

But I'm finding NOTHING, based on the number on the box. Probably some 3rd party parts supplier, that is no longer...
C.
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
Please Log in or Create an account to join the conversation.
- Mikaw
-
Topic Author
- Offline
- Sustaining Member
- Posts: 5007
- Thank you received: 1918
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- !Seymore
-
- Offline
- User
- Ride on...
- Posts: 468
- Thank you received: 69
C.
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
- Posts: 3975
- Thank you received: 2281
Please Log in or Create an account to join the conversation.
- slmjim+Z1BEBE
-
- Offline
- User
- Enjoy Life! IT HAS AN EXPIRATION DATE!
- Posts: 1251
- Thank you received: 732
Oil needs to get above ~212 deg. F. to evaporate the moisture contamination from blowby. Takes time & lots of heat energy to get all the combined mass of the oil plus the motor & sump itself that hot. Then, that temperature must be held long enough to evaporate the moisture in the oil & on internal surfaces. Those necessary conditions will vary widely on air-cooled motors depending on ambient air temperature.
There were a some guys who frequented the old shop (southern IN / northern KY) slmjim hung out at in the day who had oil coolers on their Z1's & late '70's & 80's. K-bikes. Many of their clutch cover sight glasses were white with moisture contamination because they didn't run them long enough to get the oil & motor hot enough to evaporate the blowby condensation. Pull the clutch cover from such a bike & there was a very thin layer of white goo on the inside.
Stock big block Z-bike motors don't really run that hot; the compression is too low. Aim a laser thermometer at the bottom of the sump of a stock Z-bike motor that's been running for 50 highway miles on a warm day. You might be surprised at how low the sump temp really is. There's lots of surface area there to keep things cooler. One exception might be in very hot climates when air temps are around, say, 100 F. or above, but we're not Ridin' then anyway. No fun when it feels like Ridin' through a hot oven.
Oil coolers are much more useful when running big bore / high compression setups because more compression makes more waste heat. Vintage bike road racers running built motors install oil coolers on their hotted-up (pun intended... again ) air-cooled bikes because they're needed for longevity.
Oil coolers are ubiquitous on bikes running at the Barber & Mid-Ohio vintage races. Those Riders would be very interested in OP's period oil cooler.
Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.
1973 ('72 builds) Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A
www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.
Please Log in or Create an account to join the conversation.
- Mikaw
-
Topic Author
- Offline
- Sustaining Member
- Posts: 5007
- Thank you received: 1918
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- DOHC
-
- Offline
- Sustaining Member
- Those Doe-Hawks really go!
- Posts: 1279
- Thank you received: 540
1975? Hmmmm... H2? KZ-400? Early 900's? ...or 750 twins?
If the instruction manual is dated 1975, that limits the number of models that this could be for. I'm pretty sure all of the 2-strokes are out of the running. Some had oil injection pumps, but they don't have circulating oil that needs cooling.

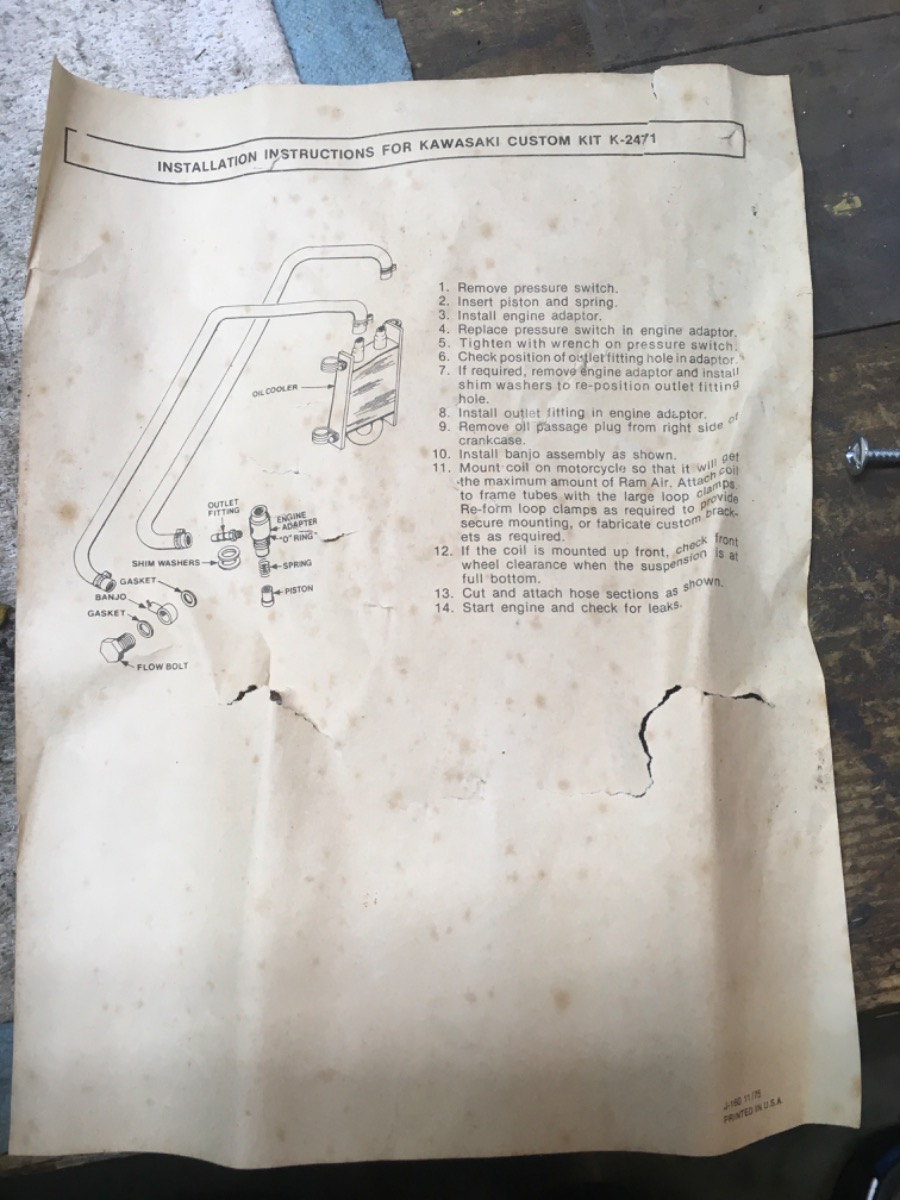

Looking at the kit instructions, it doesn't exactly show the specific location but it does say "remove oil passage plug from the right side crankcase" The Z1 (900/1000) does have this plug on the right side.
Looking at the KZ750 twin, I don't see any oil galley plug on the right side. And the same is true for the KZ400 twin. Same for the KZ200.
bringatrailer.com/listing/1976-kawasaki-kz-750-b1-twin/
bringatrailer.com/listing/1975-kawasaki-kz400/
bringatrailer.com/listing/1978-kawasaki-kz200-a1-2/
I had an oil cooler kit for the KZ650 that had a similar banjo fitting for the oil return. It went in place of a plug under the timing cover.
kz650files.kz650.info/adobe/KZ650OilCooler.pdf
But if this kit is from 1975, that's a bit early for the '77 KZ650. I don't see any other mid-70s KZ bikes that have a similar oil galley plug on the right side.
Here is another question I have about this kit. Most oil cooler kits remove the oil transfer pipe and split the connection at this point. Oil flows from the block, to the cooler, and back to the oil galley tube and up to the head. But this kit doesn't remove the existing oil transfer pipe. It seems like it adds the cooler in parallel with the existing oil path.
The directions mention a piston and spring, but I don't see those in the kit. Does this piston located under the "engine adapter" somehow block oil from flowing in the oil galley tube? Maybe if there is enough pressure behind the piston it moves up and opens up the original oil flow path, but otherwise diverts oil to the cooler?
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Please Log in or Create an account to join the conversation.
- Mikaw
-
Topic Author
- Offline
- Sustaining Member
- Posts: 5007
- Thank you received: 1918
Some quality research, very sound reasoning. Blister pack seemed intact I’m hoping the piston and spring are shipped/stored in the adapter. I’ll look this evening. Thanks
1975? Hmmmm... H2? KZ-400? Early 900's? ...or 750 twins?
If the instruction manual is dated 1975, that limits the number of models that this could be for. I'm pretty sure all of the 2-strokes are out of the running. Some had oil injection pumps, but they don't have circulating oil that needs cooling.
Looking at the kit instructions, it doesn't exactly show the specific location but it does say "remove oil passage plug from the right side crankcase" The Z1 (900/1000) does have this plug on the right side.
Looking at the KZ750 twin, I don't see any oil galley plug on the right side. And the same is true for the KZ400 twin. Same for the KZ200.
bringatrailer.com/listing/1976-kawasaki-kz-750-b1-twin/
bringatrailer.com/listing/1975-kawasaki-kz400/
bringatrailer.com/listing/1978-kawasaki-kz200-a1-2/
I had an oil cooler kit for the KZ650 that had a similar banjo fitting for the oil return. It went in place of a plug under the timing cover.
kz650files.kz650.info/adobe/KZ650OilCooler.pdf
But if this kit is from 1975, that's a bit early for the '77 KZ650. I don't see any other mid-70s KZ bikes that have a similar oil galley plug on the right side.
Here is another question I have about this kit. Most oil cooler kits remove the oil transfer pipe and split the connection at this point. Oil flows from the block, to the cooler, and back to the oil galley tube and up to the head. But this kit doesn't remove the existing oil transfer pipe. It seems like it adds the cooler in parallel with the existing oil path.
The directions mention a piston and spring, but I don't see those in the kit. Does this piston located under the "engine adapter" somehow block oil from flowing in the oil galley tube? Maybe if there is enough pressure behind the piston it moves up and opens up the original oil flow path, but otherwise diverts oil to the cooler?
