TOPIC:

what should my exhaust valves look like? 20 Sep 2021 11:29 #855532

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • User
  • Posts: 202
  • Thank you received: 28

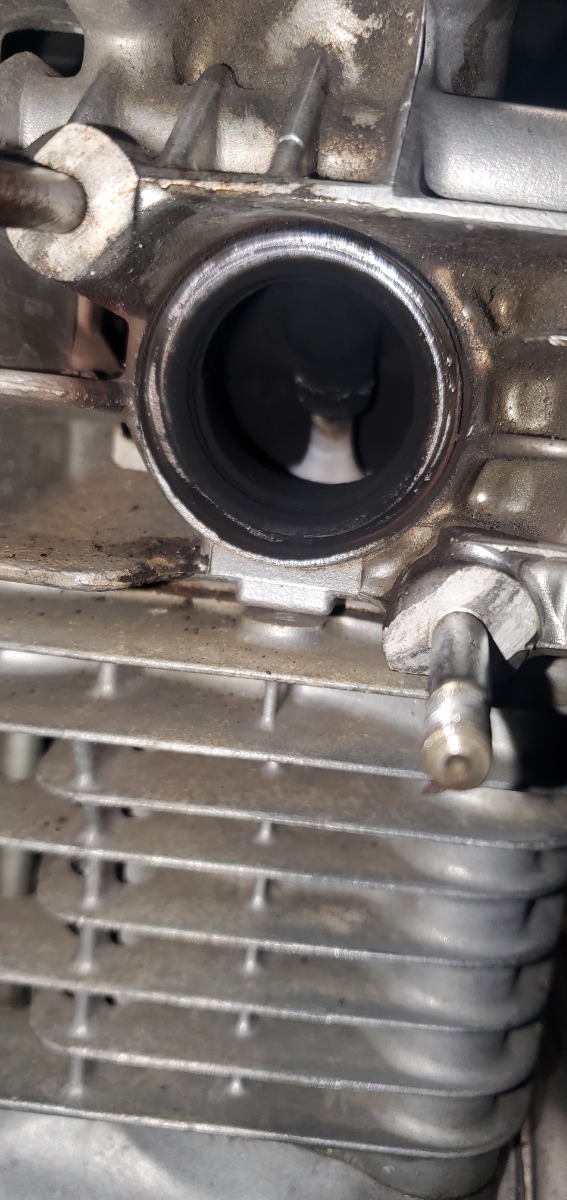

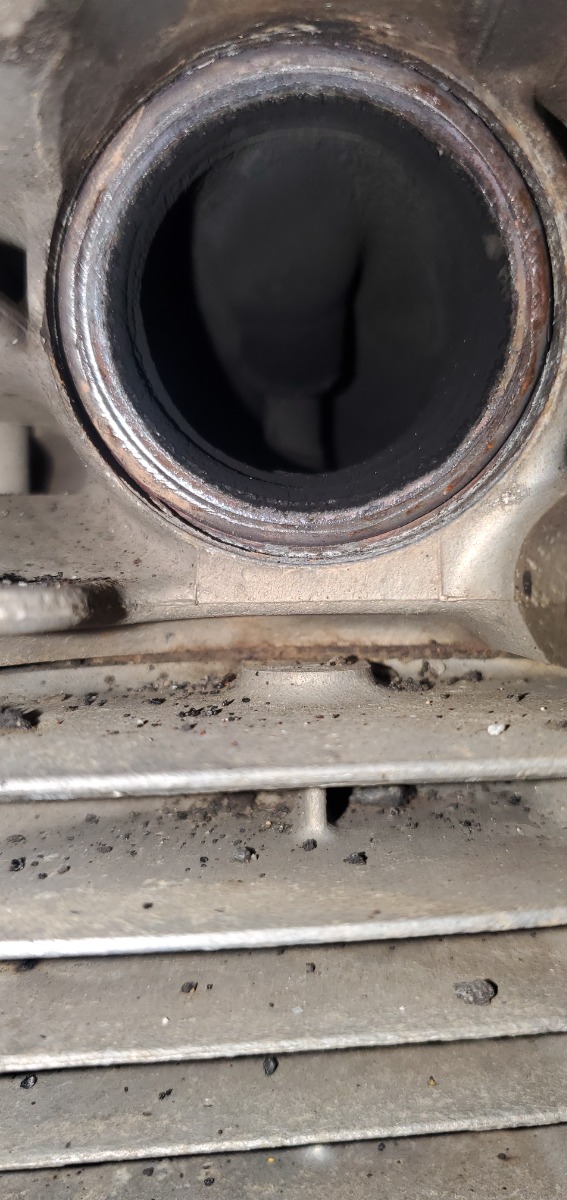

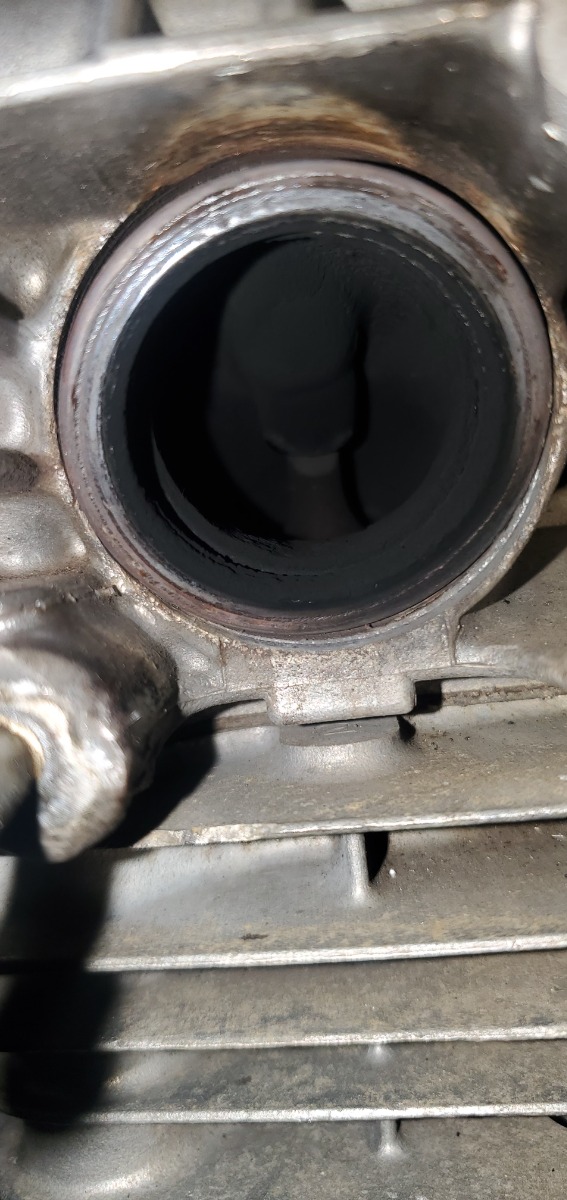

I took my Kerker exhaust the other day and wanted to take a picture of what I was looking at.  Looking at these pictures, do you see anything that appears off?

Cylinder 1 exhaust valve looks different than the other 3.  Since the exhaust is off I'd like to know if I should also take the head off and replace valves.  Or possibly run a can of seafoam in the tank.


1977 KZ900
Carbs are late model 1975 28mm
Attachments:

Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 20 Sep 2021 11:37 #855533

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441
Might be running lean on that cylinder or that valve is not seating fully.
What do your plugs look like, Check compression and valve clearances.
There is also at least one valve seal passing oil.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

what should my exhaust valves look like? 20 Sep 2021 12:38 #855536

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • User
  • Posts: 202
  • Thank you received: 28
All plugs look awful, black and sooty.  I have to change every 200 miles.  I'm getting ready to pull the carbs, ensure float height and drop the pilots down 1 size so this would be the opposite of lean for how the plugs look.  I already have your air corrector jets in, and the funny thing is that the bike runs great all through RPM range.

I checked valve clearances last year and replaced a few.  Will have to recheck compression.  Why do you say at least 1 valve seal is leaking oil?
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 20 Sep 2021 12:51 #855537

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2885
  • Thank you received: 1441

All plugs look awful, black and sooty.
 Why do you say at least 1 valve seal is leaking oil?

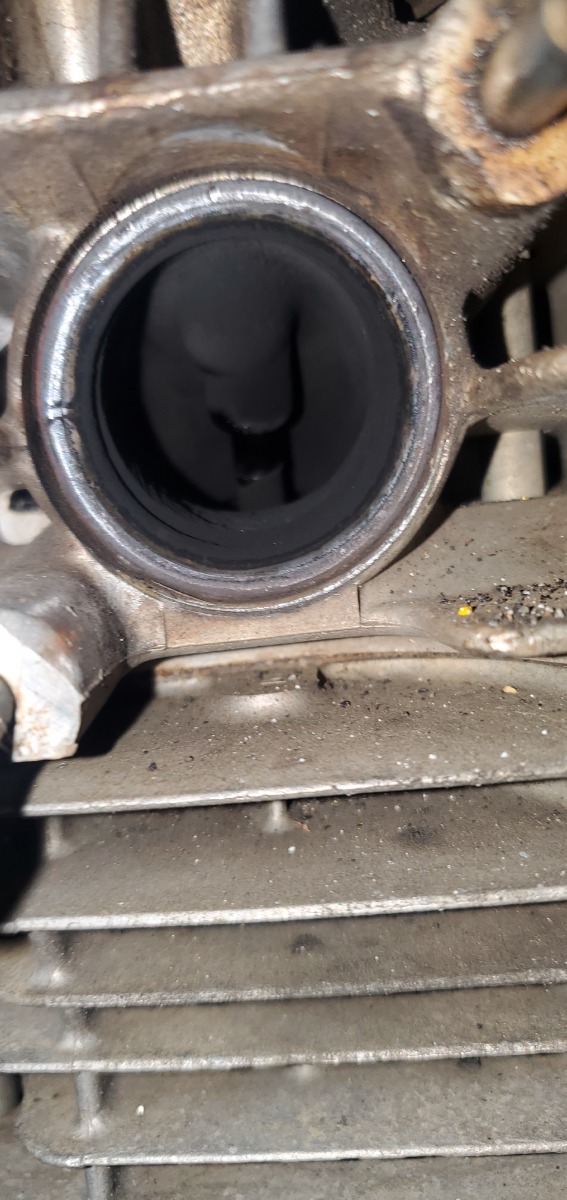

Valve stem is 2nd pic is wet at the guide which will be oil from the leaking stem seal.
Don't touch your pilots they won't be your problem if they are stock size.
Your black soofy plugs are likely to be oil fouled due to worn inlet guide seals or possibly rings but i'd go for stem seals considering the exhaust one is leaking and the inlet ones are subject to oil being drawn down them and into the cylinders on the inlet stroke.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-





Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 20 Sep 2021 13:31 #855540

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
I had the same problem and it was the valve guide seals.
steve

Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 20 Sep 2021 17:12 #855552

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
Looks too rich.

What kind of gas mileage are you getting?  Pod air filters with big fat jets?



Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 20 Sep 2021 17:40 #855554

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • User
  • Posts: 202
  • Thank you received: 28
Thanks for the insight, I will start looking at the fsm and see what doing new valve guide seals entails.

Nessism, don't know about the gas mileage, I don't keep track.  Yes on the pod filters but I'm at stock jetting except 2 sizes larger on the mains.  I'm not looking for a debate on pods vs airbox.
1977 KZ900
Carbs are late model 1975 28mm

Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 20 Sep 2021 19:48 #855560

  • z1kzonly
  • z1kzonly's Avatar
  • Offline
  • User
  • Sustaining Member
  • Posts: 2861
  • Thank you received: 512
It's apart! Bite the bullet! Get a professional valve job. The smog head had nitrated vales, the blackish looking ones. These are low 12,000 miles. Ground valves with a lot of meat on them. Plus they had iron valve guides for long life. It's all crazy money the past couple of years! Years ago, I gave stuff away!
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:

Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 20 Sep 2021 20:15 #855562

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 852
  • Thank you received: 254

Thanks for the insight, I will start looking at the fsm and see what doing new valve guide seals entails.

Nessism, don't know about the gas mileage, I don't keep track.  Yes on the pod filters but I'm at stock jetting except 2 sizes larger on the mains.  I'm not looking for a debate on pods vs airbox.




I didn’t see Ed start a debate on pods versus stock air box. What I read was someone looking for advise with a potential problem and when he didn’t like the response he got somewhat put out.  Plain and simple, Ed asked a question , he didn’t request or initiate a debate.
Rick H.




Rick H.

1977 Kawasaki KZ-1000A1
The following user(s) said Thank You: SWest

Please Log in or Create an account to join the conversation.

Last edit: by Rick H..

what should my exhaust valves look like? 21 Sep 2021 06:44 #855571

  • Bama704
  • Bama704's Avatar Topic Author
  • Offline
  • User
  • Posts: 202
  • Thank you received: 28
Thanks Rick, you are not wrong.  Somedays are better or worse and unfortunately yesterday wasn't my finest.  I took it a certain way based on the countless posts I have seen on pods vs stock airbox.

I am here, as most are, to gain as much knowledge as possible.  Nessism, sorry to clap back at you based on 1 question.
1977 KZ900
Carbs are late model 1975 28mm
The following user(s) said Thank You: Rick H.

Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 21 Sep 2021 06:55 #855573

  • slmjim+Z1BEBE
  • slmjim+Z1BEBE's Avatar
  • Offline
  • User
  • Enjoy Life! IT HAS AN EXPIRATION DATE!
  • Posts: 1105
  • Thank you received: 583

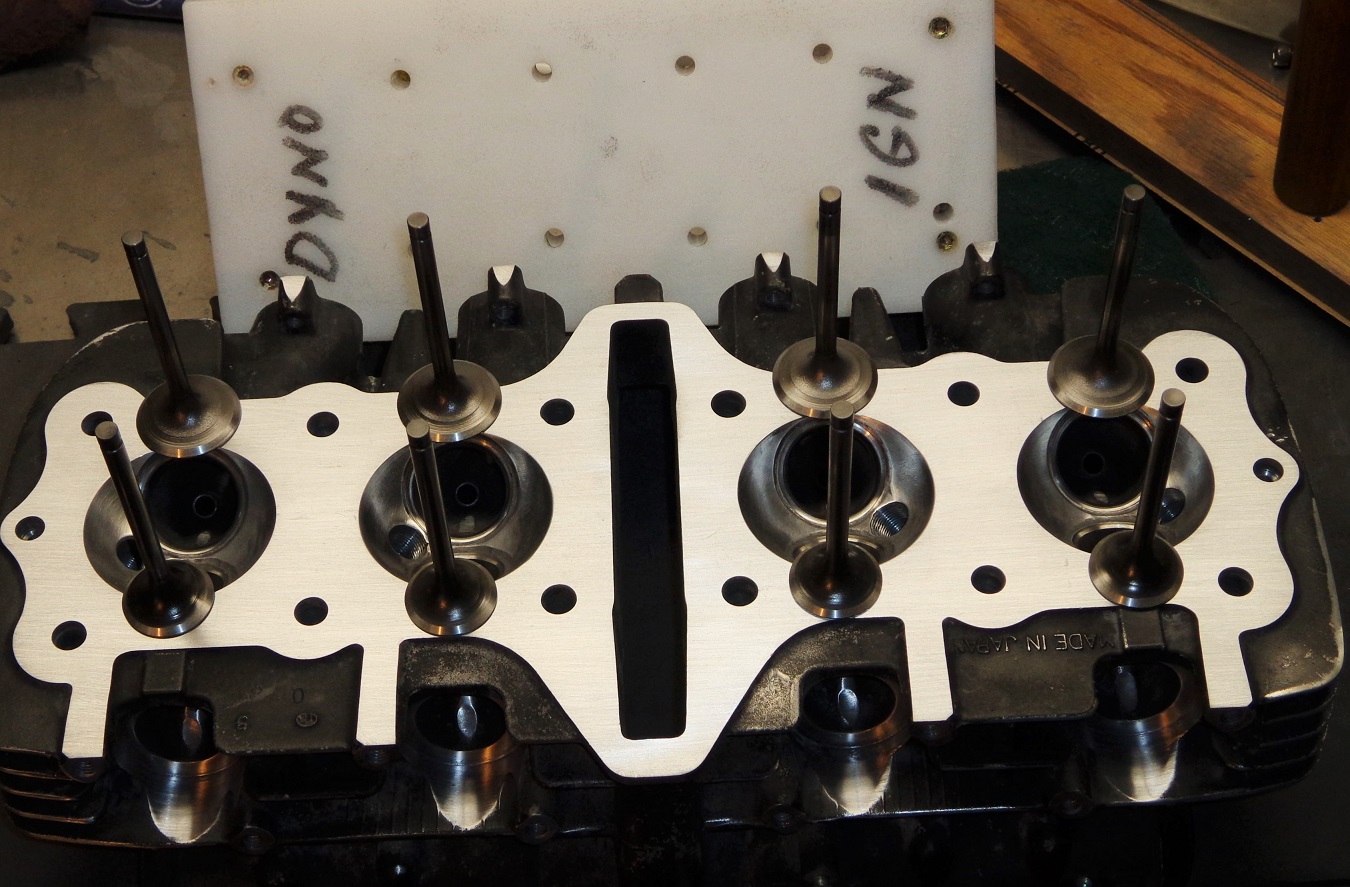

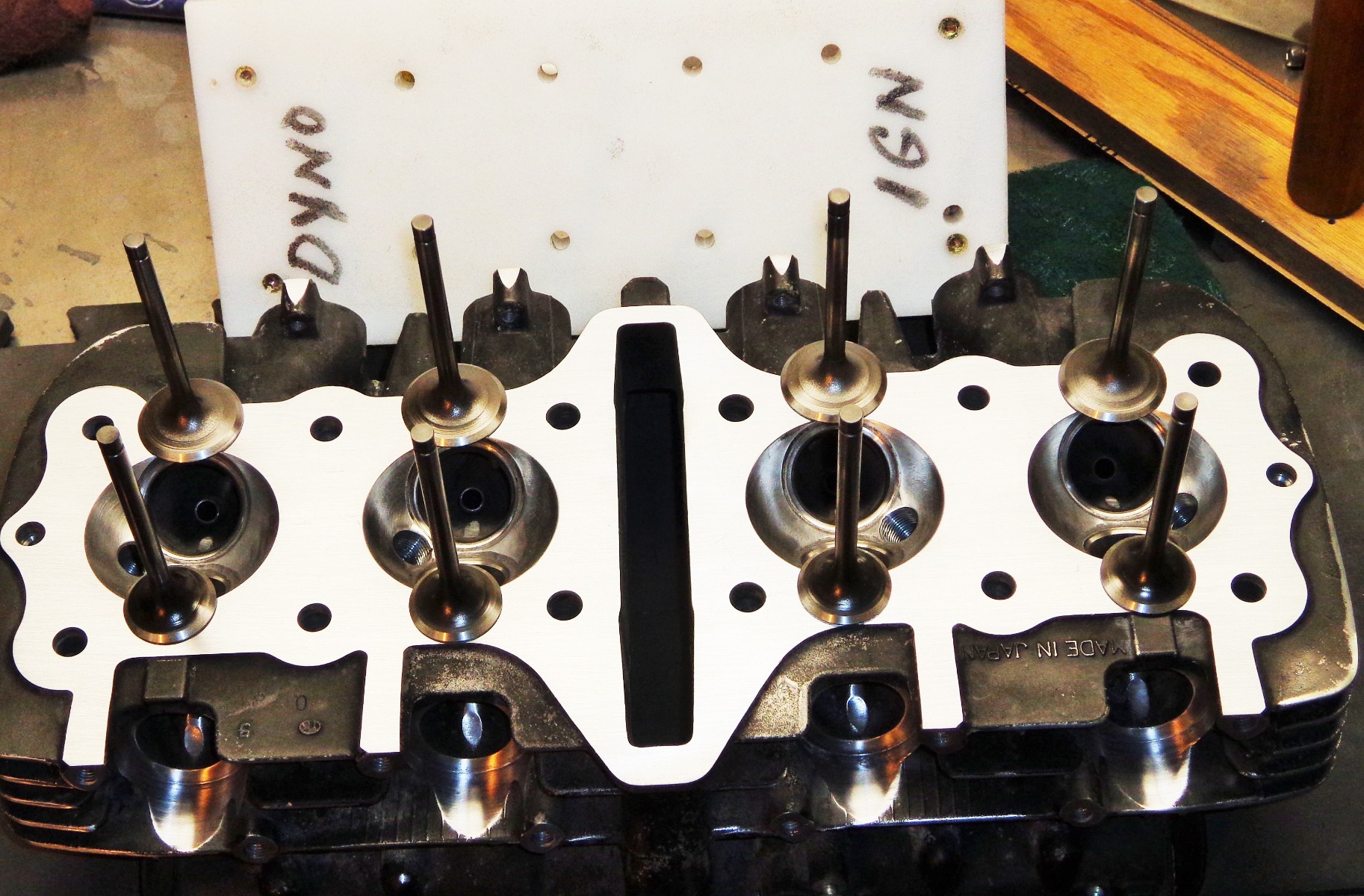

It's apart! Bite the bullet! Get a professional valve job. The smog head had nitrated vales, the blackish looking ones. These are low 12,000 miles. Ground valves with a lot of meat on them. Plus they had iron valve guides for long life. It's all crazy money the past couple of years! Years ago, I gave stuff away!
Mmmm... purdy!

Good Ridin'
slmjim & Z1BEBE
A biker looks at your engine and chrome.
A Rider looks at your odometer and tags.

1972 Z1 x2
1974 Z1-A x2
1975 Z1-B x2
1993 CB 750 Nighthawk x2
2009 ST1300A

www.kawasaki-z-classik.com
An enthusiast's forum focused exclusively
on all things Z1, Z2 and KZ900.

Please Log in or Create an account to join the conversation.

what should my exhaust valves look like? 21 Sep 2021 10:16 #855587

  • Dr. Gamma
  • Dr. Gamma's Avatar
  • Offline
  • Sustaining Member
  • Posts: 1221
  • Thank you received: 664

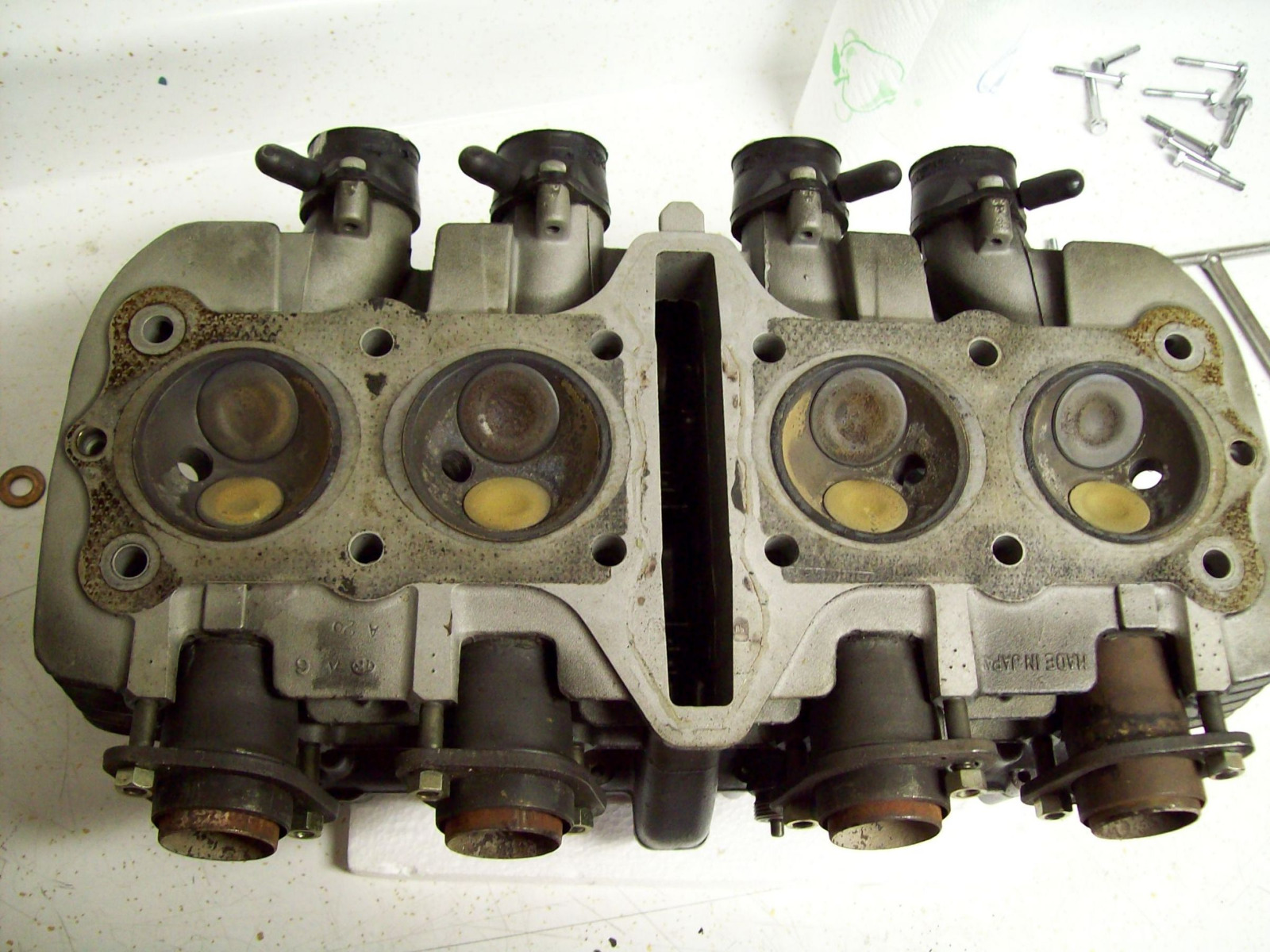

They all look nice and shiny sitting on the bench before you run them.


Run them for awhile and they all start to look like this!!!!!!!

If your exhaust valves and ports have that nice light tan color to them. It tells you your jetting is pretty close!!!!
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!

Up in the hills near Prescott, Az.
Attachments:
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

Last edit: by Dr. Gamma.
