Clutch not engaging 17 Mar 2020 07:15 #821058

  • old_kaw
  • old_kaw's Avatar
  • Offline
  • User
  • Posts: 932
  • Thank you received: 269

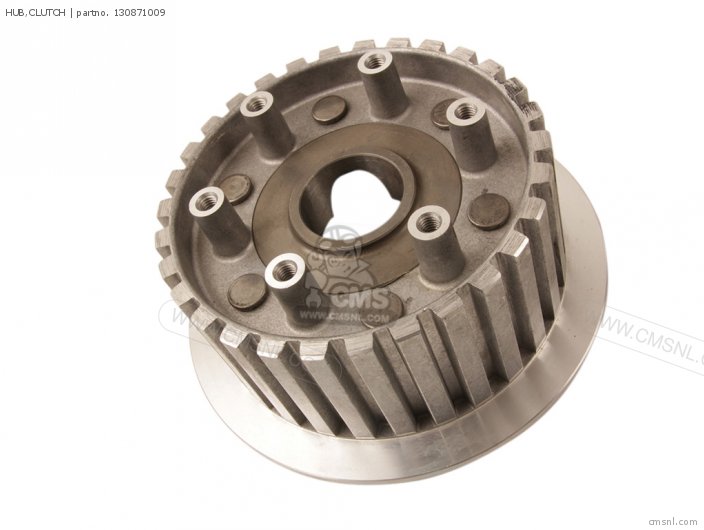

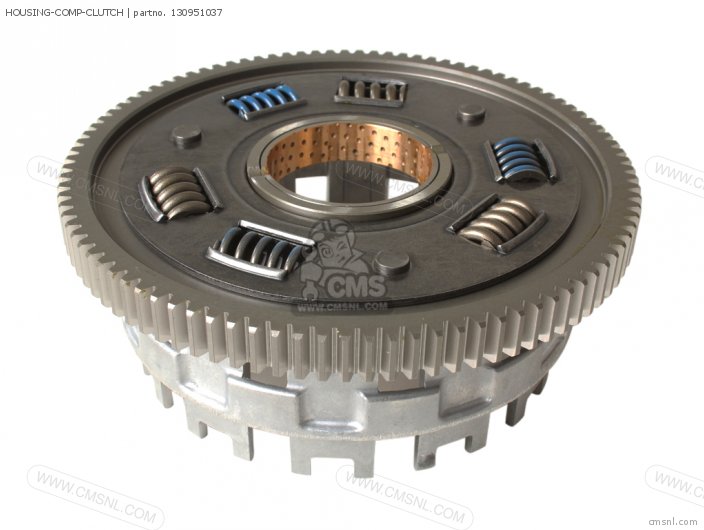

The damper springs are on the back side of the clutch housing. I don't think they are available separately.

www.cmsnl.com/kawasaki-kz1100a2-shaft-19...951037/#.XnDbFqhKhPY
1981 Kawasaki Kz1000K1
Located in the Saint Louis, Missouri Area.
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

Last edit: by old_kaw. Reason: typo's

Clutch not engaging 17 Mar 2020 08:29 #821069

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

old_kaw wrote: The damper springs are on the back side of the clutch housing. I don't think they are available separately.

www.cmsnl.com/kawasaki-kz1100a2-shaft-19...951037/#.XnDbFqhKhPY



The 92081-1115 damper springs reside in the hub on the left, per image below:



:)


.
1982 KZ1100-A2

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Clutch not engaging 17 Mar 2020 08:31 #821070

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7166
  • Thank you received: 2043
Kawasaki clearly shows 18 springs in the shaft drive clutch, besides the ones in the housing.

www.kawasaki.com/Parts/PartsDiagram/143769/1982/KZ1100-A2
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: daveo

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

Clutch not engaging 17 Mar 2020 08:37 #821071

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7166
  • Thank you received: 2043
APE sells a hub rebuild kit for the earlier steel hubs (pre-J), but says nothing about the later or shaft drive clutches.

kzzone.com/clutches.html
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Clutch not engaging 17 Mar 2020 08:50 #821075

  • old_kaw
  • old_kaw's Avatar
  • Offline
  • User
  • Posts: 932
  • Thank you received: 269
My bad. I was going by the link the the clutch assembly posted above. You shafties get all of the neat stuff. OR is it that you really got the shaft? LOL

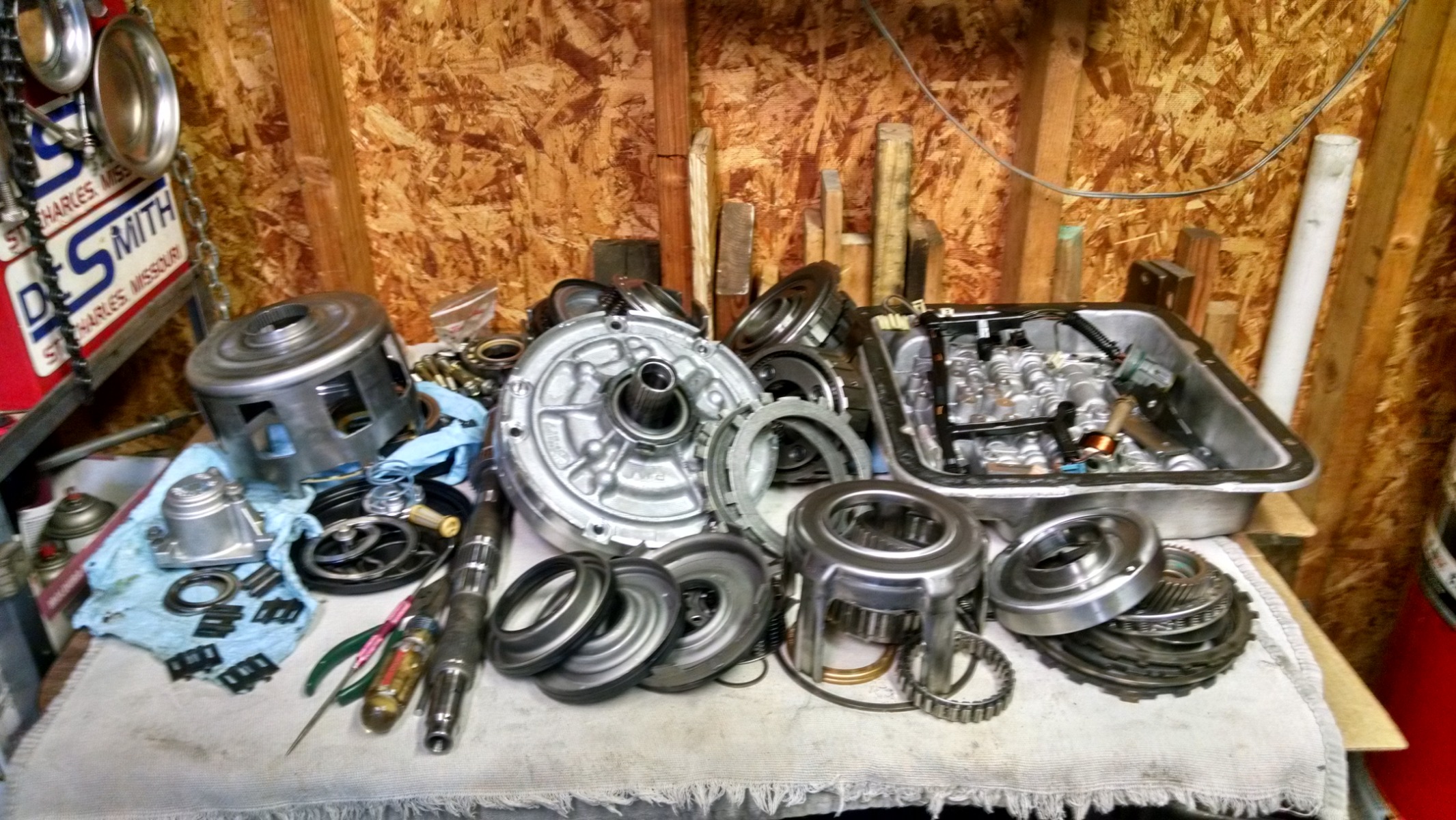

BTW< I don't get the function of those "damper springs". Is it to make the clutch release faster? I find sets like that in automatic transmissions, but see them for piston return (disengage clutch faster) in the clutch packs mainly. Several pictured below. Where's waldo?
1981 Kawasaki Kz1000K1
Located in the Saint Louis, Missouri Area.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by old_kaw.

Clutch not engaging 17 Mar 2020 11:25 #821089

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622
Both spring sets must provide some calculated pressure which helps the clutch operate smoothly.

The six Barnett clutch springs exert 10-12 percent more pressure than 92081-1114 springs, according to Barnett tech-support.
I hope to soon find out...

:huh:
1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Clutch not engaging 21 Mar 2020 13:54 #821327

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

daveo wrote:

old_kaw wrote: The damper springs are on the back side of the clutch housing. I don't think they are available separately.

www.cmsnl.com/kawasaki-kz1100a2-shaft-19...951037/#.XnDbFqhKhPY



The 92081-1115 damper springs reside in the hub on the left, per image below:



:)


.

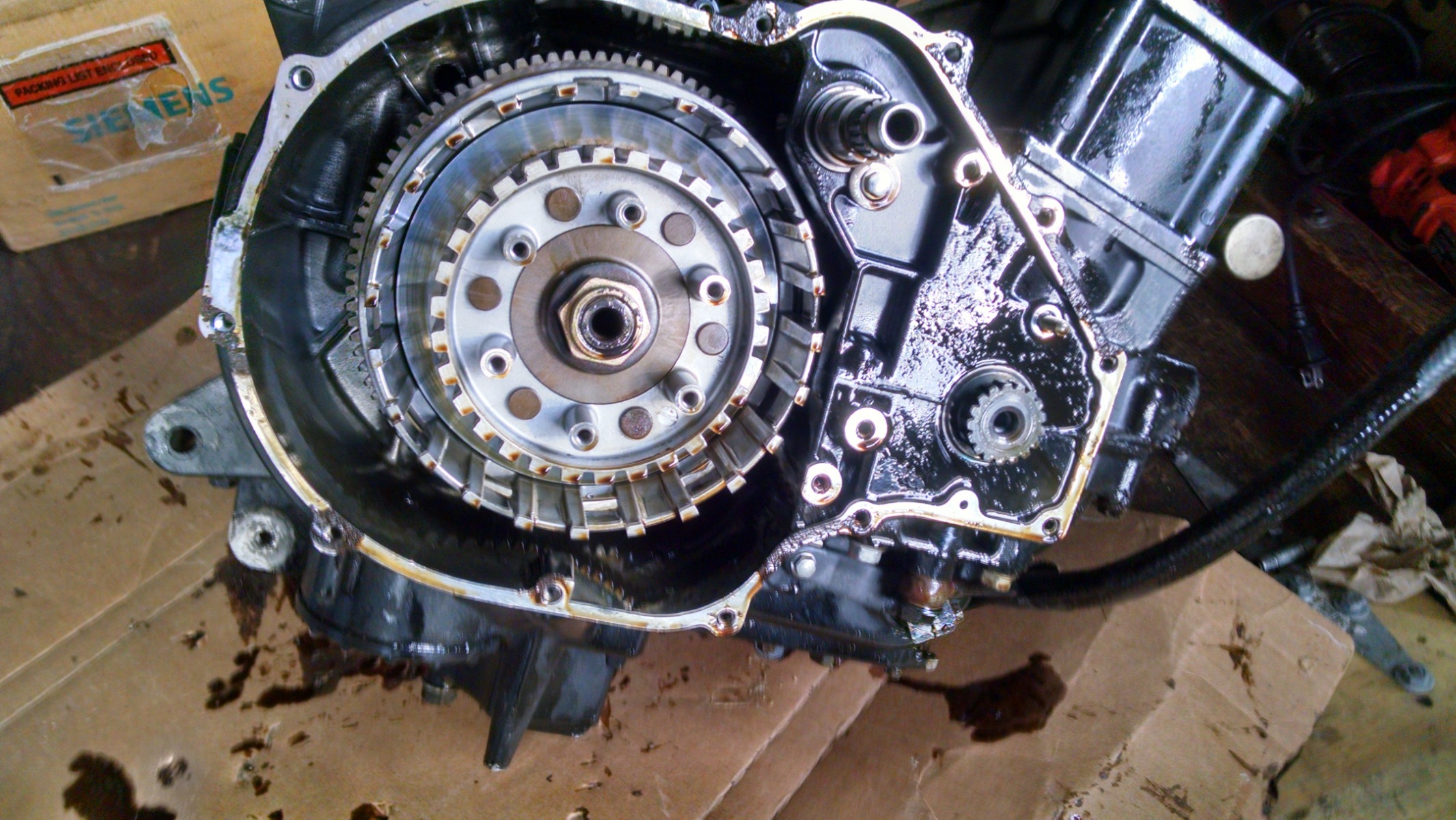

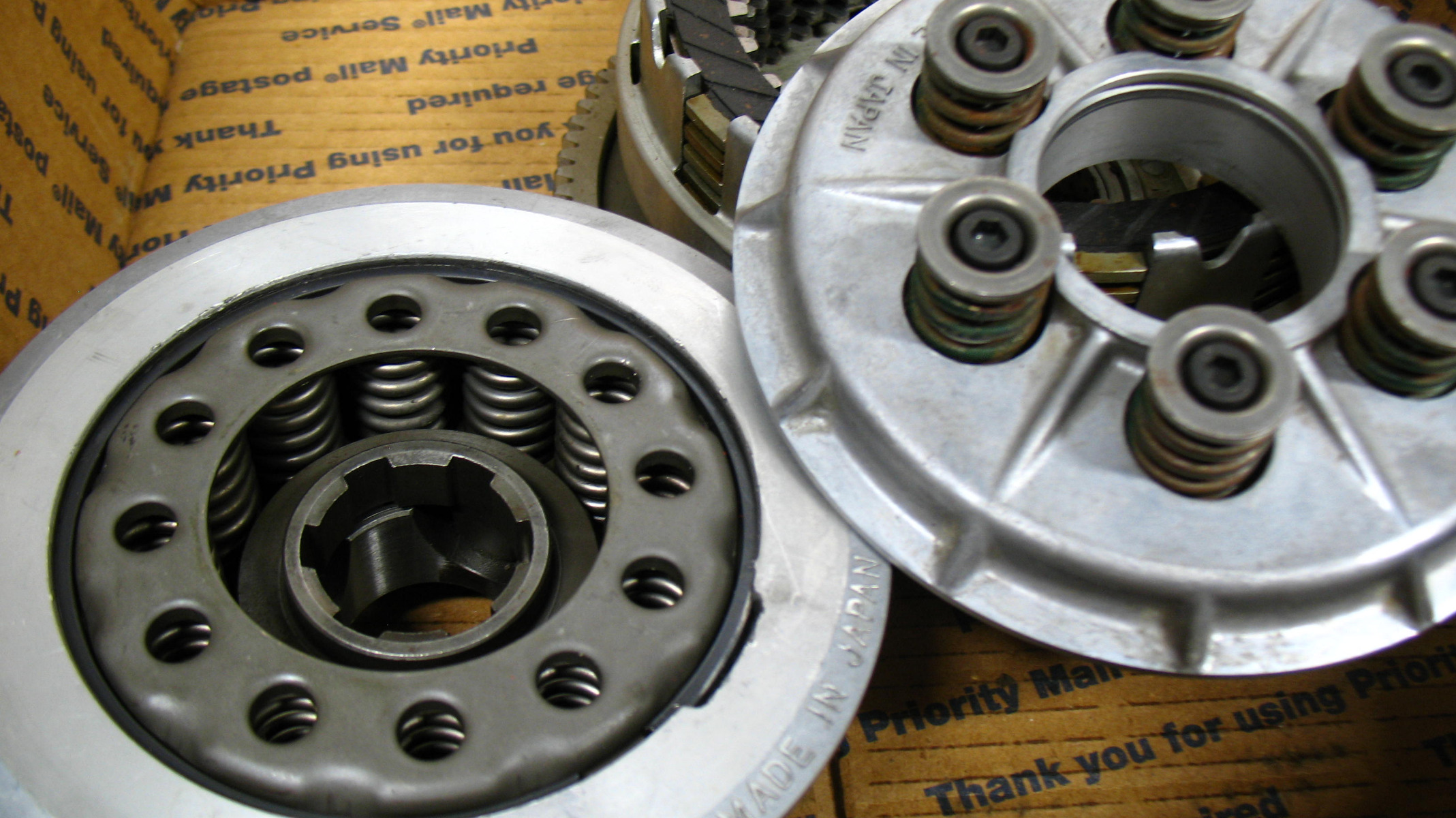

Used this clutch assembly in place of the worn out one in the motor. It had been sitting in the box since 2008 with a lot less miles, and good hub springs besides.

With all new plates and six Barnett springs, the clutch works better now than any time since I rescued this bike twenty years ago.

Smooth...and the lever pull is easy.

:woohoo: :woohoo: :woohoo:


.
1982 KZ1100-A2

The following user(s) said Thank You: old_kaw

Please Log in or Create an account to join the conversation.

Last edit: by daveo.

Clutch not engaging 22 Mar 2020 13:01 #821417

  • old_kaw
  • old_kaw's Avatar
  • Offline
  • User
  • Posts: 932
  • Thank you received: 269

daveo wrote:
The 92081-1115 damper springs reside in the hub on the left, per image below:

.



Used this clutch assembly in place of the worn out one in the motor. It had been sitting in the box since 2008 with a lot less miles, and good hub springs besides.[/quote]

Not to beat a dead horse here Dave, I can't tell from the pic what your 92081-1115 damper springs are dampening? Is it holding in that slipper cog ramp gear thingie inside the hub? ? (new highly technical term!) It almost has to be since there is nothing else they could be dampening. Inquiring minds want to know! :)

This is the hub in my ZX1100:


Nevermind, I found it. I just needed a different view. Upon closer look, the Zx1100 may have the cog gear slipper thingie too, after I noticed the large rivets in the hub. Or maybe not. :)


**Edit
I just looked up a 95 Zx1100, and it appears that it does have the damper cam slipper gear thing too. I'm learning all kinds of goodies from you here Daveo!

www.kawasakipartshouse.com/oemparts/a/ka...00223e478b449/clutch

I also just looked up the 81 Kz1000 clutch and it does not hat the slipper cam damper cam doohickey. You guys with those really big and powerful bikes get all of the neat stuff. I'm jealous. lol
www.kawasakipartshouse.com/oemparts/a/ka...00223e478b449/clutch

I tried copying the url from both bikes, but for some reason when I paste it, it is from the same page with the ZX1100 clutch.
1981 Kawasaki Kz1000K1
Located in the Saint Louis, Missouri Area.
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by old_kaw.

Clutch not engaging 22 Mar 2020 19:12 #821459

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

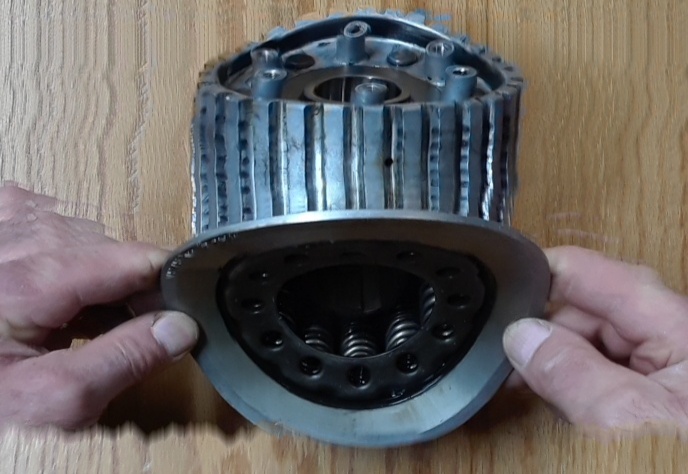

The old one looks like this from both sides...




:)


.
1982 KZ1100-A2

Attachments:

Please Log in or Create an account to join the conversation.

Clutch not engaging 22 Mar 2020 19:21 #821460

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 22348
  • Thank you received: 2599
:huh: IS THAT A TRICK?

Please Log in or Create an account to join the conversation.

Clutch not engaging 22 Mar 2020 19:39 #821464

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Posts: 2756
  • Thank you received: 622

SWest wrote: :huh: IS THAT A TRICK?



That's the worn out hub I replaced, and now the clutch works better.

:)
1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

Clutch not engaging 22 Mar 2020 19:45 #821466

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7166
  • Thank you received: 2043
Must be the Salvador Dali model. :blink:
