- Posts: 5007
- Thank you received: 1918
Cylinder 2 and 3 not working
- Mikaw
- Offline
- Sustaining Member
Less
More
27 Dec 2019 19:44 #815979
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic Cylinder 2 and 3 not working

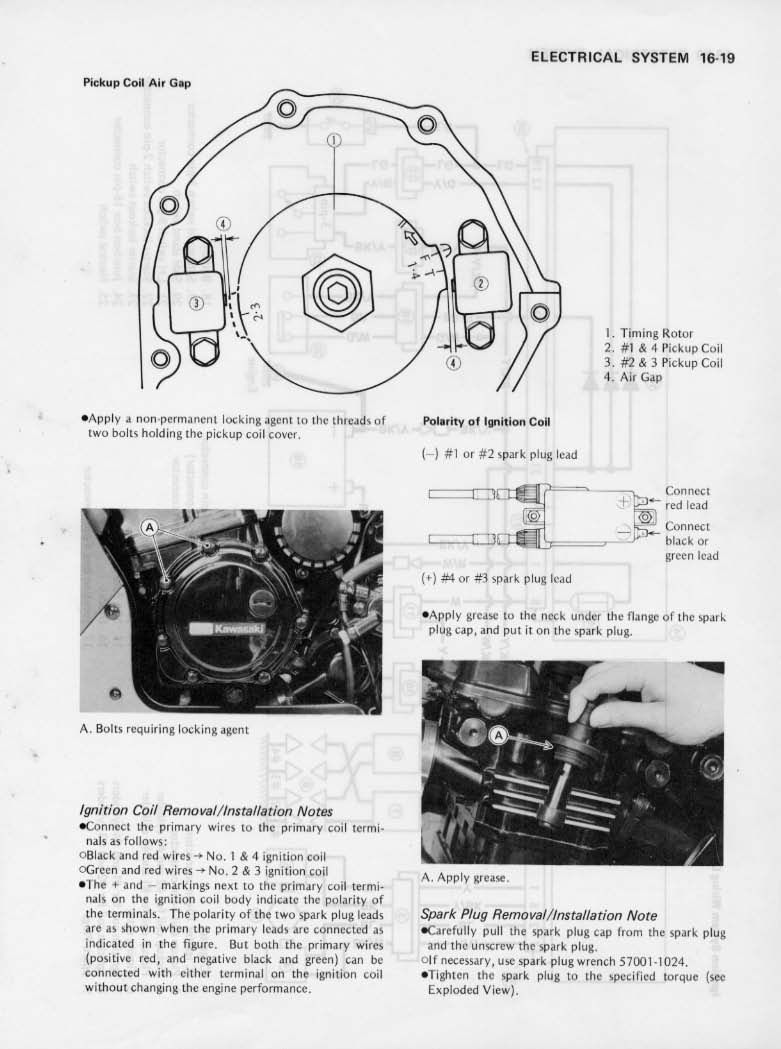

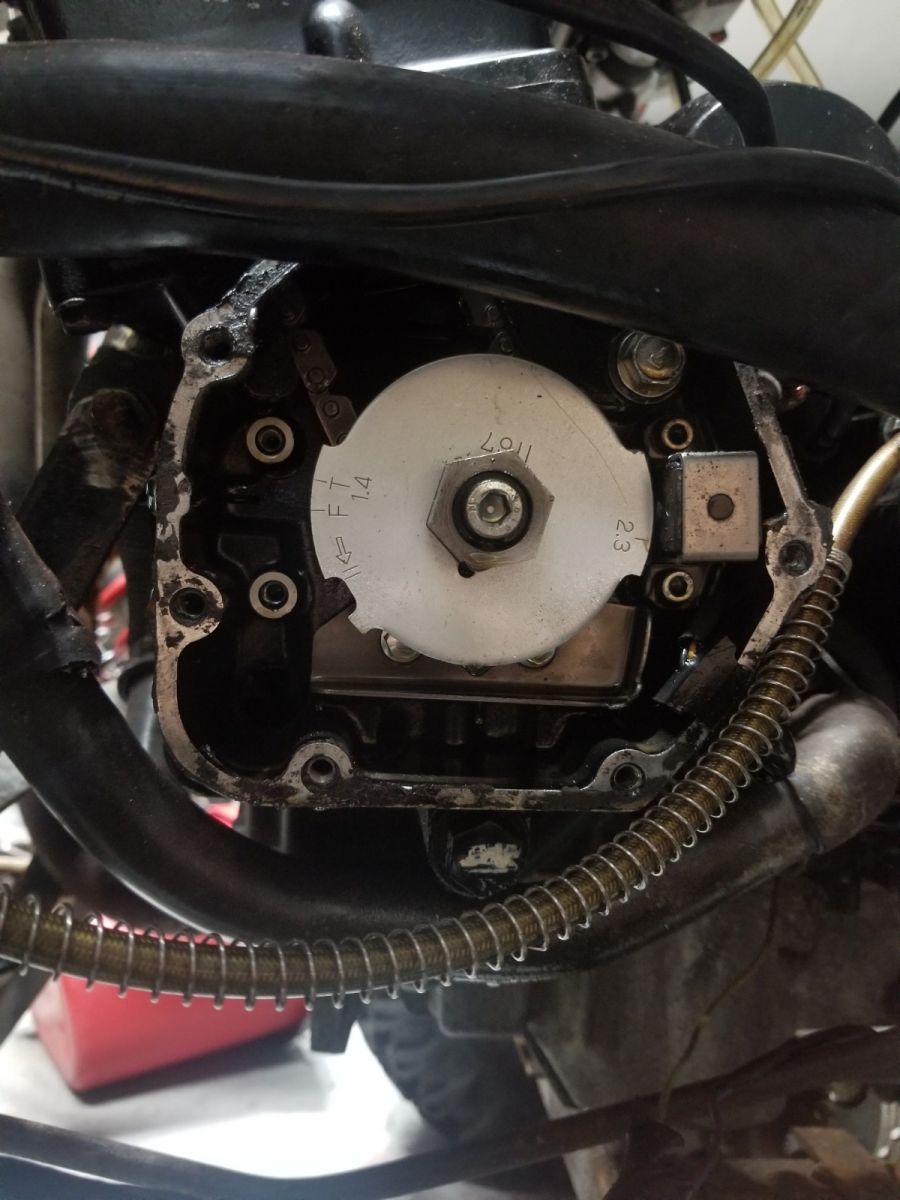

Looking at the FSM on page 60 the ignition wiring diagram show 2 pick up coils. #4 for 1 and 4 and #5 for 2 and 3. Then on page 61 the photo clearly shows two pick up coils... In the posters photo I see bosses on the LH side of the rotor where another pick up coil should be mounted. I think Nessism has pointed out the potential problem....
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4193
- Thank you received: 2063
27 Dec 2019 22:54 - 27 Dec 2019 23:17 #815992
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Cylinder 2 and 3 not working
I am 100% sure it´s a GPZ 900 R or GPZ 1000 RX or GPZ 1100 Horizont water cooled engine.
and the 1100 don´t need a #2-3 pickup.
GPZ-1100-(ZX-1100-E) ignition
and the 1100 don´t need a #2-3 pickup.
GPZ-1100-(ZX-1100-E) ignition
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 27 Dec 2019 23:17 by Scirocco.
Please Log in or Create an account to join the conversation.
- hugo
- Offline
- Sustaining Member
- '92 Zephyr 750
Less
More
- Posts: 279
- Thank you received: 70
28 Dec 2019 02:00 - 28 Dec 2019 04:47 #815996
by hugo
Replied by hugo on topic Cylinder 2 and 3 not working
Yes, it is not a KZ engine as the serial number states, is a ZX liquid cooled, started by the Ninja 900 of '85. Jose should be in the ZXrider forum, not the KZrider forum...….just kidding.
Outside the US, the 'Ninjas' continued to be called GPZ, even though they were no longer KZs. ….but the 1100 did not happen until the '90s, in the US it was called the ZX11...…and then a semi-naked version called the GPZ1100.. If Jose posted a picture, we would not be speculating,....

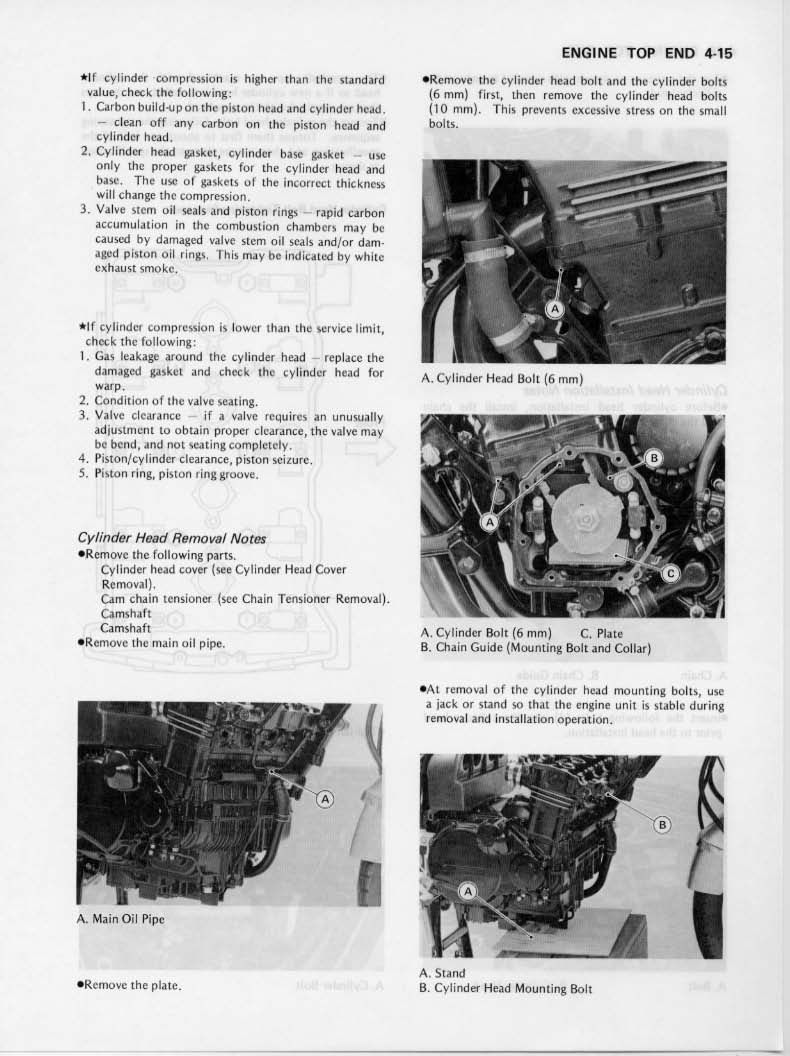

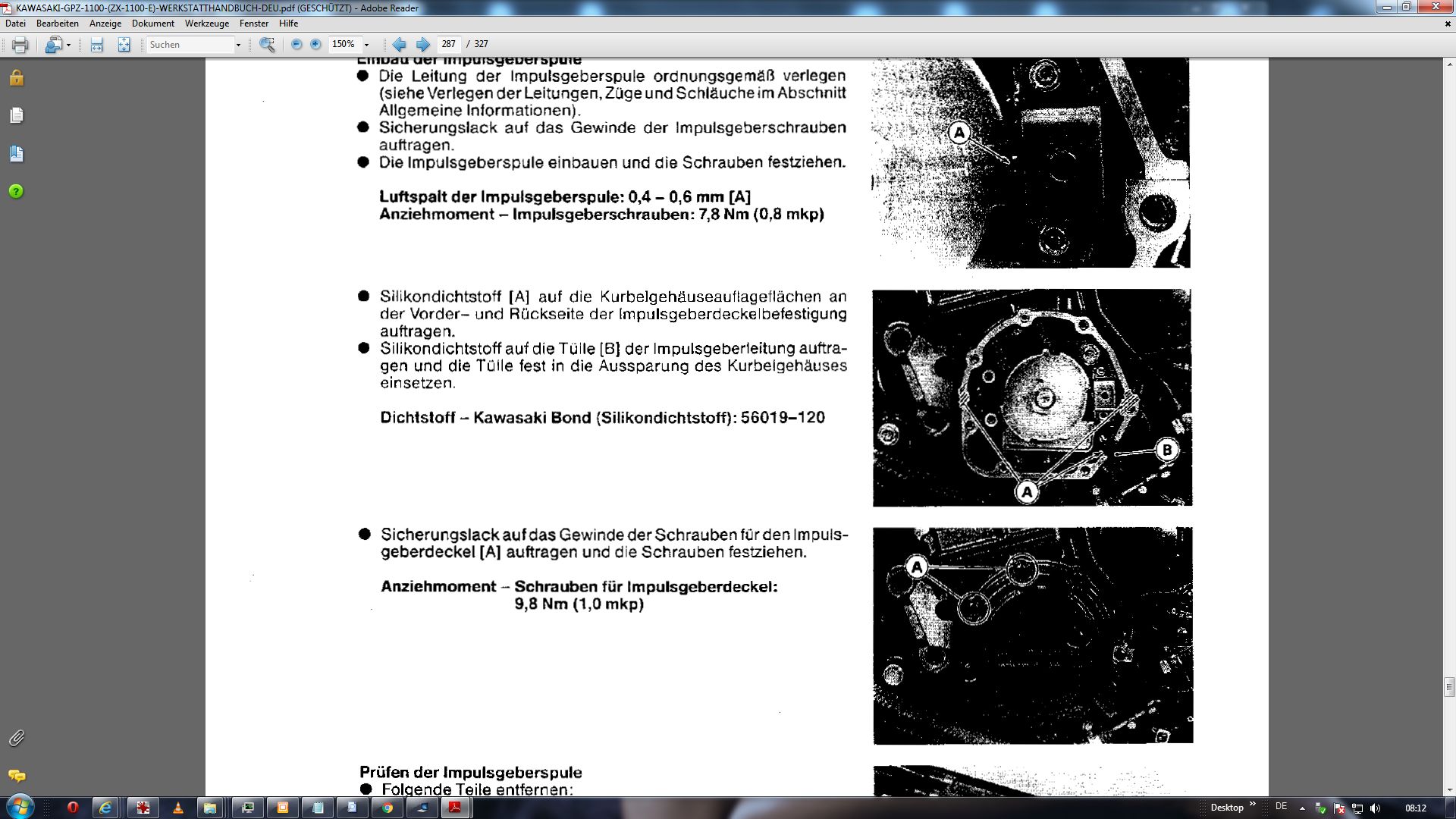

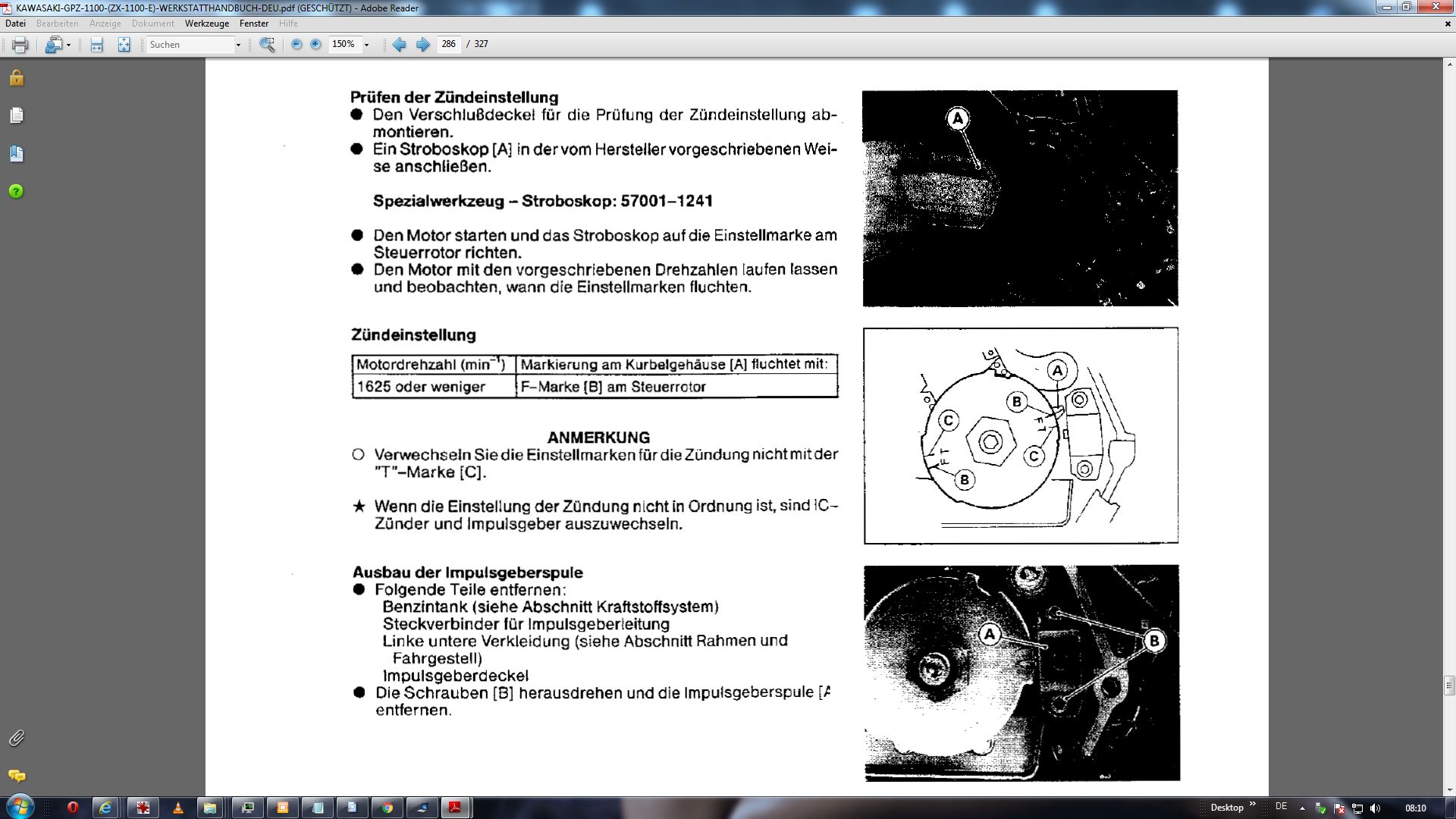

.and yes, even the 1000 shows only one pickup sensor in the factory manual, with the empty bolts holes on the left,...but with different rotor, showing three small bumps roughly 90 degrees apart, with one big span opposite. Just like the Zephyr 750 which also has only one pickup.
Outside the US, the 'Ninjas' continued to be called GPZ, even though they were no longer KZs. ….but the 1100 did not happen until the '90s, in the US it was called the ZX11...…and then a semi-naked version called the GPZ1100.. If Jose posted a picture, we would not be speculating,....
.and yes, even the 1000 shows only one pickup sensor in the factory manual, with the empty bolts holes on the left,...but with different rotor, showing three small bumps roughly 90 degrees apart, with one big span opposite. Just like the Zephyr 750 which also has only one pickup.
Last edit: 28 Dec 2019 04:47 by hugo.
The following user(s) said Thank You: TexasKZ
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
Less
More
- Posts: 7560
- Thank you received: 2234
28 Dec 2019 07:24 - 28 Dec 2019 07:27 #816002
by TexasKZ
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Replied by TexasKZ on topic Cylinder 2 and 3 not working
Based on admittedly little evidence gleaned from the interweb, I venture to guess that the engine is from a 1987 ZX1000R., marketed as a Ninja in the U.S. It looks like all the 1100cc engines were marked ZXT10.....
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Last edit: 28 Dec 2019 07:27 by TexasKZ.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
29 Dec 2019 09:17 - 29 Dec 2019 09:18 #816057
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic Cylinder 2 and 3 not working
Like Scirocco and Hugo said, as the models progressed, they deleted the extra pickup. The igniter can determine crank position from the extra bumps on the rotor. The pickup frames still retained the holes for mounting the second pickup.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Last edit: 29 Dec 2019 09:18 by loudhvx.
Please Log in or Create an account to join the conversation.
