Head Work - Valve Seats
- Scirocco
- Offline
- Premium Member
- Never change a running system

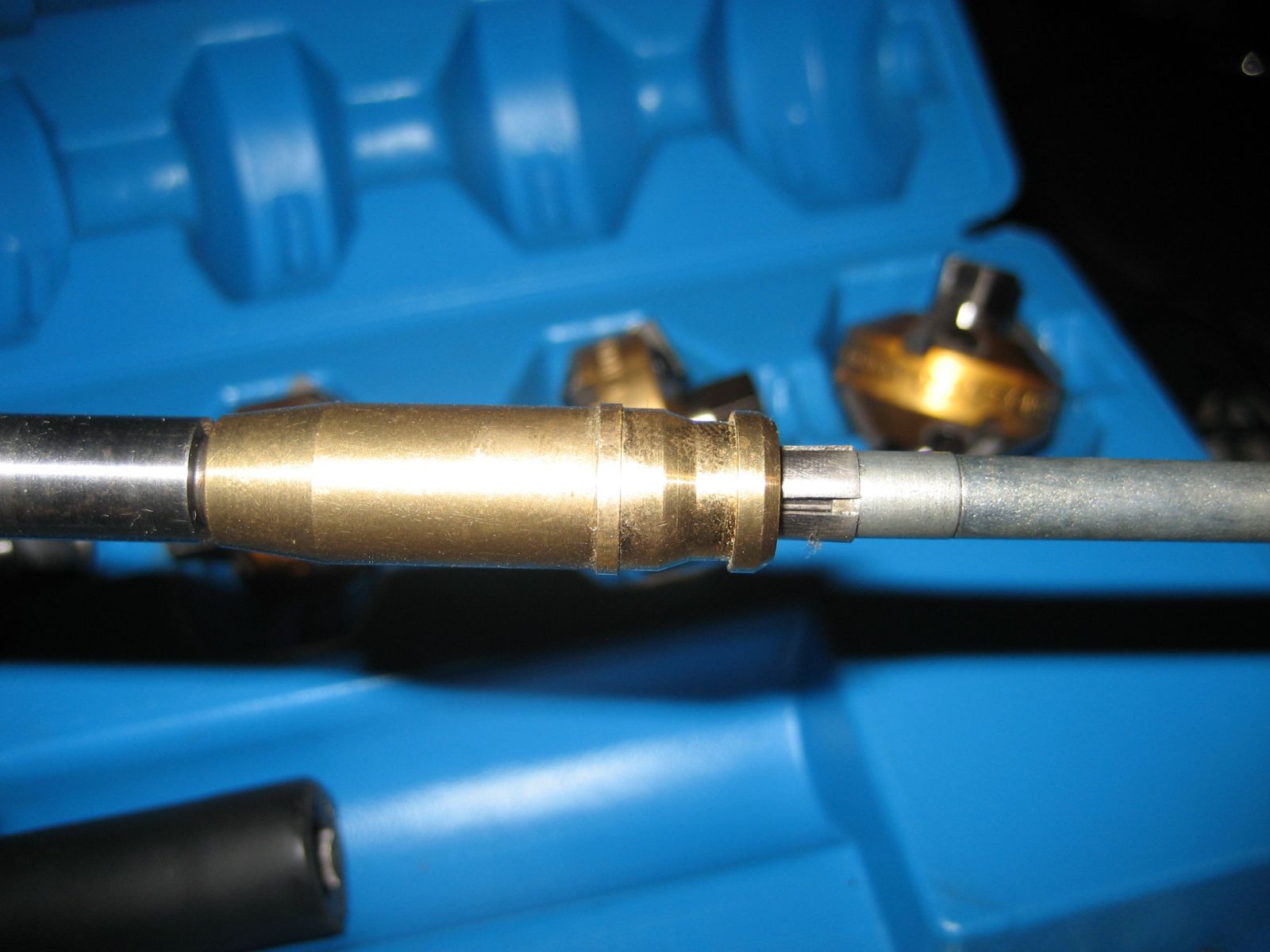

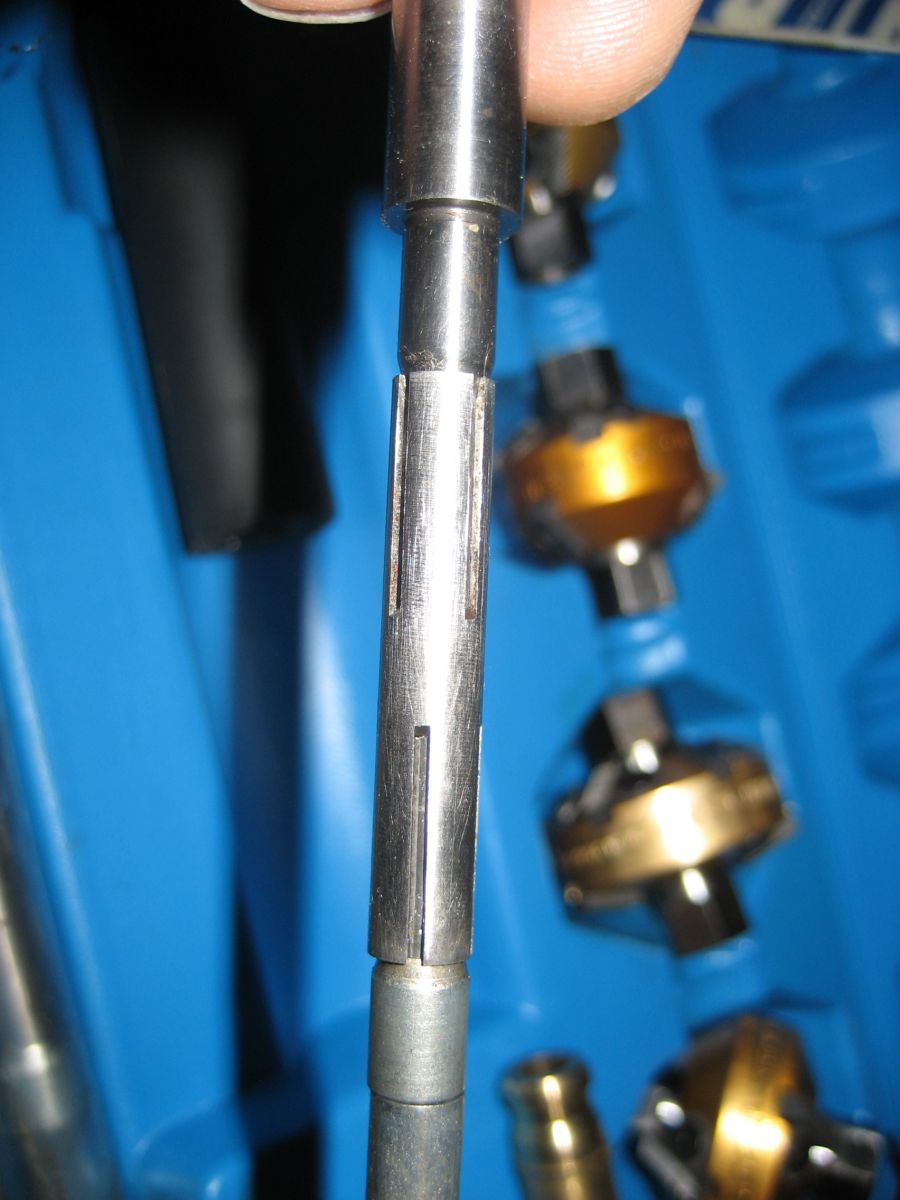

that is centered in the valve guide.
He must be a total idiot to mess up such an easy valve job..
Michael
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- Daftrusty
- Offline
- User
- Posts: 362
- Thank you received: 187
“How the hell did he do that?!?” Were his exact words.
But I guess that even having machine work done at a motorcycle shop is not a guarantee of success.
Food for thought.
1990 zr550
kz750e
650/750 6-speed Transmission Swap
Please Log in or Create an account to join the conversation.
- Dr. Gamma
- Offline
- Sustaining Member
- Posts: 1227
- Thank you received: 676

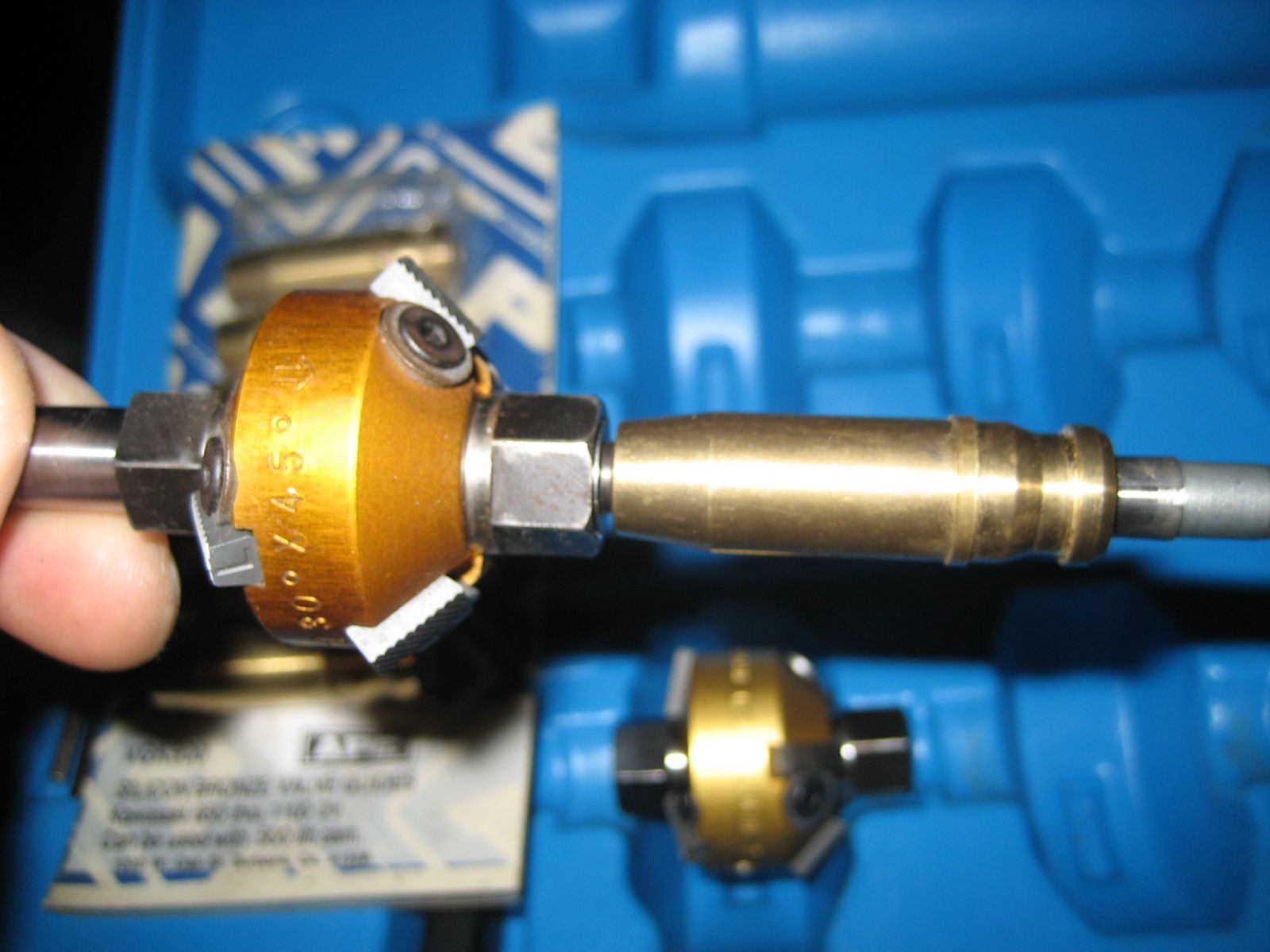

Daftrusty wrote: I have a zr550 head that had exhaust seats so pitted that they needed recut. So I took it to the local independent motorcycle shop (support local businesses and all) and he used a Nu-Way hand cutter to do them. And he cut them so off center that when I lapped the valves and did a gasoline leak test, none of the combustion chambers could hold gas for 30 seconds. The gas literally poured out of the valves in seconds.
So I took it to a automotive shop and he recut the seats on a Serdi (really deep to get past the off center portion) and then after careful measuring, I had him tip the valves and cut down the valve retainers. Not one issue since.

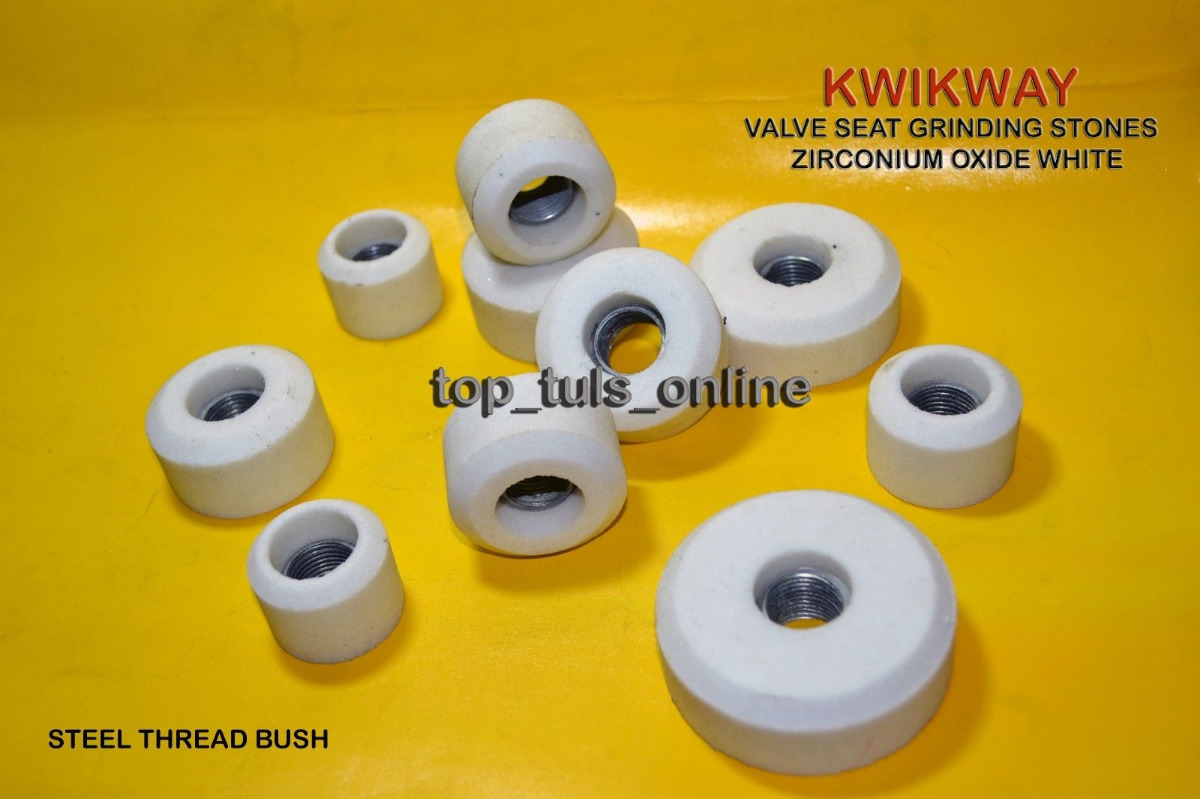

A Serdi machine is the only way to go as far as doing perfect valve seats. Not a cheap machine to buy, but the best always costs the most!!!! Most motorcycle shops farm out their valve work. And if they do it in house, its a butcher job at best. Since I have been playing with 4 strokes, the best people I have found to do my valve work were some guy buried away in a 2 or 3 car garage filed to the rafters with equipment!!! None of them would even think of using a Neway cutter. They cut too much too quick. Before Serdi came along, they all used KwikWay stones to cut valve seats. Instead of that over-used phrase "three angle valve job" What you want is a radiused valve seat. With a three angle cut you end up with a sharp edges between the 15,30, and the 45 degree cuts. I used to see stones shaped to a 16, and a 17, a 29, 31, and 44 and a 46 degree angles. They would remove those sharp edges between each cut on the seat. Now if you look at a big buck cylinder head under a magnifying glass you will see what I mean!!!
Since I have been running four strokes, there has been only THREE people that have done my valve work. Ones dead, ones retired, and that last one is the only one left that I let touch any of my cylinder heads!!! OH by the way, all three of them used to do most of the cylinder head work for all the surrounding cycle shops.
The old way of doing valve seats!!!

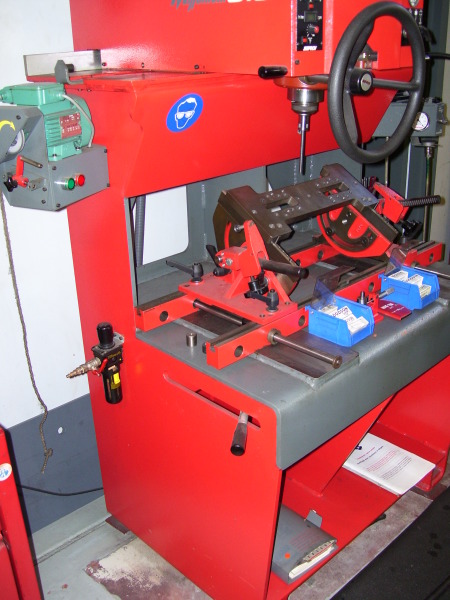

The new way of doing valve seats.
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!
Up in the hills near Prescott, Az.
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
Dr. Gamma wrote: .......... Instead of that over-used phrase "three angle valve job" What you want is a radiused valve seat. With a three angle cut you end up with a sharp edges between the 15,30, and the 45 degree cuts. I used to see stones shaped to a 16, and a 17, a 29, 31, and 44 and a 46 degree angles. They would remove those sharp edges between each cut on the seat. Now if you look at a big buck cylinder head under a magnifying glass you will see what I mean!!!

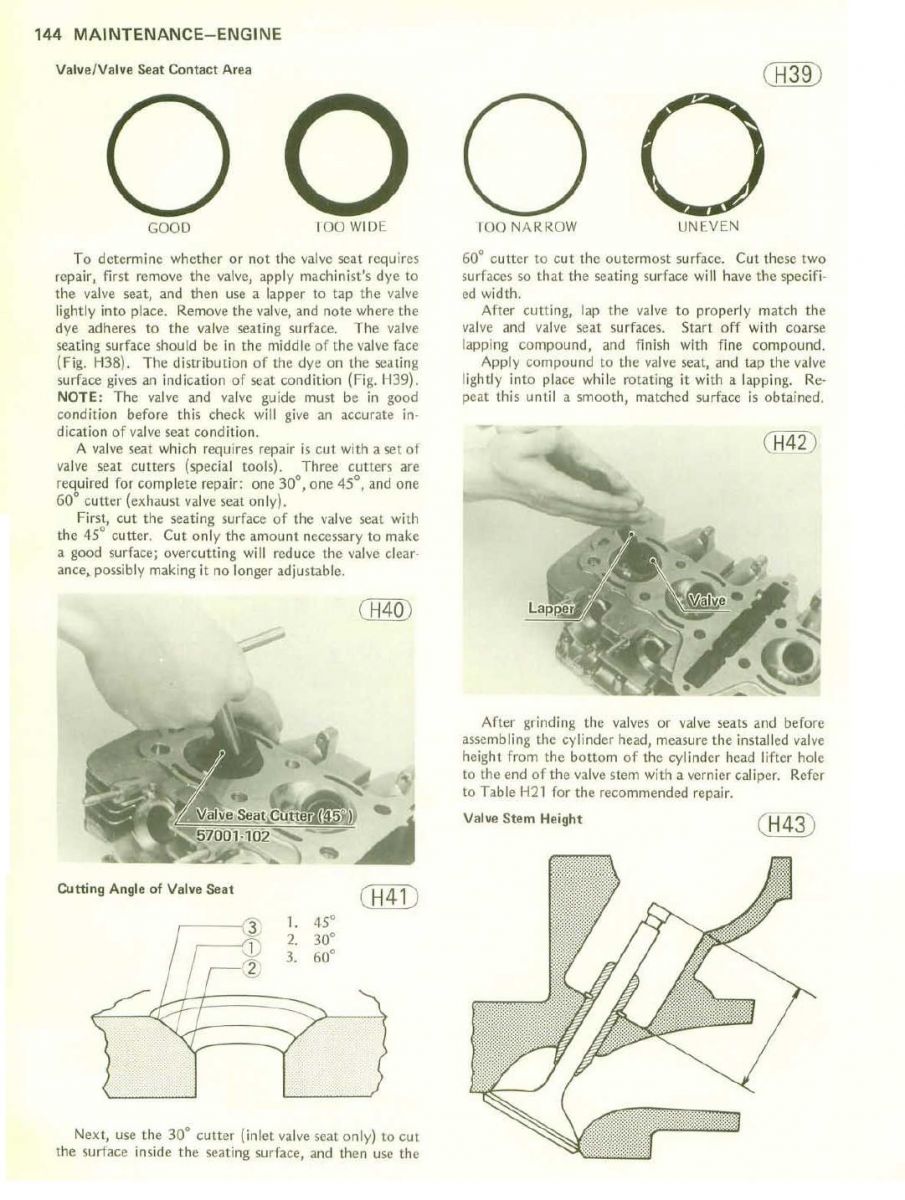

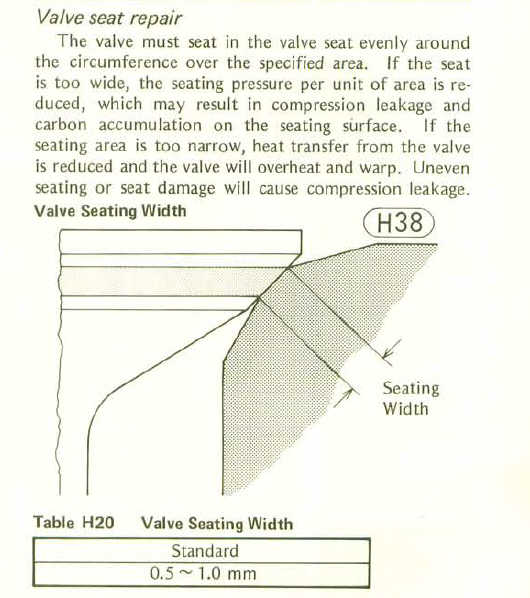

No doubt you have far more experience and expertise than I do in valve jobs, so please don't take this as criticism; it's just a question to clear up my confusion. The Kawasaki Service Manual states that it's important to have a valve/valve seat contact area that is between 0.5 and 1.0 mm wide (see images below). Does using the radiused valve job rather than the 3 angle valve job described in the manual still give one that contact area width? Thanks, Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Dr. Gamma
- Offline
- Sustaining Member
- Posts: 1227
- Thank you received: 676
I never noticed that Kawasaki wanted you to run as little as .020 (.05 mm) valve seats!!!! Thats a little too narrow in my book. I know my drag race buddy used to like those tiny little seats. But they pulled their heads after about 10 runs or so.
When I used to pick up my cylinder heads from my machinist, it would turn into a 2 or 3 hour lesson in cylinder head preparation!!!! I learned a lot just listening to him. Thats where I picked up on all the stones that were cut to those funny angles.
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!
Up in the hills near Prescott, Az.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22968
- Thank you received: 2749
Steve
Please Log in or Create an account to join the conversation.
- Dr. Gamma
- Offline
- Sustaining Member
- Posts: 1227
- Thank you received: 676
SWest wrote: I replace the valve guides before cutting the seats. Might as well just lap the valves unless that is done first.
Steve
Thats the first thing that gets checked before anything else is done to my cylinders heads. All of my heads never had valve guide seals on the exhaust guides. That helped the guides on the exhaust side last a little longer.
Road race motors are run mostly between 6,000RPM to 10,500RPM at wide open throttle most of the time. I might run like 150 to 175 miles on a race weekend. I would get 2 to 3 race weekends before I would pull the top end. 5% leakdown was tear down time. If I missed a gear, I pulled it apart even after 1 weekend.
I used to laugh when a drag racer would say he got 100 runs out of his motor. Thats what 25 MILES!!!
1972 H2 750 Cafe Racer built in 1974.
1976 KH400 Production Road Racer.
1979 Kz1000 MK. II Old AMA/WERA Superbike.
1986 RG500G 2 stroke terror.
1986 GSXR750RG The one with the clutch that rattles!
Up in the hills near Prescott, Az.
Please Log in or Create an account to join the conversation.
- Nessism
