1978 KZ400 No Spark - Points Wiring Question 23 Sep 2017 16:54 #771538

  • Stockton350
  • Stockton350's Avatar Topic Author
  • Offline
  • User
  • Posts: 17
  • Thank you received: 1
I've got a 78 KZ400 with a no spark issue. I've got over 12V going to the points plate but I think the wires are grounding out somehow. I suspect the wire from the coils is the issue and wonder if I've connected the condenser and coil wire into the points incorrectly, such that wires are grounding out? Can anyone tell me the correct sequence of screw/washer/spring/wires? What should I specifically be looking for to avoid a short?

Here's how I've tested so far:

- Multimeter at the ignition plate end of the blue points cable reads over 12V. Definitely current going into the points.
- I've tested the points using a continuity tester while the plate is off the bike and unplugged. Points closed shows continuity. Open shows no continuity. Points are definitely working.
- When the points plate is back on the bike and the condenser and coil wire reattached, there's no break in the current no matter whether the points are open or closed.

Any help is appreciated.
1975 CB125 | tinyurl.com/jds9l7q
1976 CB350
1978 KZ200 | tinyurl.com/j3odxo8

Please Log in or Create an account to join the conversation.

1978 KZ400 No Spark - Points Wiring Question 23 Sep 2017 17:06 #771541

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828

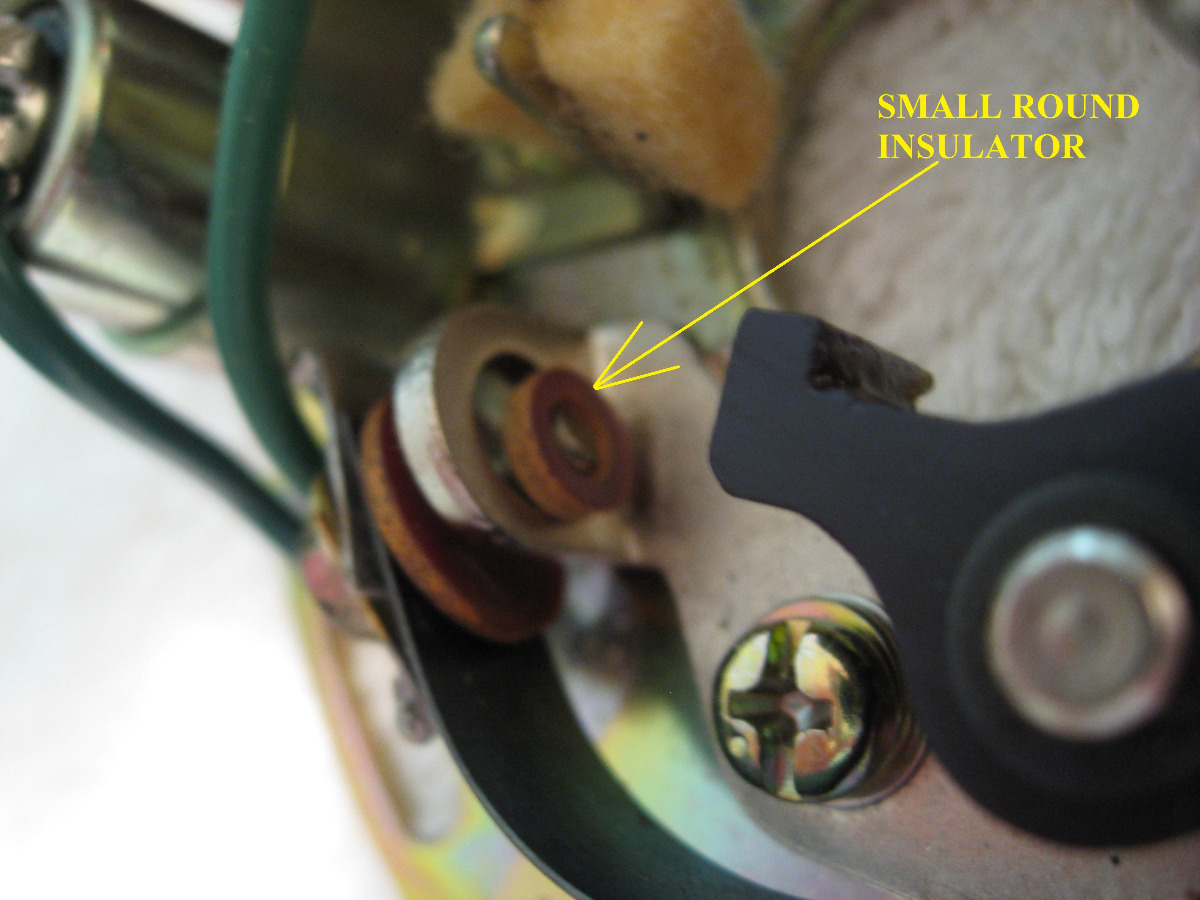

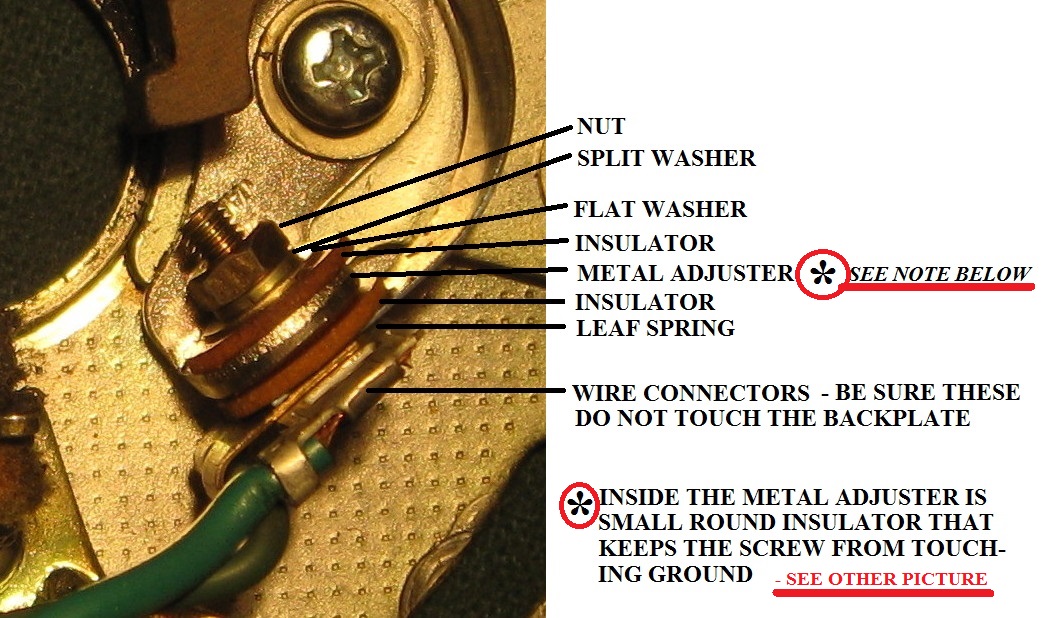

Make sure all the little insulators are in place. The pics below show the points for the KZ650, but the insulators on yours may be similar.

Assuming all the insulators are correct, try disconnecting the wire that connects the points to the coil – do this where the coil wire and points wire connect. After disconnecting the wires see if continuity then breaks at the points when the crankshaft is rotated. If so, the points should be ok and may simply need to be set. Ed



1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
The following user(s) said Thank You: Stockton350, tjhayes1

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

1978 KZ400 No Spark - Points Wiring Question 24 Sep 2017 07:28 #771573

  • Stockton350
  • Stockton350's Avatar Topic Author
  • Offline
  • User
  • Posts: 17
  • Thank you received: 1
Thank you, Ed. This is very helpful, but I still am having issues.

I checked the insulators. While there's no separate small round insulator, The insulators themselves have a small ridge in the center that fits into both sides of the hole I assume to insulate the screw.

I disconnected the points where the harness connects to the points wire and continuity breaks when the crankshaft is rotated. Unfortunately, when I plug the points back into the harness, continuity no longer breaks. What does that mean?
1975 CB125 | tinyurl.com/jds9l7q
1976 CB350
1978 KZ200 | tinyurl.com/j3odxo8

Please Log in or Create an account to join the conversation.

1978 KZ400 No Spark - Points Wiring Question 24 Sep 2017 12:32 #771582

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828
The fact that continuity breaks when the points-to-coil wire is disconnected means the points are properly insulated. With that wire disconnected you should be able to set the points gap and dwell using the static method. I always disconnect the points-to-coil wires when doing the static points adjustments. Be sure to set the gap first, then the dwell. Have you adjusted points before or is this the first time? Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
The following user(s) said Thank You: Stockton350

Please Log in or Create an account to join the conversation.

1978 KZ400 No Spark - Points Wiring Question 24 Sep 2017 14:25 #771583

  • zukdave
  • zukdave's Avatar
  • Offline
  • User
  • Posts: 1685
  • Thank you received: 229
Put a plug in a plug wire lay it on the head take the wire off the points turn key on and ground it for a moment
it should spark when you unground it. Remember the wire to the points is a neg. not pos. wire.
1980 KZ650 F1
ZX750A1 motor.
Wiseco 810cc kit.
Zukiworks racing ported head.
VM 29 smooth bore's.
Dyna 2000 Ign. w/Dyna mini coil's
APE cylinder stud's and nut's.
APE valve spring's.
APE Track King clutch.
V/H KZ1000 sidewinder.
3.5x18 laced to a KZ1000 disk hub.
150/60/18 Shinko 006 Podium.
63" wheel base.
The following user(s) said Thank You: Stockton350

Please Log in or Create an account to join the conversation.

1978 KZ400 No Spark - Points Wiring Question 25 Sep 2017 06:56 #771640

  • Stockton350
  • Stockton350's Avatar Topic Author
  • Offline
  • User
  • Posts: 17
  • Thank you received: 1
Got it working. The problem was with how I was testing the circuit. I had the continuity tester grounded on the fins, but was testing the positive lead on the points spring. The light stayed on regardless of whether the points were opened or closed. Then I put the points lead at the end of the wire leading to the coils. At that point, the tester went off when the points broke. Thank you both for your help.

I did the static timing according to the manual. It's not my first time, but the first on this bike. Once the bike is running, I'm keen to borrow a strobe tester from the local auto supply shop to get the timing properly dialed in.

At least now I've got spark on both sides. I'm currently de-rusting the tank with some apple vinegar cider while I wait for a new air filter. I hope to try firing the bike up by mid week...
