Hi Guys,
I'm new to the forum but need some quick advice. We race a vintage 1974 Z1 sidecar and go racing next week.
I've lost the 600A1200 ball bearing that is in between the clutch rod end and the clutch actuator.
Tried a few ball bearings that I have and the size isn't right .. also they are not available now in Canada.
Can anyone tell me what the diameter is of this steel ball ? The Kawasaki description says Ball Steel 3/8 .. but that can't be the size in inches.
Sizes in metric mm would be appreciated as that's what we use up here.
Then I may be able to find something at a supplier up here.
Thanks in advance.
Mick
I'm new to the forum but need some quick advice. We race a vintage 1974 Z1 sidecar and go racing next week.
I've lost the 600A1200 ball bearing that is in between the clutch rod end and the clutch actuator.
Tried a few ball bearings that I have and the size isn't right .. also they are not available now in Canada.
Can anyone tell me what the diameter is of this steel ball ? The Kawasaki description says Ball Steel 3/8 .. but that can't be the size in inches.
Sizes in metric mm would be appreciated as that's what we use up here.
Then I may be able to find something at a supplier up here.
Thanks in advance.
Mick
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22970
- Thank you received: 2749
01 Aug 2017 14:12 #768130
by SWest
Replied by SWest on topic Need quick advice
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
Less
More
- Posts: 7507
- Thank you received: 2823
01 Aug 2017 15:29 #768135
by Nessism
Replied by Nessism on topic Need quick advice
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4197
- Thank you received: 2063
01 Aug 2017 15:54 - 01 Aug 2017 16:03 #768136
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Need quick advice
1 inch = 25,4 mm
1/8 inch = 25,4 / 8 = 3,175 mm
3/8 = 3,175 mm * 3 = 9,525 mm
Can you upload some pictures of the vintage 1974 Z1 sidecar
1/8 inch = 25,4 / 8 = 3,175 mm
3/8 = 3,175 mm * 3 = 9,525 mm
Can you upload some pictures of the vintage 1974 Z1 sidecar
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 01 Aug 2017 16:03 by Scirocco.
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- mickboyle
- Topic Author
- Offline
- User
Less
More
- Posts: 4
- Thank you received: 0
02 Aug 2017 18:59 #768194
by mickboyle
Scirocco,
The cavity that the bearing drops into looks to be about 6mm max in diameter .. why did you multiply the 3.175 X 3 ?
That would appear to be too big to drop down the sleeve.
Advice appreciated.

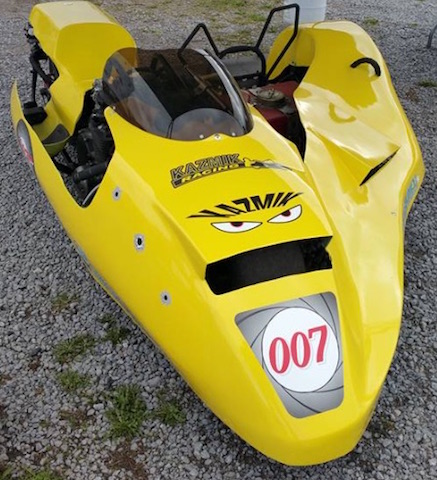

Hope fully the sidecar picture will attach properly.
Cheers
Mick
Replied by mickboyle on topic Need quick advice
Attachment not found
Scirocco,
The cavity that the bearing drops into looks to be about 6mm max in diameter .. why did you multiply the 3.175 X 3 ?
That would appear to be too big to drop down the sleeve.
Advice appreciated.
Hope fully the sidecar picture will attach properly.
Cheers
Mick
Please Log in or Create an account to join the conversation.
- mickboyle
- Topic Author
- Offline
- User
Less
More
- Posts: 4
- Thank you received: 0
02 Aug 2017 19:03 #768195
by mickboyle
Replied by mickboyle on topic Need quick advice
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
Less
More
- Posts: 4197
- Thank you received: 2063
03 Aug 2017 02:32 - 03 Aug 2017 02:38 #768207
by Scirocco
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Replied by Scirocco on topic Need quick advice
The 3/8 steel ball must be insert form the clutch side into the shaft.
Flexing of the adjustment cover is a sign of a blockage. in the clutch.
Flexing of the adjustment cover is a sign of a blockage. in the clutch.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Last edit: 03 Aug 2017 02:38 by Scirocco.
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
03 Aug 2017 07:52 #768232
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Need quick advice
When I use the clutch leave I can see this adjustment cover flexing and pushing out .. is this normal ? It's almost as if the adjuster screw is too far out and pressing against the steel cover.
Steel? :huh: Both the sprocket cover and the access cover plate are aluminum.
Should not see any movement of the sprocket cover when squeezing the handlebar clutch lever. Unless the cover screws are loose or stripped, or unless the cover is cracked or otherwise damaged.
Good Fortune!
Steel? :huh: Both the sprocket cover and the access cover plate are aluminum.
Should not see any movement of the sprocket cover when squeezing the handlebar clutch lever. Unless the cover screws are loose or stripped, or unless the cover is cracked or otherwise damaged.
Good Fortune!
1973 Z1
KZ900 LTD
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
03 Aug 2017 08:10 - 03 Aug 2017 08:47 #768235
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Need quick advice
As I recall, the steel ball inserts into the empty push-rod passageway before the push-rod is inserted into the passageway, all from underneath the sprocket cover (on the port side of the bike where the adjusted mechanism is located). It's unnecessary to remove the clutch cover (on the starboard side of the bike) or to perform any clutch disassembly.
A fairly common mistake after removing the sprocket cover and push-rod is inadvertently allowing the steel ball to roll out of the push-rod passageway without noticing it's escape to parts unknown. :pinch:
Good Fortune!
A fairly common mistake after removing the sprocket cover and push-rod is inadvertently allowing the steel ball to roll out of the push-rod passageway without noticing it's escape to parts unknown. :pinch:
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 03 Aug 2017 08:47 by Patton.
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22970
- Thank you received: 2749
03 Aug 2017 08:26 #768238
by SWest
Replied by SWest on topic Need quick advice
The ball goes in from the right side.
Steve
Steve
Please Log in or Create an account to join the conversation.
- mickboyle
- Topic Author
- Offline
- User
Less
More
- Posts: 4
- Thank you received: 0
03 Aug 2017 09:04 #768242
by mickboyle
Replied by mickboyle on topic Need quick advice
Guys,
Thanks for all of the great info.
I was told that the left hand side of the engine which has the clutch rod actuator is supposed to have a steel ball but it looks like that was incorrect. I haven't removed the right hand engine cover or clutch basket .. which is obviously where the steel ball is.
I'll remove the additional steel ball that I fitted to the left hand side and see how I do.
Then I should be off to the races literally.
Thanks again.
Mick
Thanks for all of the great info.
I was told that the left hand side of the engine which has the clutch rod actuator is supposed to have a steel ball but it looks like that was incorrect. I haven't removed the right hand engine cover or clutch basket .. which is obviously where the steel ball is.
I'll remove the additional steel ball that I fitted to the left hand side and see how I do.
Then I should be off to the races literally.
Thanks again.
Mick
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
03 Aug 2017 10:03 #768249
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic Need quick advice

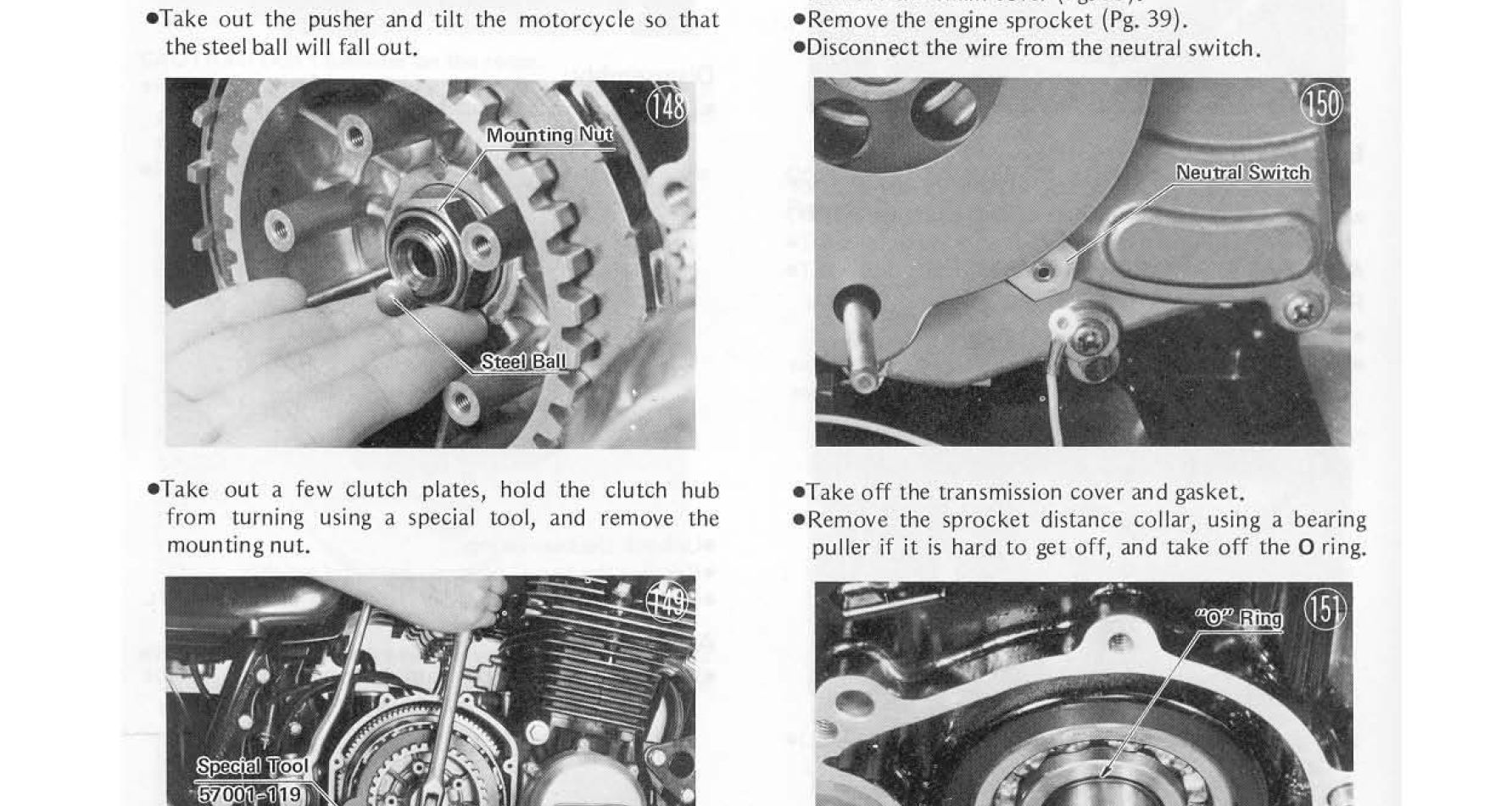

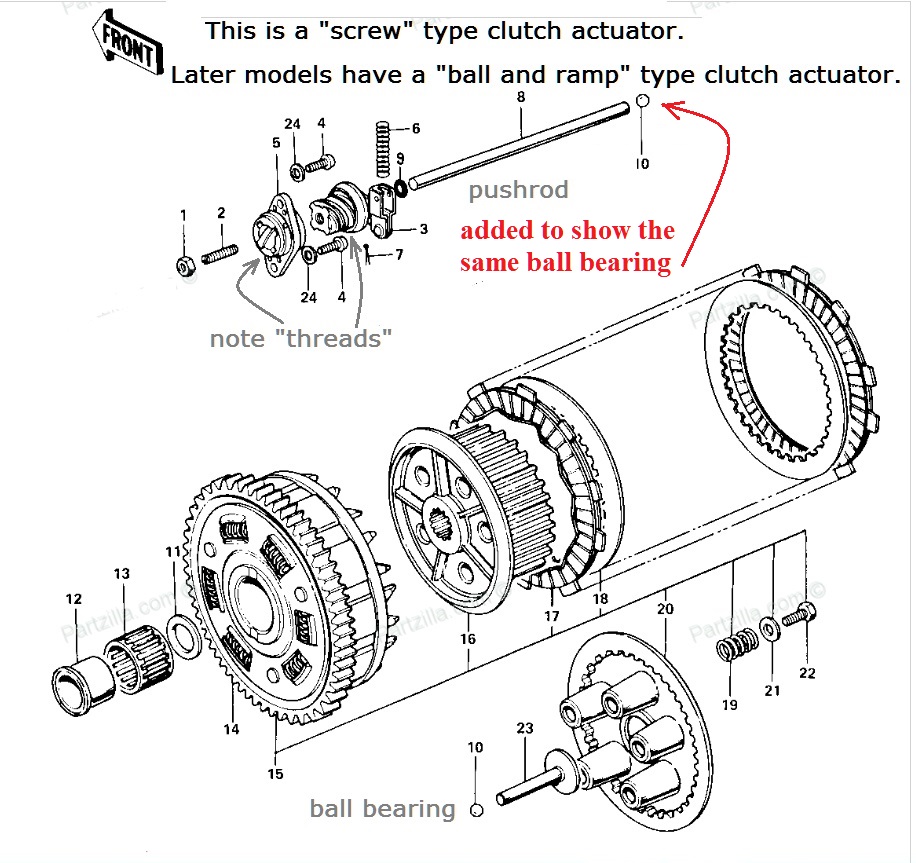

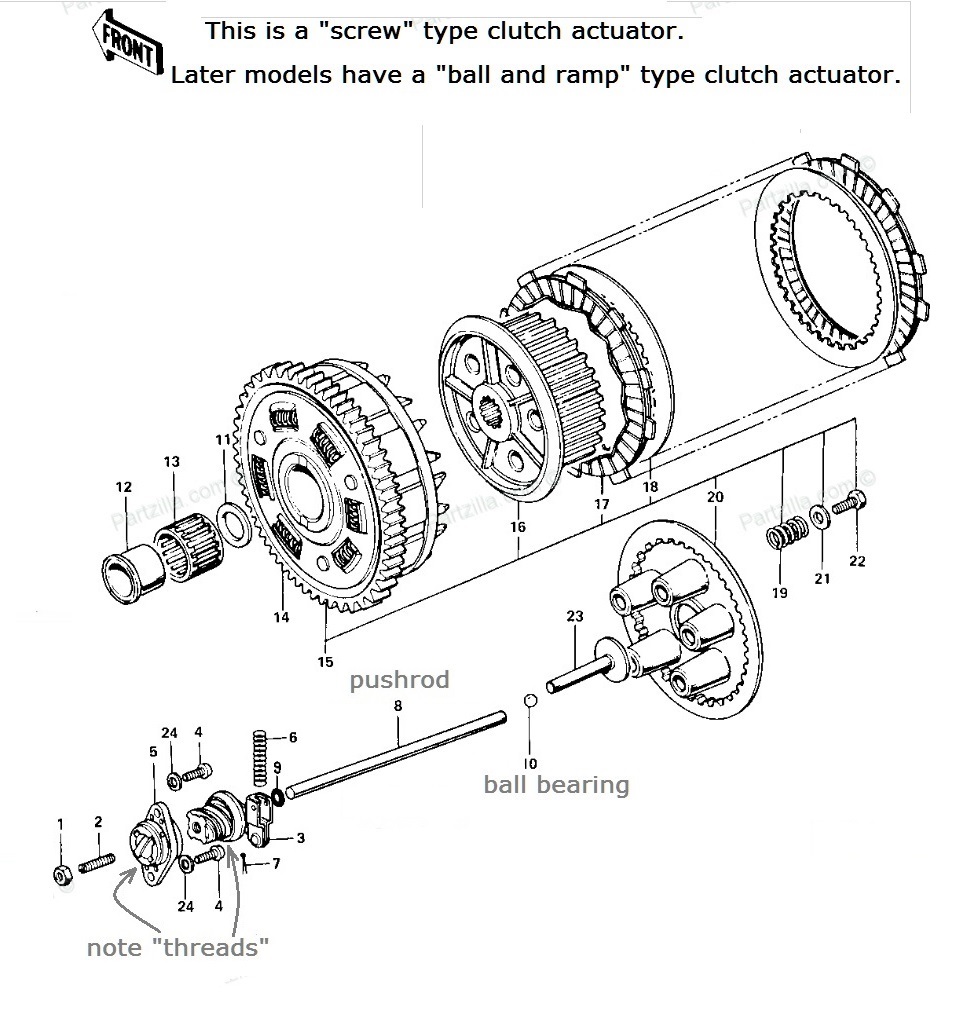

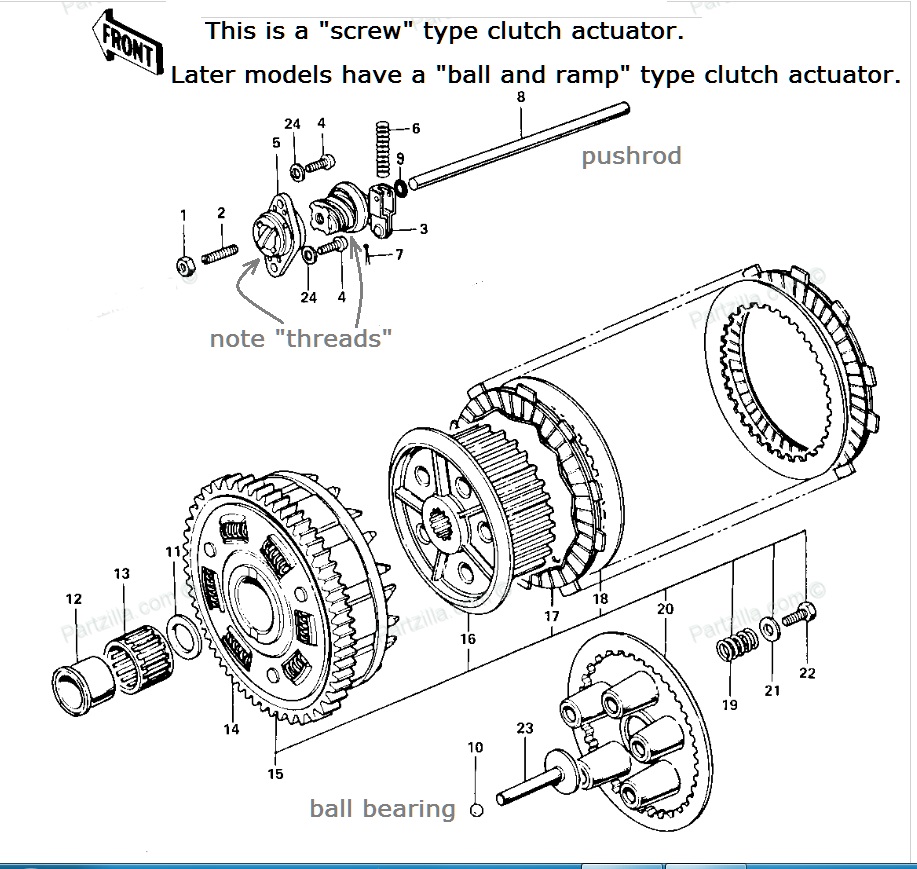

Seems to me that Kawasaki's exploded diagram ought to look like this.
Many of the folks that have inadvertently lost the ball bearing had removed the sprocket cover and pulled out the push-rod and didn't notice when the ball-bearing fell out the same hole the push-rod came out of.
Good Fortune!
Many of the folks that have inadvertently lost the ball bearing had removed the sprocket cover and pulled out the push-rod and didn't notice when the ball-bearing fell out the same hole the push-rod came out of.
Good Fortune!
1973 Z1
KZ900 LTD
The following user(s) said Thank You: GPz550D1
