Spark Plug Hole Repair 14mm KZ-Z1
- z1kzonly
- Topic Author
- Offline
- User
- Sustaining Member
But! Opinions on the best long term solution?
Question is: Which insert to use???
Old nice head, had broken off plugs in for 20 years! Fused together! "NO" They is not coming out!!!!
Metal is going to be drilled out, matter of fact 3 are in there. So I am going to do all 4 holes.
Going to be done on a Brigeport mill, correct angles, jigged up correct, etc.!
With many options today, there are many inserts, kits to repair like the common Ford Triton V-8's 4.8, 5.6
Snap On, K-D
The old original Heli-coils, Time Serts, Thread Serts and probably more?
I prefer the ones with a lip to sit flush in the head after machining the spot in head.
Thanks. Don't want to invest in doing the head without the plug hole fix first.

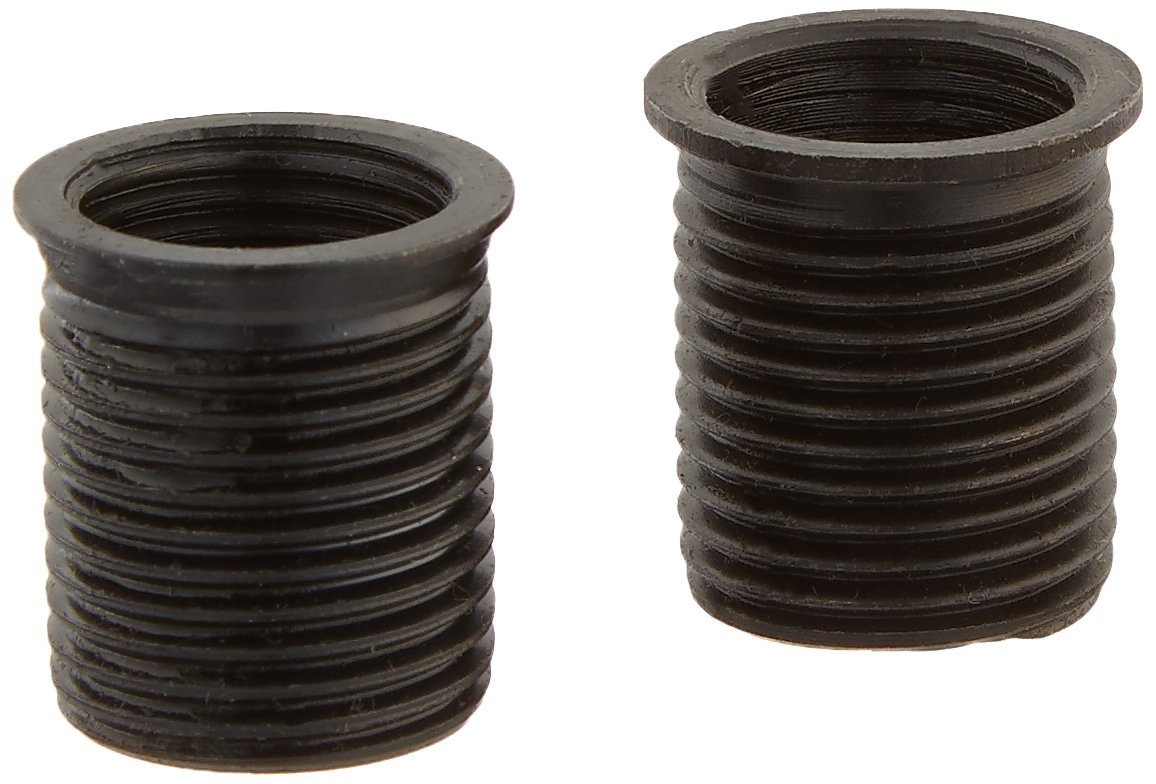

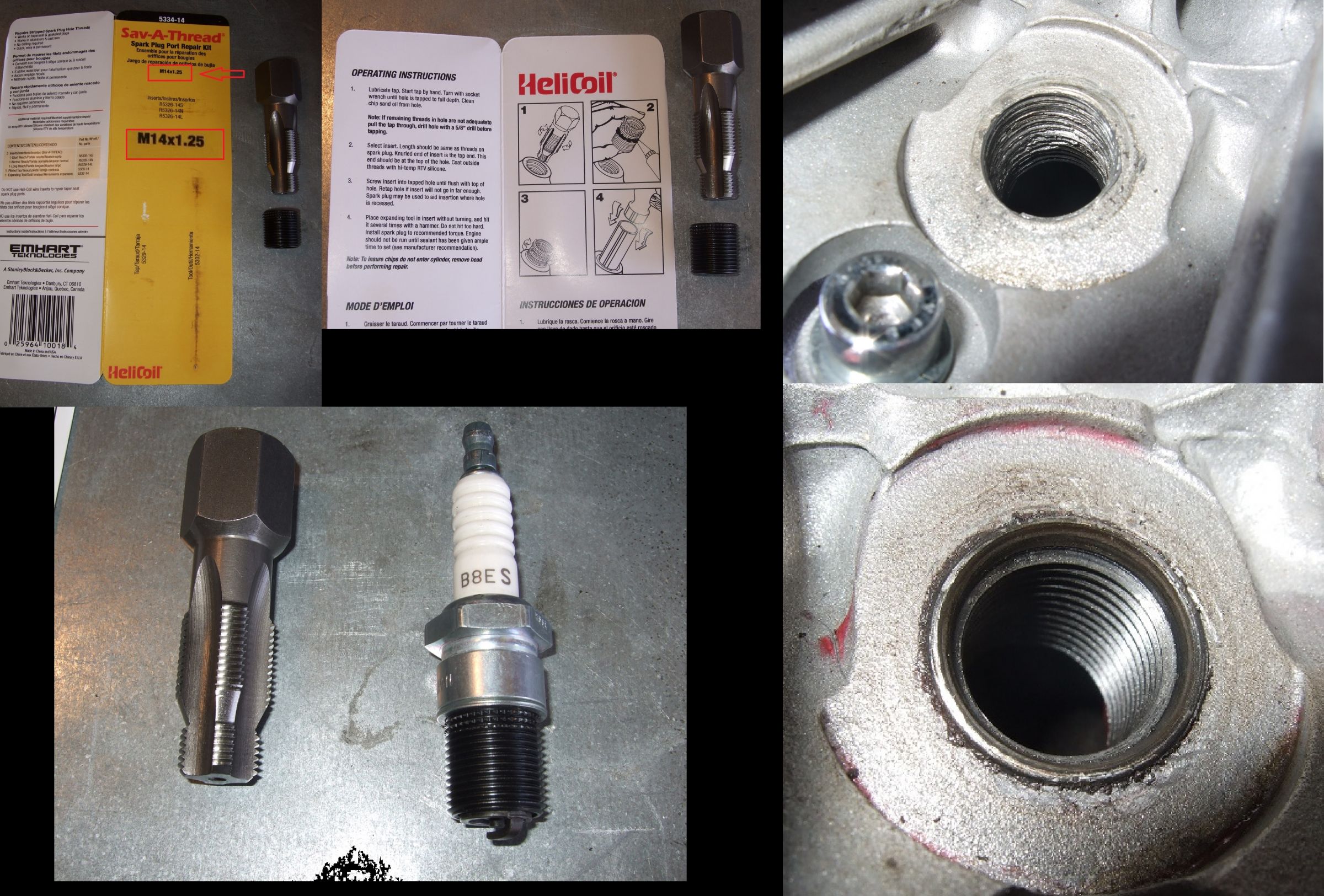

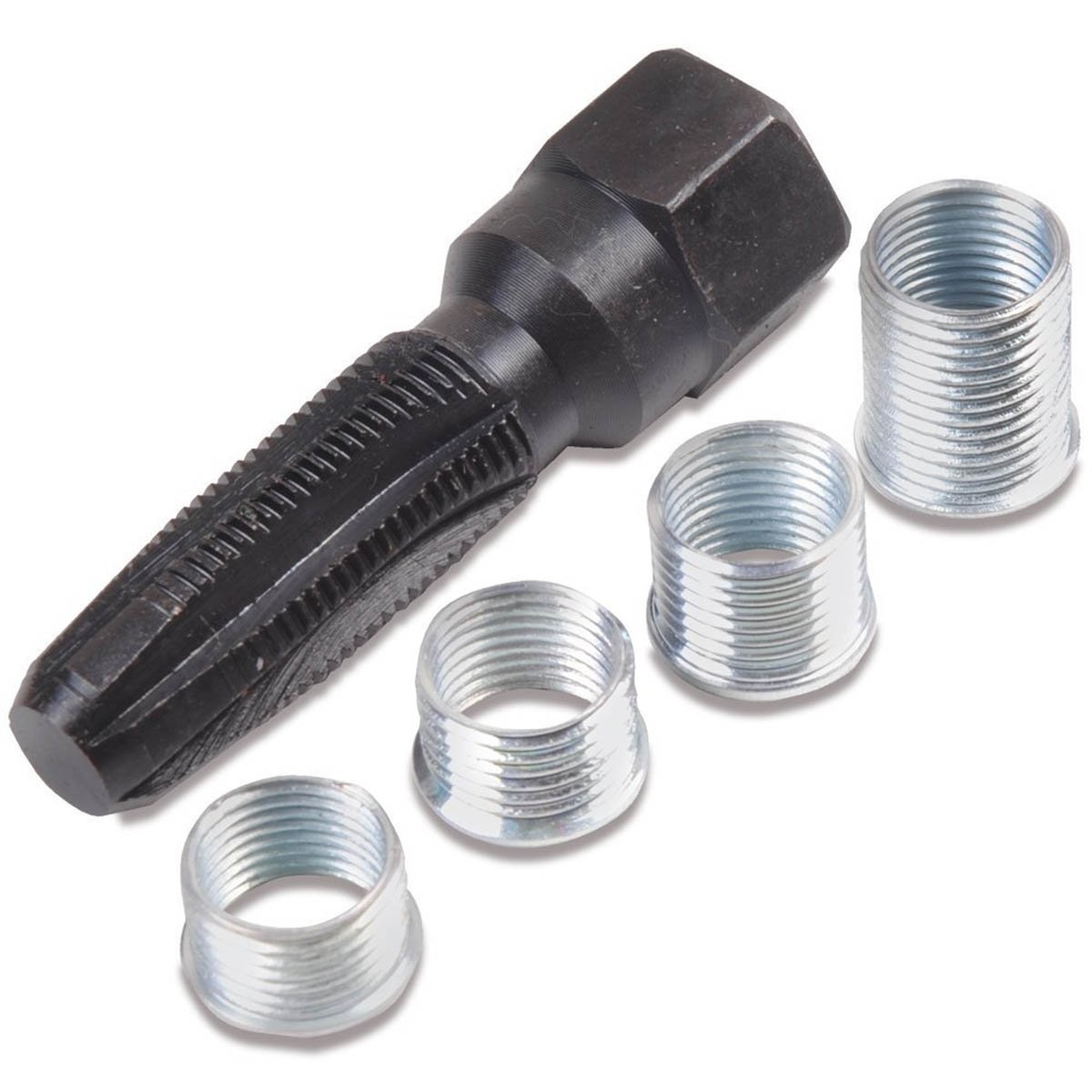

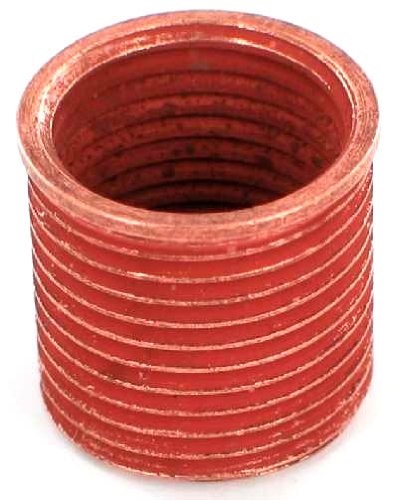

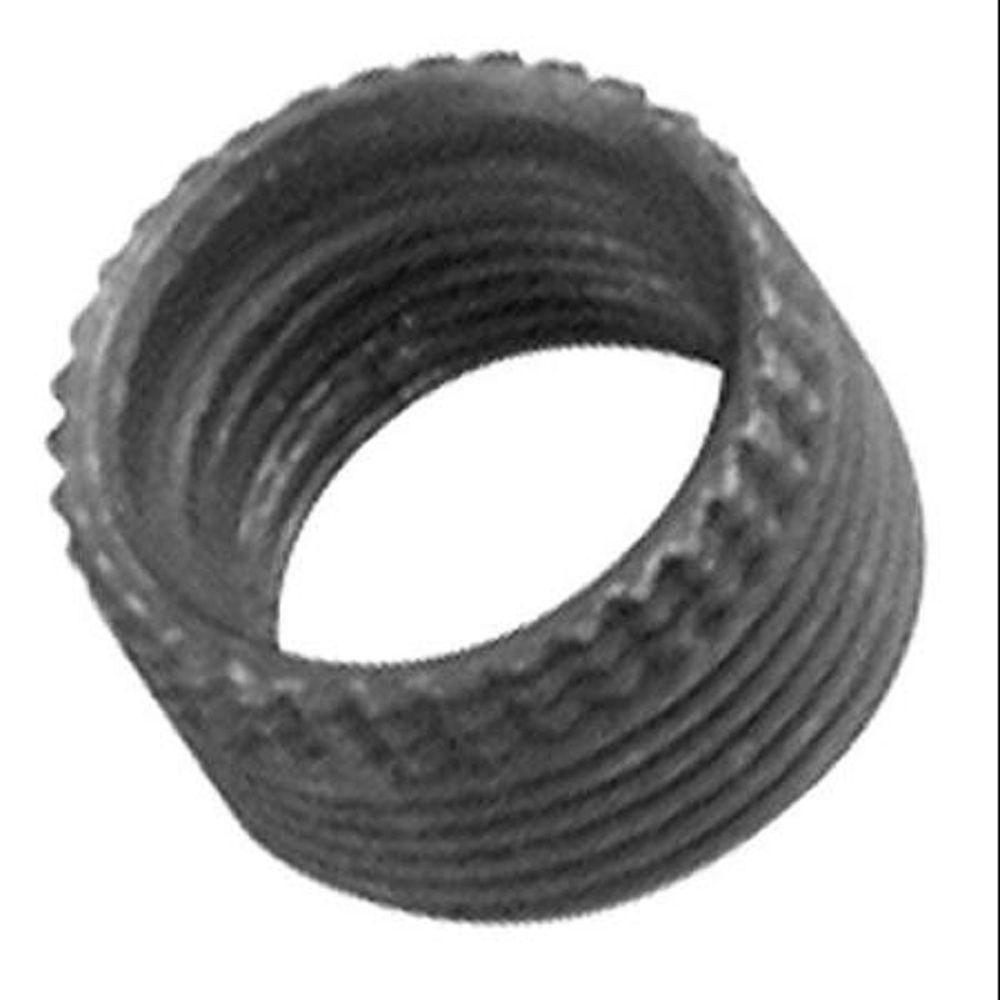

Just looking for options and opinions. Here are some I see:
Livin in "CheektaVegas, NY
Went thru 25 of these in 40 yrs.
I SOLD OUT! THE KAW BARN IS EMPTY.
More room for The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thank you received: 2823
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
electroarc.com/
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- zukdave
- Offline
- User
- Posts: 1685
- Thank you received: 229
The tap for it is a no drill tap that guide's off the old threads and cuts the hole and rethreads for the insert.
I'll get a pic at work tomorrow.
1980 KZ650 F1
ZX750A1 motor.
Wiseco 810cc kit.
Zukiworks racing ported head.
VM 29 smooth bore's.
Dyna 2000 Ign. w/Dyna mini coil's
APE cylinder stud's and nut's.
APE valve spring's.
APE Track King clutch.
V/H KZ1000 sidewinder.
3.5x18 laced to a KZ1000 disk hub.
150/60/18 Shinko 006 Podium.
63" wheel base.
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- Tyrell Corp
- Offline
- User
- "You were made as well as we could make you"
- Posts: 1650
- Thank you received: 261
Once I had a parts 550 with a holed piston. Some muppet had tapped it out to the next size up using a car spark plug of the wrong heat range. Usually that sort of bodging is reserved for 50cc and 125cc learner bikes.
But given the choice now I'd go for an insert, as recommended above.
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Please Log in or Create an account to join the conversation.
- zukdave
- Offline
- User
- Posts: 1685
- Thank you received: 229
1980 KZ650 F1
ZX750A1 motor.
Wiseco 810cc kit.
Zukiworks racing ported head.
VM 29 smooth bore's.
Dyna 2000 Ign. w/Dyna mini coil's
APE cylinder stud's and nut's.
APE valve spring's.
APE Track King clutch.
V/H KZ1000 sidewinder.
3.5x18 laced to a KZ1000 disk hub.
150/60/18 Shinko 006 Podium.
63" wheel base.
Please Log in or Create an account to join the conversation.
- z1kzonly
- Topic Author
- Offline
- User
- Sustaining Member
- Posts: 2890
- Thank you received: 540
Merry Christmas To those who partake! And Happy Holidays!
OK, this engine was 1980 Smog Head Drive shaft bike that was sitting since the 90's ???
P O broke off this end plug. Then tried chiseling along outside to get it to move. It didn't!
So in 2016 it ends up on craigslist, Partner bought it for the Mark II cases and crank for drag bike extras, I took other parts.
I ended up with the head (bike had 14,400 miles only) sat for 20 years. I have drilled out the metal core to a decimal drill size of .447"
I ran a metal blade down to the aluminum threads. I'll get it out eventually!
I still might be able to save original threads, I am going to weld a piece of rod to it and try to it pull off. But want to mill the outside to clean it up. Looks like crap now!
That's why I was looking at an insert with a lip up top side. Want to do this first before I waste time re-doing the head.
My concerns also: were the small amount of area by the 2 valve faces & plug hole?
If I go through all the way, the insets are almost 5/8" .625" up from the original 14mm .550"?
Will the insert be in way of vale seats. I, myself know it will be ok to use, just wondering what someone else would think of this?
Plan is it just going to eBay for sale. Mark II smog head. Of course I would explain the work in future ad!

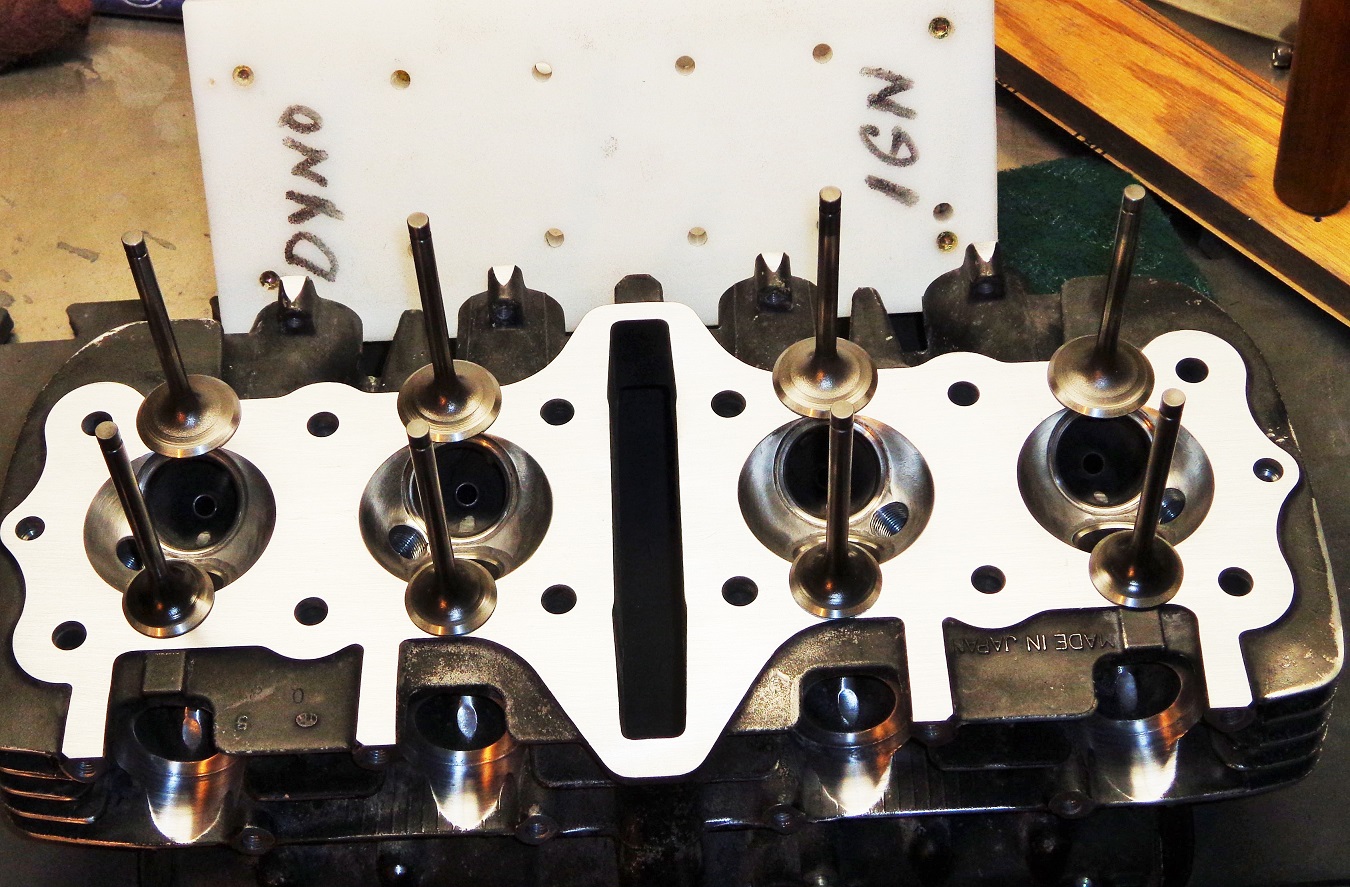

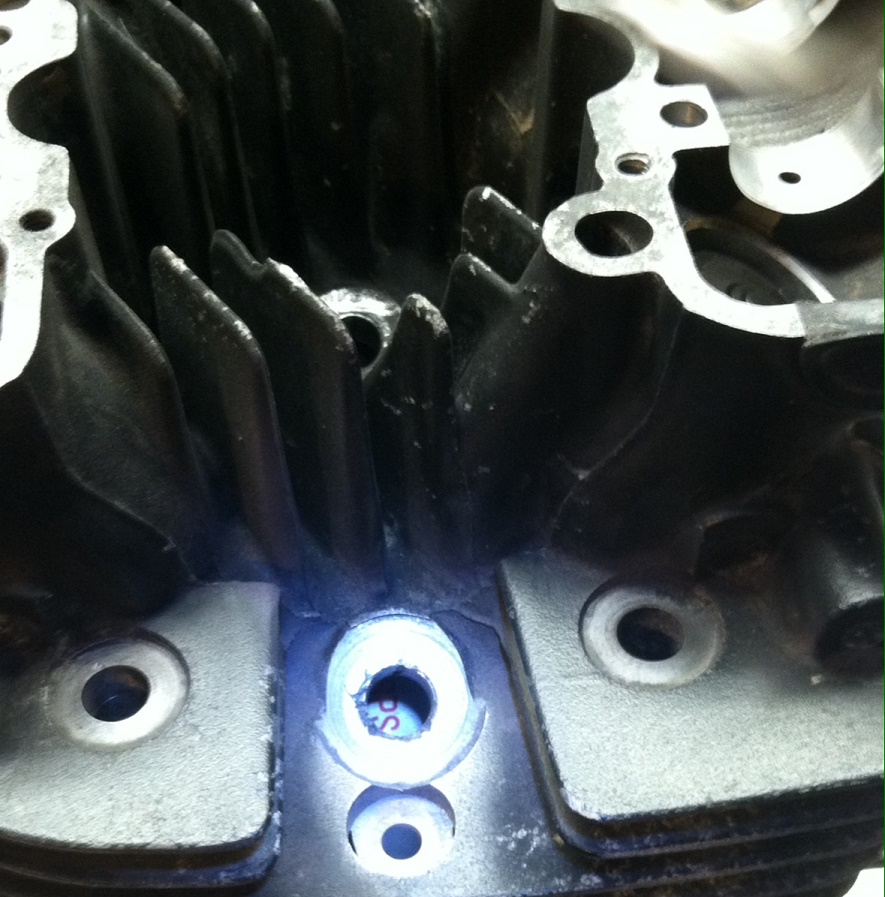

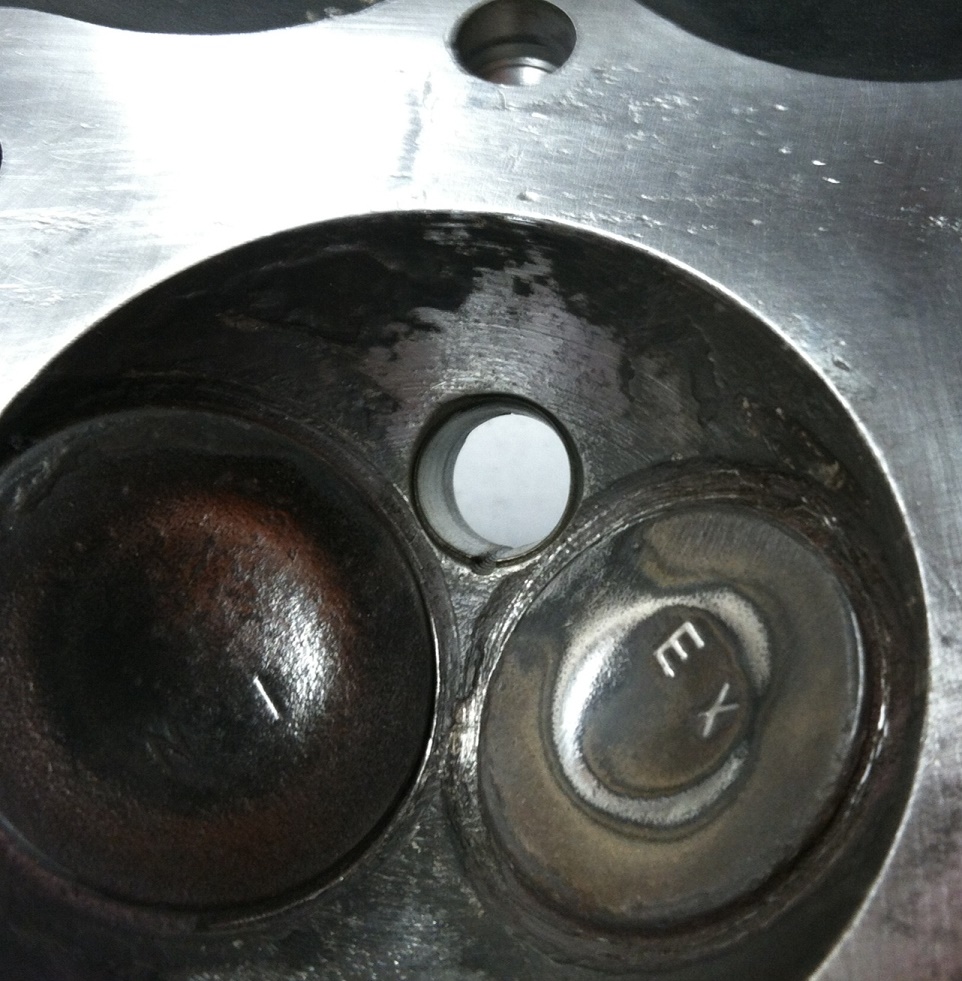

Thanks. couple of pics.
