My clutch cable snaped while riding and i got a new one and its a foot longer than other and it wont ingage my clutch is it because its too long please help

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23779
  • Thanks: 3045

Re: Clutch cable

29 Apr 2016 07:08
#723590
First off, do you have a manual yet?
Did you adjust the clutch actuator first then the two adjustments on the cable?
Steve

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18564
  • Thanks: 2103

Re: Clutch cable

29 Apr 2016 08:26
#723602
Including information about bike year and model is helpful to viewers.
It's easy to put the information in your signature where it shows in all posted messages, past and future.
And the signature may be changed whenever and as often as desired.

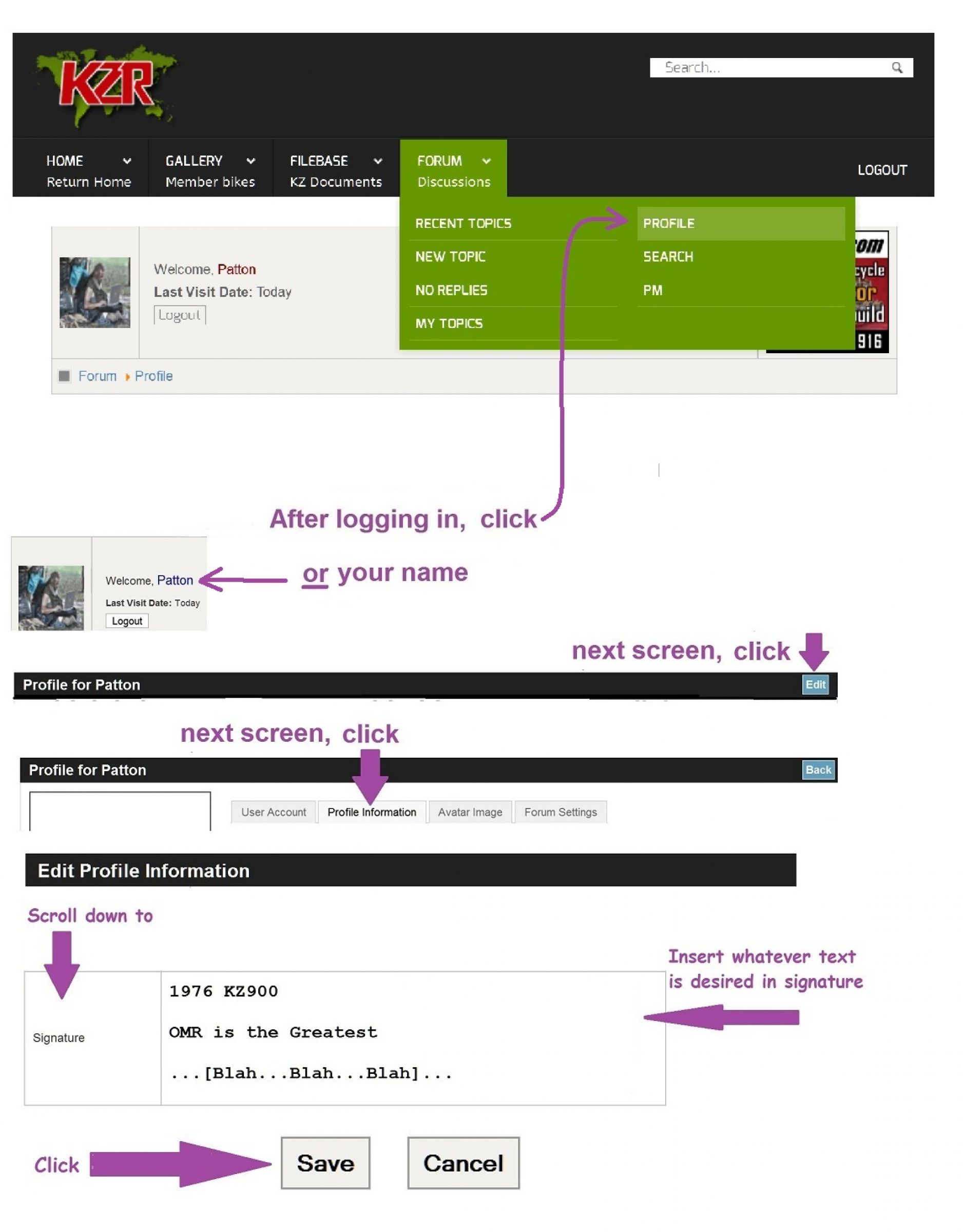

If wanting a signature showing information about the bike in posted messages, it's easy to do.
Here's how:





Good Fortune! :)
1973 Z1
KZ900 LTD

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18564
  • Thanks: 2103

Re: Clutch cable

29 Apr 2016 08:40 - 30 Apr 2016 02:37
#723604
Where the stock handlebar has been replaced with a lower handlebar, it's often desirable to also replace the control cables with shorter than stock cables (usually from other models). Which helps avoid lots of unsightly extra cable to flop around in the wind.

But any replacement cable must have the same exposed inner cable length in order to provide the necessary adjustment parameters.

Suppliers such as Z1 Enterprises are usually familiar with the optional cable lengths available from other models and are happy to offer suggestions about which length may be best suited for the application at hand.

Z1 Enterprises, 3720 Union Street, Marion, NY 14505-9652, Phone: 315-926-5054, Fax: 315-926-5841
www.z1enterprises.com/

Good Fortune! :)
1973 Z1
KZ900 LTD
Last edit: 30 Apr 2016 02:37 by Patton.

Please Log in or Create an account to join the conversation.

  • bountyhunter
  • bountyhunter's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 7245
  • Thanks: 338

Re: Clutch cable

29 Apr 2016 21:09
#723690
goldylox wrote: My clutch cable snaped while riding and i got a new one and its a foot longer than other and it wont ingage my clutch is it because its too long please help
No. It won't engage because it's installed or adjusted wrong. BTW, the Motion Pro cable for mine was also a foot too long. It will work if it's installed right.
1979 KZ-750 Twin
