Kz1100 will not start despite all signs normal
- jackleberry
- Offline
- User
newOld_kz1000 wrote: With a fixed amount of vacuum created by the engine, a 'choke' normally reduces the amount of air allowed to enter so that the *ratio* of fuel rises in the fuel/air mixture. I don't think you meant "it adds fuel", I think you meant "it enrichens the fuel/air mixture, achieving this by reducing the amount of air in that mixture, by reducing the amount of air allowed in from the airbox, thus increasing the percentage of fuel in the fuel/air mixture."
So I'm back to "why is there no enrichment happening when I reduce air from the airbox, why doesn't the percentage of gas in the fuel/air mixture rise."
Then again, I'm missing something about this carb model. I don't have a shop manual for the bike, and the parts list I have doesn't give a model identifier.
I think you are missing something and I told you what is was. I think your carbs have an enricher and not a choke. The thing you're calling a choke is in fact an enricher that does indeed add fuel and doesn't affect air flow at all period full stop.
1997 KZ1000P (P16)
2001 KZ1000P (P20)
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7566
- Thank you received: 2234
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
Please Log in or Create an account to join the conversation.
- newOld_kz1000
- Topic Author
- Offline
- User
- FlimFlamFlibbityFlee !! BoonFryedShickaMuhZee !!
- Posts: 751
- Thank you received: 20
TexasKZ wrote: The enrichner circuit does not restrict air, it opens an additional fuel circuit that increases fuel flow for starting. Since there does not seem to be any fuel flowing through the low speed circuit or the enrichener circuit, I'd say the circuits are still clogged.
Like I said -- "there's a quirk about this carb model I'm not aware of."
And that's that quirk. I was expecting an air-reduction choke.
I noticed a brass shaft in each carb drop down from the ceiling of the float bowl area of the carb body, and right into the float bowl.
This brass tube was long enough to be immersed in the fuel resting in the float bowl.
I'm now thinking that might be this enrichener mechanism's fuel supply source? I thought it was an overflow. And maybe it is, I won't know until you guys confirm this new guess I have here. Again, I don't have a manual for this bike or even a Clymers to explain it.
If that brass tube is in fact the 'fuel enrichener's supply line for gas -- where is the final output for this gas? I'm guessing somewhere in the throat of the carb? But I didn't see an exit hole anywhere,
Then again I wasn't looking for one either.
1978 kz1000 A2 with Kerker
1980 Z1 Classic with Kerker
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22974
- Thank you received: 2749
Steve
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
Please Log in or Create an account to join the conversation.
- newOld_kz1000
- Topic Author
- Offline
- User
- FlimFlamFlibbityFlee !! BoonFryedShickaMuhZee !!
- Posts: 751
- Thank you received: 20
swest wrote: Use a guitar string to clean out the pilots. At the bottom of the bowl is a shaft the choke siphon tube fits in. The tube has a small hole at the bottom. The shaft often has a small jet at the bottom and a opening leading to the fuel. Clean them too and spray choke cleaner through them.
Steve
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
Okay, thanks Steve and thanks all for your patience, Carbs coming back off tomorrow. I did notice a small hole at the bottom of that tube I mistaked for an overflow. I wire-brushed that opening. "Okay the hole is visible, close enough for government work, it's an overflow tube."
My first career was lead guitarist in rock bands, I still play, and I did in fact use my carb cleaner .011 high E string a bit -- pushed it into the tiny hole in that 'fuel enrichener' tube, not very far, "it's an overflow, that's the least of my worries right now."
First time I've had a problem caused by a 'fuel enrichener' mechanism. I've probably worked on carbs with fuel enricheners before, but never had a problem with them that forced learning about them. I had a blind spot in my working knowledge there, and I thank everyone for putting me on the right track.
1978 kz1000 A2 with Kerker
1980 Z1 Classic with Kerker
Please Log in or Create an account to join the conversation.
- newOld_kz1000
- Topic Author
- Offline
- User
- FlimFlamFlibbityFlee !! BoonFryedShickaMuhZee !!
- Posts: 751
- Thank you received: 20

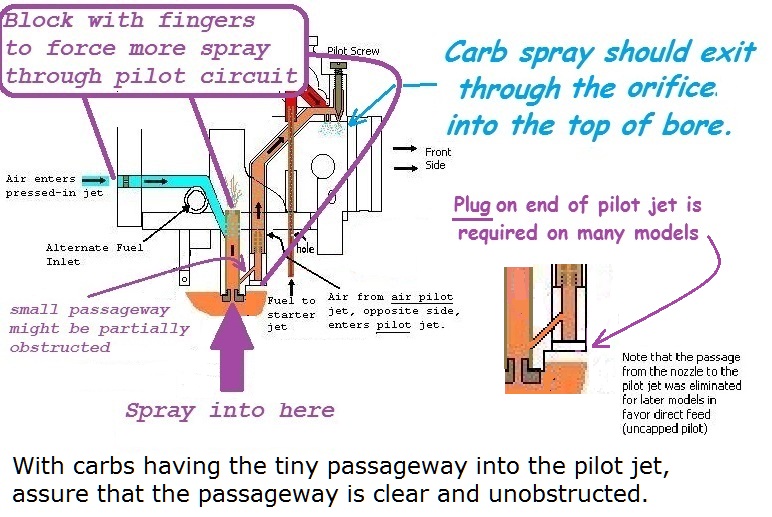

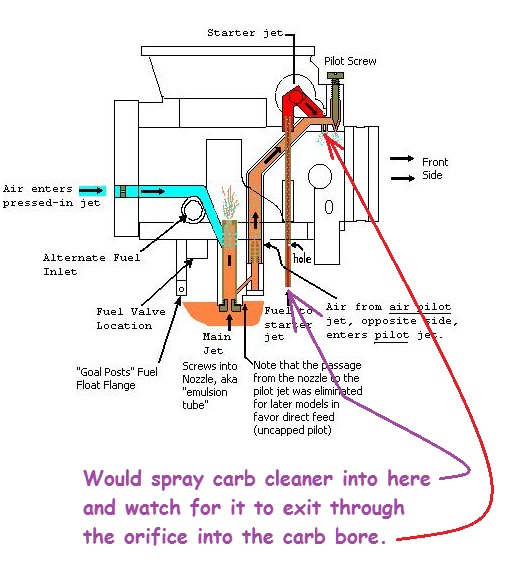

Maybe most people on the board know this already, god knows my experience is that of a garage tinkerer, but I thought if someone else reads this thread this diagram I found would help -- it seems to show how gas gets from that brass tube immersed in the float bowl into the engine intake -- that was a question I still had about all this. Hope this helps someone else. The 'side pull' lever in the diagram below to engage the 'choke' (fuel enrichener) is identical to what's on my ZN1100 carbs, and the diagram below is also specifically for CV carbs.
1978 kz1000 A2 with Kerker
1980 Z1 Classic with Kerker
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
I also suspect the enrichener circuits are imperfectly clean.
I'm uncertain about whether these diagrams are an exact match for the carbs at hand, but will hopefully be close enough to help.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- newOld_kz1000
- Topic Author
- Offline
- User
- FlimFlamFlibbityFlee !! BoonFryedShickaMuhZee !!
- Posts: 751
- Thank you received: 20
1978 kz1000 A2 with Kerker
1980 Z1 Classic with Kerker
Please Log in or Create an account to join the conversation.
- Barry2
- Offline
- User
- Posts: 126
- Thank you received: 23
TexasKZ wrote: The enrichner circuit does not restrict air, it opens an additional fuel circuit that increases fuel flow for starting. Since there does not seem to be any fuel flowing through the low speed circuit or the enrichener circuit, I'd say the circuits are still clogged.
I concur with that and also when using said enrichener, DO NOT give it any throttle or it defeats the purpose.
1976 KZ900
Please Log in or Create an account to join the conversation.
- daveo
- Offline
- Premium Member
- Posts: 2803
- Thank you received: 655
Barry2 wrote:
TexasKZ wrote: The enrichner circuit does not restrict air, it opens an additional fuel circuit that increases fuel flow for starting. Since there does not seem to be any fuel flowing through the low speed circuit or the enrichener circuit, I'd say the circuits are still clogged.
I concur with that and also when using said enrichener, DO NOT give it any throttle or it defeats the purpose.
When using the enrich system, if the engine wants to start, but won't keep running...does that mean it is not getting enough fuel, or too much?
If the engine starts on the first crank, mine usually needs throttling to keep it running for the first ten seconds or so, before the idle begins to smooth out. But quite often it refuses to start on the first attempt :pinch:
And if it doesn't start on the very-first attempt, then the enrichener seems to become useless after that. Then it's crank, crank...sputter-stall, wait, crank...bang! Then v-room!!!
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- newOld_kz1000
- Topic Author
- Offline
- User
- FlimFlamFlibbityFlee !! BoonFryedShickaMuhZee !!
- Posts: 751
- Thank you received: 20
Once I took off the very first float bowl, I paid careful attention to that brass tube with the tiny hole in the end of it -- this tube hangs downward from the ceiling of the float bowl chamber.
Well, that brass tube actually *slides completely inside* a deep shaft that is drilled into the rim of the float bowl.
So when the carbs are all assembled, that brass tube is completely shut off from the float bowl chamber, it's completely enveloped by that deep shaft.
EXCEPT.
Except when I shined a flashlight down that shaft in the rim of the float bowl -- there is a brass 'jet' at the bottom.
And that brass jet leads to a hole at the inside bottom of the float bowl. That deep shaft is directly connected to the gas at the bottom of the bowl, by way of that hole.

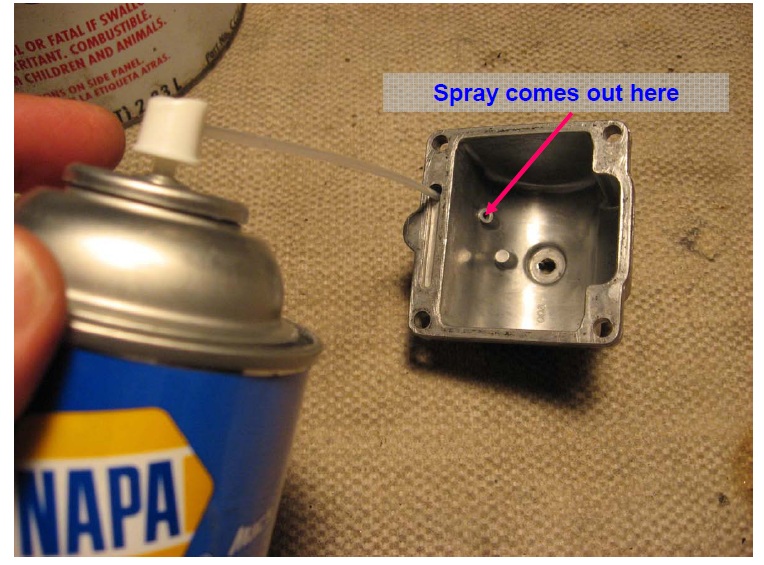

I sprayed carb cleaner, using the red straw on the aerosol can, down that deep shaft with the brass 'jet' at the bottom.
The carb cleaner should have flowed through that brass jet at the bottom of the shaft, and into the float bowl through the hole I mentioned above.
NOTHING.
So I used a guitar string, patience, carb cleaner, and 120psi freaking compressed air! and finally got the blockage cleared. Now, when I spray carb cleaner down the shaft, it spills into the bottom of the float bolt through that (previously blocked) hole.
And that's why the enrichener wasn't working.
I sure wish they'd stuck with a traditional choke. Why make a 'start up' system more complicated. Simpler is better.
Pictures to come.
