Deck and sleeve height, Question
- missionkz
- Topic Author
- Offline
- Sustaining Member
Less
More
06 May 2015 14:58 - 06 May 2015 14:59 #670905
by missionkz
Bruce
1977 KZ1000A1
2016 Triumph T120 Bonneville
Far North East Metro Denver Colorado
Deck and sleeve height, Question was created by missionkz
I'm perplexed here. I dug out my overbore KZ1000 1015cc cylinder block today (cold and rainy in Denver for days).
Thinking maybe I'll pull the top off the engine this weekend and fix an oil leak that has been bugging me for a while and maybe even install the "big" bore kit.
It has been bored, honed and fitted to a set of Wiseco 1075cc 72mm pistons.
After reviewing it it noticed that one sleeve flange sits about .0075" to .0085" above the deck!!
It is not loose....

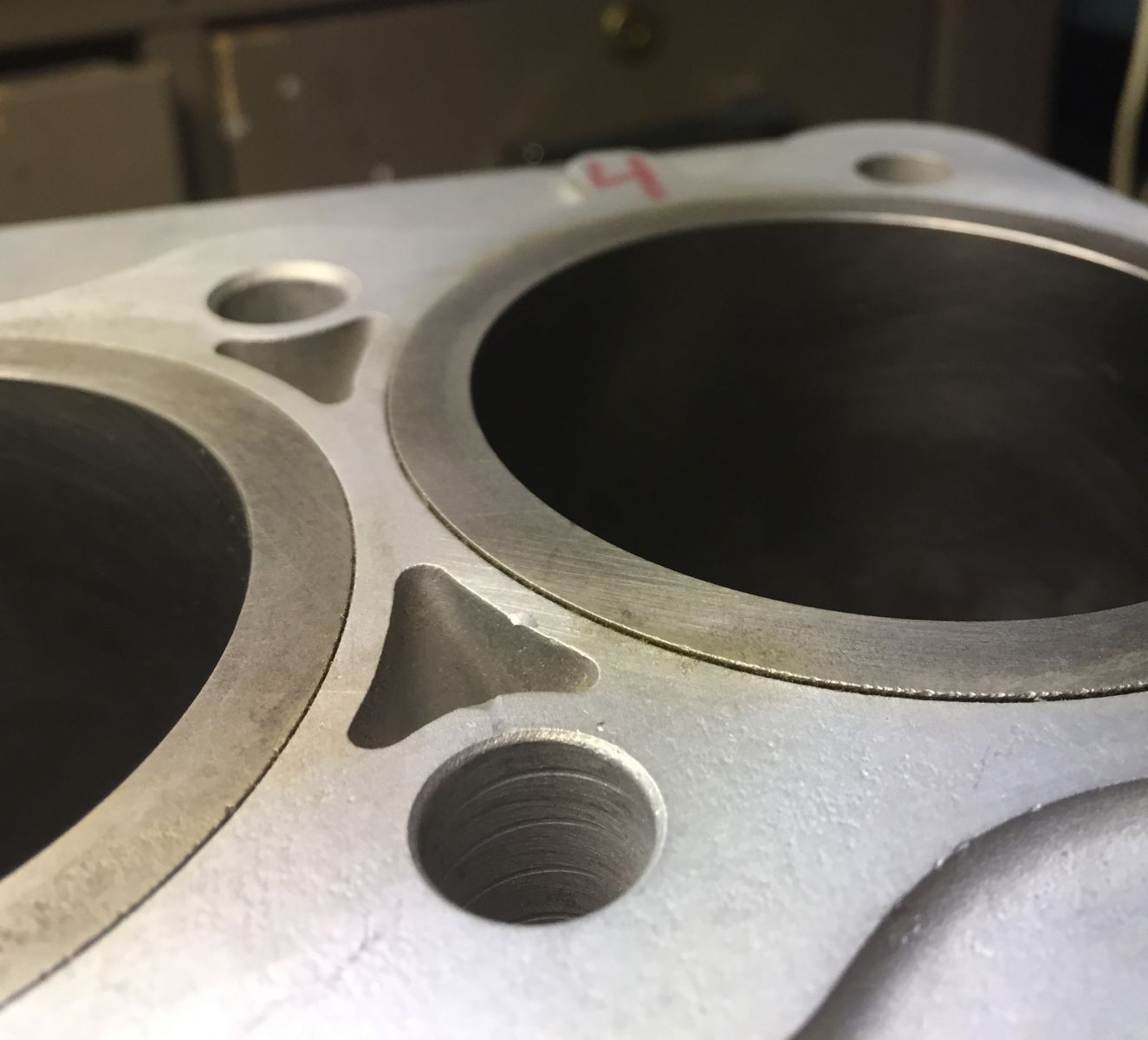

See the picture:
I am greatly concerned about this and am wondering if I should take this somewhere and have it ground, heated reseated, smacked in with a big hammer or what the hell to do if something needs to be done.
I don't want to do this twice after discovering a blown head gasket in the adjacent cylinder in a few weeks... etc.
Comments please?
Thinking maybe I'll pull the top off the engine this weekend and fix an oil leak that has been bugging me for a while and maybe even install the "big" bore kit.
It has been bored, honed and fitted to a set of Wiseco 1075cc 72mm pistons.
After reviewing it it noticed that one sleeve flange sits about .0075" to .0085" above the deck!!
It is not loose....
See the picture:
I am greatly concerned about this and am wondering if I should take this somewhere and have it ground, heated reseated, smacked in with a big hammer or what the hell to do if something needs to be done.
I don't want to do this twice after discovering a blown head gasket in the adjacent cylinder in a few weeks... etc.
Comments please?
