Won't idle off of choke...

  • KzChop82
  • KzChop82's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 145
  • Thanks: 7

Won't idle off of choke...

17 Apr 2015 13:12
#668417
Valves refaced, seats cut.
Put everything back together- didn't idle.
Checked valve clearance, it was too tight.
Changed shims- now everything is back into spec.
Still won't idle.
Took jets apart, made sure pilots and mains were clean. Shot some air into the pilot holes to make sure passages were clean.

Still won't idle without choke on.
Any ideas??
Clinton, NJ
Custom chopper, 1982 KZ 1000 M2 CSR engine, K&N Pod Filters

PICTURES AND GOPRO VIDEOS!! :
www.dropbox.com/sh/jipz3l8nhzr4jge/AABbm...OC3sqlhCSLxH5Fa?dl=0

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 15339
  • Thanks: 2833

Re: Won't idle off of choke...

17 Apr 2015 14:01
#668420
What is on it for air filtration? Also, if your carb holders have vacuum ports, are the vacuum caps on them? Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

  • 83KZ750LTD
  • 83KZ750LTD's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 48
  • Thanks: 1

Re: Won't idle off of choke...

17 Apr 2015 14:18 - 17 Apr 2015 14:20
#668422
Too much air and not enough fuel. It could fuel delivery on your recently cleaned carbs (pilot jet) but it's most likely a vac leak between the engine and the carbs. Like someone already mentioned, check that all caps are in place.
1983 KZ750-F1 LTD - 8000 miles - 2/2015 - Head gasket time!
Last edit: 17 Apr 2015 14:20 by 83KZ750LTD.

Please Log in or Create an account to join the conversation.

  • baldy110
  • baldy110's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 2272
  • Thanks: 512

Re: Won't idle off of choke...

17 Apr 2015 14:25
#668425
If it only runs with choke then your idle circuits are still clogged. I know you said you cleaned them but cleaning means different things to different people. There are little tiny passageways in the bodies of the carbs that also have to be clean. I have had numerous people send me their carbs saying they have cleaned them and can't get them to work only for me to find out they were not even close to being clean.
The following user(s) said Thank You: missionkz

Please Log in or Create an account to join the conversation.

  • KZB2 650
  • KZB2 650's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1475
  • Thanks: 265

Re: Won't idle off of choke...

17 Apr 2015 14:39
#668429
Patton's holding the air outlets while using the compressor and cleaner did wonders for me along with the new carb holders. They were clean enough to eat off of but not deep inside.
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.

Please Log in or Create an account to join the conversation.

  • ffe
  • ffe's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 20
  • Thanks: 3

Re: Won't idle off of choke...

18 Apr 2015 03:46
#668489
baldy110 wrote: If it only runs with choke then your idle circuits are still clogged. I know you said you cleaned them but cleaning means different things to different people. There are little tiny passageways in the bodies of the carbs that also have to be clean. I have had numerous people send me their carbs saying they have cleaned them and can't get them to work only for me to find out they were not even close to being clean.


^^^^^^^^^^^ What he said.

Please Log in or Create an account to join the conversation.

  • KzChop82
  • KzChop82's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 145
  • Thanks: 7

Re: Re:Won't idle off of choke...

18 Apr 2015 04:24
#668490
Anyone have a link to the post?
Clinton, NJ
Custom chopper, 1982 KZ 1000 M2 CSR engine, K&N Pod Filters

PICTURES AND GOPRO VIDEOS!! :
www.dropbox.com/sh/jipz3l8nhzr4jge/AABbm...OC3sqlhCSLxH5Fa?dl=0

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2101

Re: Re:Won't idle off of choke...

18 Apr 2015 05:20
#668496

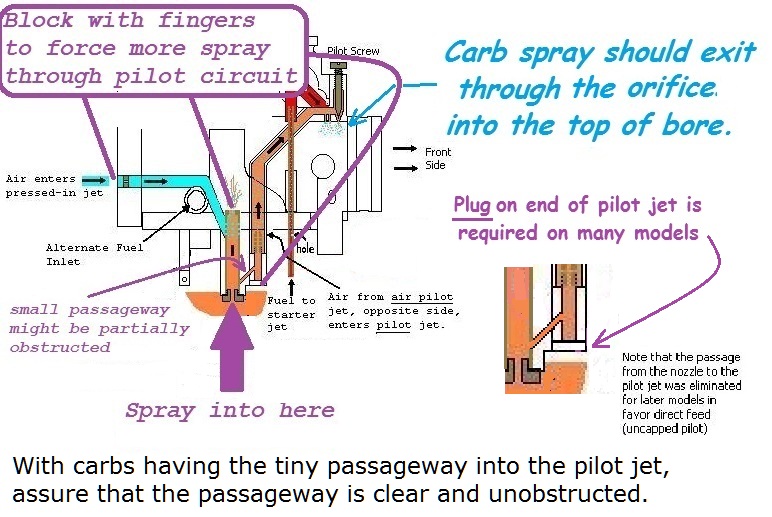

If the carbs are like this ---





Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23418
  • Thanks: 2909

Re: Re:Won't idle off of choke...

18 Apr 2015 05:51
#668497
You have done a valve job, you have CV carbs with pods and you have straight pipes. You have raised the compression of the engine, now the jetting isn't working. Having to use the choke tells me this.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.
