can chain sprockets

hi can any one please tell me I have kz650 1979 engine number kz650be093597 im doing a top end rebuild started to put back together but noticed in the manual it says about the black rubber dampers that go on the cam chain wheels that sit in side the casings you have to glue them in but there were none there when I took it apart it says only on some models these were used bit stuck don't want to put back together a mess it up thanks

Those dampers are for noise reduction. You don't need them. If you're talking about the ones that hold the wheels in place you do.
Steve

On the 4 small dampers that hold the wheels in place make sure you didn't drop em in the bottom end ..... I removed the oil pan to clean it all out anyway and found the 2 front ones I dropped. My 78 model had the rubber already glued to the cam sprockets and looked to be in good shape still.

It helps to list the exact 650 model in your signature --- B, C or D if it's a 79.
You can check your frame & engine numbers at the following site.
jarlef z650

Including information about bike year and model is helpful to viewers and usually elicits better responses.

It's easy to put the information in your signature where it shows in all posted messages, past and future.

And the signature may be changed whenever and as often as desired.

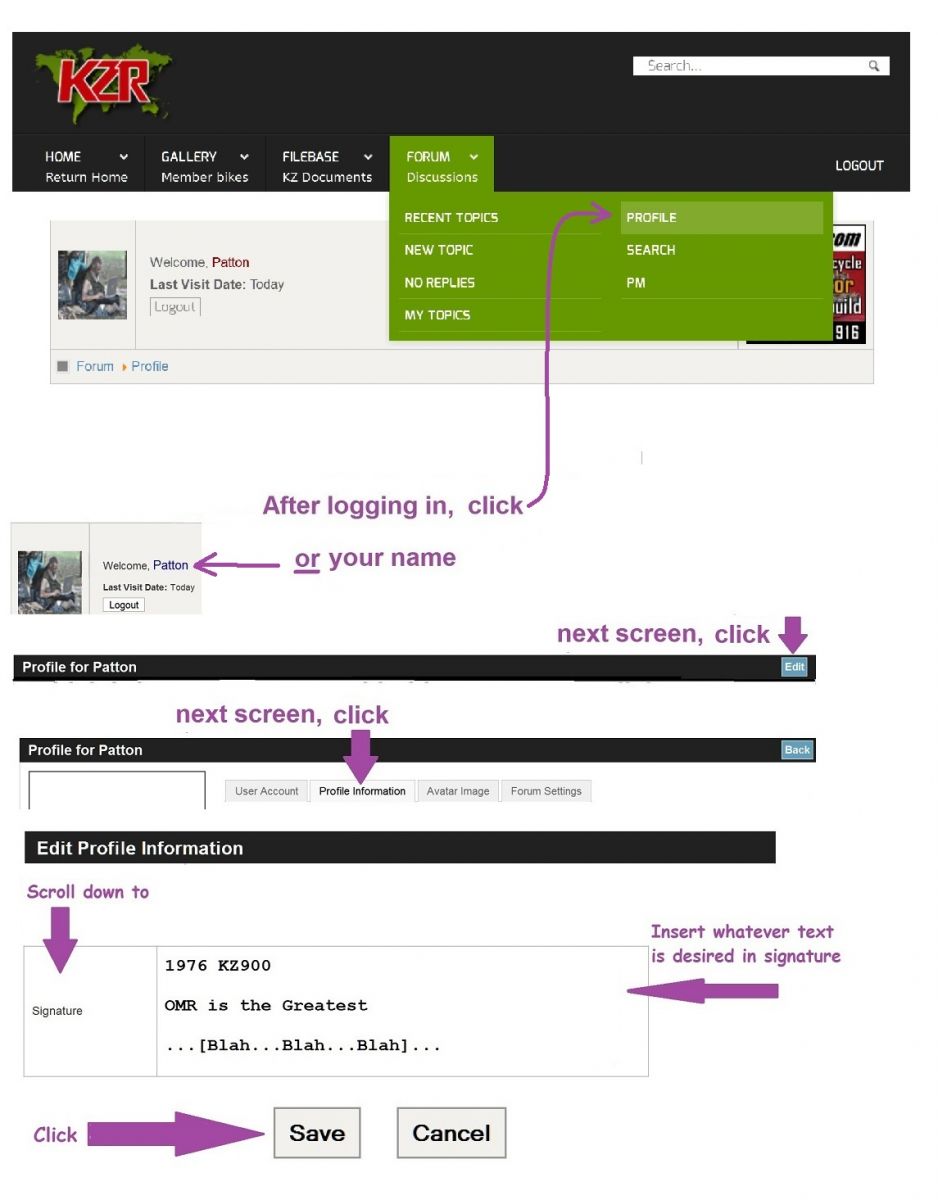

If wanting a signature showing information about the bike in posted messages, it's easy to do.

Here's how:





Good Fortune!

The early 1977 KZ650 engines used cam chain sprocket cam chain guide roller shafts that were round from end to end (see first image below). If yours are like that someone replaced the original shafts with the non-damper type.

Your 1979 KZ650 engine should have cam chain sprocket shafts that have cutouts on the ends for the rubber dampers (see second image below). If the shafts on your engine have those cutouts you must use the rubber dampers (6 & 7 in 2nd diagram); if the dampers are missing you should be able to find replacements – ask here if you can’t find them. Ed
