Oil Cooler questions
- Racewayelko
- Topic Author
- Offline
- User
Let me explain. I know it cools the oil through its fins much like the air cooled bike uses fins to dissipate heat. I have a kz750 n1 (four cyl shaft)And I know I would use the port on the right side of the motor, up through the cooler, then into the galley plug. My main question is this. Does the oil path go : pan, pump, (split between oil cooler and rest of motor) pan. or :Pan, pump motor, cooler, pan? Also how much would the pressure be expected to drop? I had some overheating issues last year going though Missouri and am looking for a way to keep my bike as cool as I can (short of mounting fans facing the fins ) Thanks all
Where I got my info on where to run inlet and outlet hoses to: kz650files.kz650.info/adobe/KZ650OilCooler.pdf
Keep it rubber side down everyone
Klx 110, TTr125, TTr250, 1982 kz750-N1 (Spectre), Xt-350 (soon to be the new home of a Kz550 engine )
Please Log in or Create an account to join the conversation.
- zed1015
- Away
- User
- Posts: 3023
- Thank you received: 1554
Oil path = Sump - Pump - cooler - Motor - sump .
Do not split the feed between the cooler and motor as the oil will take the easiest less restrictive path.
Do not take the cooler return directly back to the sump as this will bypass the motor and starve the top end.
You should not get any pressure drop if installed correctly.
If you were to dry block the top end you could have a cooler specific for the cams etc but that's whole different kettle of fish.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thank you received: 2824
Please Log in or Create an account to join the conversation.
- Racewayelko
- Topic Author
- Offline
- User
- Posts: 68
- Thank you received: 0
Keep it rubber side down everyone
Klx 110, TTr125, TTr250, 1982 kz750-N1 (Spectre), Xt-350 (soon to be the new home of a Kz550 engine )
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thank you received: 2824
Racewayelko wrote: my pan looks like the first two you posted. Where are you running your lines to?
The lines plug into an open port on the edge of the oil pan, and feeds up and back from the cooler from there.

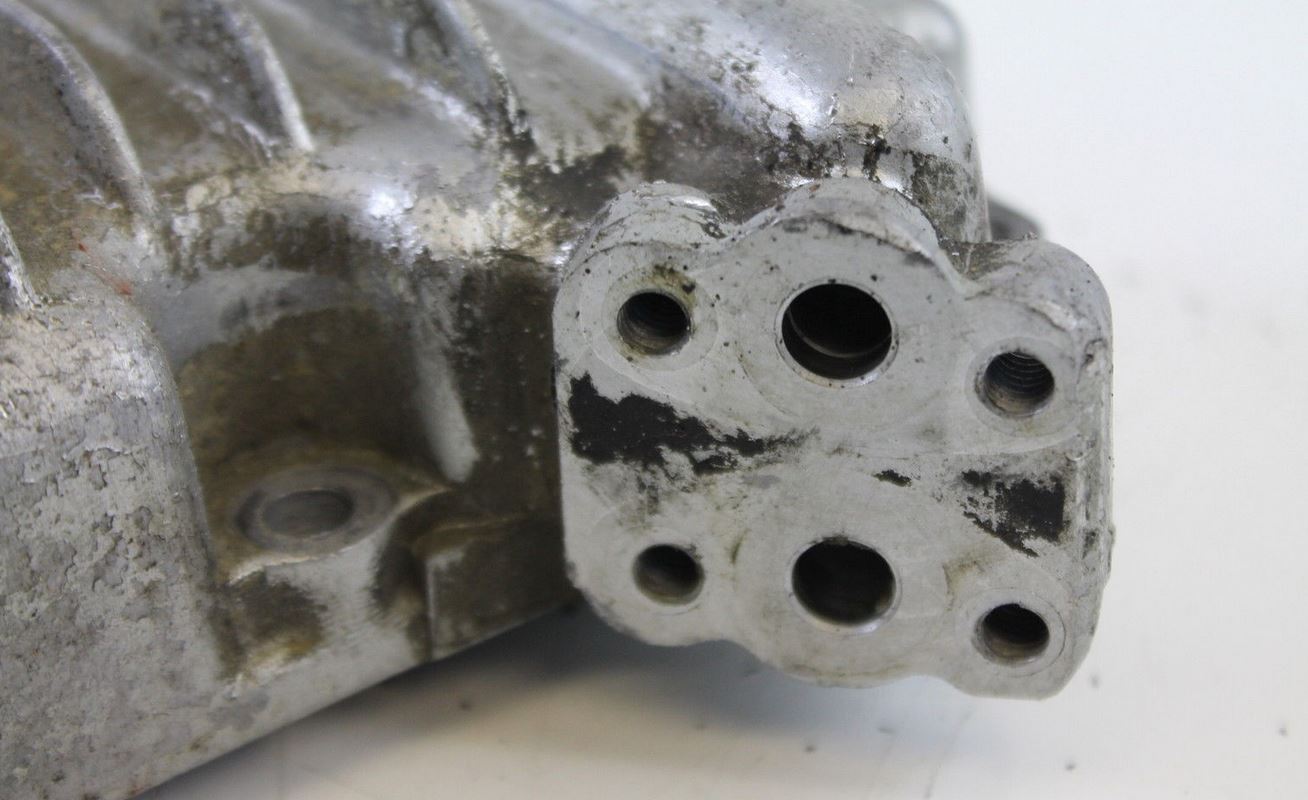

You need a pan like this one...
