- Posts: 3
- Thank you received: 0
limp shifter lever
- lucasstanley
- Topic Author
- Offline
- User
Please Log in or Create an account to join the conversation.
- LineArtist
- Offline
- User
- Posts: 302
- Thank you received: 35
Have you recently adjusted the clutch pin at the primary cover? Sounds like something is not in the right place, like a clutch fork. I would refer to the factory service manual and assure all the visible clutch parts are where they should be.
'79 KZ650B3 (stock)
'79 KZ650B3 (parts bike)
'06 HD 883R
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656
In regards to the shift drum forks, if you get to tinkering, there is a warning in the 81 650 manual that says do not pull out the Shift Rod more than 40mm ---- the shift forks will fall to the bottom of the crankcase & you'll have a real job on your hands. :ohmy:
Please Log in or Create an account to join the conversation.
- zero10
- Offline
- User
- Posts: 71
- Thank you received: 6
-
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656
Be sure to clean the grunge off the shift shaft seals.
Please Log in or Create an account to join the conversation.
- JR
- Offline
- Sustaining Member
- Posts: 2937
- Thank you received: 448
martin_csr wrote: There are a couple of springs for the shifter pedal, so maybe one of those needs replacing. I don't know how difficult it would be to do.

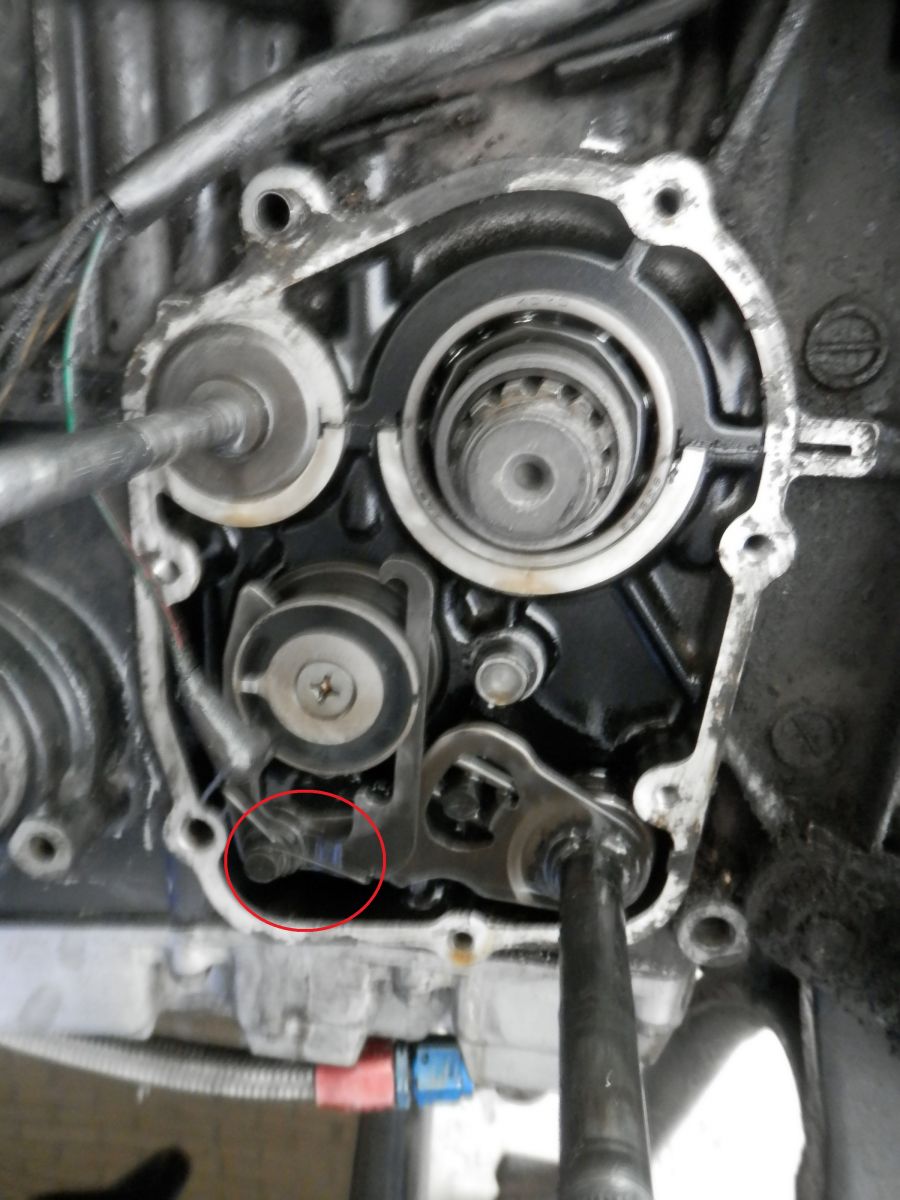

I would follow the advice posted above and hopefully correct positioning of the left hand side cover will fix the problem. If the shifter pedal is still limp then as martin suggested it might be a spring and you might need to dig a bit deeper. If you take off the left side cover and then the front sprocket you can get at the transmission cover (at least I think thats what its called. I had to take that cover off recently to check the output shaft bearing and luckily took a photo which you can see below,
You can identify the output shaft, the clutch pushrod and the gear shift pedal in the photo. See the mechanism which is moved by the shift pedal ? I circled the spring in red. I am honestly not sure if a broken spring here will cause a limp shifter pedal but it might be worth checking if you cant find a solution in the outer cover clutch mechanism
1980 kz750E1, Delkevic exhaust
Please Log in or Create an account to join the conversation.
- kawi810
- Offline
- User
- Posts: 230
- Thank you received: 11
original owner of a 1984 gpz 750
1985 turbo 750 stock, being restored.
1984 gpz 750 with 810 cc wiesco's megacycle cams(471-10) 34 mm flatslides v&h pipe ported head dyna ignition. bottom end, crank case from turbo 750 and sprockets.
Please Log in or Create an account to join the conversation.
- lucasstanley
- Topic Author
- Offline
- User
- Posts: 3
- Thank you received: 0
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22978
- Thank you received: 2750
Steve
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22978
- Thank you received: 2750
Please Log in or Create an account to join the conversation.
- JR
- Offline
- Sustaining Member
- Posts: 2937
- Thank you received: 448
kawi810 wrote: the spring to check is behind the shift shaft .
Is that spring accessible in the pic I posted above ? or is it inside the gearbox proper and accessible after removing the oil pan ?....... just in case I ever need to look for it
Thanks
1980 kz750E1, Delkevic exhaust
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22978
- Thank you received: 2750
Steve
Please Log in or Create an account to join the conversation.
