If they are used pistons and pins, you may need a pusher to get the pins back in the pistons. Use new spring clips for the pins.
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- gixxerkidd03
- Topic Author
- Offline
- User
- Posts: 220
- Thank you received: 3
1981 KZ750e
Please Log in or Create an account to join the conversation.
- bluezbike
- Offline
- Sustaining Member
- Posts: 598
- Thank you received: 104
79 KZ 1000 LTD
77 KZ 1000 B1 LTD (awaiting electrical resurrection)
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
- Posts: 7246
- Thank you received: 337
Not sure I would try that one on a KZ engine. Done it on a car.bluezbike wrote: Someone a little while ago had suggested putting each piston into the block separately....... and then connecting the lot to the crank arms. Seems like it could work, not much room for fingers though
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- OnkelB
- Offline
- User
- Posts: 1011
- Thank you received: 80
Install the base gasket and whatever o-rings, cam chain guides etc. you have there.
Rotate the crank until pistons 1 and 4 are all the way down and 2 and 3 are all the way up.
Insert wooden supports between the base gasket and pistons 2 and 3 (I made the supports pictured below in like 5 minutes) and rotate the crank until pistons 2 and 3 are resting against the supports and are as centered as possible.
Apply a thin coat of assembly lube or engine oil to the cylinder bores, slide the cylinder block onto the studs and insert the top of pistons 2 and 3 into their bores.
Compressing the rings with whatever you need (I've never used anything but my hands) gently slide/wiggle the block down over the rings - remember to space the ring gaps 120 degrees apart.
Once you have pistons 2 and 3 installed lift them off the supports by rotating the crank and remove the supports.
Rotate the crank so that 2 and 3 comes down and 1 and 4 comes up and repeat the above for pistons 1 and 4, there you go.
Edit: Btw, when installing the piston pin clips, DO NOT forget to stuff rags or whatever in the case holes around the rods, clips down the crank case is not a good thing. :whistle: :pinch:
77 KZ 650 B1, 82 GPz 1100 B2.
Please Log in or Create an account to join the conversation.
- Powerstroke_fan
- Offline
- User
- Posts: 1017
- Thank you received: 83
1980 kz1000B4 LTD- 1327cc 9-1 comp
Ported J model head
Psp-3x cams
RS 36s
Welded MK11 crank
Back-cut MK11 trans
MTC 2 stage lock up
Stretched 4-6 over running Hayabusa rear rim with 190 rear tire
Complete frame brace kit installed
And Much Much more- SOLD
2014- ZX14R all stock for now
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
The strips may be cut from an aluminum can.
Be extra careful with the oil rings, to have them properly fitted without overlap, and not damaged during the during the installation process.

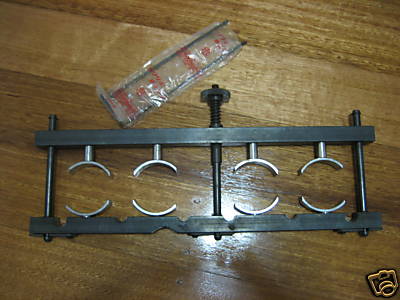

Have never been fortunate enough to own the real McCoy:
(Above compressor is for Z1.)
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- pbmax
- Offline
- User
- Posts: 91
- Thank you received: 1
Please Log in or Create an account to join the conversation.
- Cynjut
- Offline
- User
- Posts: 232
- Thank you received: 26
1977 KZ-1000 A1
1982 KZ-1000 M2 Frankenbike
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- guitargeek
- Offline
- User
- Elitist, arrogant, intolerant, self absorbed.
- Posts: 1183
- Thank you received: 50
That's how I do it.bluezbike wrote: Someone a little while ago had suggested putting each piston into the block separately....... and then connecting the lot to the crank arms. Seems like it could work, not much room for fingers though
Insert each piston into it's cylinder, lower the block onto the connecting rods, insert wrist pins and retainer clips.
Do the pair in the middle first, then rotate the crank to bring up the outer pair.
Yes, it's tricky, but it works.
Here... kzrider.com/forum/11-projects/206149-fre...g-up?start=60#229596
1980 KZ750-H1 (slightly altered)
1987 KZ1000-P6 "Ponch"
1979 GS1000 "Dadzuki"
