Hello All,
I am in the process of restoring or creating my first cafe. I have 78 KZ650 and I have stripped everything off the bike so it is done to wheels and the motor, but for the life of me I cannot come up with a safe way to get the motor out of the frame without damaging me or the motor. All motor mounts are out etc and the motor seems to be resting on the frame rails.
I have heard of people turning the bike on its side. I was thinking of trying to use a floor jack to lift it slightly. Does anyone know if they make a lift?
Also what are most of you using for an engine stand as you perform an overhaul? Any help would be appreciated
Thanks
I am in the process of restoring or creating my first cafe. I have 78 KZ650 and I have stripped everything off the bike so it is done to wheels and the motor, but for the life of me I cannot come up with a safe way to get the motor out of the frame without damaging me or the motor. All motor mounts are out etc and the motor seems to be resting on the frame rails.
I have heard of people turning the bike on its side. I was thinking of trying to use a floor jack to lift it slightly. Does anyone know if they make a lift?
Also what are most of you using for an engine stand as you perform an overhaul? Any help would be appreciated
Thanks
Please Log in or Create an account to join the conversation.
- geohaydook1
- Offline
- User
Less
More
- Posts: 57
- Thank you received: 1
14 Jul 2013 11:04 #596408
by geohaydook1
1980 KZ750e
1981 KZ650 csr (fate undecided)
Replied by geohaydook1 on topic KZ 650 Engine Removal
Does the bike still have its center-stand? That makes things
MUCH easier. I just kind of straddle the bike and push-pull-turn and
Heave! Double check to make sure all the mounting bolts are out. And
Watch you don't hurt your back!
MUCH easier. I just kind of straddle the bike and push-pull-turn and
Heave! Double check to make sure all the mounting bolts are out. And
Watch you don't hurt your back!
1980 KZ750e
1981 KZ650 csr (fate undecided)
Please Log in or Create an account to join the conversation.
- Spectre1982
- Offline
- User
Less
More
- Posts: 157
- Thank you received: 9
14 Jul 2013 11:21 #596410
by Spectre1982
1982 Kawasaki KZ750 Spectre
1978 Kawasaki KZ200
1985 Yamaha XV1000 Virago
(Avatar picture is from Alleycatscustoms.com)
Replied by Spectre1982 on topic KZ 650 Engine Removal
You can remove the head and it might give you enough clearance to slide it out.
1982 Kawasaki KZ750 Spectre
1978 Kawasaki KZ200
1985 Yamaha XV1000 Virago
(Avatar picture is from Alleycatscustoms.com)
Please Log in or Create an account to join the conversation.
- KZB2 650
- Offline
- User
Less
More
- Posts: 1475
- Thank you received: 265
14 Jul 2013 13:45 - 14 Jul 2013 13:52 #596445
by KZB2 650
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.
Replied by KZB2 650 on topic KZ 650 Engine Removal
Having my 650 on its center stand I used a 4 foot by 1 foot piece of plywood supported by paint cans and pieces of plywood to get the board just under the frame.
Then I made 6 or 7 approx 8 inch by 1 foot 5 eighths thick pieces of plywood taped them together and used them in between the frame to jack the motor up with. A after you get all the motor mount bolts out you can jack it up and outta the mounts pretty easy using the plywood. Only takes 3 inches and its sitting there pretty steady all ready for you to grab.
Myself my wife and son very easily lifted the motor out the side and set it on the 1 by 4 piece of plywood I used for a plat form. Two could do it but three made it a piece of cake. Taped the frame with newspaper to keep from skinning it but really if your careful it shocked me how easy it was...after all the worrying I did about it too.
I had the head on and the exhaust studs still in too taped and padded up though.
The plywood and jack also worked great for getting it back in also.
Then I made 6 or 7 approx 8 inch by 1 foot 5 eighths thick pieces of plywood taped them together and used them in between the frame to jack the motor up with. A after you get all the motor mount bolts out you can jack it up and outta the mounts pretty easy using the plywood. Only takes 3 inches and its sitting there pretty steady all ready for you to grab.
Myself my wife and son very easily lifted the motor out the side and set it on the 1 by 4 piece of plywood I used for a plat form. Two could do it but three made it a piece of cake. Taped the frame with newspaper to keep from skinning it but really if your careful it shocked me how easy it was...after all the worrying I did about it too.
I had the head on and the exhaust studs still in too taped and padded up though.
The plywood and jack also worked great for getting it back in also.
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.
Last edit: 14 Jul 2013 13:52 by KZB2 650. Reason: forgot one more tip
Please Log in or Create an account to join the conversation.
- murr50
- Offline
- User
Less
More
- Posts: 105
- Thank you received: 3
14 Jul 2013 15:08 #596456
by murr50
1977 kz650 C
Replied by murr50 on topic KZ 650 Engine Removal
With the engine still in the frame, you can easily remove the head and cylinders. Once these are off, you should have lots of space to get the engine out. You can also use a jack and a 2x6 (to protect your oil pan) to help lift the engine just above the frame rails. Then, it's as simple as pulling it out.
-Murray
-Murray
1977 kz650 C
Please Log in or Create an account to join the conversation.
- OnkelB
- Offline
- User
Less
More
- Posts: 1011
- Thank you received: 80
14 Jul 2013 16:12 - 14 Jul 2013 16:12 #596465
by OnkelB
77 KZ 650 B1, 82 GPz 1100 B2.
Replied by OnkelB on topic KZ 650 Engine Removal

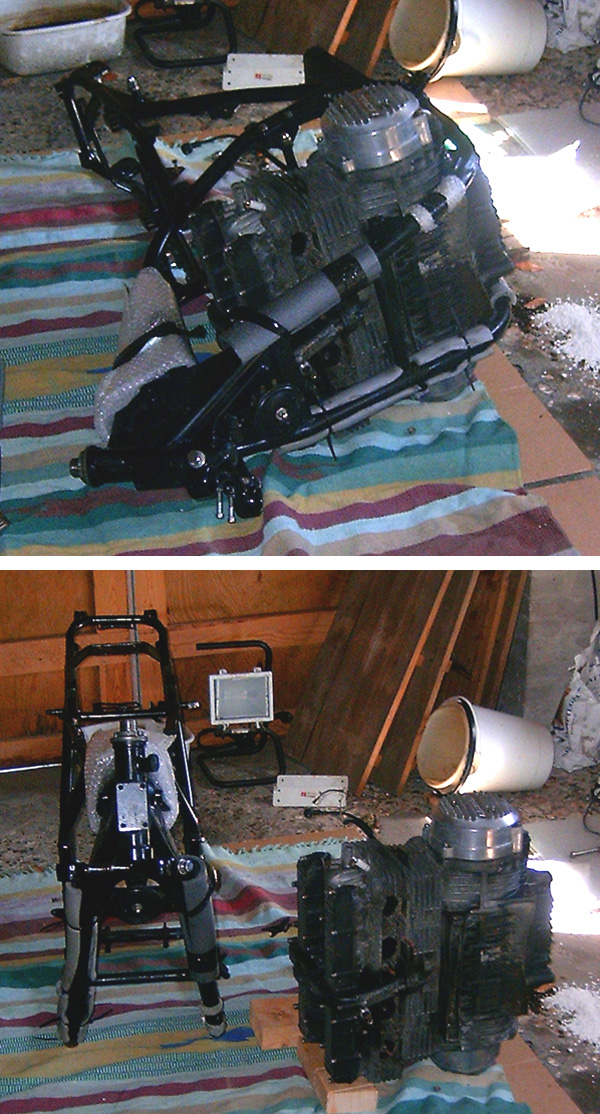

Laying the bike on it's side and lifting the frame off is by far the easiest way, there is less than 5 minutes between the two pics below, didn't even sweat.
