Oil Cooler Questions.
- 4TheKZ1000
- Topic Author
- Visitor
Which fitting pumps the oil to the cooler and which one is the return line?
Its a pre-J engine.
Thanks.
Please Log in or Create an account to join the conversation.
- wireman
- Offline
- User
- The most interesting prick in the world
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225
This 3/8ths line will feed into either end of the oil cooler.
The return line from the other end of the cooler will go to the upper case fitting behind the cylinder (right side of rear engine, oil pressure screw tube)thus feeding oil back into the system being passed up into/through the rear cylinder studs up to the head.
One with thread for oil switch, mounts to top of engine case.

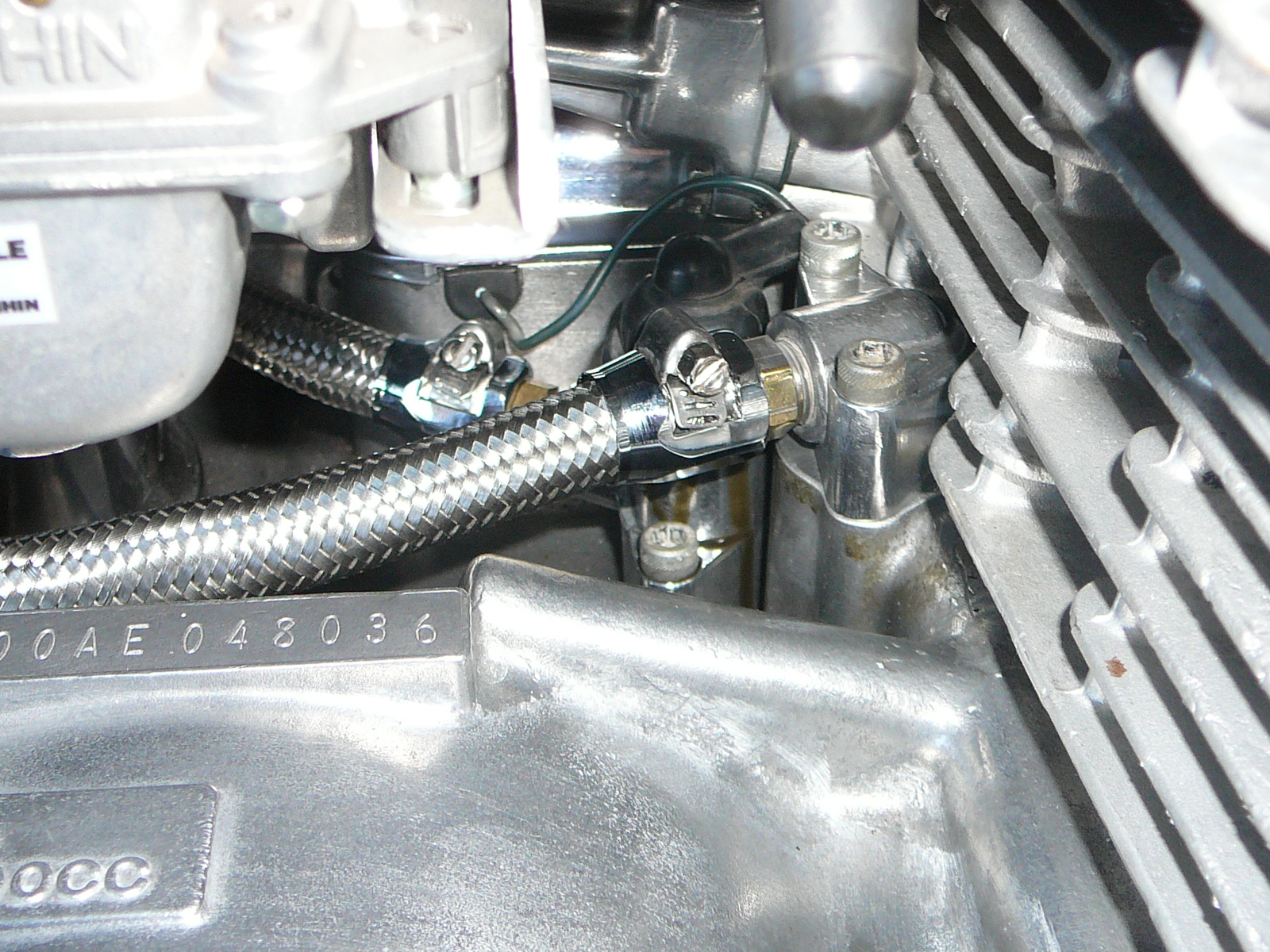

Definitely use new O-rings... As me how I learned this.... (See image) :ohmy: :laugh:
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- 4TheKZ1000
- Topic Author
- Visitor
Please Log in or Create an account to join the conversation.
- 4TheKZ1000
- Topic Author
- Visitor

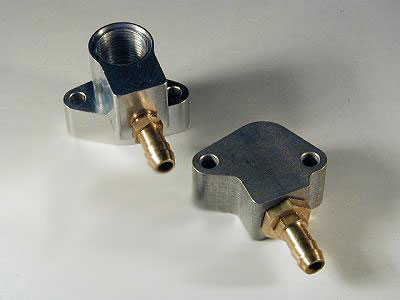

Looks like the other fitting has a bigger thread size......anyone know this size?
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- 4TheKZ1000
- Topic Author
- Visitor
Old Man Rock wrote: 3/8ths line on both cooler feeds into barbed fittings.... Same....
Im going to run AN fittings on mine....so need to remove barb fittings.
Please Log in or Create an account to join the conversation.
- pete greek1
- Offline
- User
- Posts: 1510
- Thank you received: 185
1980 LTD 1000..,1976 LTD 900, have the 1000&900 now. the rest are previous= 1978 KZ 650 B.., 1980 Yamaha XT 500..,1978 Yamaha DT 400.., 1977 Yamaha yz 80..,Honda trail ct 70.., Honda QA 50...5-1/2 hp brigs & straton CAT chopper mini bike...3-1/2 hp mini bike (WHEN GAS WAS ABOUT 45 CENTS A GALLON)!!!!
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225

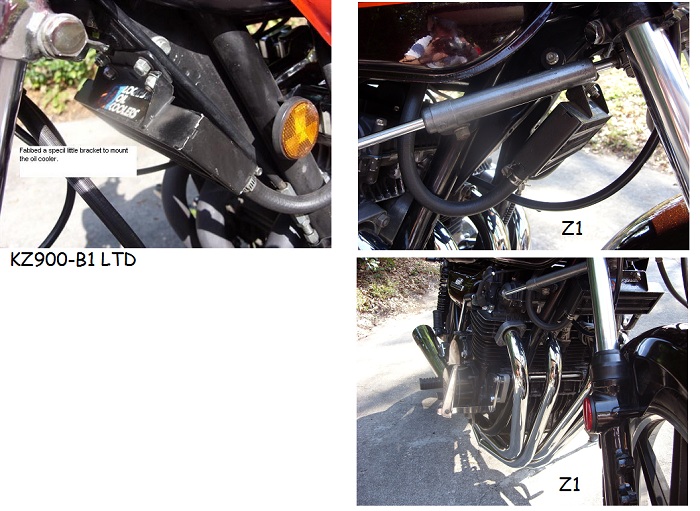

Under engine case seemed a PITA for oil changes and possible punctures not to mention added heat off exhaust.
