76 KZ900

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 225
  • Thanks: 18

Re: 76 KZ900

20 Jun 2023 17:11
#886247
Nice. Did you do any prep work on them before shipping?

No


76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 225
  • Thanks: 18

Re: 76 KZ900

16 Feb 2024 18:42
#895334

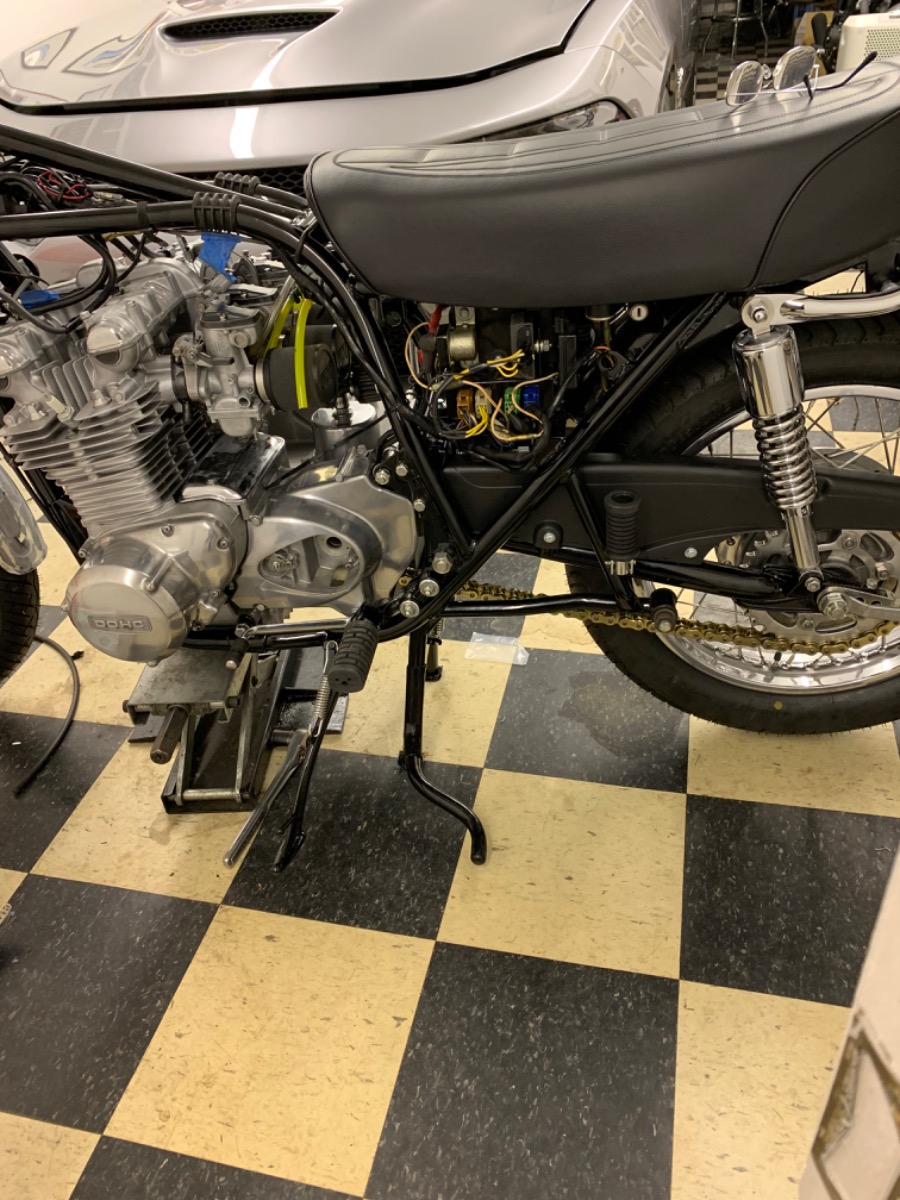

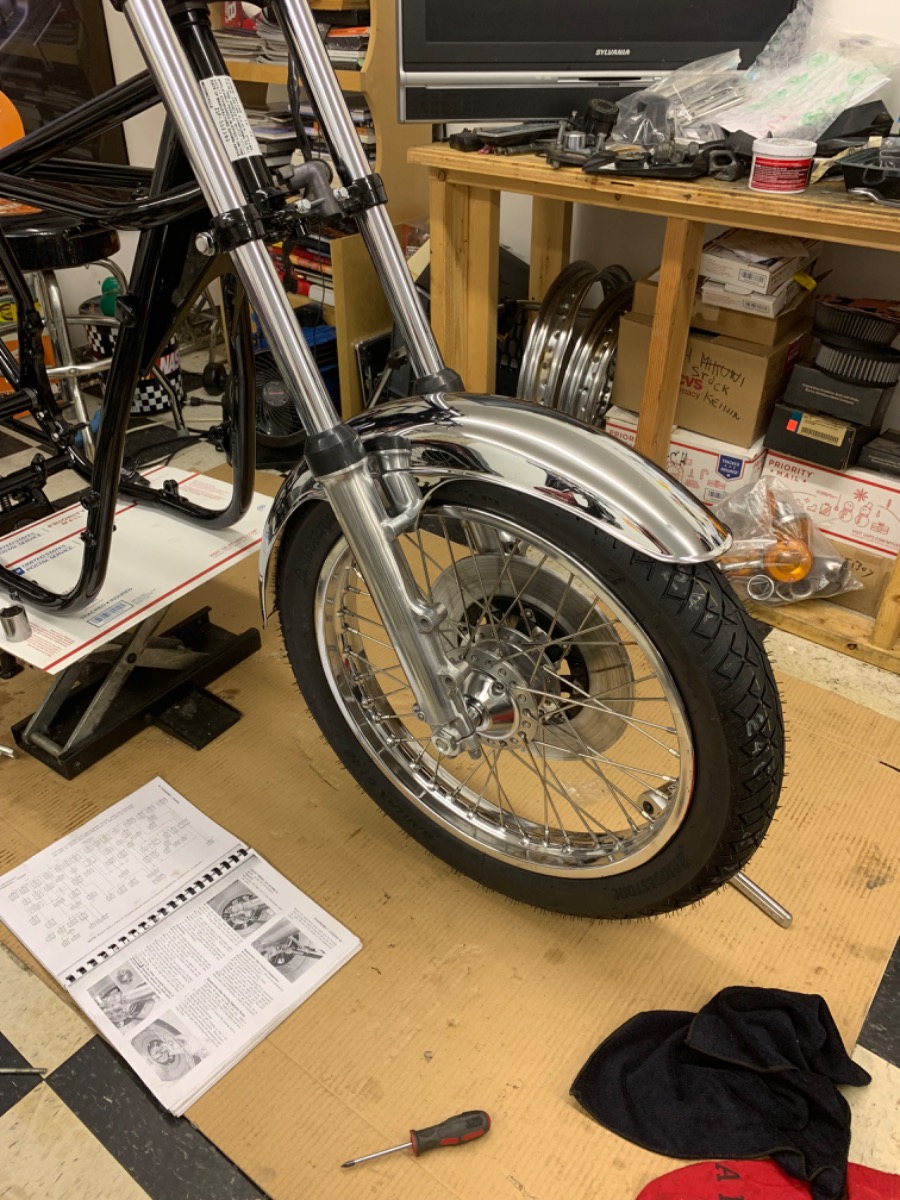

Assembly has started

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Attachments:

The following user(s) said Thank You: asphalt900, howardhb, Wookie58

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 858
  • Thanks: 375

Re: 76 KZ900

17 Feb 2024 02:31
#895340

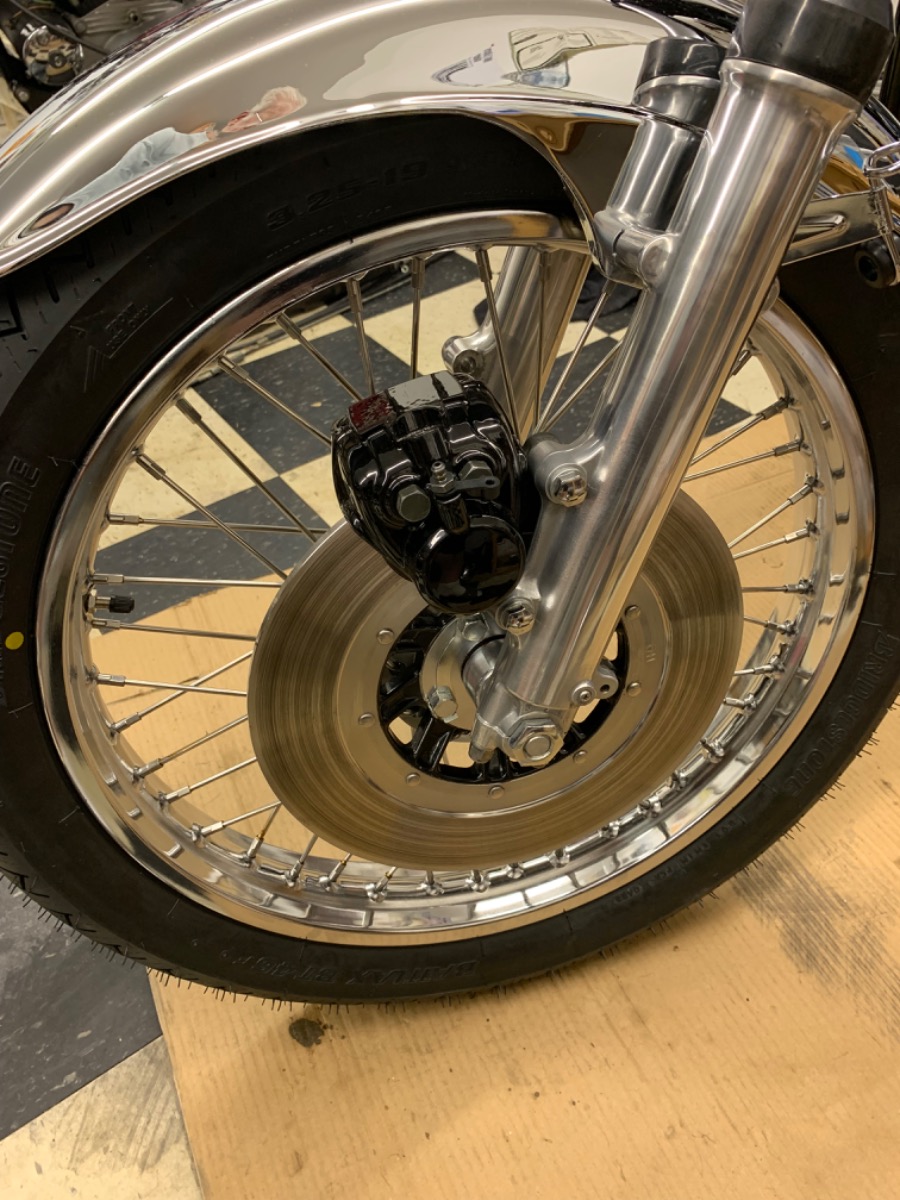

Let the Fun begin!! Once everything is clean it's like putting a puzzle together. Super Nice, correct "brushed", job on those fork lowers! Can't really tell by the photo but did You clear-coat them like original? Kinda look like it in the photo. If You did then what did you use??

Please Log in or Create an account to join the conversation.

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 225
  • Thanks: 18

Re: 76 KZ900

17 Feb 2024 05:04
#895344
No clear coat sand paper and scotch pads

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 225
  • Thanks: 18

Re: 76 KZ900

17 Feb 2024 05:10
#895347

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 858
  • Thanks: 375

Re: 76 KZ900

17 Feb 2024 05:15
#895348
The ole scotchbrite, the final sweet touch after wearing-thru the elbow grease sanding out all the imperfections! I've been looking for some clear product for years that can duplicate the original clear-coating. The closest I've come is had a set of the Z1's clear powdered, came out pretty good except for some minute bubbles. Looking Good my Friend!!

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 858
  • Thanks: 375

Re: 76 KZ900

17 Feb 2024 05:38
#895349

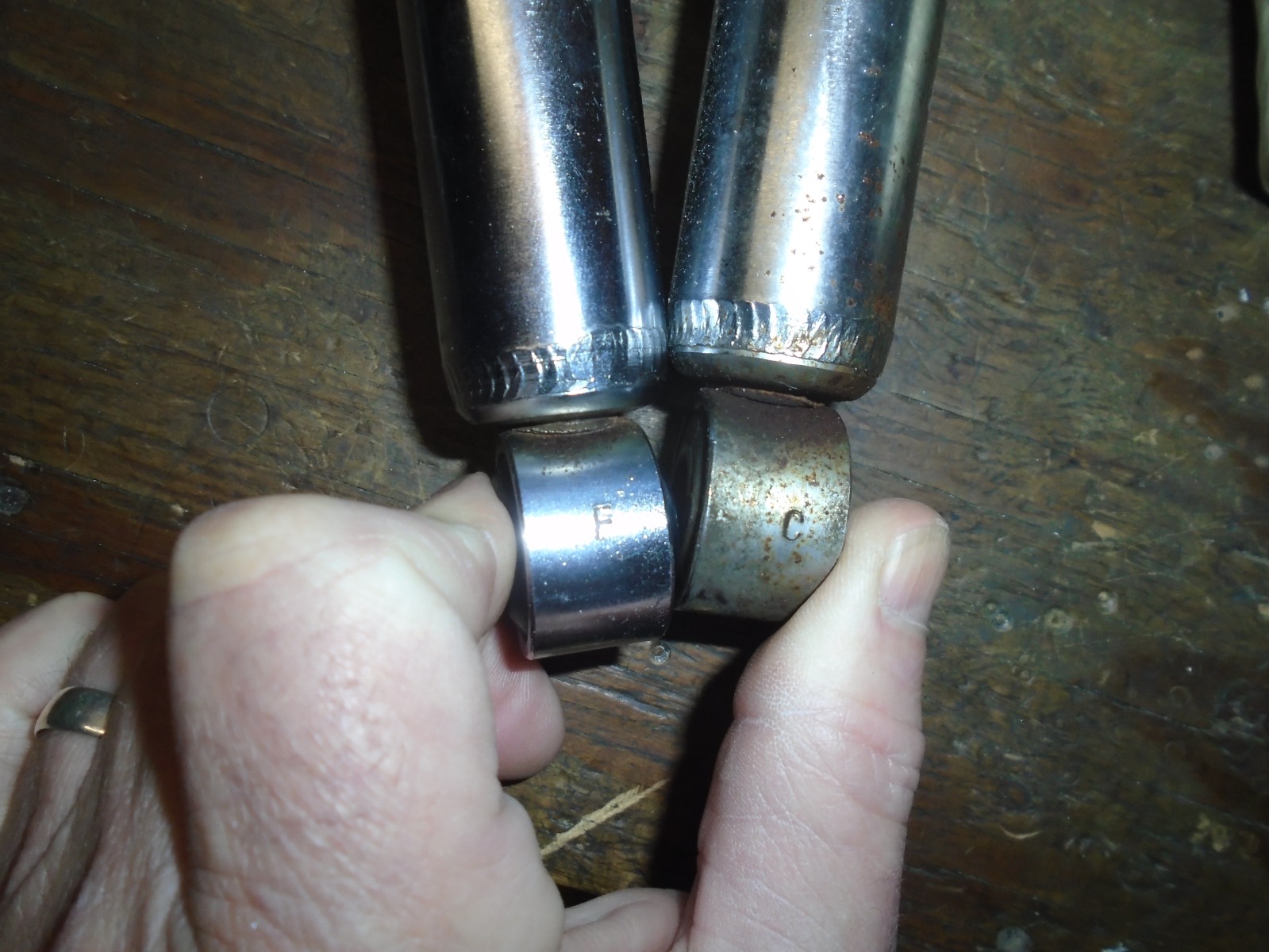

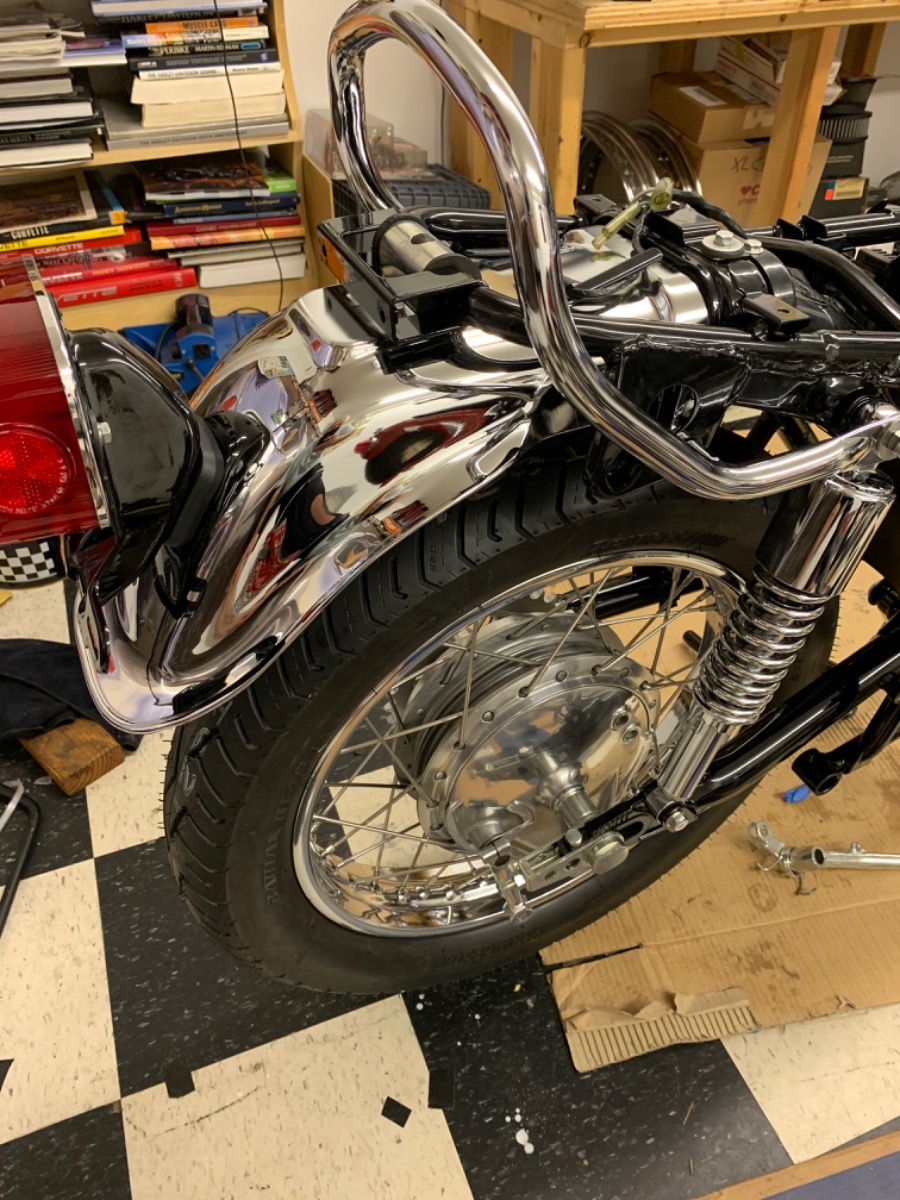

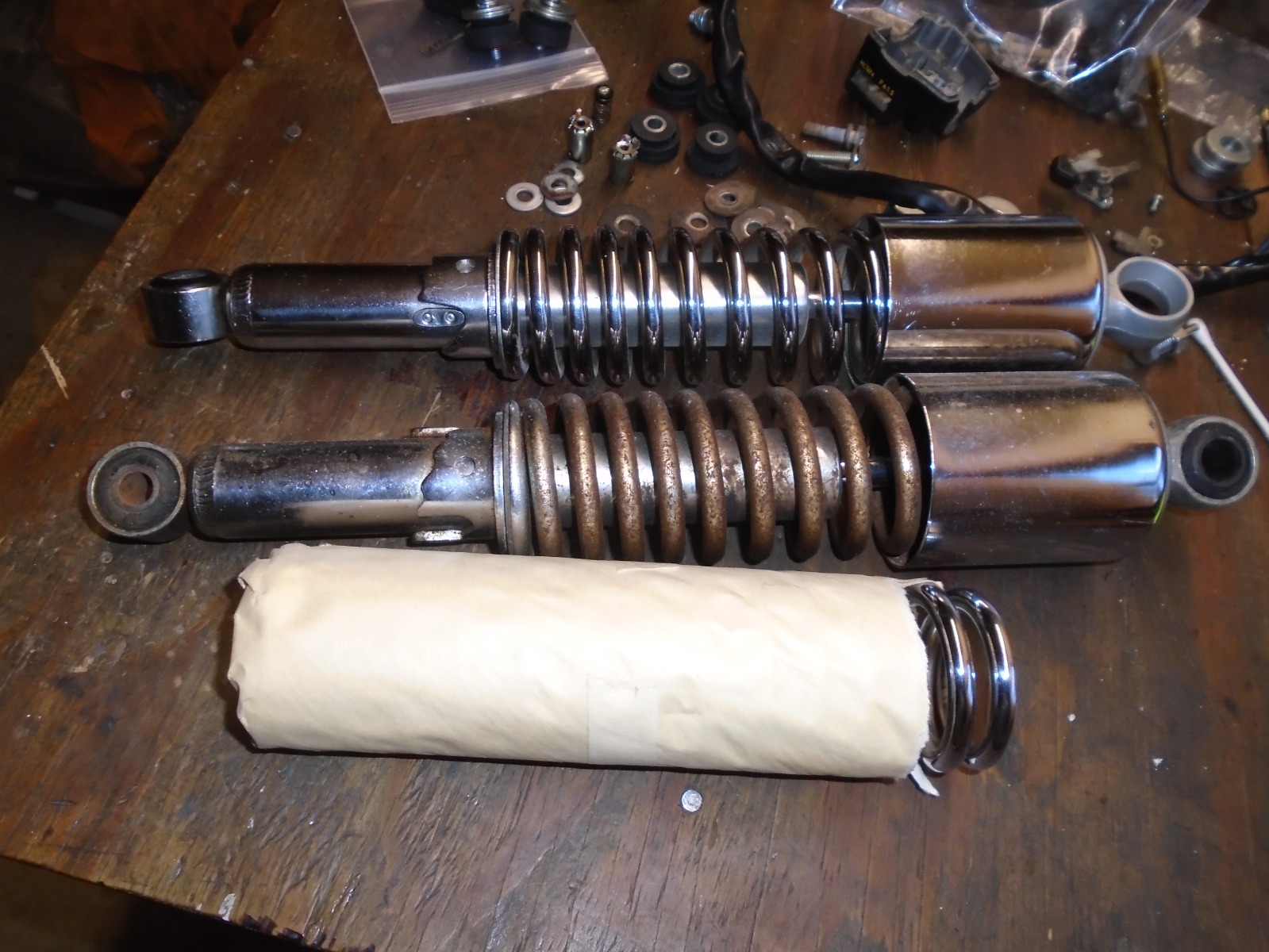

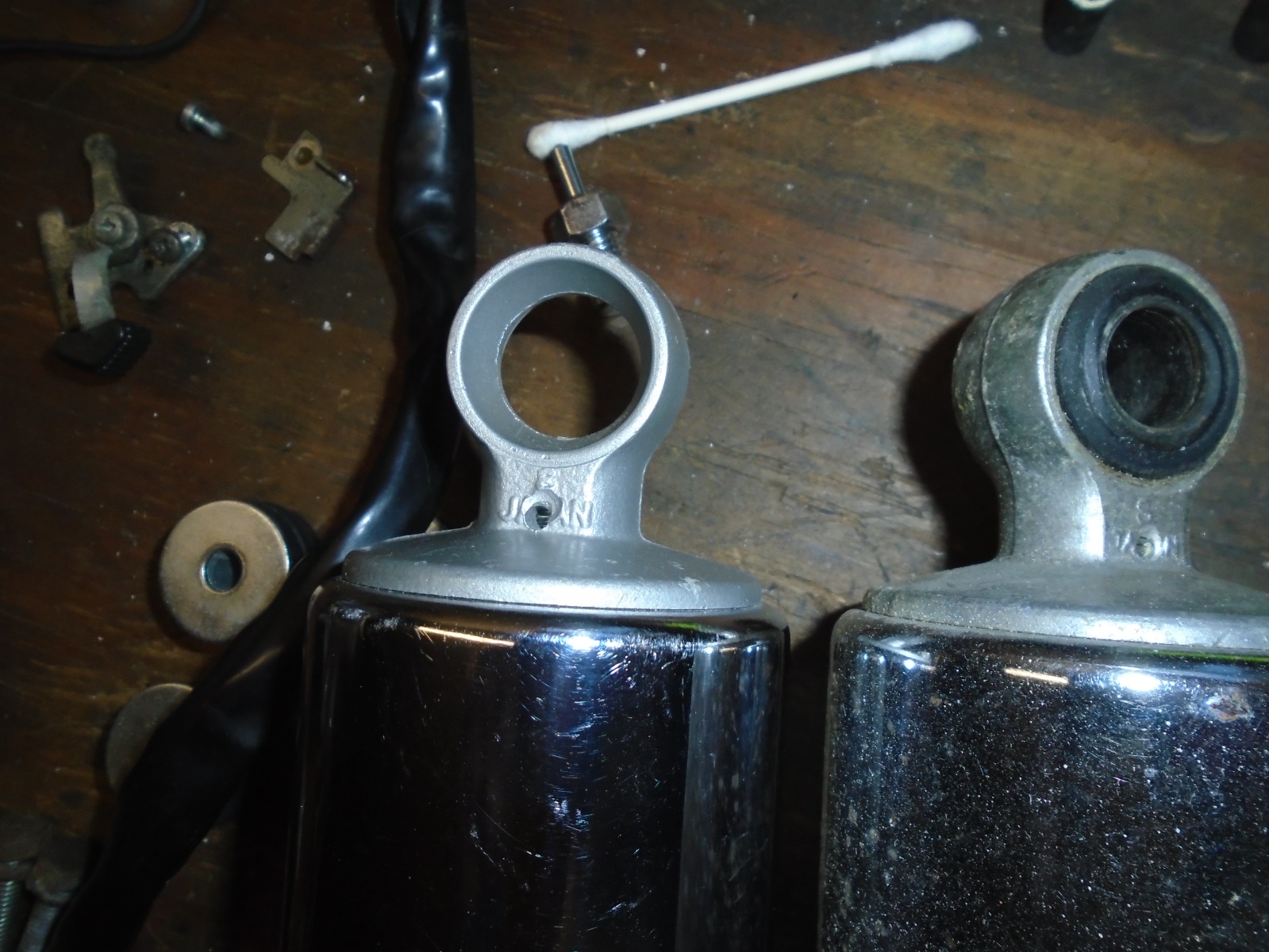

Here's something useful maybe? I see you have "replacement" rear shocks installed. Did you know that one can rebuild the originals, as long as the dampers still have, well damping? I don't purchase aftermarket ones, like to keep the date code on the lower mount intact. Yours, being a 76, should have a singular LETTER stamped into that lower, unlike the reflector Z1 shocks. Anyway i have the coils re-chromed and the lower adjuster. Then re-zinc the lower spring plate. Perhaps overkill but..

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 858
  • Thanks: 375

Re: 76 KZ900

17 Feb 2024 09:08
#895355

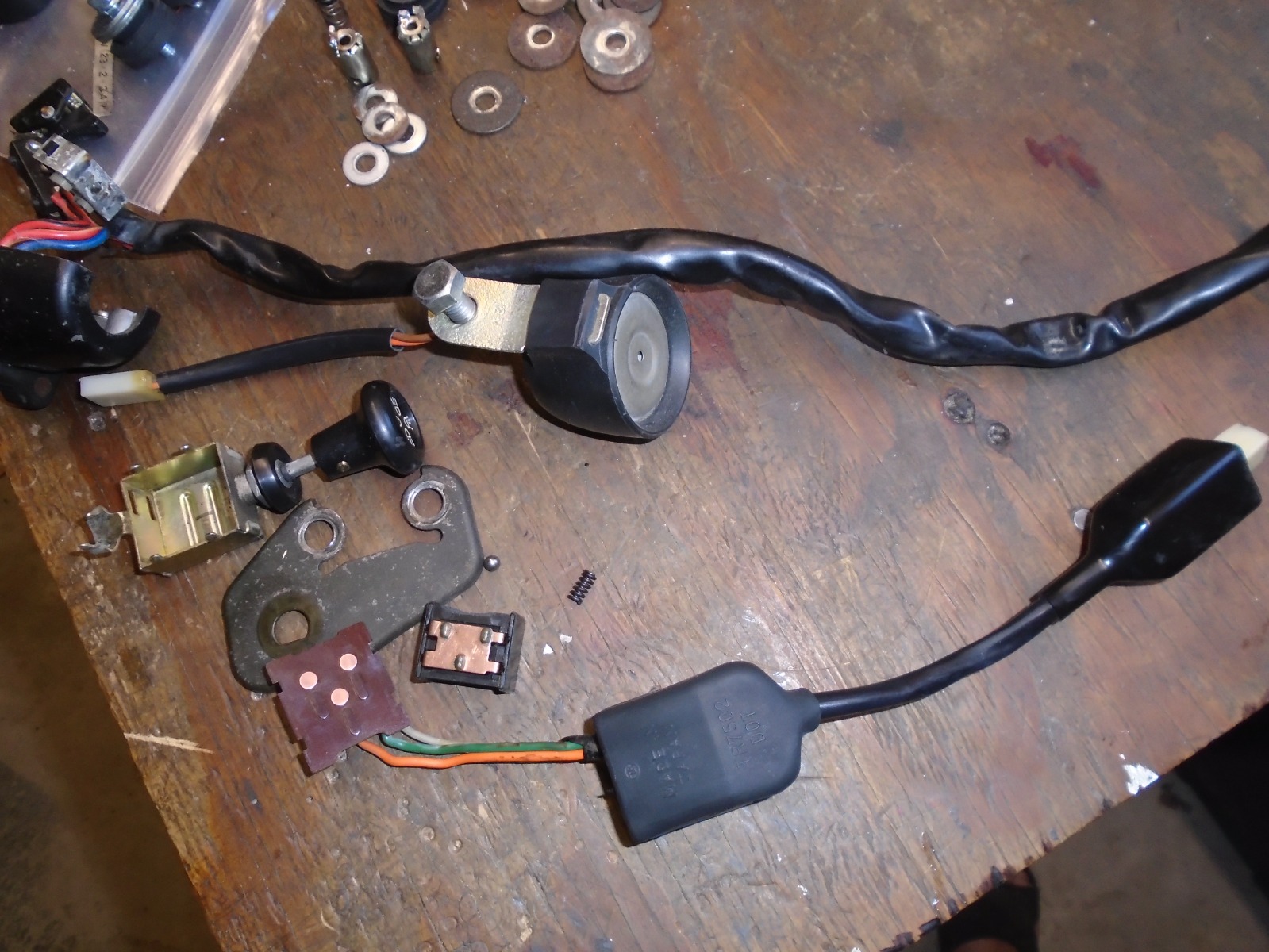

Some "final touches" if You choose. The 76-77 Hazard switch mounted on the RH side of the handlebar clamp bracket. And the often irritating piezo-electric turn signal buzzer/notifier of when you have the L/R turn signal knob in a turning position. I'm getting ready to send a couple of those hazard switch brackets out to have re-plated that "olive-drab". Disregard if you just decided to delete, which not a problem. Anyway i thought an interesting aspect for ALL to see what makes-up one of the internals of this TK switch.

Please Log in or Create an account to join the conversation.

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 225
  • Thanks: 18

Re: 76 KZ900

17 Feb 2024 12:46
#895362

Attachment not found

Attachment not found

Attachment not found


76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci

Please Log in or Create an account to join the conversation.

  • mvent
  • mvent's Avatar Topic Author
  • Offline
  • User
  • Posts: 225
  • Thanks: 18

Re: 76 KZ900

17 Feb 2024 12:53
#895363

76 KZ900
76 XLCH
78 KZ1000
04 FLSTFI 120 ci
The following user(s) said Thank You: sf4t7, howardhb

Please Log in or Create an account to join the conversation.

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4837
  • Thanks: 1851

Re: 76 KZ900

18 Feb 2024 11:49
#895394

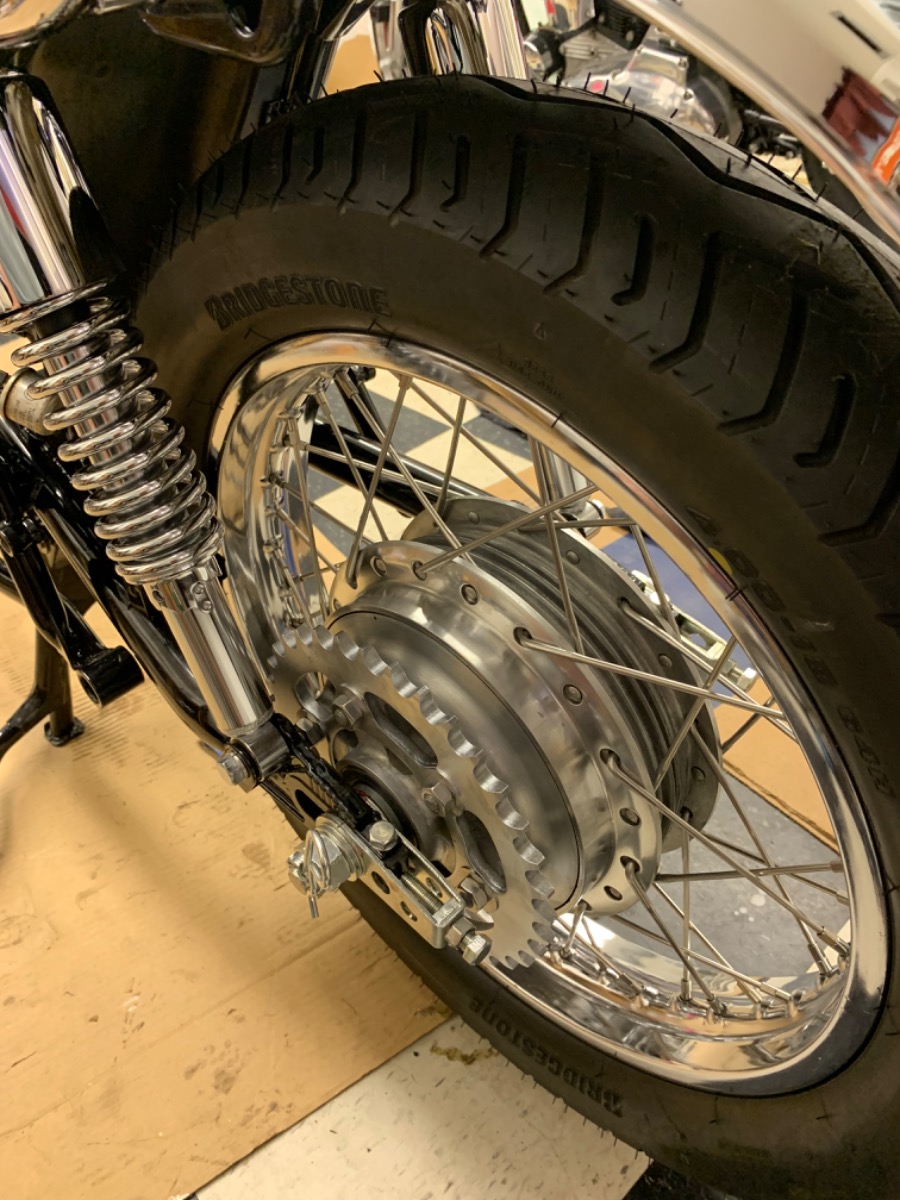

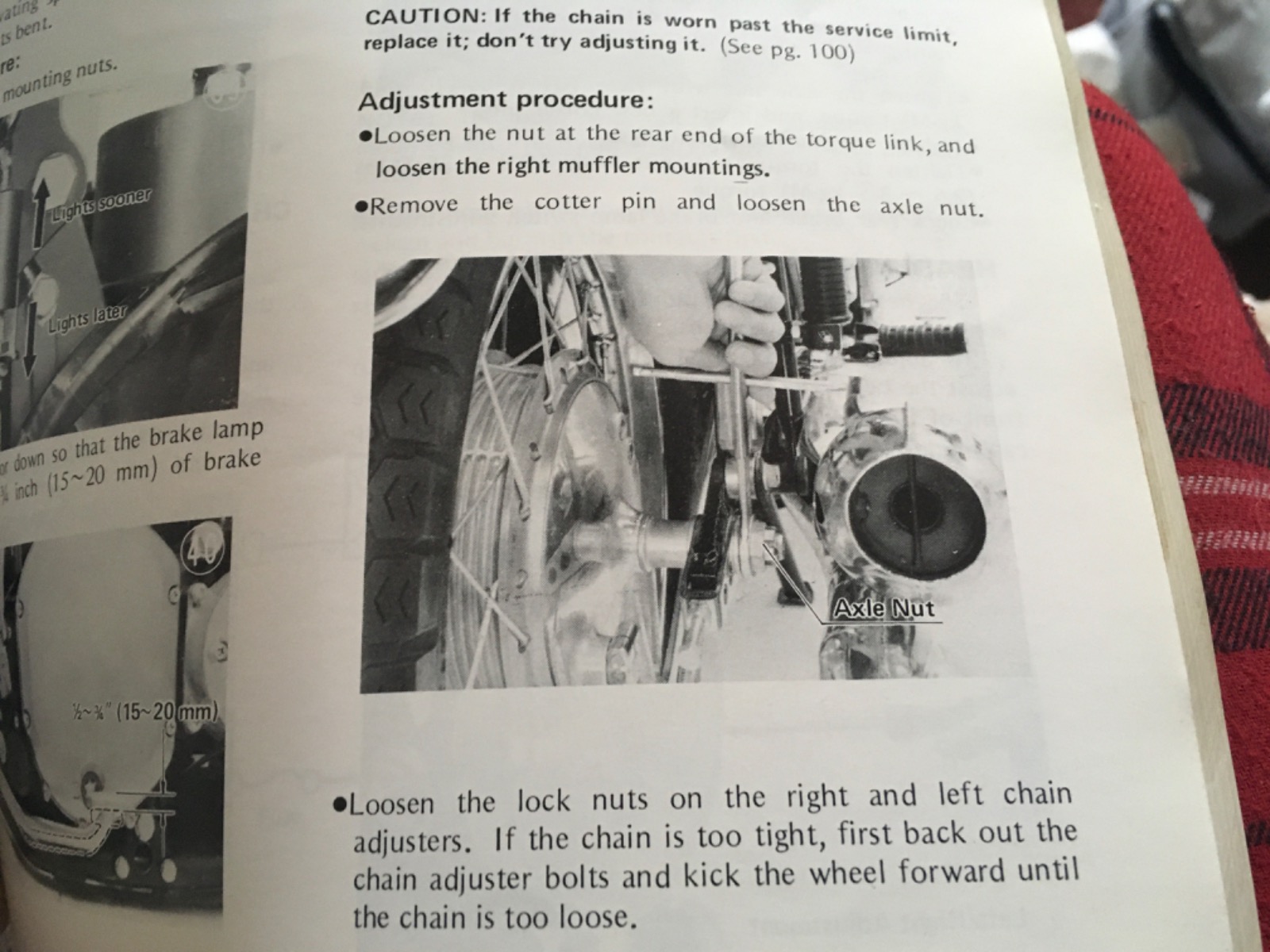

Looking very nice. Personally I think you rear axle is through the wrong way. Nut should be on the RH side. At least it’s shown that way in the FSM


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • Cra-z1
  • Cra-z1's Avatar
  • Offline
  • User
  • Posts: 241
  • Thanks: 177

Re: 76 KZ900

19 Feb 2024 08:27
#895420
Clearance can also be a problem with stock pipes I believe
