And finally, Wookie's 82 begins !
- Wookie58
-
Topic Author
- Away
- Moderator
21 Mar 2024 11:34 #896708
by Wookie58
Replied by Wookie58 on topic And finally, Wookie's 82 begins !
As the time approaches to "dis-assemble" I have been pondering how best to remove and re-fit the motor singlehandedly without hurting it or me (or fresh powder coat) and with minimal grunting and straining (I am 60 now

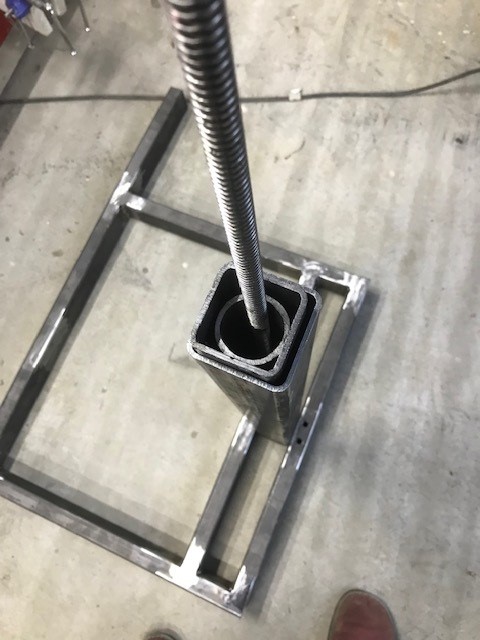

) I have come up with what I hope is the answer to remove the motor with the bike bolted down to the lift and transport it to my engine stand (which I will convert to a rotisserie) In essence it will be a "screw jack" that will work in conjunction with my lift and engine stand - early doors yet put below is my progress so far
Please Log in or Create an account to join the conversation.
- rstnick
-
- Offline
- User
22 Mar 2024 17:25 #896761
by rstnick
Rob
CANADA
Need a key for your Kawasaki? PM me
1978 KZ650 C2, 130K kms, Delkevic ex, EI, CVK32, PMC easy clutch, ATK fork brace, steering damper, braced swingarm, 18" Z1R front wheel.
2000 ZRX1100
2011 Ninja 250R
2005 z750s
Replied by rstnick on topic And finally, Wookie's 82 begins !
Not my set up, only saved the pictures:
Rob
CANADA
Need a key for your Kawasaki? PM me
1978 KZ650 C2, 130K kms, Delkevic ex, EI, CVK32, PMC easy clutch, ATK fork brace, steering damper, braced swingarm, 18" Z1R front wheel.
2000 ZRX1100
2011 Ninja 250R
2005 z750s
Please Log in or Create an account to join the conversation.
- Wookie58
-
Topic Author
- Away
- Moderator
23 Mar 2024 02:08 - 28 Mar 2024 02:48 #896770
by Wookie58
Replied by Wookie58 on topic And finally, Wookie's 82 begins !
Rob that is a much easier solution, however I am tight for space to manoeuvre and also don't have an engine hoist. You can rent them here in the UK but by the time I pay rental twice plus delivery and collection charges twice (I don't have a van or truck) there will be little difference in cost. I also don't have a main stand and I don't think a "paddock stand" would be secure enough. My rig will disassemble when not in use for storage and once I have finished it I am hopeful it will last for the rest of my lifetime only requireing different brackets for different bikes (don't tell Mrs Wookie but I do plan future projects
)
Last edit: 28 Mar 2024 02:48 by Wookie58.
Please Log in or Create an account to join the conversation.
- Quofan
-
- Offline
- User
- Wookie58
-
Topic Author
- Away
- Moderator
28 Mar 2024 00:31 #896990
by Wookie58
Thanks Buddy
Replied by Wookie58 on topic And finally, Wookie's 82 begins !
If you need a hand removing the motor give me a call and I'll come over.
Please Log in or Create an account to join the conversation.
- Warren3200gt
-
- Offline
- User
28 Mar 2024 06:21 - 28 Mar 2024 06:22 #897004
by Warren3200gt
Z1000J2 somewhat modified!
Replied by Warren3200gt on topic And finally, Wookie's 82 begins !
Your damper mounting position is the same as mine Guy, using the cooler mounts as the fitting spot, much more discreet than the girder out the side early style.
Z1000J2 somewhat modified!
Last edit: 28 Mar 2024 06:22 by Warren3200gt.
Please Log in or Create an account to join the conversation.
- Wookie58
-
Topic Author
- Away
- Moderator
14 Apr 2024 01:23 #897615
by Wookie58
Replied by Wookie58 on topic And finally, Wookie's 82 begins !

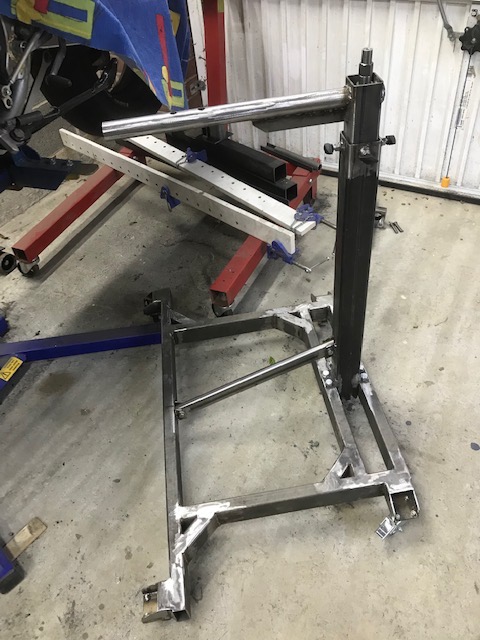

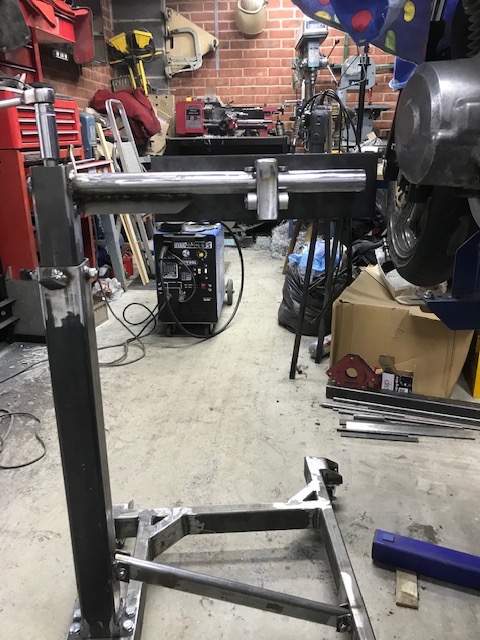

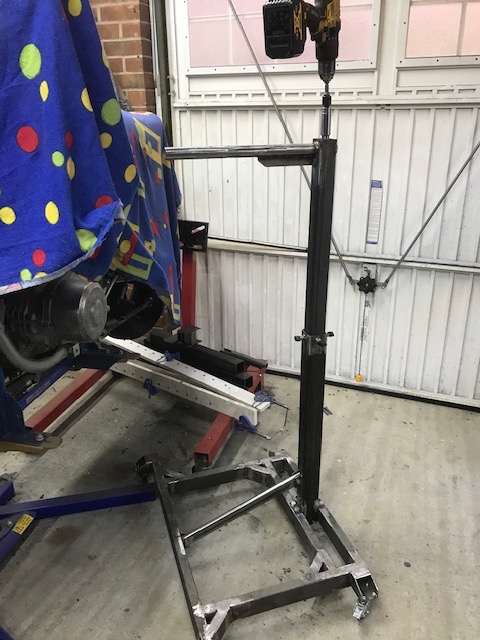

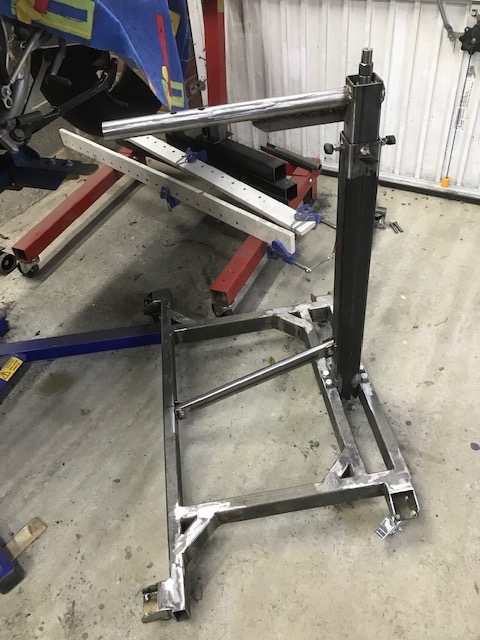

Managed to get sometime in the garage this week so I have finished up my "motor extraction device"
(I will worry about painting it once I know it works correctly) I have load tested it (by sitting on the lifting bar and raising it as I wheigh about the same as the motor) maybe I should put a ticker on it SWL= >1FB (safe working load = greater than 1 fat bastard)

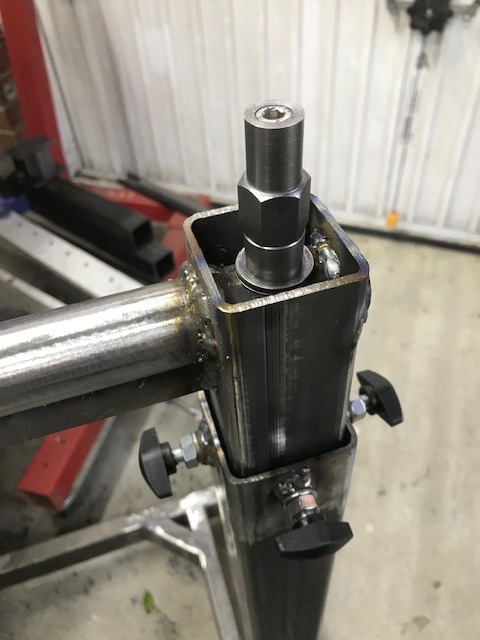

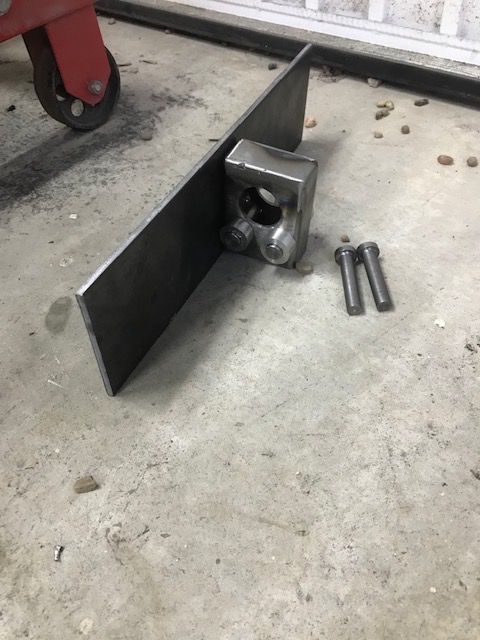

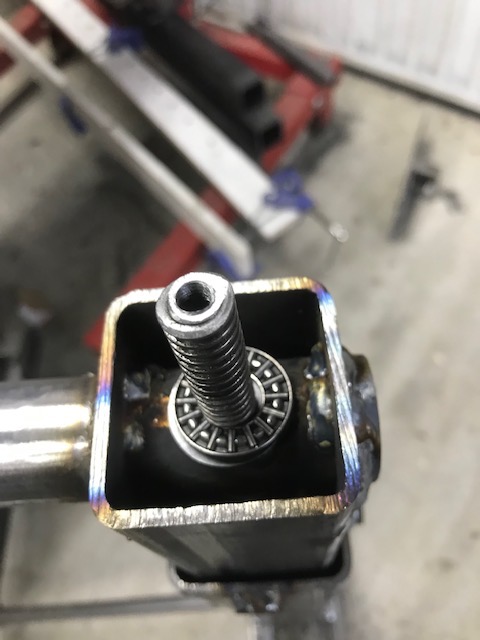

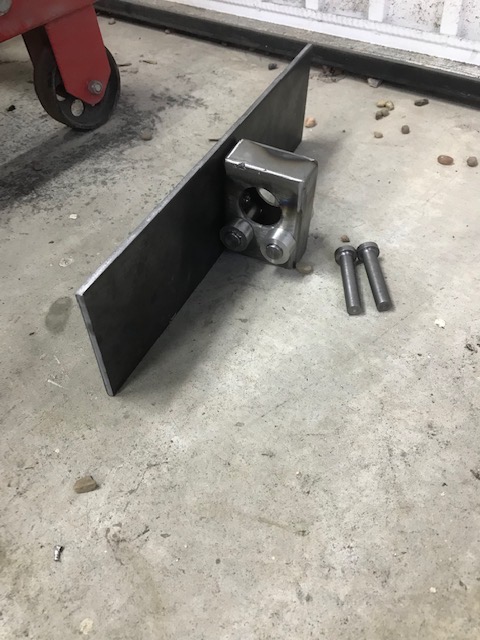

the plate that bolts to the engine is bolted to the carrier so when it comes to using it for a different motor in a different bike I would only need to make a new flat plate (less than $10) I have also used needle rollers so the screw doesn't "snag" - when not in use it will break down and fit under my bench.
Please Log in or Create an account to join the conversation.
- calum
-
- Offline
- User
14 Apr 2024 01:40 #897616
by calum
Current Project:
www.kzrider.com/forum/11-projects/616901...-spare-parts-project
1977 KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Replied by calum on topic And finally, Wookie's 82 begins !
Nice work! Pretty sure the safe working load should be equal to or less than one fat bastard though
Current Project:
www.kzrider.com/forum/11-projects/616901...-spare-parts-project
1977 KZ1000 Restomod ( www.kzrider.com/forum/11-projects/614517-1977-kz1000-restomod )
1980 KZ750H ( kzrider.com/forum/11-projects/612054-kz750h-restoration )
2000 BMW F650GS
Please Log in or Create an account to join the conversation.
- Quofan
-
- Offline
- User
- Rolf1976_KZ900
-
- Offline
- User
- Wookie58
-
Topic Author
- Away
- Moderator
20 Apr 2024 14:02 #897899
by Wookie58
Replied by Wookie58 on topic And finally, Wookie's 82 begins !

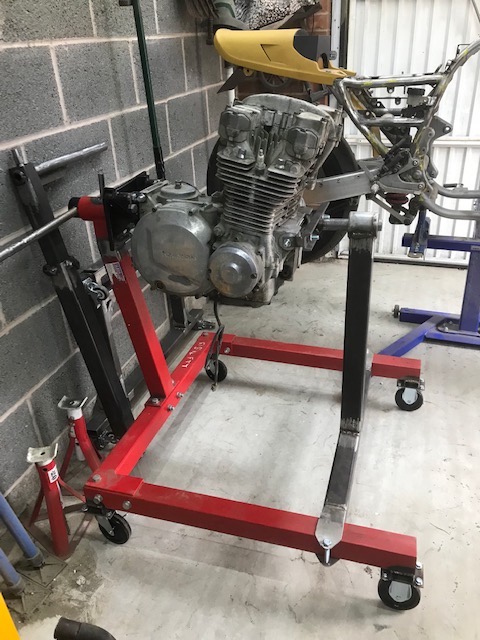

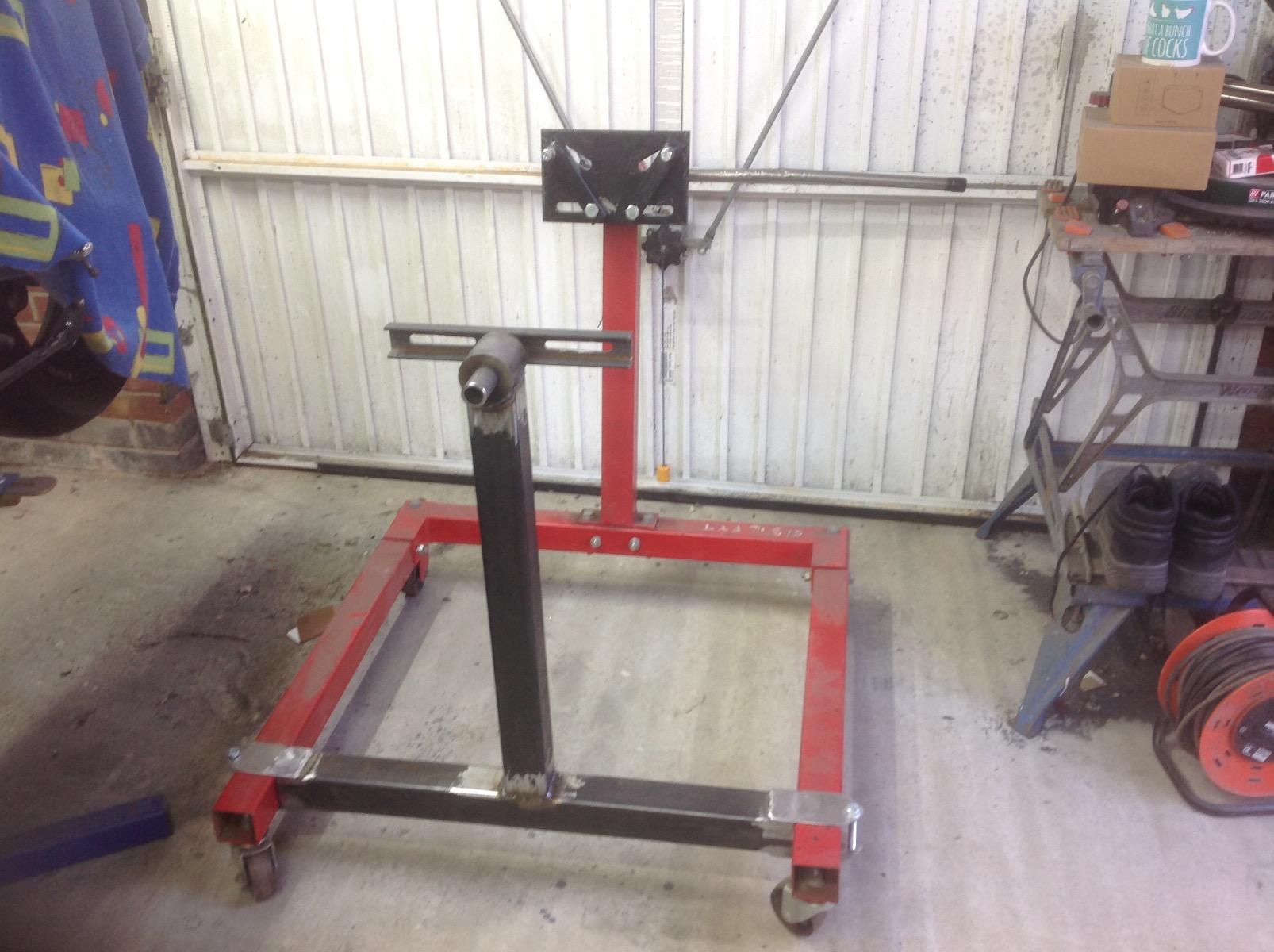

After another busy day the "rotisserie" conversion on my engine stand is done (just need to make a couple of brackets)
Please Log in or Create an account to join the conversation.
- Wookie58
-
Topic Author
- Away
- Moderator
04 May 2024 10:53 #898456
by Wookie58
Replied by Wookie58 on topic And finally, Wookie's 82 begins !

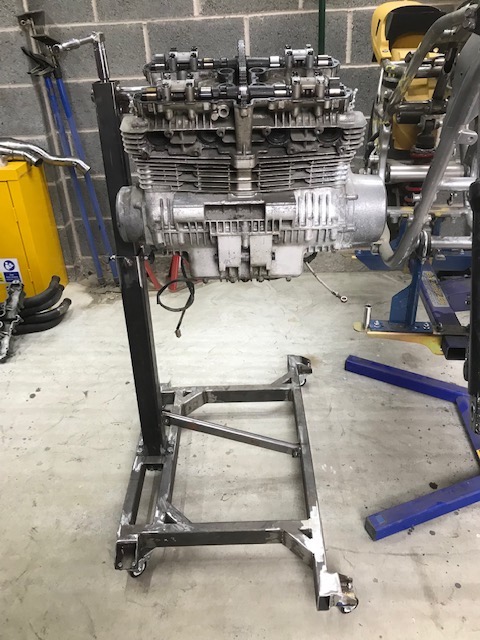

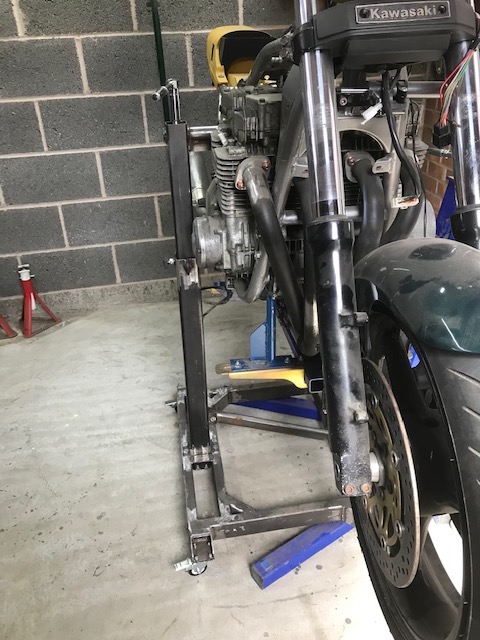

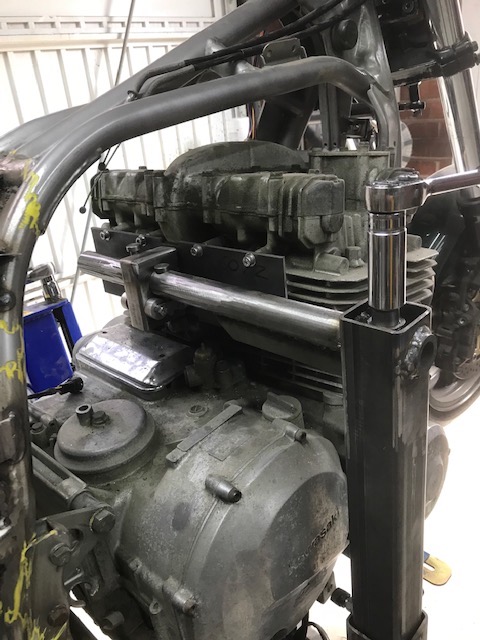

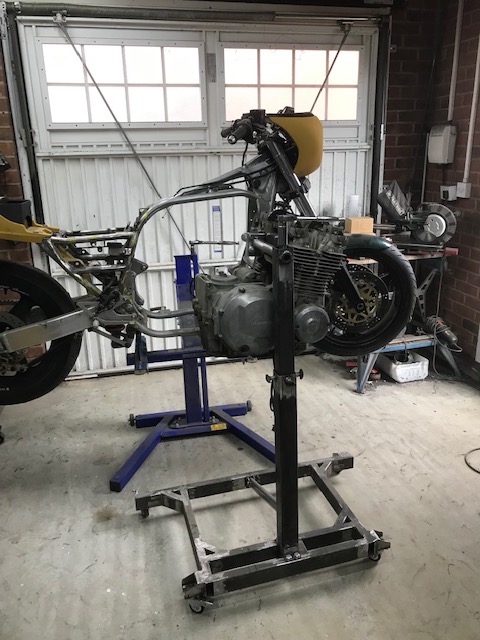

Have had a great couple of days on this, last night I got the bike turned around on the lift so the "right" side was clear of the lift post. My lifting device (whilst it's probably a bit OTT) worked like a dream to extract the motor and drop it into the rotisserie. The most strenuous part was doing up the bolts so it did as intended by avoiding any damage to me or the bike
