1981 GPz1100 B1 Rstomod / ELR "Tribute" 15 Nov 2023 01:29 #891719

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3521
  • Thank you received: 2015

That would be great, thanks Wookie
Mail sent
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 26 Dec 2023 16:14 #893155

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • God, I trust
  • Posts: 435
  • Thank you received: 447
Seasons Greetings everyone!

My "Tribute" build received a nice addition this week...

The original GPz 1100 B1 instrument cluster that was on the bike was "beyond restoration" and had to go.

I searched far and wide for a "genuine" Lawson Replica cluster, but ended up  replacing it with one from a 1982 GPZ 1100 B2, that I sourced on eBay.
However, this cluster was never used on actual Lawson replicas, and it bugged me...

Two months ago, a fellow KZR member, Ojisan Rider, posted a few pics of a disassembled / damaged cluster that he was planning to "throw out", but was asking if anyone wanted it. Duh!

After a few emails we agreed on a (super reasonable) price: so the bits were nicely packaged and were soon on their way to me, via USPS, from HAWAII !!!

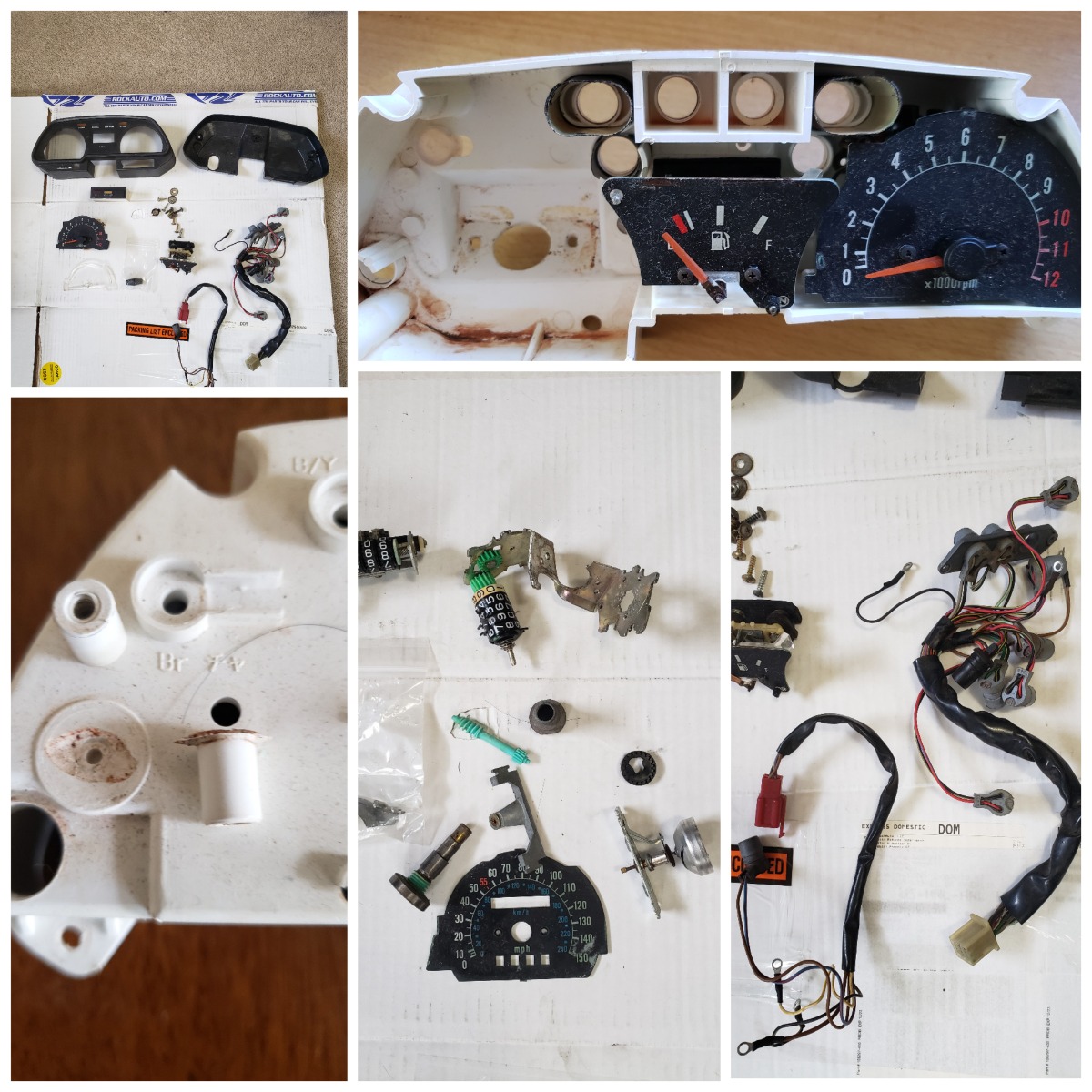

This is what it looked like:
​​

To say that the speedometer mechanism was "un-servicable" would be putting it mildly.

However, I had hoped that the speedo mechanism from my B2 cluster would be a " drop-in" replacement!

I spent some time cleaning up the bits, after which I performed the transplant "surgery"...

I am very happy to report that the "operation" was a success!

I installed new 12volt, 5 watt, peanut bulbs, and closed up the unit.
I was eager to see it installed on my bike...

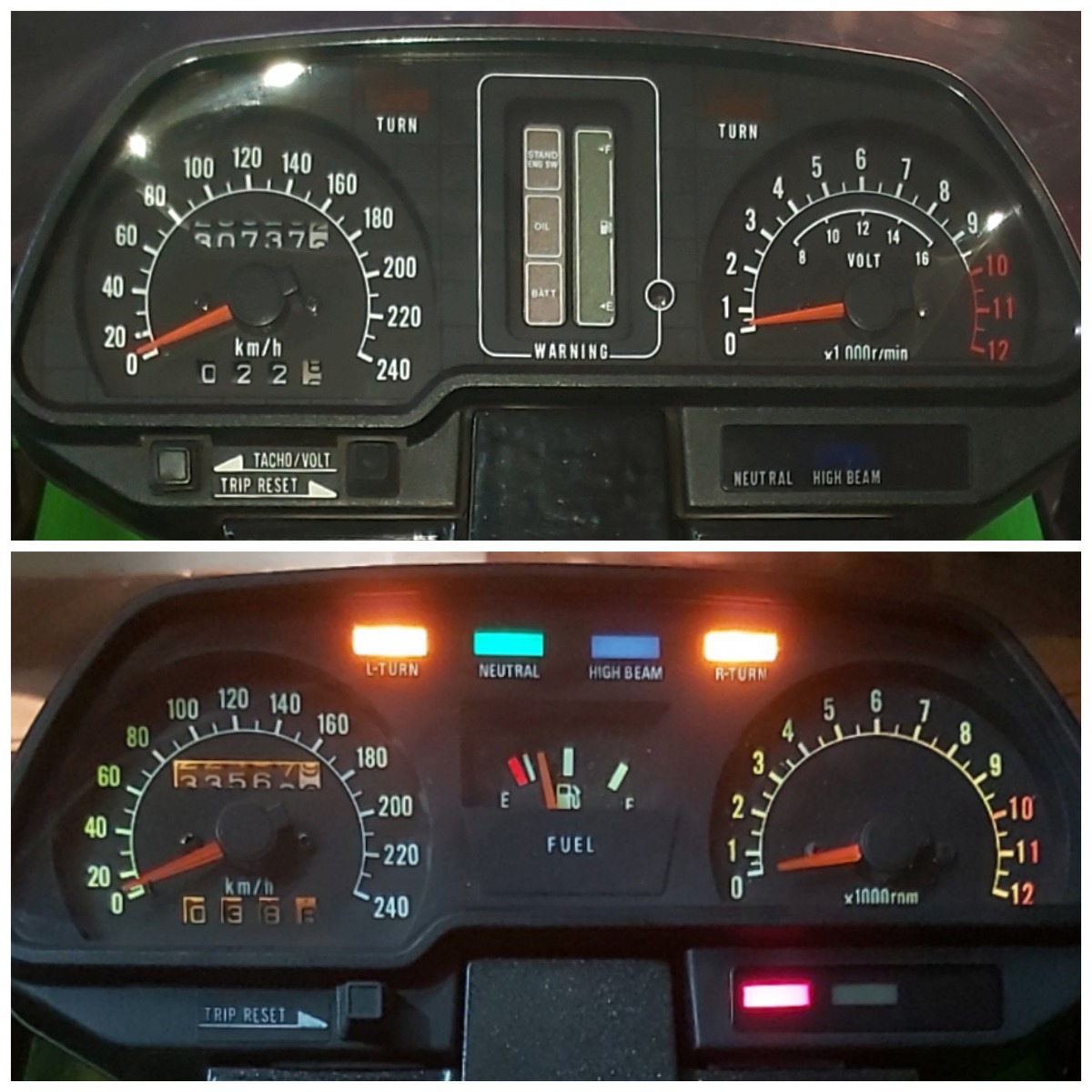

Before / After......



I removed the oil pressure signal "inverter" that I had made to suit the B2 instruments, as well as some wiring bridges that were required to prevent the missing side-stand switch and battery electrolyte low level from permanently illuminating the warning LCD and bright red LED!

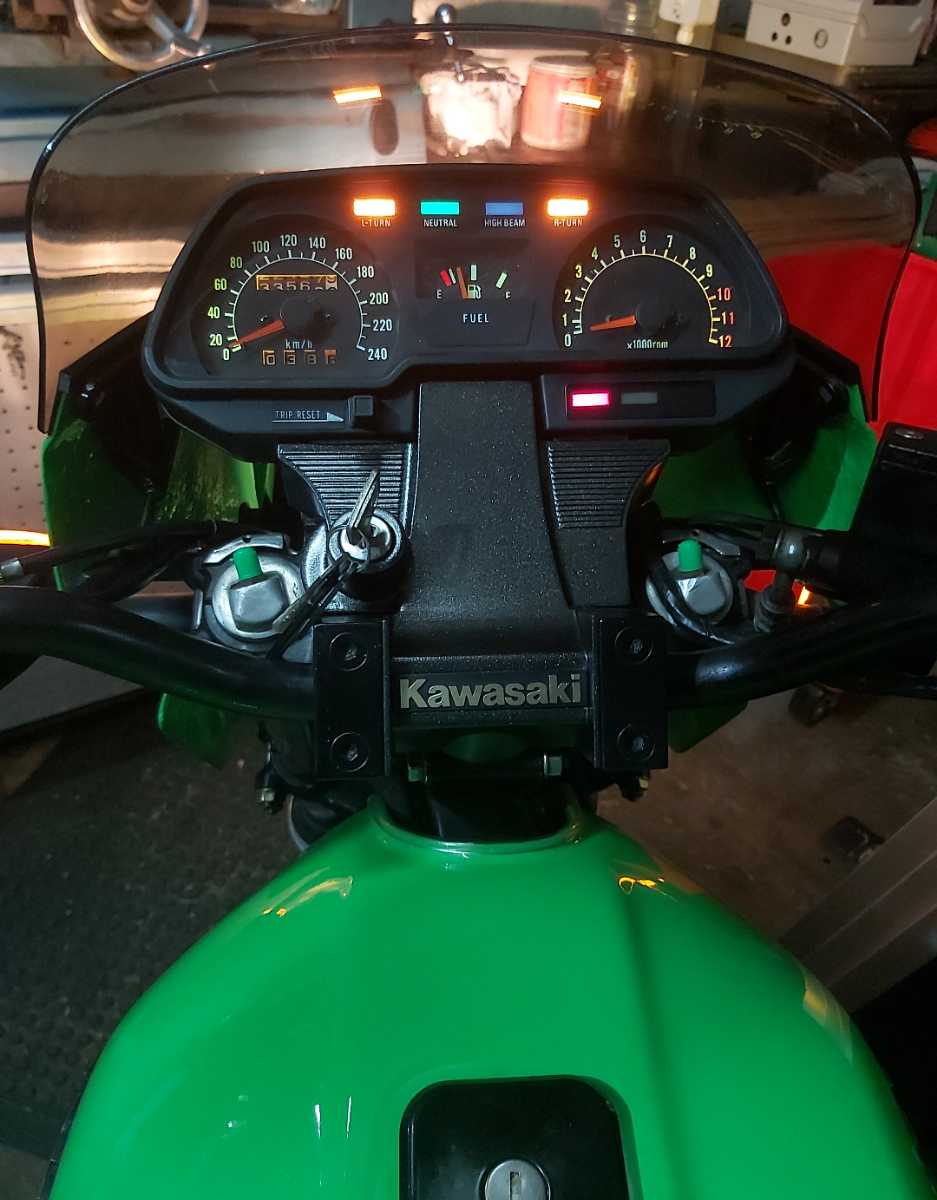

This is the final result:



​​​Thanks again Toshi, (Ojisan Rider), most appreciated!

My "Tribute" is nearly indistinguishable from an actual Lawson replica! (I said "nearly" ! )
What remains now is a Kerker megaphone... and I'm hot on the heels of one!
​​​
H.
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:
The following user(s) said Thank You: Mcdroid, Nessism, Jonas_Z1000j, Wookie58, Rolf1976_KZ900

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 26 Dec 2023 17:47 #893156

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7318
  • Thank you received: 2125
Nice job.

One man’s trash…..
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: howardhb, Wookie58

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 08:24 #894136

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • God, I trust
  • Posts: 435
  • Thank you received: 447
I can't believe my luck!

I found a Kerker megaphone on my local FakeBook  Marketplace for $8 !!!
Seriously!

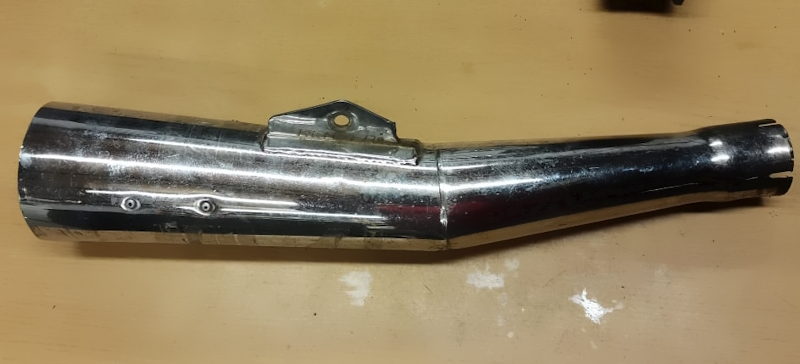

​​I'm not sure what model it is from:
It is chrome plated, and has an ”XR" stamped near the mounting bracket.
It is in fair shape, but the cast aluminium baffle end cap has been hammered / butchered... but I think I can "repair" it...
more on that later....

The Kerker badge was not included... what to do?....
I have seen those badges sell on Ebay for $150!!!
I thought I wound try and make a replica

First, I traced the letters of the badge (from a picture on an Ebay auction)
Then I could design a press tool that I could 3D print..

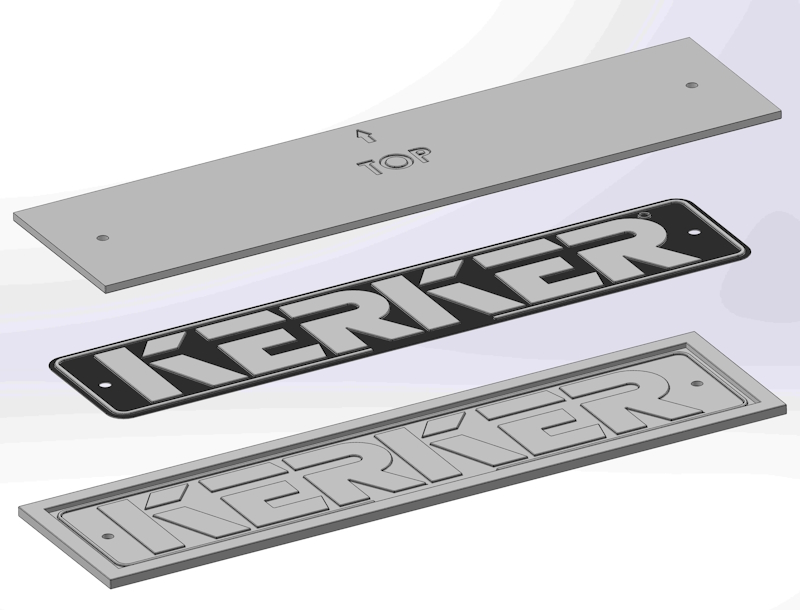

Here is my tool design:

​​​

I have some 0.2mm aluminium Litho printing plate, which is perfect for a badge.

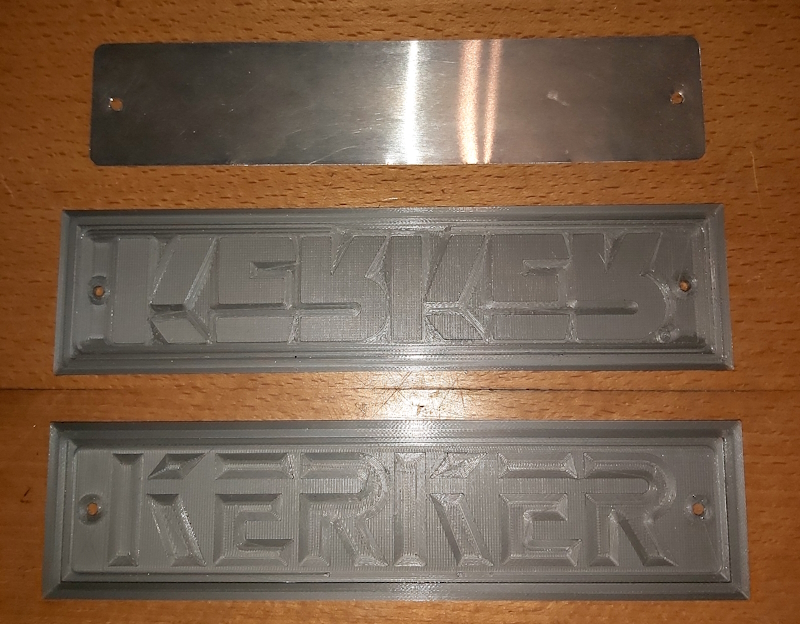

Here is the printed tool with the blank litho plate...



I had a local decal company cut a "mask" from "peel and stick" vinyl so that I could spray paint the black areas of the badge, which, when the mask is removed, would leave the shiny aluminium letters exposed...

​​​​​​

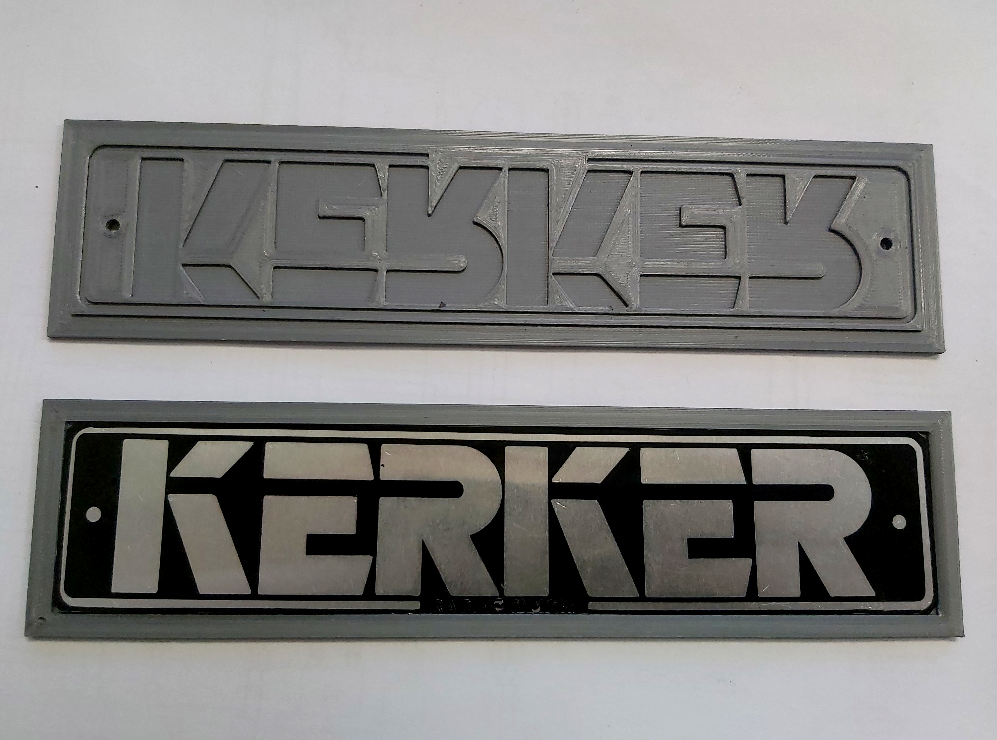

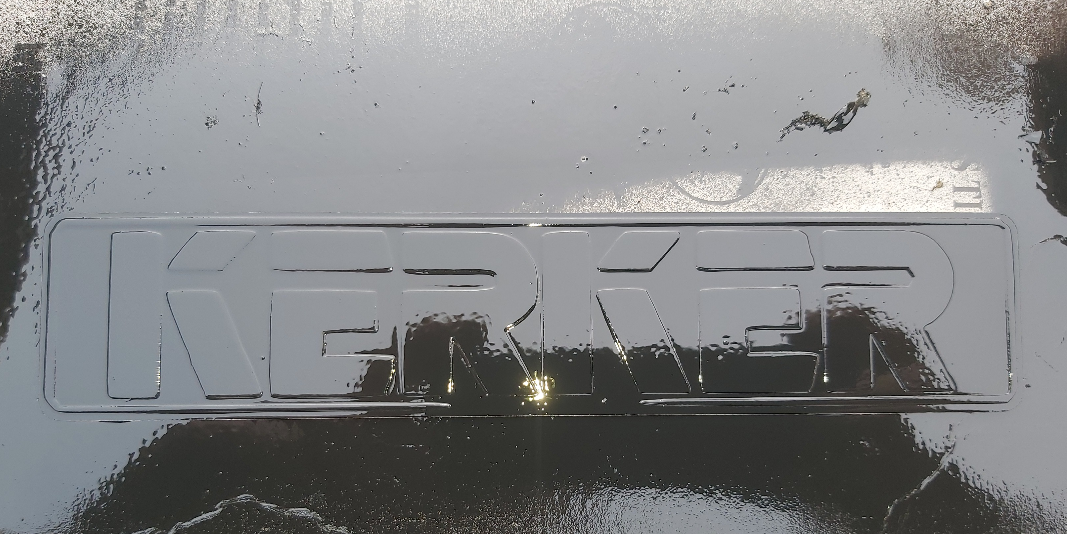

Here is the unmasked, painted aluminium litho plate, placed in the press tool...

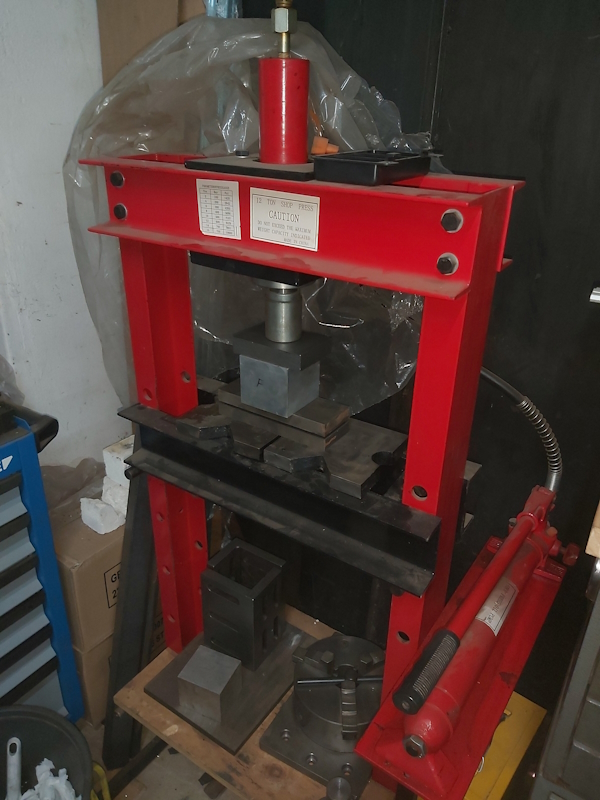

I placed my 3D printed tool between two 25mm thick steel plates and pressed it on a 10 ton hydraulic press.
(the gauge showed 8 ton)

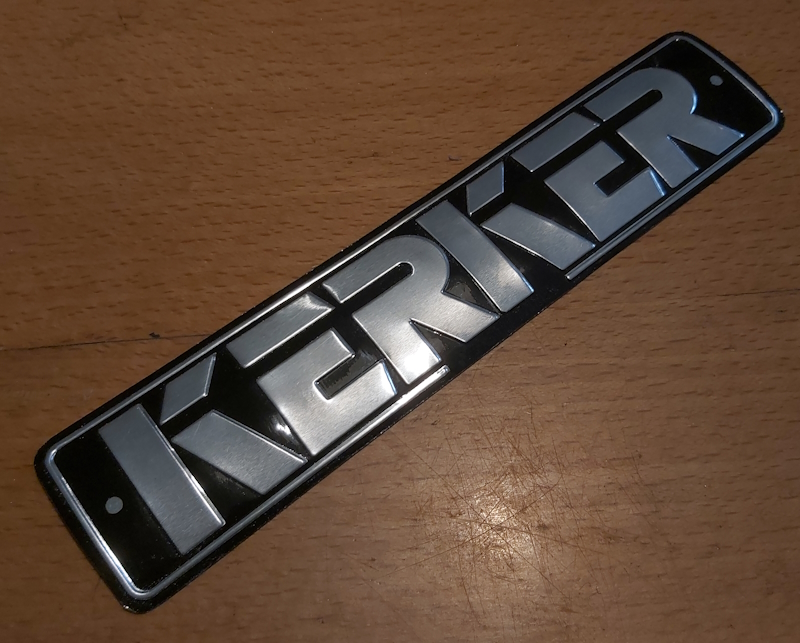

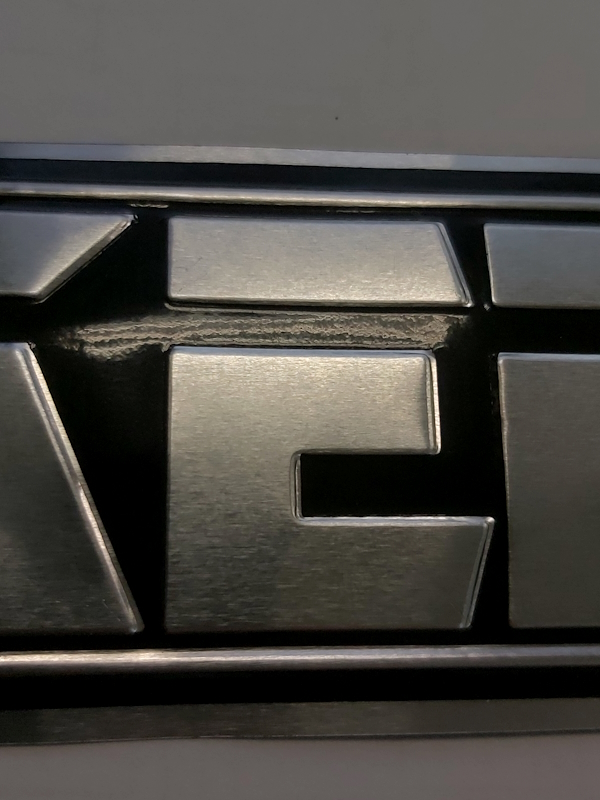

I was totally shocked by the result!



The letters are perfectly "embossed", about 0.4mm (1/64 inch).



I hope this is not considered to be "counterfeiting" !!!

H.
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:
The following user(s) said Thank You: Mcdroid, rstnick, ThatGPzGuy, calum, Moose1800, Rolf1976_KZ900

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 08:28 #894137

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3521
  • Thank you received: 2015
Loving your work as always Howard
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 10:07 #894141

  • Jonas_Z1000j
  • Jonas_Z1000j's Avatar
  • Offline
  • User
  • Posts: 94
  • Thank you received: 31
Very impressive!
Z1000 J2 -82 not so running restoration object anymore
Z900RS -21 Green/Yellow
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 10:18 #894142

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar
  • Offline
  • User
  • Posts: 374
  • Thank you received: 141
Very Nice and clever work!
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 10:23 #894143

  • Mcdroid
  • Mcdroid's Avatar
  • Offline
  • User
  • Gone Kwackers
  • Posts: 6593
  • Thank you received: 306

Very impressive!
I admire your use of the word 'impressive'!
Michael
Victoria, Texas

1982 GPz750
1977 KZ1000A
1978 KZ1000A
1982 GPz1100
1975 Z2A

The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 10:54 #894145

  • Moose1800
  • Moose1800's Avatar
  • Offline
  • Sustaining Member
  • Posts: 309
  • Thank you received: 271
WOW........You never fail to impress me with your work, I bet you have a hard time sleeping thinking about the project at hand.

Great Work!!
The following user(s) said Thank You: howardhb

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 10:57 #894146

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • God, I trust
  • Posts: 435
  • Thank you received: 447
Impressed, embossed...
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!

Please Log in or Create an account to join the conversation.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 18 Jan 2024 11:05 #894148

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • God, I trust
  • Posts: 435
  • Thank you received: 447

.... I bet you have a hard time sleeping thinking about the project at hand.



Naah, with 100% Grade A, full extract CBD oil... I sleep like a baby!
(and I don't mean I wake up every hour to pee )

'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
The following user(s) said Thank You: Moose1800

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.

1981 GPz1100 B1 Rstomod / ELR "Tribute" 19 Jan 2024 04:05 #894163

  • howardhb
  • howardhb's Avatar Topic Author
  • Offline
  • Sustaining Member
  • God, I trust
  • Posts: 435
  • Thank you received: 447

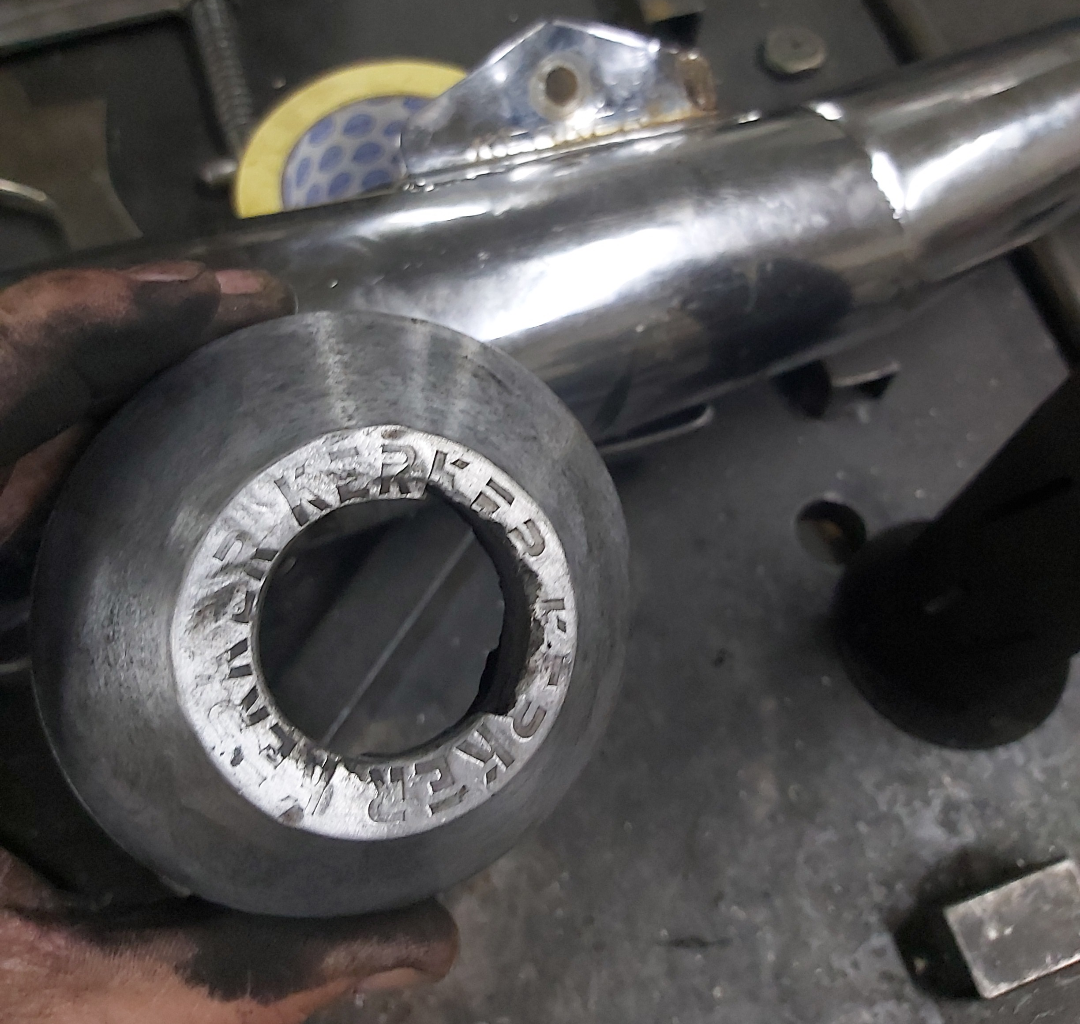

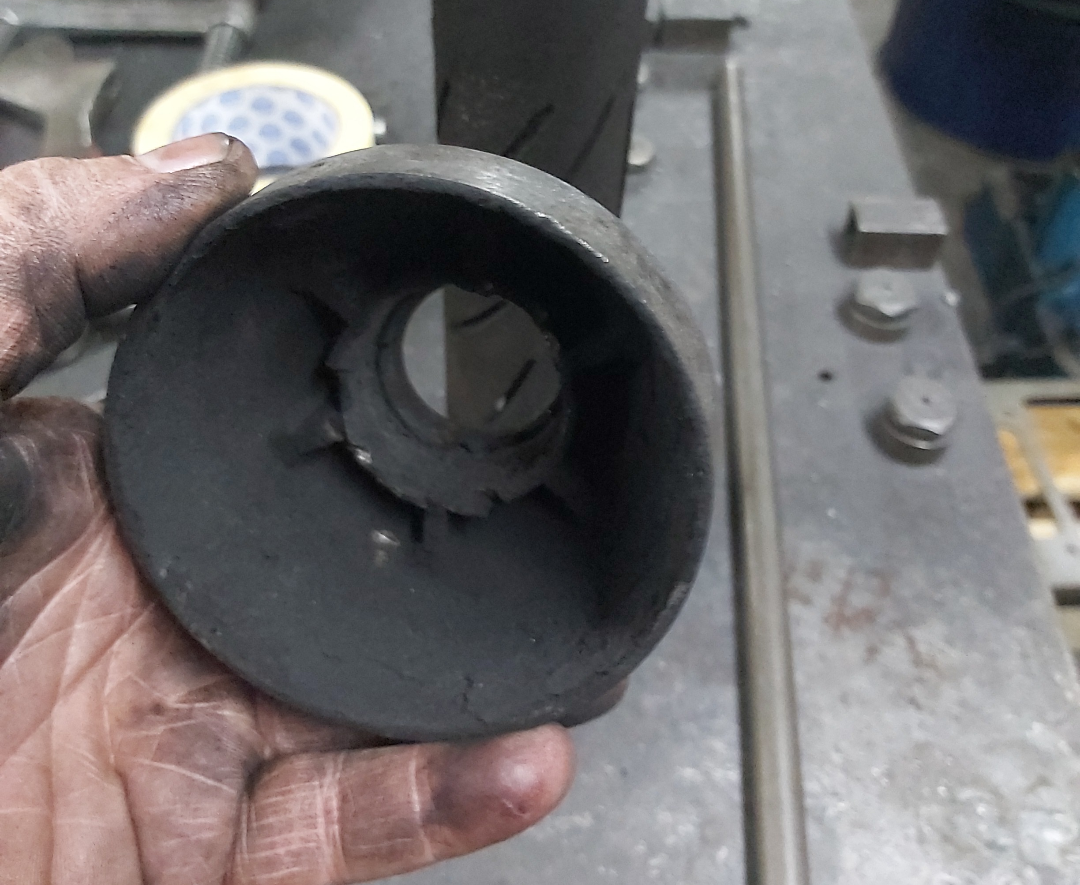

So, here is the end-cap for the Kerker megaphone, as received...





It had been hammered into the megaphone, and it took quite a bit of heat and force to remove it!

I machined a top-hat section of aluminium and tig welded it into the "crater" left by the philistine that tortured it.
(The casting was very porous, and I struggled to get a good welding "fill".

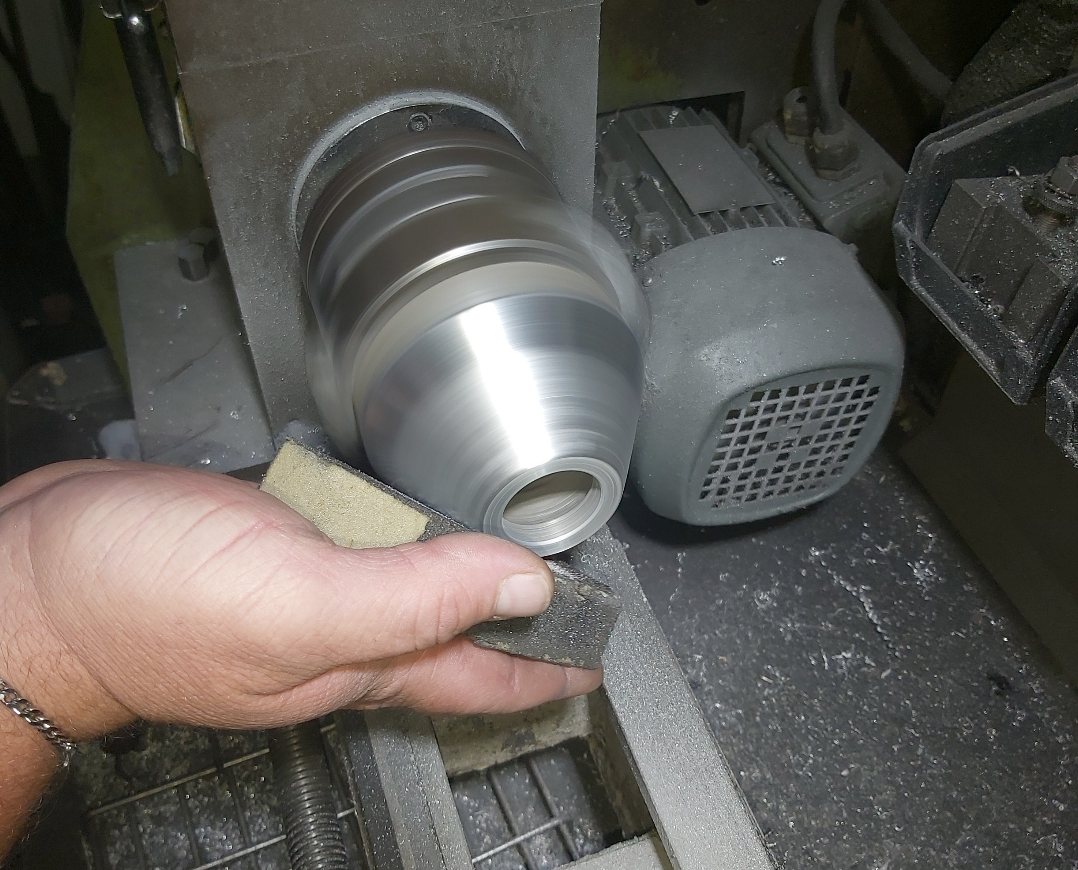

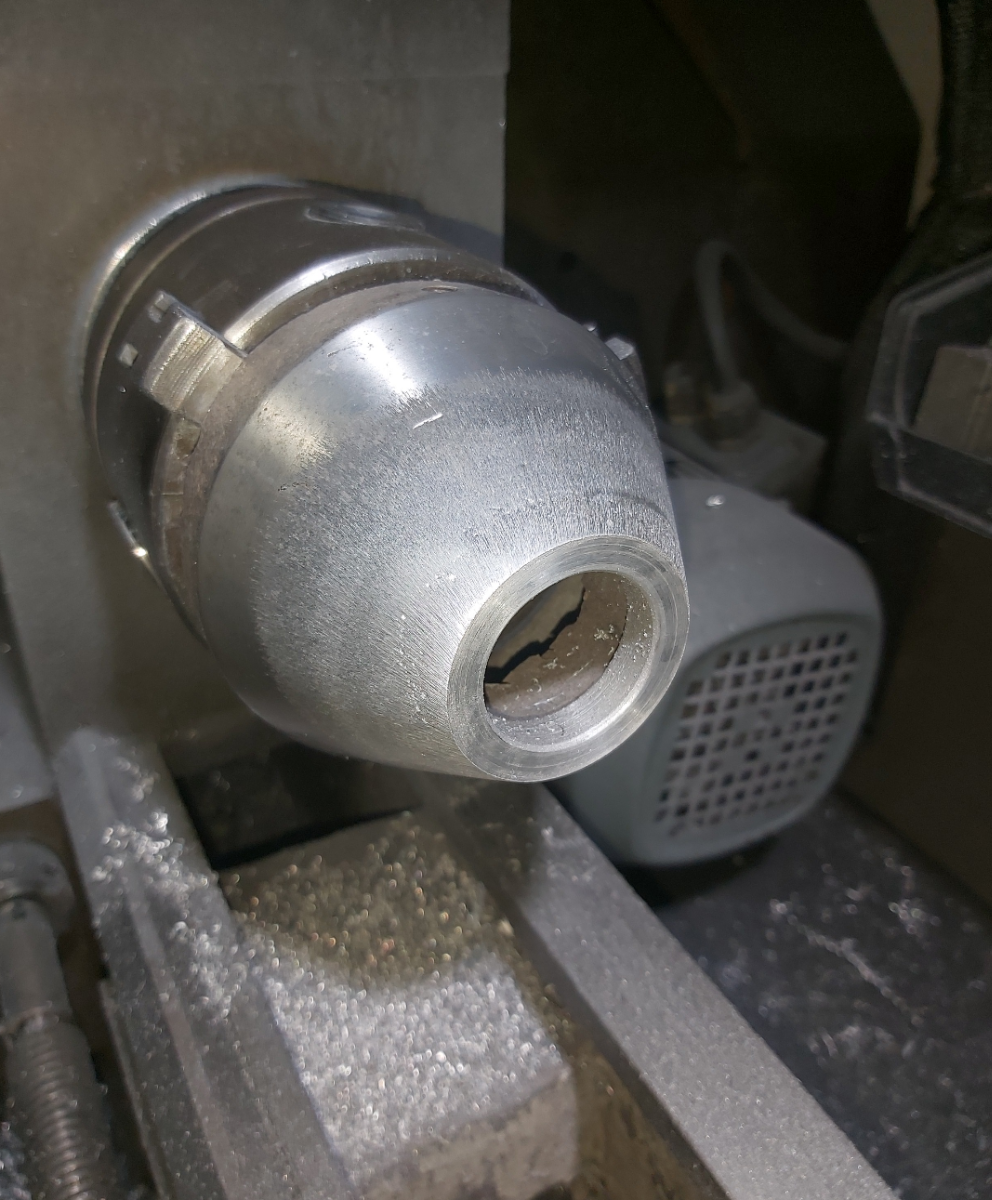

Then, on the lathe, I cleaned up the welding and polished it.

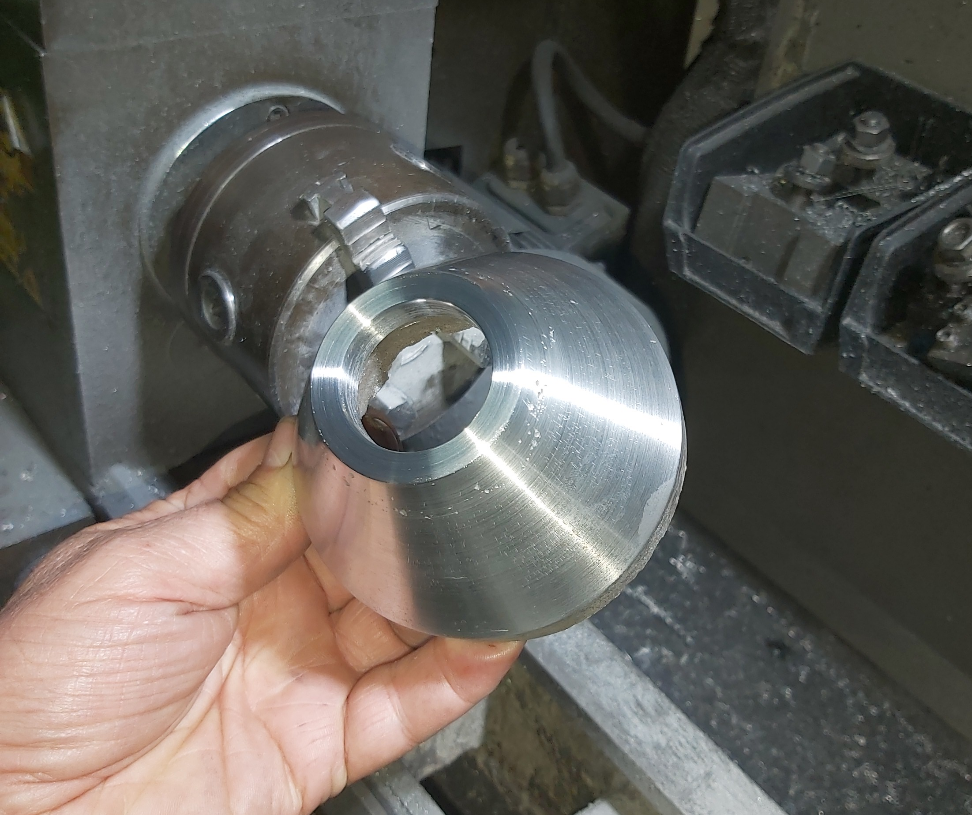

Looks ok now...

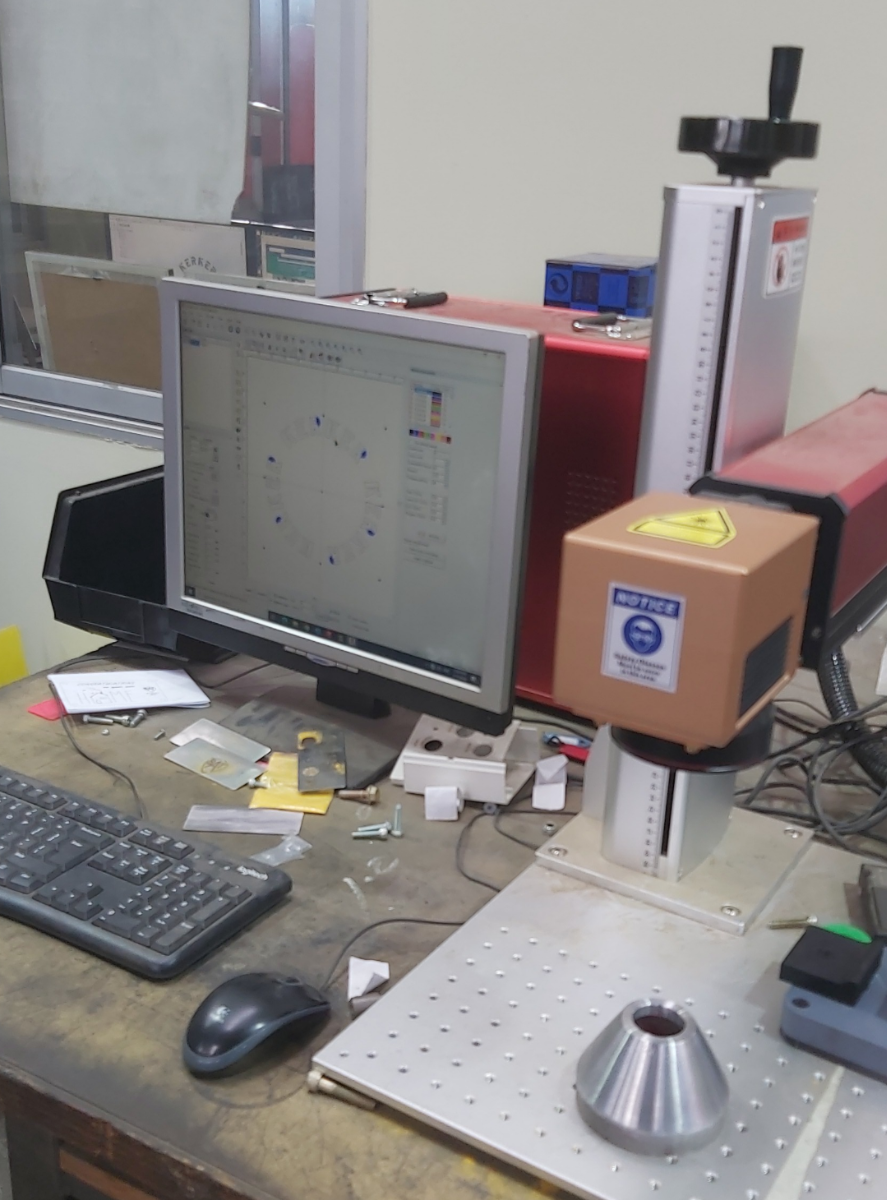

I am fortunate to have access to a small laser engraving machine at work.

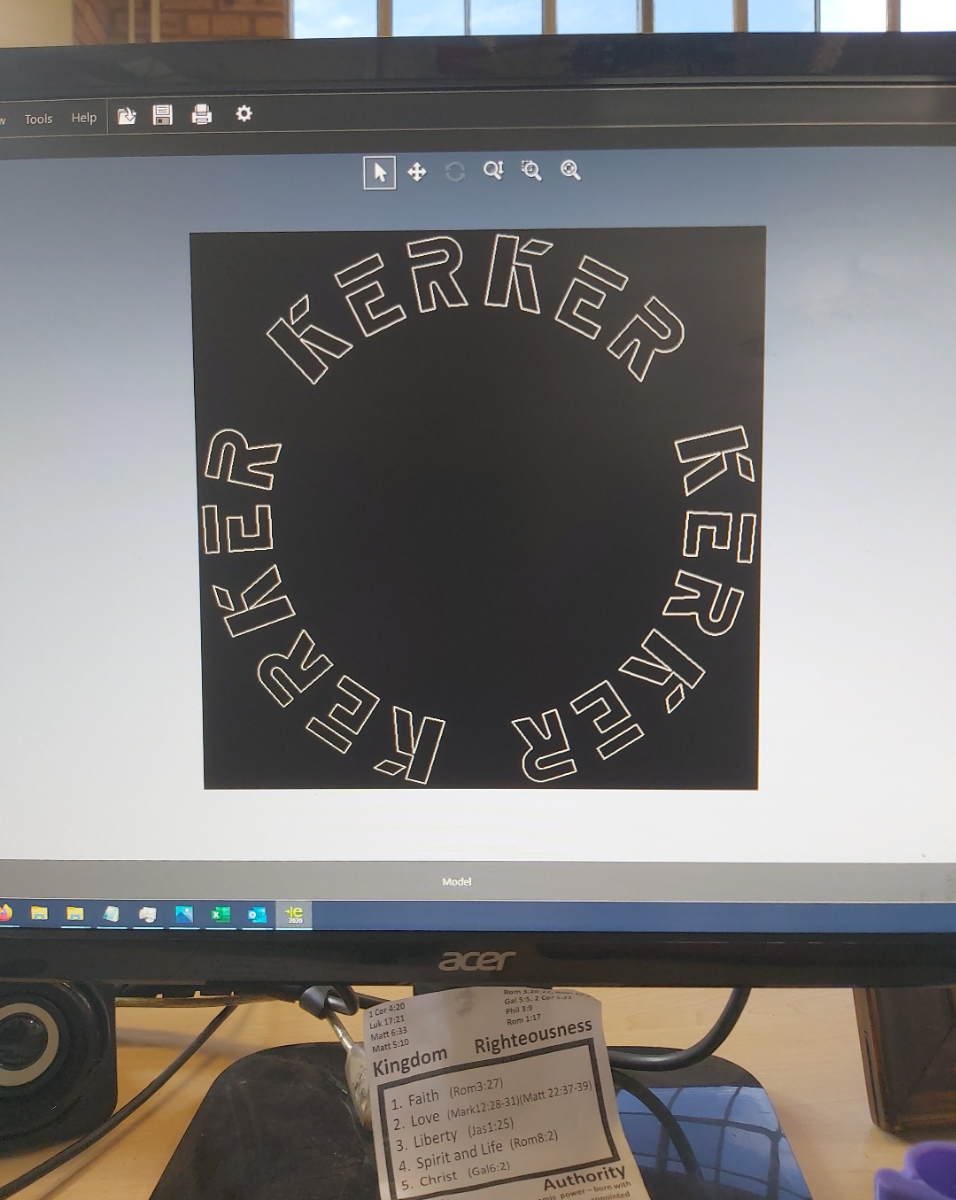

 I made a circular "Kerker" text template:

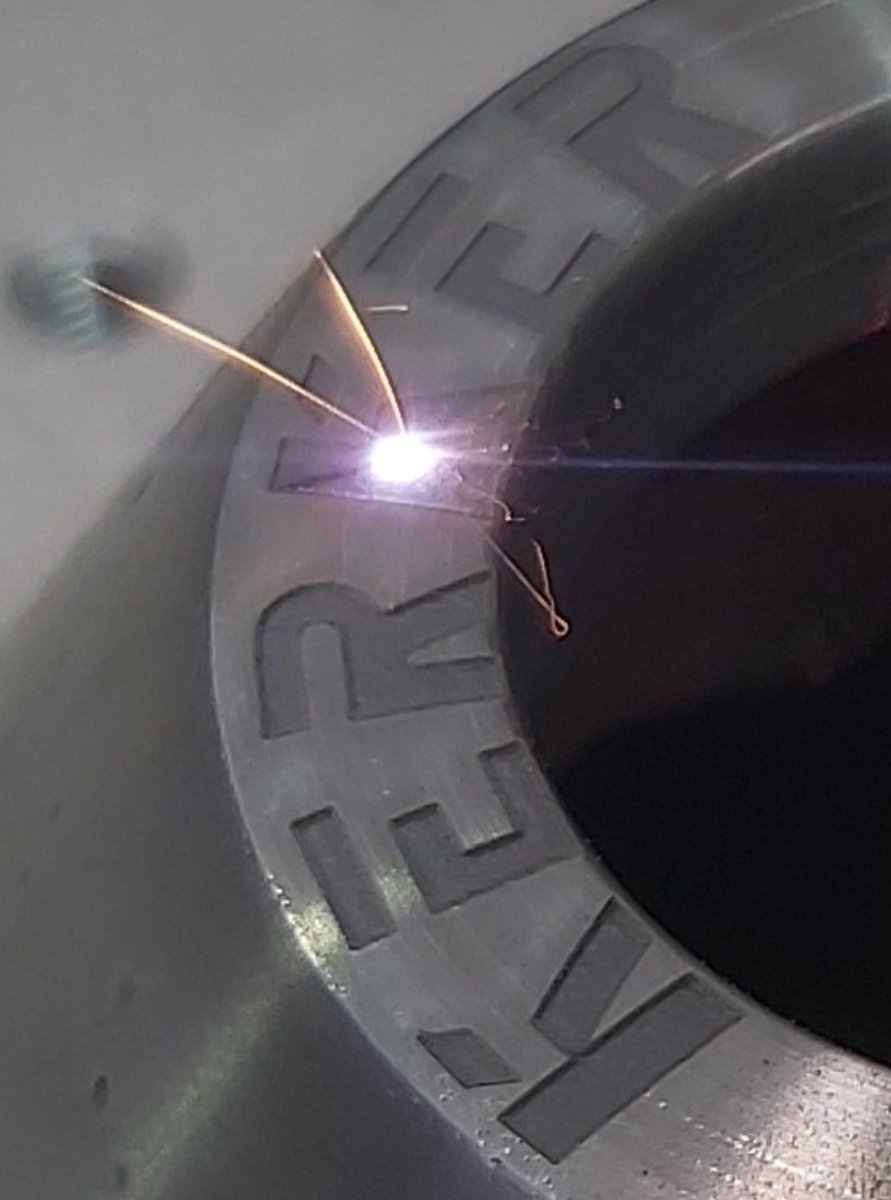

The engraving process "erodes" the material with concentrated light / heat.

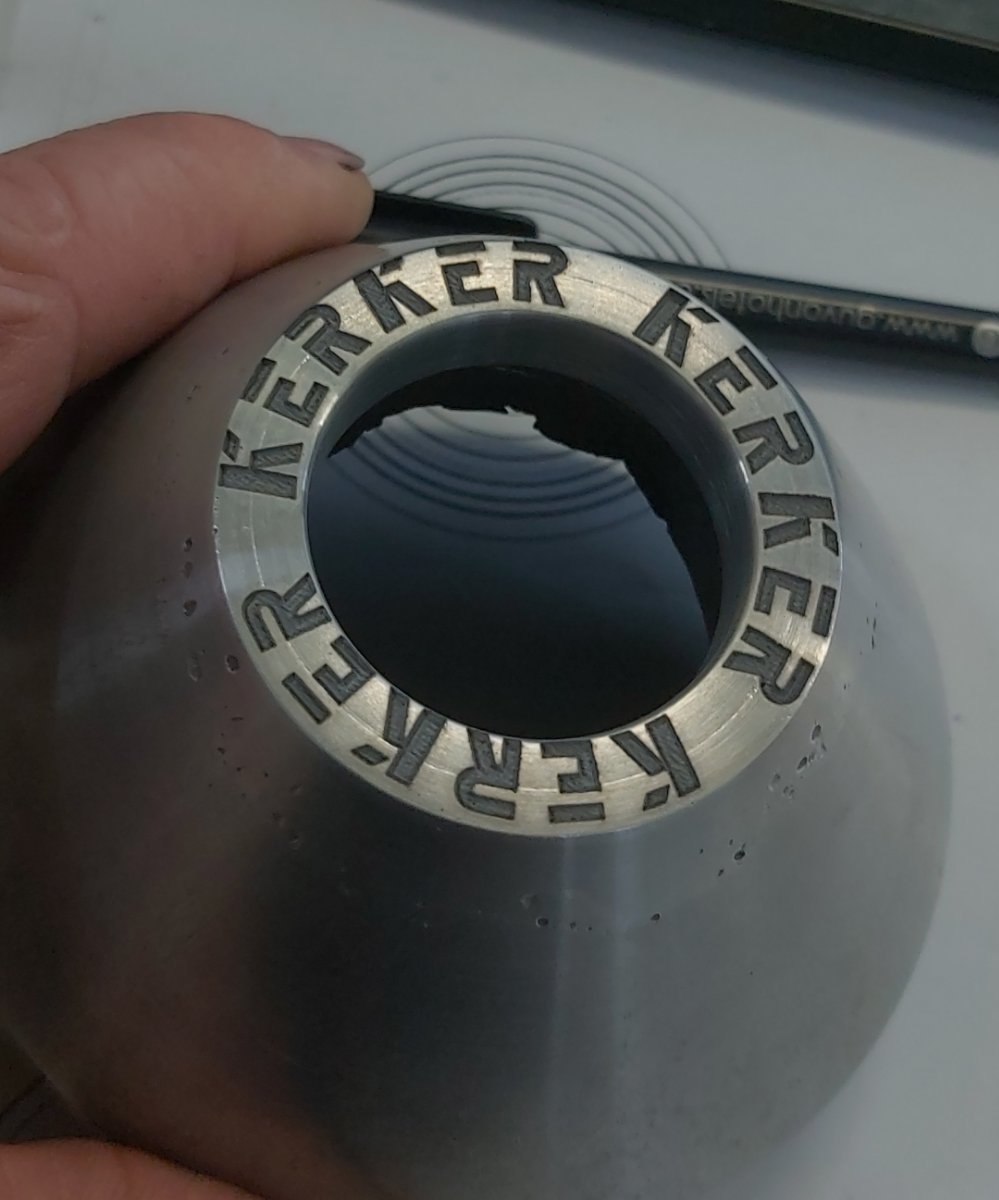

I repeated the process 4 times, to achieve a letter depth of 0.5mm.
I am happy with the result, and, to quote Allen Millyard: "I am well pleased with that!”



It will be painted with high heat mat black paint ...

H.
'81 GPz 550 D1 Click this link: www.kzrider.com/gallery/kz-550/1981-gpz550d1-9094#joomimg
'81 GPz 1100 B1 ELR "Tribute" www.kzrider.com/forum/11-projects/617040-1981-gpz1100-b1-rst
'82 Yamaha YB100 Fizzie
'79 Suzuki GT200 X5 TWO STROKE TWIN - SMOKER!
Attachments:
The following user(s) said Thank You: Rolf1976_KZ900

Please Log in or Create an account to join the conversation.

Last edit: by howardhb.
