KZ1000A1 Spare Parts Project 28 Dec 2021 08:15 #859712

  • BCScott
  • BCScott's Avatar
  • Offline
  • Sustaining Member
  • Posts: 207
  • Thank you received: 76
The hook is for locking a helmet under the seat.
Back in the saddle and loving it! KZ1000A1
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 28 Dec 2021 09:29 #859718

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1154
  • Thank you received: 419

Can anyone tell me what these parts are?

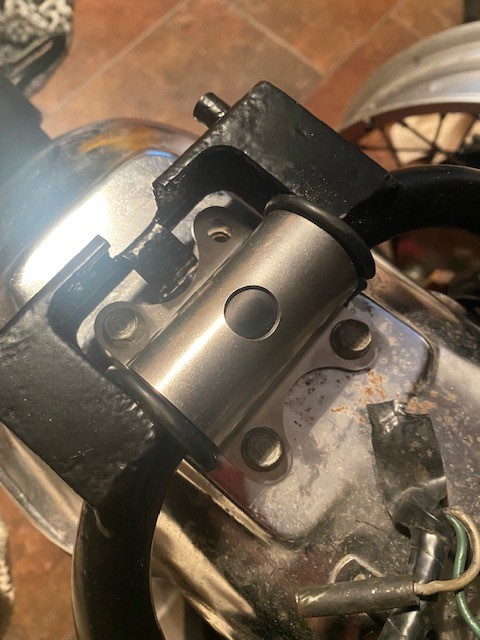

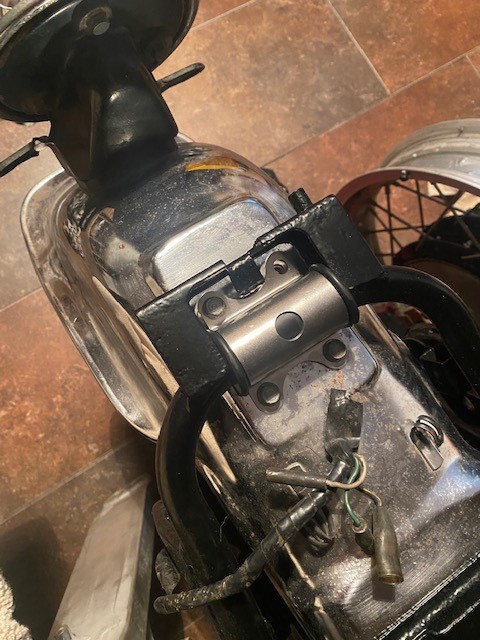

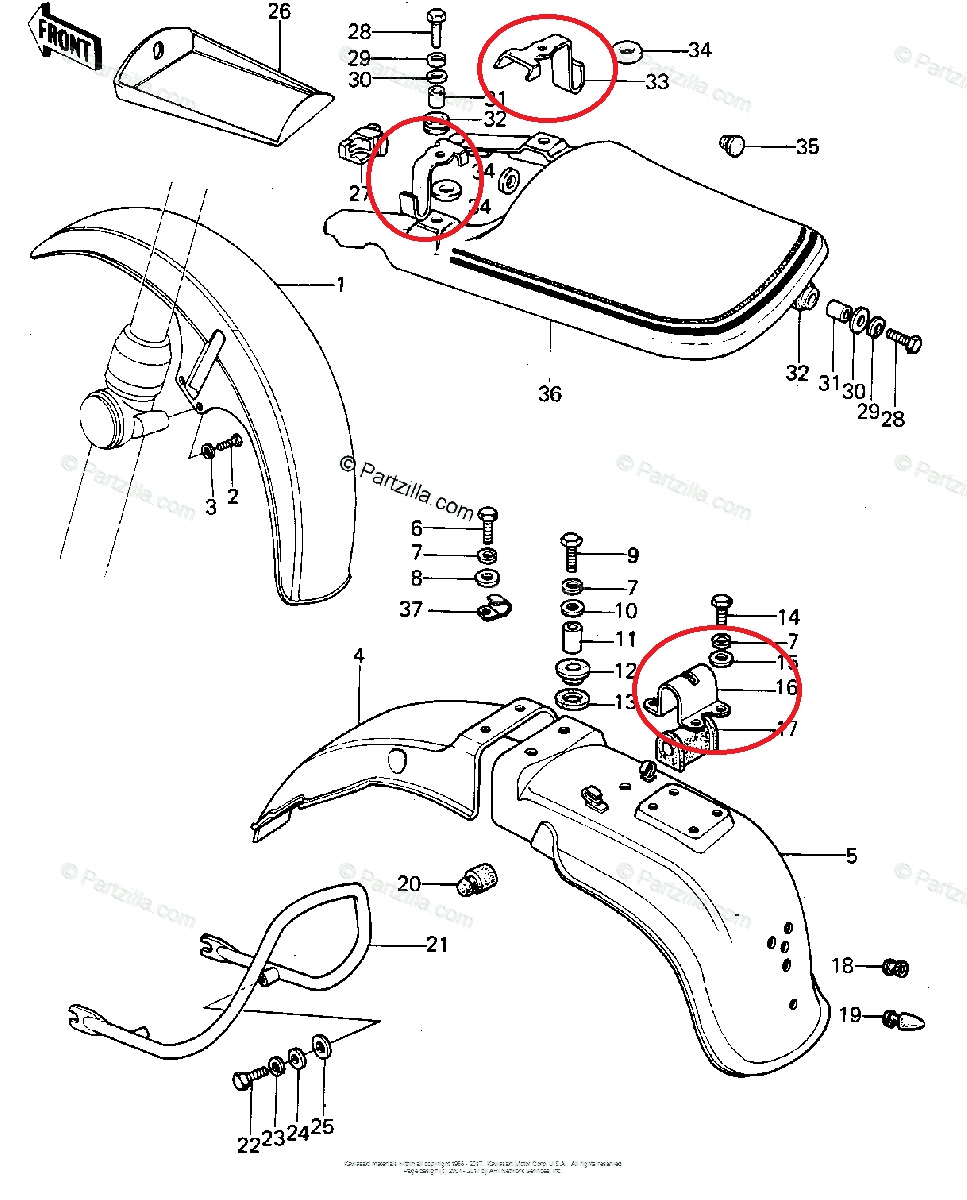

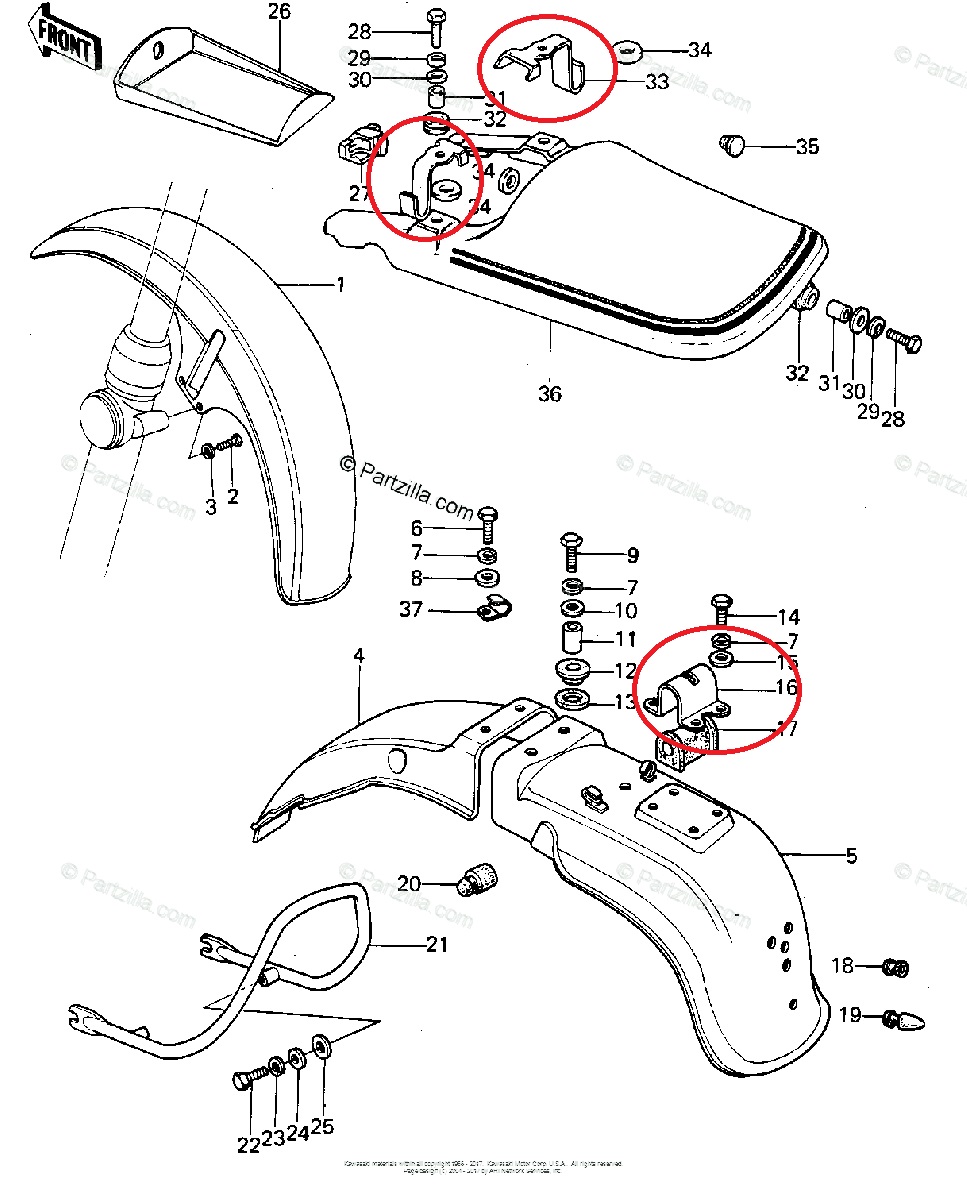

The flat plate mounts in from of the battery box and helps to support the airbox.  The hump piece is part of the rear fender mount.  And the small piece looks like maybe it's a helmet hook where someone cut the hook off?



'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

Last edit: by DOHC.

KZ1000A1 Spare Parts Project 28 Dec 2021 09:32 #859719

  • kzstreetfighter71
  • kzstreetfighter71's Avatar
  • Offline
  • User
  • Atlantic West Coast
  • Posts: 835
  • Thank you received: 214

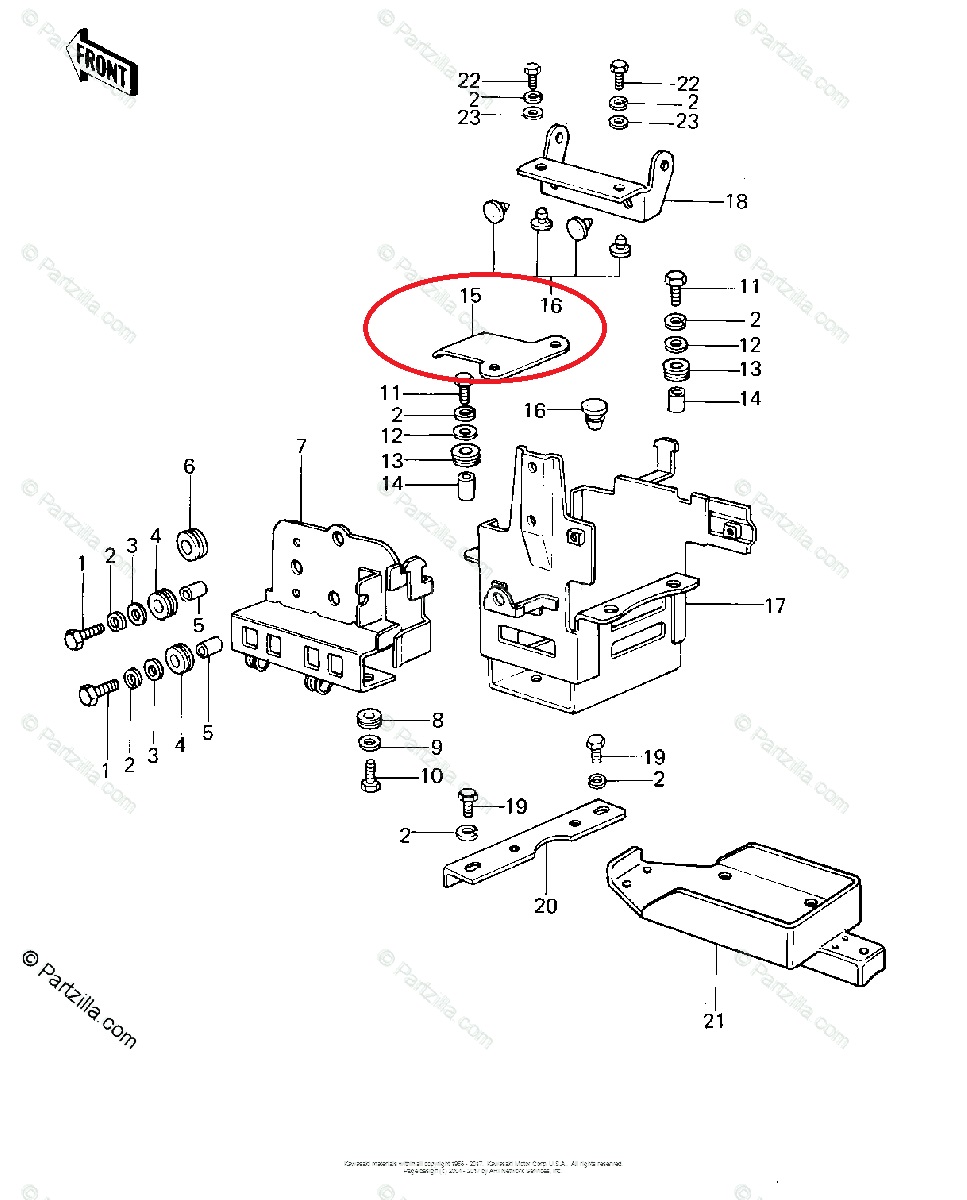

The stainless looking part with the 4 holes is to mount your rear mud guard, along with a big rubber part of the same shape with a flat bottom, you will need both , like this.
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)
Attachments:
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 28 Dec 2021 09:33 #859720

  • kzstreetfighter71
  • kzstreetfighter71's Avatar
  • Offline
  • User
  • Atlantic West Coast
  • Posts: 835
  • Thank you received: 214
And DOHC beat me to the punch on the rest. :)
06 Gsf 1200 bandit, 08 Triumph tiger 1010
05 Yam xv1700 , 02 Hon shadow 1100
1975 Z1 (currently working on)
1977 Z1000 ( running and in storage)
1978 Z1000 (currently working on)
1978 Z1r "skinny tank" (currently working on)
1978 Z1r "fat tank (gathering parts)
1979 z1000st (currently working on)

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 28 Dec 2021 10:22 #859721

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 868
  • Thank you received: 207
Thanks guys. I'm pretty sure Jim's right about the helmet hook. I'll have a look tomorrow, I imagine that the hook broke off - can't see anyone going to the trouble of cutting it off, pretty sure it'd just end up in the bin if it wasn't wanted...

Looks like I'm missing part number 18 in the battery box diagram. CMS doesn't list the part - any idea what part number it is and what it's for?

Please Log in or Create an account to join the conversation.

KZ1000A1 Spare Parts Project 28 Dec 2021 10:40 #859722

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1154
  • Thank you received: 419

Looks like I'm missing part number 18 in the battery box diagram. CMS doesn't list the part - any idea what part number it is and what it's for?

That part acts as a clamp to hold the battery in place.  I think that part is common to all of the 77-80 KZ1000?

www.partzilla.com/product/kawasaki/32100-100

ebay.com/itm/185205531122
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

Last edit: by DOHC.

KZ1000A1 Spare Parts Project 28 Dec 2021 11:07 #859725

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 868
  • Thank you received: 207
Interesting - it's not in the parts list on CMS but is in the diagram. The part you linked is only used on the A3 and A3A (in the list it says 77 A1 but in brackets it specifies the diagram for the 79-80 models). Maybe I don't have to search the garage after all

Anyone have any photos of where the tool case goes? Didn't have one on the bike but you can get replika ones pretty cheap so might be worth it.

Please Log in or Create an account to join the conversation.

Last edit: by calum.

KZ1000A1 Spare Parts Project 28 Dec 2021 12:34 #859728

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1154
  • Thank you received: 419

Interesting - it's not in the parts list on CMS but is in the diagram.




Yeah, the same is true for Partzilla for the '77.  The diagram shows #18, but that part is not in the list.

www.partzilla.com/catalog/kawasaki/motor...-case-77-78-a1-a2-a2

The current database has a lot of errors and issues.  The old Kawasaki hosted one was really good.  I miss it.  I'm guessing the same part was used from '77 to '80.  It looks the same in the diagram.

Anyone have any photos of where the tool case goes? Didn't have one on the bike but you can get replika ones pretty cheap so might be worth it.

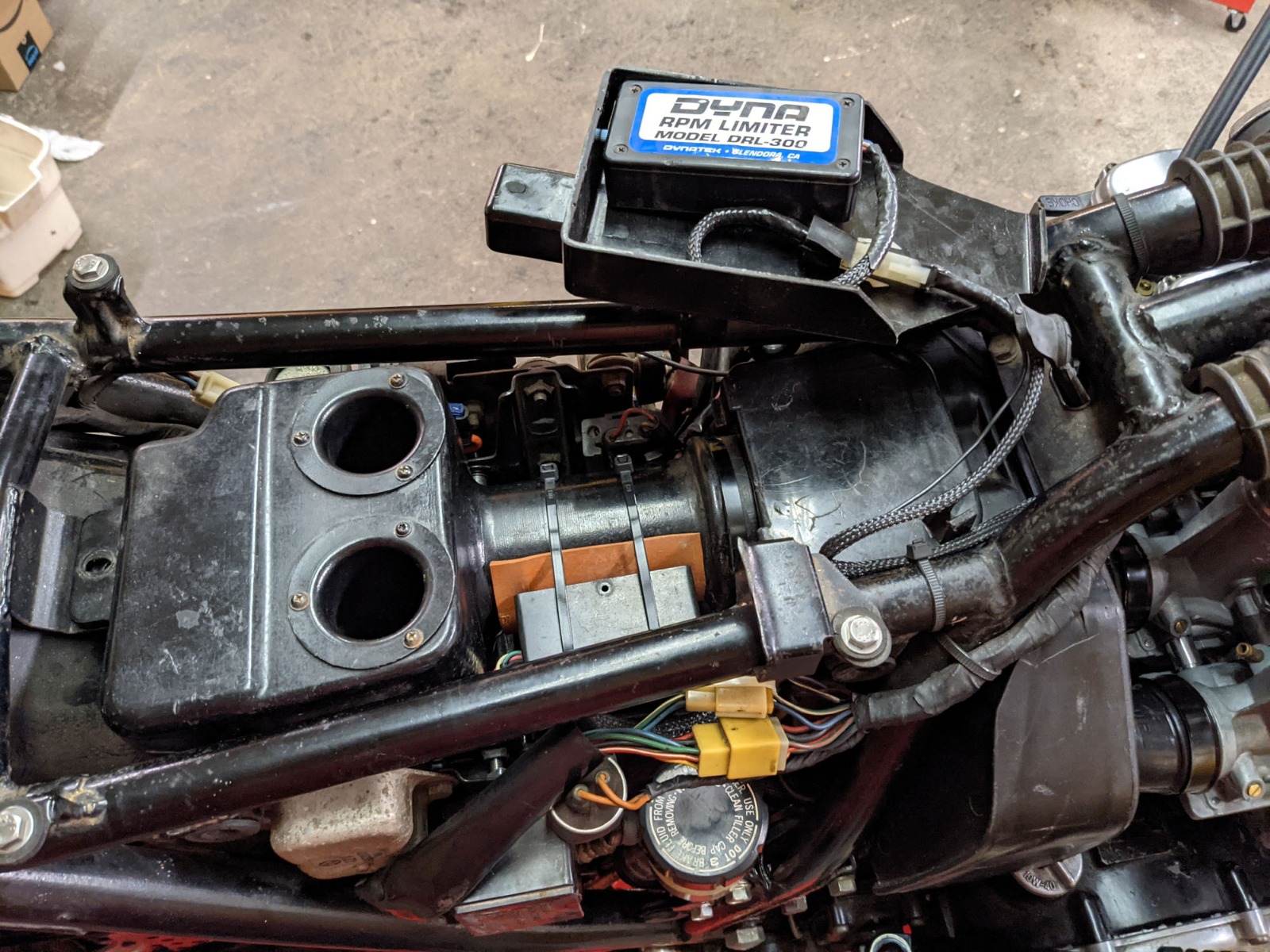

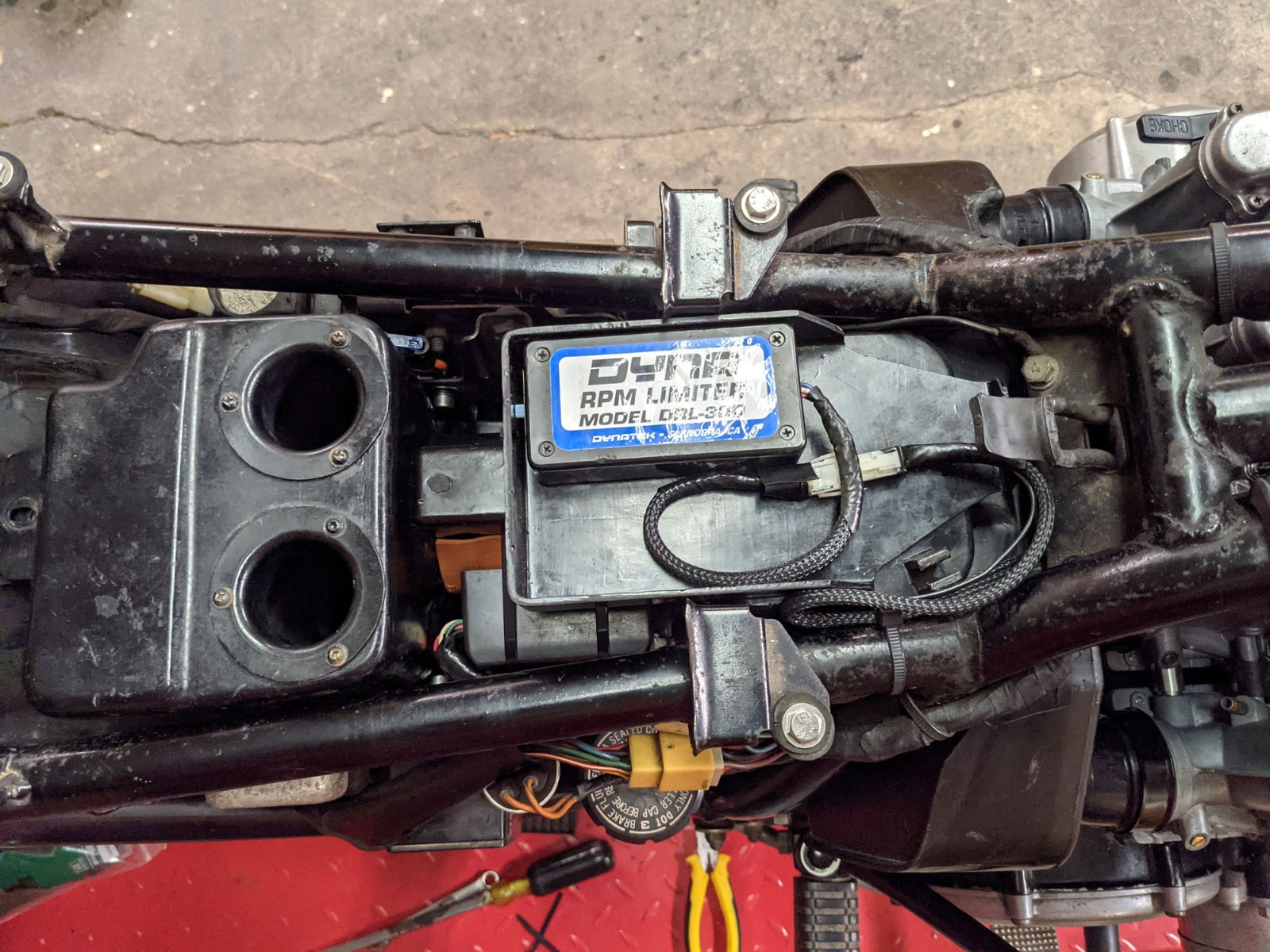

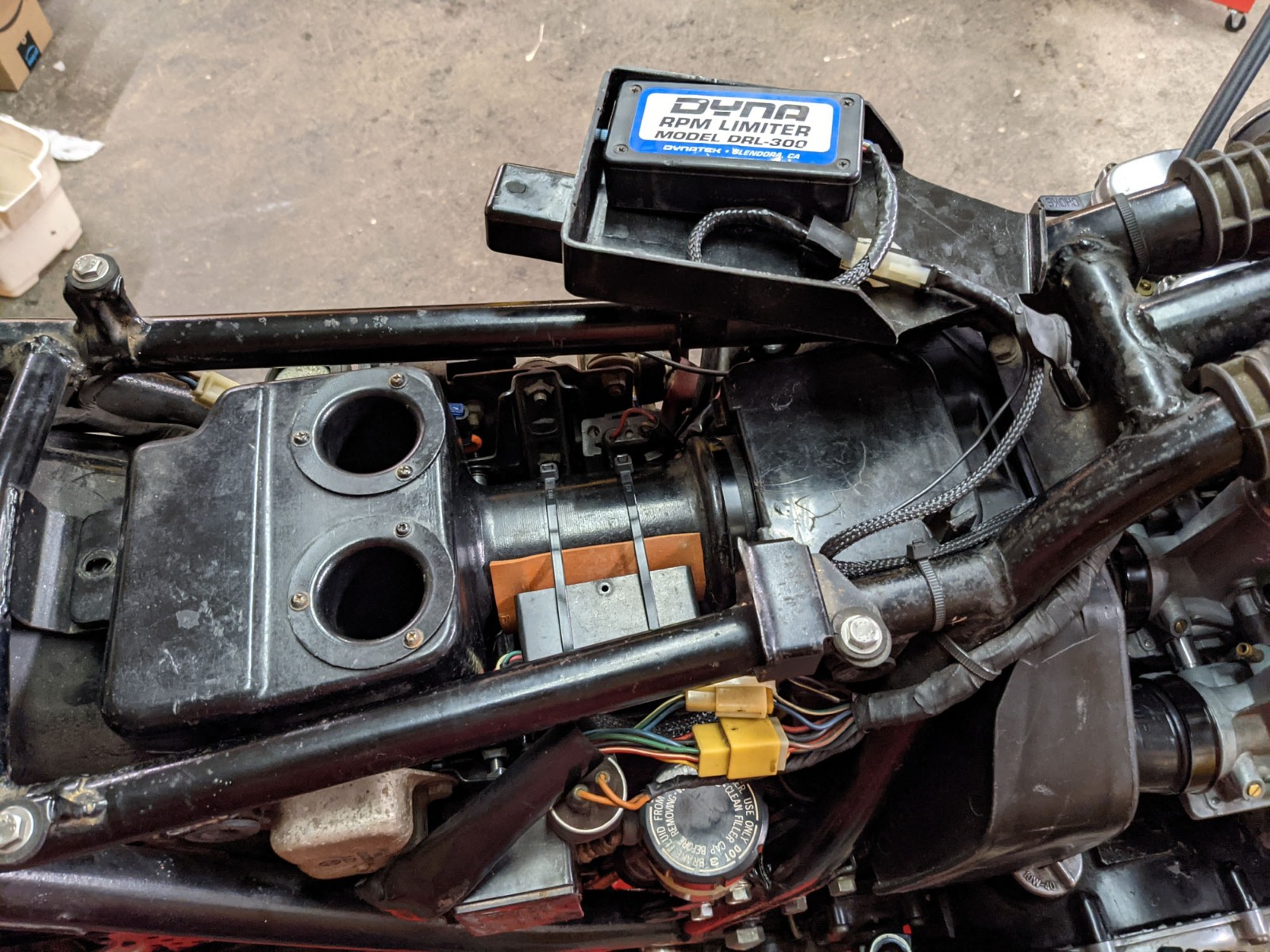

The tool case rests on top of the air box filter cover and silencer tube.  It's not really secured to anything.  Do you plan to run the OE air box?


'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:
The following user(s) said Thank You: calum

Please Log in or Create an account to join the conversation.

Last edit: by DOHC.

KZ1000A1 Spare Parts Project 28 Dec 2021 12:49 #859730

  • calum
  • calum's Avatar Topic Author
  • Offline
  • User
  • Posts: 868
  • Thank you received: 207
OK, then I'll get hold of a bracket for the battery. Running the stock air box and managed to find a silencer a while back.

Please Log in or Create an account to join the conversation.

Last edit: by calum.

KZ1000A1 Spare Parts Project 28 Dec 2021 16:57 #859743

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3932
  • Thank you received: 1217

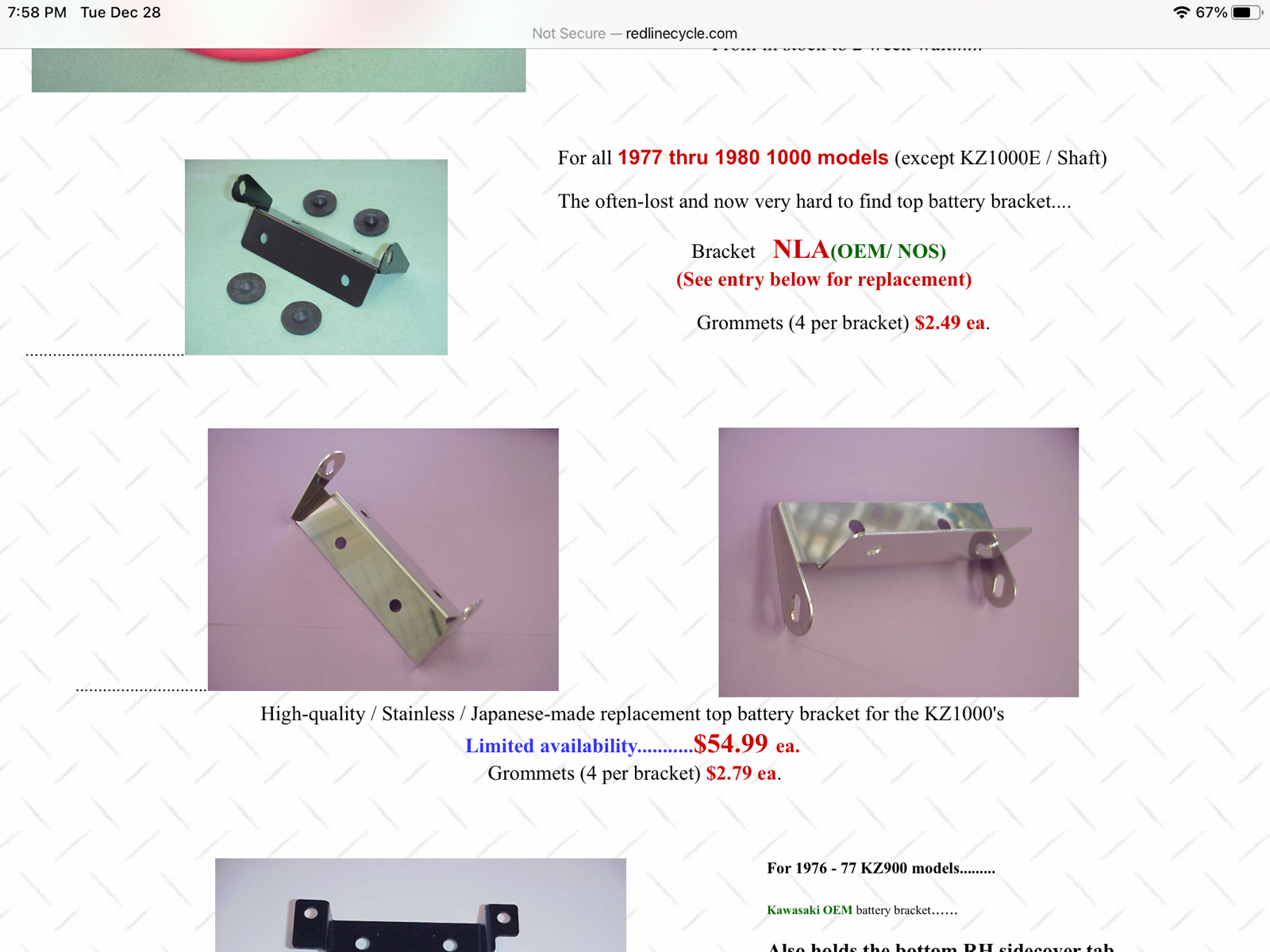

Here’s one
